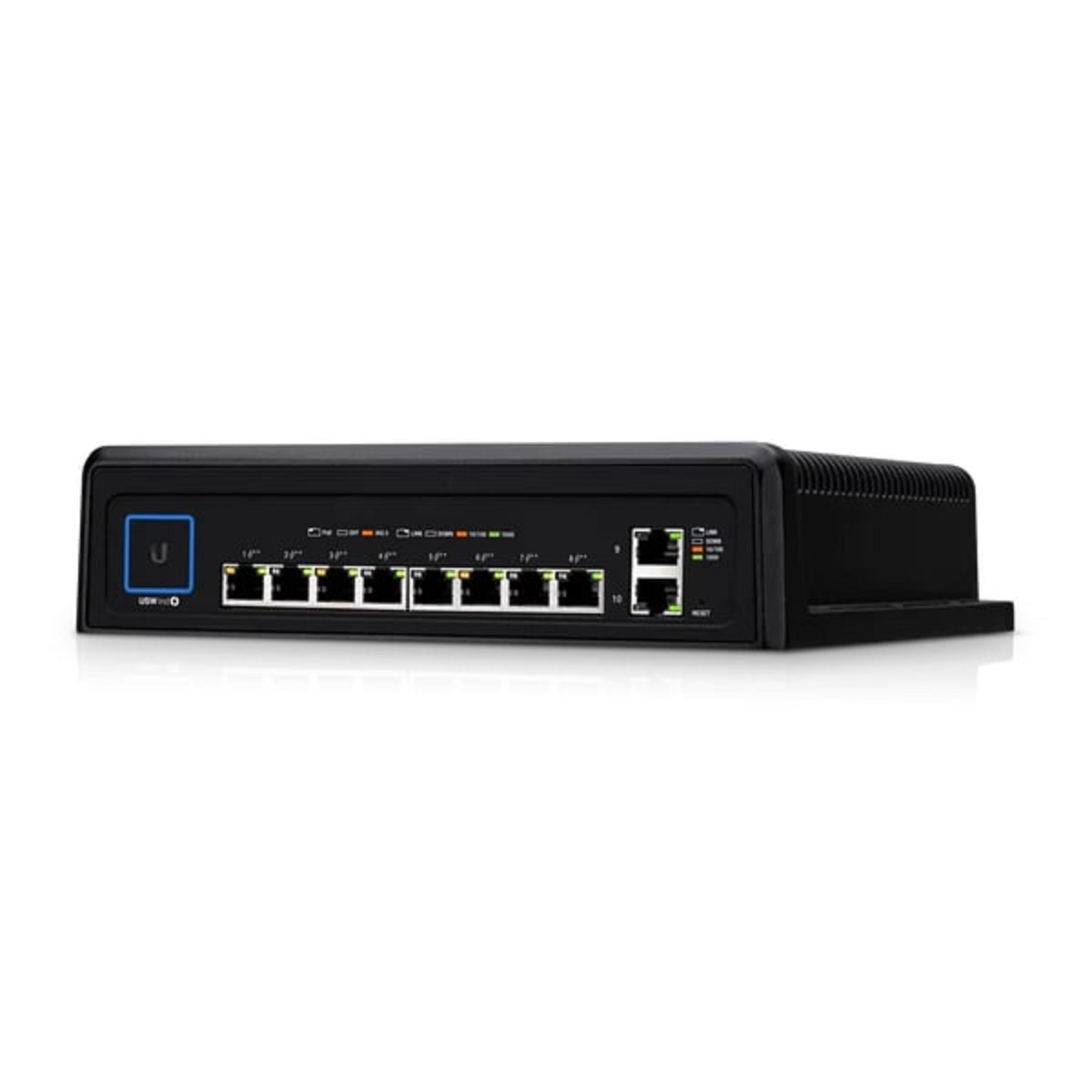

Ubiquiti USW-Industrial UniFi 8-Port Cloud Managed Gigabit PoE++ Switch (430W)

Ubiquiti USW-Industrial UniFi Managed PoE++ 8 Port Gigabit Switch

Ubiquiti USW-Industrial UniFi Managed PoE++ 8 Port Gigabit Switch,part of the Ubiquiti UniFi Enterprise System, can expand and power your network.

The USW-Industrial is a configurable Gigabit Layer 2 switch with auto-sensing, high-power 802.bt PoE++.

Key Features

• Eight (8) 802.3bt PoE++ ports.
• Two (2) Gigabit Ethernet ports.
• Cloud Managed network controller.
• Durable design.

Compatible Products

The USW-Industrial powers a variety of products, including the UniFi AC Mesh AP, UniFi Video Camera G4 Pro, and multiple UniFi LED Panels, which use 802.3at PoE+.

Seamless Integration

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralised interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Switching performance

The USW-Industrial offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

PoE++ flexibility

The USW-Industrial features eight (8) Gigabit RJ45 ports to deliver robust performance and intelligent switching for enterprise networks.

Eight (8) of those ports offer 802.3bt PoE++ to provide up to 60W of power (per port) to your high-power PoE devices.

Products requiring 802.3af or 802.3at PoE, such as UniFi LED Panels, are also supported.

Ruggedised industrial design

The fanless USW-Industrial is plenum-rated so it can be installed in a horizontal or vertical orientation in plenum spaces.

Its die-cast aluminium enclosure has a black, powder coated finish. This provides greater resistance to corrosion and durability in environments with extreme temperature variations.

Scalable UniFi network controller

Management capabilities

The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organised for a simplified, yet powerful, interface.

Network overview

From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.

Deep Packet Inspection

Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed analytics

The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting.

Advanced search and sorting capabilities make network management more efficient.

Multi-site management

A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers.

Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Switch configuration

You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:

• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1x control and RADIUS VLAN
• Debug terminal option for command-line interface

Switch port status

You can also view status information for each port:

• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting

Software features

The UniFi Network Controller software offers the following features:

• Centralized configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable
• 802.1X (RADIUS) authentication and dynamic VLAN

Specifications

Standard Warranty: 1-Year
