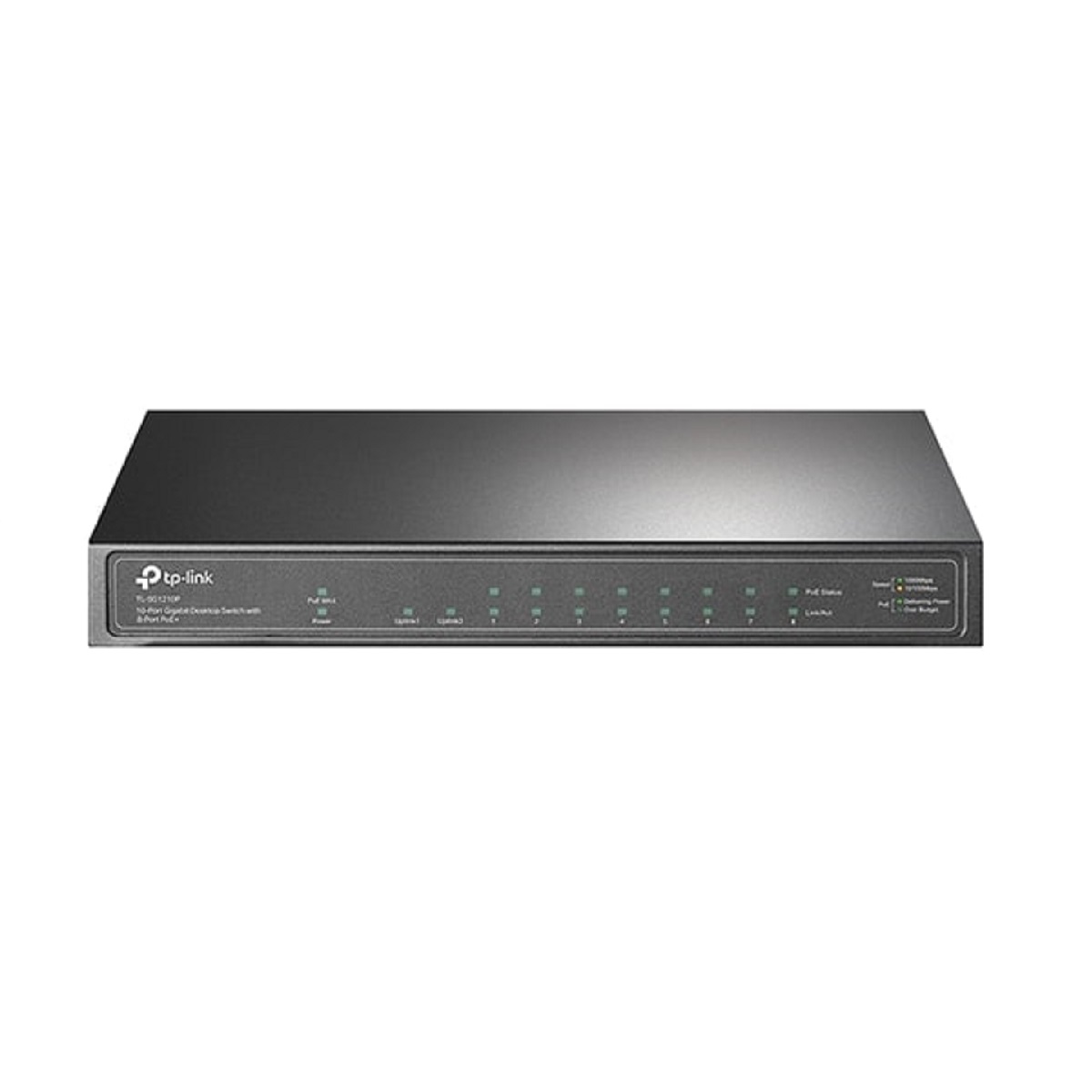

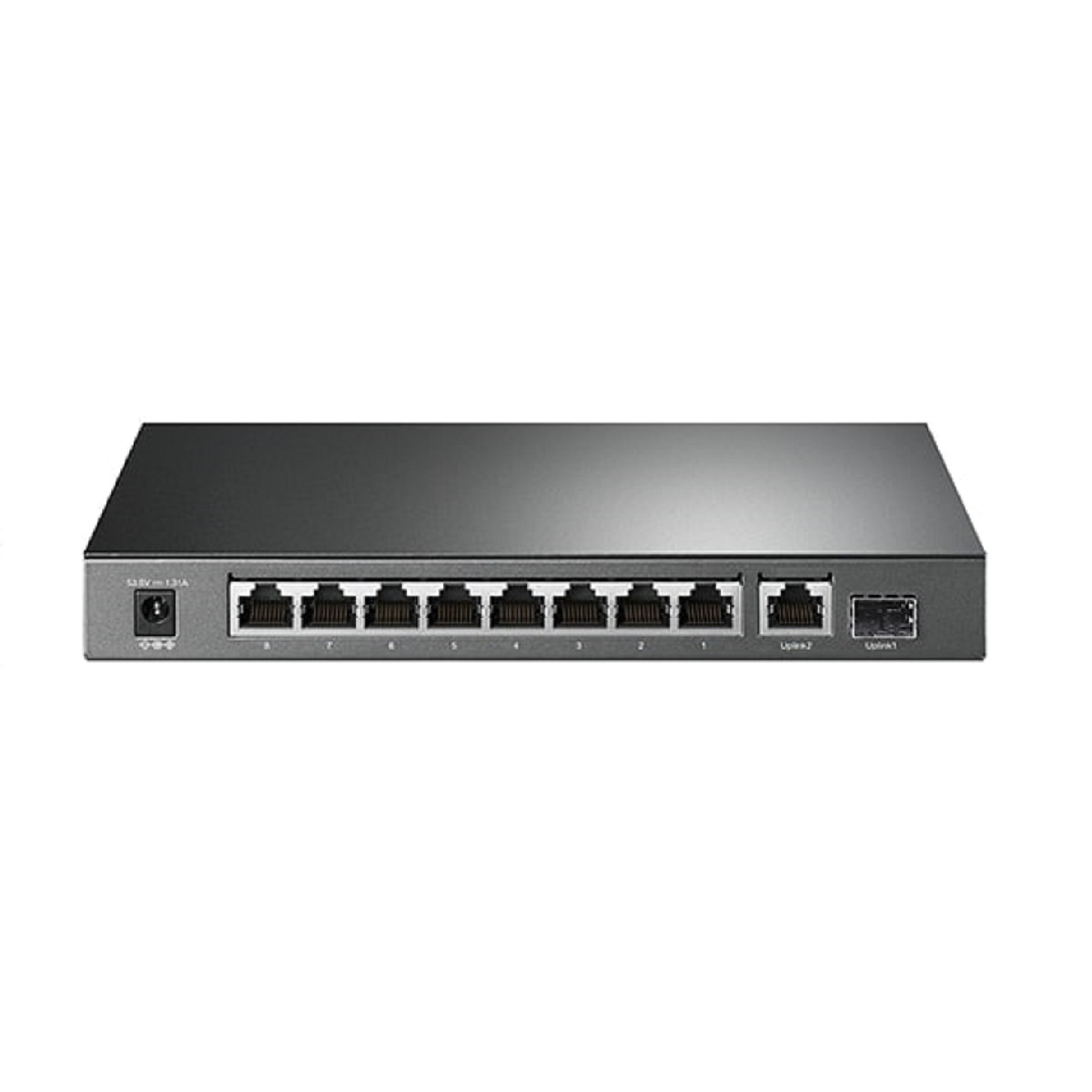

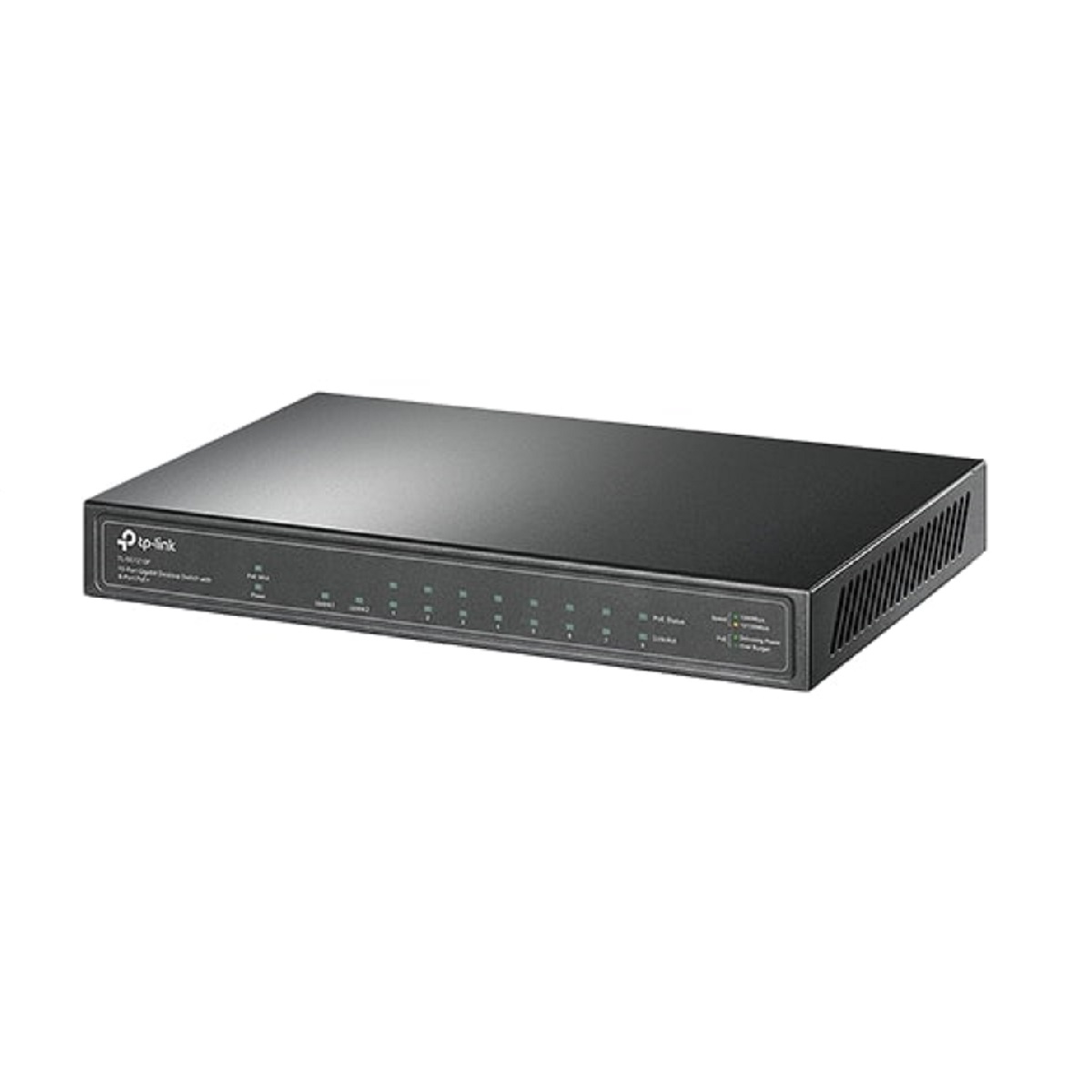

TP-Link TL-SG1210P Unmanaged Desktop PoE+ 8 Port Gigabit Switch
£90.27 inc.VAT / £75.23 exc.VAT
TP-Link TL-SG1210P 8-Port Unmanaged Desktop Gigabit PoE+ Switch w/ 1 x 1GbE RJ45 Port & 1 x 1GbE SFP Port (63W)
TP-Link TL-SG1210P Unmanaged Desktop PoE+ 8 Port Gigabit Switch provides nine (9) 10/100/1000Mbps RJ45 ports and one (1) Gigabit SFP port.
Out of stock
TP-Link TL-SG1210P 8-Port Unmanaged Desktop Gigabit PoE+ Switch w/ 1 x 1GbE RJ45 Port & 1 x 1GbE SFP Port (63W)
TP-Link TL-SG1210P Unmanaged Desktop PoE+ 8 Port Gigabit Switch
TP-Link TL-SG1210P Unmanaged Desktop PoE+ 8 Port Gigabit Switch provides nine (9) 10/100/1000Mbps RJ45 ports and one (1) Gigabit SFP port. Port 1 to port 8 of the switch support IEEE 802.3af/at compliant PDs with up to 30 W for each PoE port and total PoE power budget of 63 W.
The TL-SG1210P is an unmanaged switch with desktop design, and outstanding performance and quality, which is a great selection for expanding your home or office network.
Gigabit Switch TL-SG1210P Unmanaged Desktop PoE+ 8 Port
Key Features
- Nine (9) 10/100/1000Mbps RJ45 ports.
- One (1) Gigabit SFP port.
- Eight (8) PoE+ ports to transfer data and power on one single cable.
- Works with IEEE 802.3af/at compliant PDs, to expand home and office networks.
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports.
- Easy to use, with no configuration and installation needed.
Power over Ethernet
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Intelligent power management
When total power consumption exceeds 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Advanced functions for higher performance
- Qos
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free. - IGMP Snooping
IGMP Snooping optimises multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Sturdy metal casing
Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Its fanless design ensures quiet operation.
Specifications
HARDWARE FEATURES
Interface
- 8 x PoE+ 10/100/1000Mbps RJ45 Ports
- 1 x 10/100/1000Mbps RJ45 Port
- 1 x Gigabit SFP Slot
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-X MMF, SMF
Fan Quantity
- Fanless
Physical Security Lock
- Yes
Power Supply
- External Power Adapter(Output: 53.5VDC / 1.31A)
Backup Bandwidth
- 20 Gbps
PoE+ Ports(RJ45)
- Standard: 802.3at/802.3af compliant
- PoE Ports: Port1- Port 8
- PoE Power Budget: 63W
Mac Address Table
- 4K
Dimensions ( W x D x H )
- 209 × 126 × 26 mm
Max Power Consumption
- 7.11 W (220/50Hz. no PD connected)
- 78.13 W (220/50Hz. with 63W PD connected)
Max Heat Dissipation
- 24.25 BTU/h (no PD connected)
- 266.42 BTU/h (with 63W PD connected)
SOFTWARE FEATURES
Advanced Features
- Compatible With IEEE 802.3af/at Compliant PDs
- EEE802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
Transmission Method
- Store-And-Forward
OTHERS
Certification
- CE, FCC, RoHS
Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Package Contents
- 1 x TP-Link TL-SG1210P
- 1 x Power Adapter
- 1 x Installation Guide
Standard Warranty: 3-Years
