TP-Link TL-SG1008P Unmanaged Desktop PoE+ 8 Port Gigabit Switch
£65.66 inc.VAT / £54.72 exc.VAT
TP-Link TL-SG1008P 8-Port Unmanaged Desktop Gigabit PoE+ Switch (64W)
TP-Link TL-SG1008P Unmanaged Desktop PoE+ 8 Port Gigabit Switch is a professional High-Power 8-Port Gigabit Switch with four (4) PoE+ Ports.
Out of stock
TP-Link TL-SG1008P 8-Port Unmanaged Desktop Gigabit PoE+ Switch (64W)
TP-Link TL-SG1008P Unmanaged Desktop PoE+ 8 Port Gigabit Switch
TP-Link TL-SG1008P Unmanaged Desktop PoE+ 8 Port Gigabit Switch is a professional High-Power 8-Port Gigabit Switch with four (4) PoE+ Ports. This durable, plug-and-play switch provides QoS for traffic prioritization, as well as multicast optimization and intelligent power management.
Gigabit Switch TL-SG1008P Unmanaged Desktop PoE+ 8 Port
Key Features
- Eight (8) 10/100/1000 Mbps RJ45 ports.
- Four (4) PoE+ ports transfer data and power on individual cables.
- Works with IEEE 802.3af/at compliant PDs.
- Plug and Play, no configuration and installation required.
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
- Supports PoE power up to 30 W for each PoE port.
- Supports PoE power up to 64 W for all PoE ports.
Four PoE+ ports (64W budget)
Compliant with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 64 W PoE power budget for the four (4) PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Intelligent power management
When total power consumption exceeds 64 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced functions for higher performance
- QoS – For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free. - IGMP Snooping – Traffic Optimization for IPTV
IGMP Snooping optimises multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable metal casing
The interior components of the TL-SG1008P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, the TL-SG1008P delivers switching performance you can depend on.
- Compact desktop design
- Wall-mounting
- Fanless design
Specifications
Hardware Features
Interface

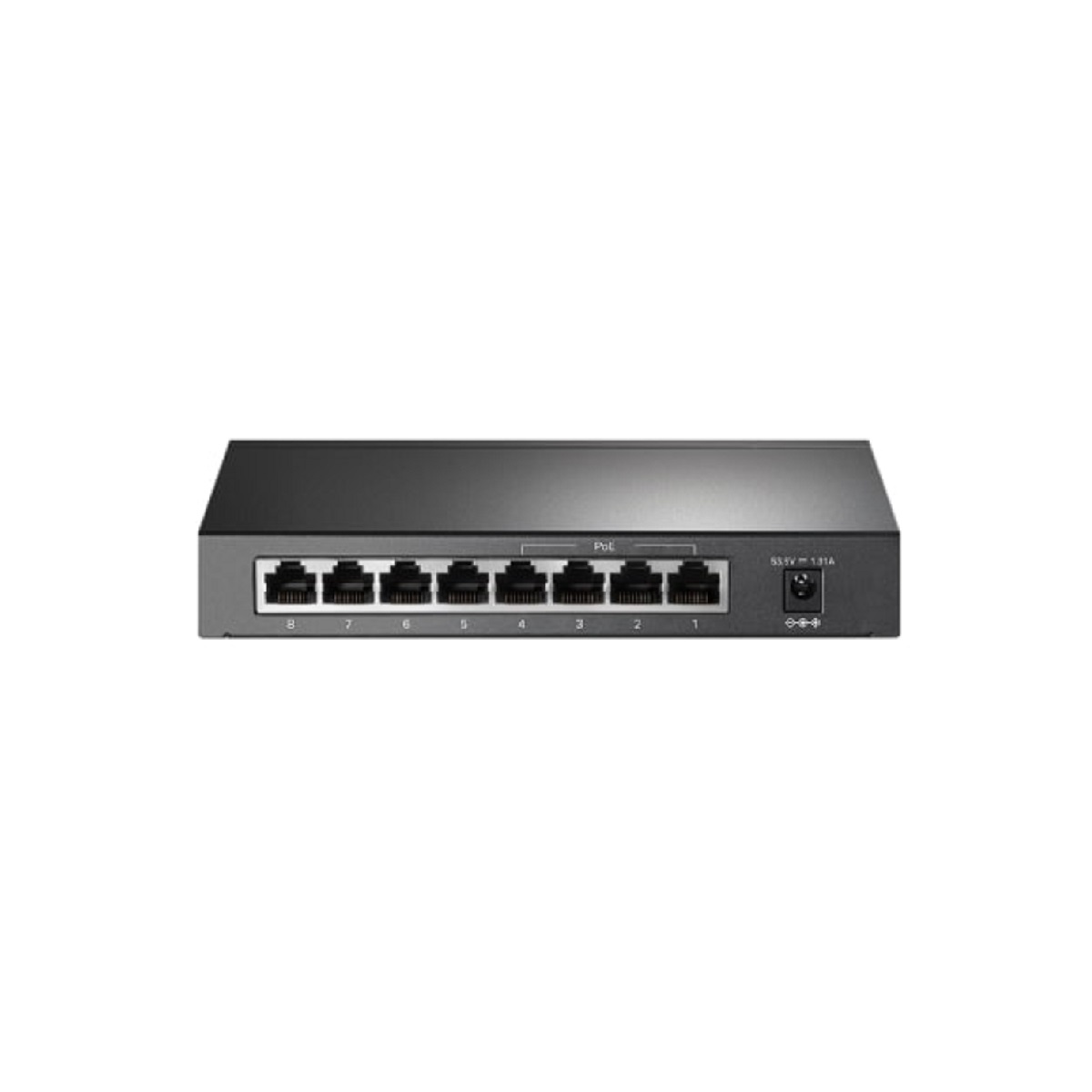

- 8 x 10/100/1000 Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
Fan Quantity
- Fanless
Physical Security Lock
- Yes
External Power Supply
- External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate
- 11.904 Mpps
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1–4
- Power Supply: 64 W
Mac Address Table
- 4K
Jumbo Frame
- 16 KB
Switching Capacity
- 16 Gbps
Dimensions (W x D x H)
- 171 x 98 x 27 mm (6.7 x 3.9 x 1.1 in.)
Max Power Consumption
- 5.39 W (220/50 Hz no PD connected)
- 75 W (220/50 Hz with 64 W PD connected)
Max Heat Dissipation
- 18.38 BTU/h (no PD connected)
- 225.75 BTU/h (with 64 W PD connected)
Software Features
Transmission Method
- Store-And-Forward
Advanced Functions
- Compatible With IEEE 802.3af/at Compliant PDs
- IGMP Snooping
- Mac Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control
- 802.1p/DSCP QoS
Other Specifications
Certification
- CE, FCC, RoHS
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10% – 90% RH non-condensing
- Storage Humidity: 5% – 90% RH non-condensing
Package Contents
- 1 x TL-SG1008P
- 1 x Power Adapter
- 1 x Installation Guide
Standard Warranty: Limited Lifetime
