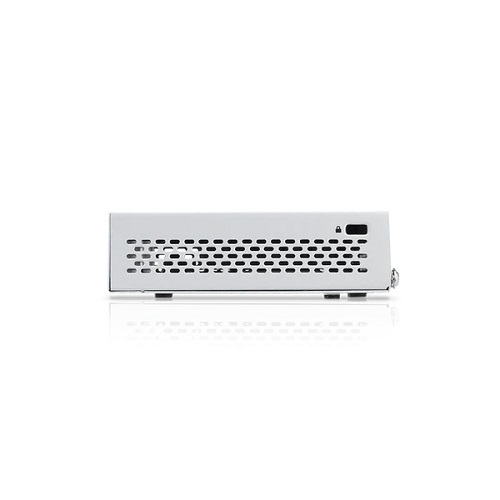

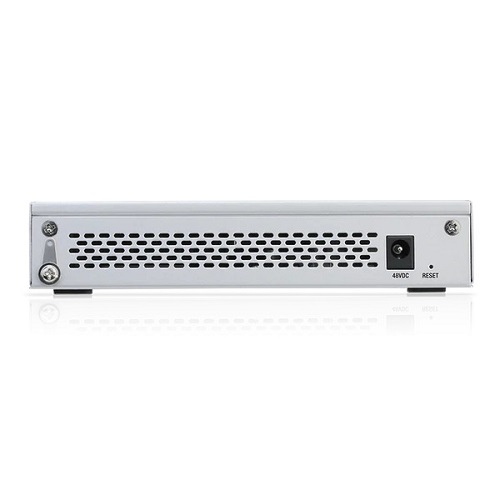

Ubiquiti UniFi Switch 8 Port – US-8 (Non-PoE)

Ubiquiti UniFi Switch 8 Port – US-8 (Non-PoE)

Ubiquiti UniFi Switch 8 Port – US-8 (Non-PoE) is a non-PoE 8 port gigabit switch, which supports PoE pass through. It is perfect for cleanly adding Ethernet ports where needed, all in a compact form factor.

Alike the other UniFi Switches, the US-8 is fully manageable, delivering robust performance for your network.

Key Features

• 5x US-8
• (8) Gigabit RJ45 Ports
• (1) PoE Pass through Port
• Non-Blocking Throughput: 8 Gbps
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.9 Mpps
• Maximum Power Consumption: 12 W
• PoE or DC Input Option

8-Port Managed Gigabit Switches
The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4 W of power per port.
The US-8 is a PoE Powered 8-port gigabit switch with PoE Pass through. Perfect for cleanly adding Ethernet ports where needed, with pass through to keep your PoE device powered.

Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.

Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.

Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralised interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Specifications

General

• Dimensions: 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21″)
• Weight: 432 g (15.24 oz)
• Enclosure Characteristics: SGCC Steel
• Total Non-Blocking Throughput: 8 Gbps
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.9 Mpps
• Max. Power Consumption: 12W (Excluding PoE Output)
• Max. Passive PoE Wattage per Port:
  – PoE Mode 1: 12W @ 802.3at
  – PoE Mode 2: 12W @ 48V
  – DC Input Mode: 12W @ 48V
• Passive PoE Voltage Range: Depends on Power Source
• Power Method:
  – (1) DC 48V, Max. 1.25A
  – (1) PoE Input, 802.3 af/at (Pins +1, 2; -3, 6)
• Supported Voltage Range: DC: 48V; 48V Mode: 56V to 40V
• Power Supply: External AC/DC Adapter, 48V, 0.5A
• LEDs: PoE (Port 8), Speed/Link/Activity (All Ports)
• Sound Level (Background noise level: 27.5 dBa): 0.7 dBr (Fanless)
• Networking Interfaces: (8) 10/100/1000 Mbps RJ45 Ports
• PoE In Interface (Port 1):
  – PoE Mode 1: 802.3af/at (Pins +1, 2; -3, 6)
  – PoE Mode 2: 48V (Pins +4, 5; -7, 8)
• PoE Out Interface (Port 8):
  – PoE Mode 1: 48V (Pins +1, 2; -3, 6)
  – PoE Mode 2: Passive 48V (Pins +4, 5; -7, 8)
  – DC Input Mode: DC Passthrough (Pins +1, 2; -3, 6)
• Management Interface: Ethernet In-Band Management
• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature: -5 to 45° C (23 to 113° F)
• Operating Humidity: 5 to 95% Noncondensing
• Shock and Vibration: ETSI300-019-1.4 Standard
• Certifications: CE, FCC, IC
