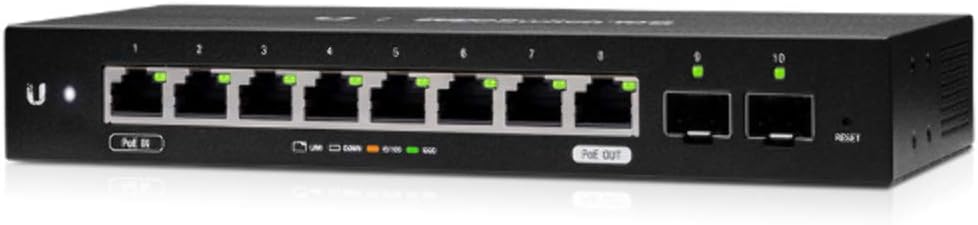

Ubiquiti ES-10X Edge Switch Managed Passive PoE 8-Port Gigabit Switch
£0.00 inc.VAT / £0.00 exc.VAT
Ubiquiti ES-10X Edge Switch 8-Port Managed Passive PoE Gigabit Switch w/ 2 x 1GbE SFP Ports (52W)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
The Ubiquiti ES-10X Edge Switch Managed Passive PoE 8-Port Gigabit Switch is an affordable managed 8-port switch with two additional SFP ports, and is ideal for WISP applications. This switch has eight Gigabit RJ45 ports that offer copper connectivity with PoE input on port 1 and PoE pass through on port 8, as well as two SFP ports providing fibre connectivity. The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti Network Management System (UNMS).
Out of stock
Ubiquiti ES-10X Edge Switch 8-Port Managed Passive PoE Gigabit Switch w/ 2 x 1GbE SFP Ports (52W)
Ubiquiti ES-10X Edge Switch Managed Passive PoE 8-Port Gigabit Switch
The Ubiquiti ES-10X Edge Switch Managed Passive PoE 8-Port Gigabit Switch is an affordable managed 8-port switch with two additional SFP ports, and is ideal for WISP applications. This switch has eight Gigabit RJ45 ports that offer copper connectivity with PoE input on port 1 and PoE pass through on port 8, as well as two SFP ports providing fibre connectivity. The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti Network Management System (UNMS).
Key Features
- Eight (8) Gigabit RJ45 Ports.
- Two (2) 1GbE SFP Ports.
- Non-blocking throughput: 10 Gbps.
- Switching capacity: 20 Gbps.
- Forwarding rate: 14.88 Mpps.
- Supports PoE input on Port 1.
- Software-selectable PoE Pass through on Port 8.
- Powered by 24V Passive PoE or external AC/DC adapter.
- DC-jack supports battery backup with Edge Power (sold separately).
- Wall or rack-mountable (kit sold separately).
Switching Performance
Delivering top price/performance value, the Ubiquiti ES-10X Edge Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, as well as an extensive suite of advanced Layer 2 switching features and protocols. For its total, non-blocking throughput, the Ubiquiti ES-10X Edge Switch supports up to 10 Gbps.
Fibre Connectivity & PoE Flexibility
The Edge Switch 10X includes two (2) SFP ports, providing up to 1Gbps uplinks. To simplify your infrastructure, the Edge Switch 10X also offers configurable 24V PoE pass through on port 8.
Easy Management
The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti Network Management System (UNMS), which is a comprehensive management controller featuring an easy-to-use UI. You can use a single control plane to manage registered Edge MAX devices across multiple networks and sites.
Comprehensive User Interface
Sporting an updated design for an improved user experience, the Edge Switch Configuration Interface allows you to configure and monitor switch features in a graphical user interface. It offers intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status.
Advanced Features
The Ubiquiti ES-10X Edge Switch provides a variety of advanced features, including:
- Port Monitoring
- Virtual Local Area Network (VLAN) Configuration
- Spanning Tree Protocol (STP, MSTP, and RSTP)
- Device Discovery Tool
- Jumbo Frame Support
- DHCP Snooping
- Port Isolation
- Ping Watchdog
Specifications
Hardware Specifications
Dimensions
- 207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54″)
Weight
- 500 g (1.10 lb)
Total Non-Blocking Throughput
- 10 Gbps
Switching Capacity
- 20 Gbps
Forwarding Rate
- 14.88 Mpps
Max. Power Consumption
- 8 W (excluding PoE output)
Power Method
- 24 VDC, 1 A
- 24V Passive PoE
Supported Voltage Range
- 9 – 30 VDC
Power Supply
- 24 VDC, 1 A Power Adapter (Included)
- 24V Passive PoE
LEDs Per Port
- System
- Status
- RJ45 Data Ports
- Link/Speed/Activity
- SFP Data Ports
- Link/Activity
Networking Interfaces
- 8 x 10/100/1000 Mbps RJ45 Ports
- 2 x 1 Gbps SFP Ports
Management Interface
- Ethernet In-Band
Certifications
- CE
- FCC
- IC
Rack-mountable
- Yes (kit sold separately)
ESD/EMP Protection
- Air
- ±24 kV
- Contact
- ±24 kV
Operating Temperature
- -10 to 50° C (14 to 122° F)
Operating Humidity
- 5 to 95% Noncondensing
Shock and Vibration
- ETSI300-019-1.4 Standard
PoE (Port 8)
PoE Interface
- 24 VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. Passive PoE Wattage per Port
- 15 W
24V Passive PoE Voltage Range
- 24V
Standard Warranty: 1-Year
