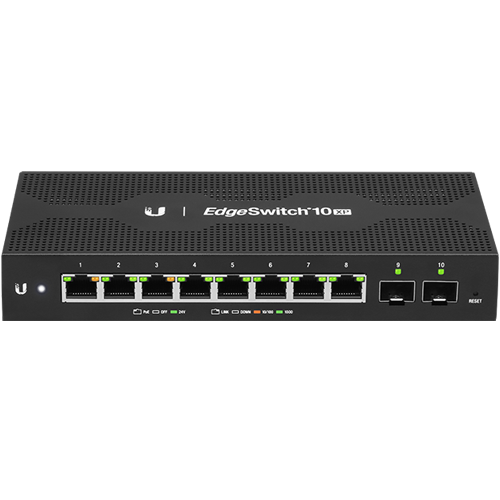

The Ubiquiti Edge Switch 10XP is is a managed PoE switch with SFP ports that is optimised for WISP deployments, with eight Gigabit RJ45 ports offering copper connectivity with 24V PoE output and two SFP ports offering fibre connectivity.

The ES-10XP supports 24 v Passive PoE out on all eight RJ45 ports. The ES-10XP can also be powered using an external AC/DC adapter and the DC jack supports battery backup with Ubiquiti Edge Power.

Featuring eight Gigabit RJ45 Ethernet ports and two SFP ports, Ubiquiti’s ES-10XP is a layer 2 switch that can be easily managed through Ubiquiti’s Network Management System (UNMS). The Edge Switch 10XP offers the forwarding capacity to simultaneously process traffic on all ports without any packet loss, providing a total, non-blocking throughput of up to 10Gbps and a switching capacity of 20 Gbps.

Key Features

• 8 x Gigabit RJ45 Ports
• 2 x SFP Ports
• Non-Blocking Throughput: 10 Gbps
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps
• Supports 24V Passive PoE Output on All RJ45 Ports
• Powered by External AC/DC Adapter
• DC Jack Supports Battery Backup with Edge Power (sold separately)
• Wall/Rack-Mountable (rackmount kit sold separately)

Switching Performance

Delivering top price/performance value, the Edge Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, as well as an extensive suite of advanced Layer 2 switching features and protocols. For its total, non-blocking throughput, the Edge Switch supports up to 10 Gbps. It also includes two SFP ports for fibre connectivity, providing up to 1 Gbps uplinks.

PoE Flexibility

To simplify your infrastructure, the Edge Switch 10XP offers configurable 24V passive PoE on all RJ45 ports. The Edge Switch 10XP is capable of powering a variety of airMAX AC CPEs, such as the IsoStation 5AC, LiteBeam 5AC Gen2, and Nano Beam 5AC Gen2. Its SFP ports connect to the Edge Router 4 and an off-site network.

Easy Management

The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti Network Management System (UNMS), which is a comprehensive management controller featuring an easy-to-use UI. You can use a single control plane to manage registered Edge MAX devices across multiple networks and sites.

Comprehensive User Interface

Sporting an updated design for an improved user experience, the Edge Switch Configuration Interface allows you to configure and monitor switch features in a graphical user interface. It offers intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status.

Advanced Features

The Edge Switch provides a variety of advanced features, including Port Monitoring, Virtual Local Area Network (VLAN) Configuration, Spanning Tree Protocol (STP, MSTP, and RSTP), Device Discovery Tool, Jumbo Frame Support, DHCP Snooping, Port Isolation and Ping Watchdog.

Dimensions

• 207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54″)

Weight

• 500 g (1.10 lb)

Total Non-Blocking Throughput

• 10 Gbps

Switching Capacity

• 20 Gbps

Forwarding Rate

• 14.88 Mpps

Max. Power Consumption (Excluding PoE Output)

• 8W

Power Method

• 24VDC, 2.5A

Supported Voltage Range

• 9 – 30VDC, 5A

Power Supply

• 24VDC, 2.5A Power Adapter (Included)

LEDs Per Port

• System
  • Status
• RJ45 Data Ports
  • PoE, Speed/Link/Activity
• SFP Data Ports
  • Link/Activity

Networking Interfaces

• 8 x 10/100/1000 Mbps RJ45 Ports
• 2 x 1 Gbps SFP Ports

Management Interface

• Ethernet In-Band

Certifications

• CE, FCC, IC

Rackmount

• Yes (rackmount kit ER-RMKIT sold separately)

ESD/EMP Protection

• Air: ±24 kV, Contact: ±24 kV

Operating Temperature

• -10 to 50° C (14 to 122° F)

Operating Humidity

• 5 to 95% Non-condensing

Shock and Vibration

• ETSI300-019-1.4 Standard

PoE

PoE Interface

• 8 x 24VDC Passive PoE (Pins 4, 5+; 7, 8-)

Max. Passive PoE Wattage per Port

• 15W

24V Passive PoE Voltage Range

• 24V

Standard Warranty: 1-Year
