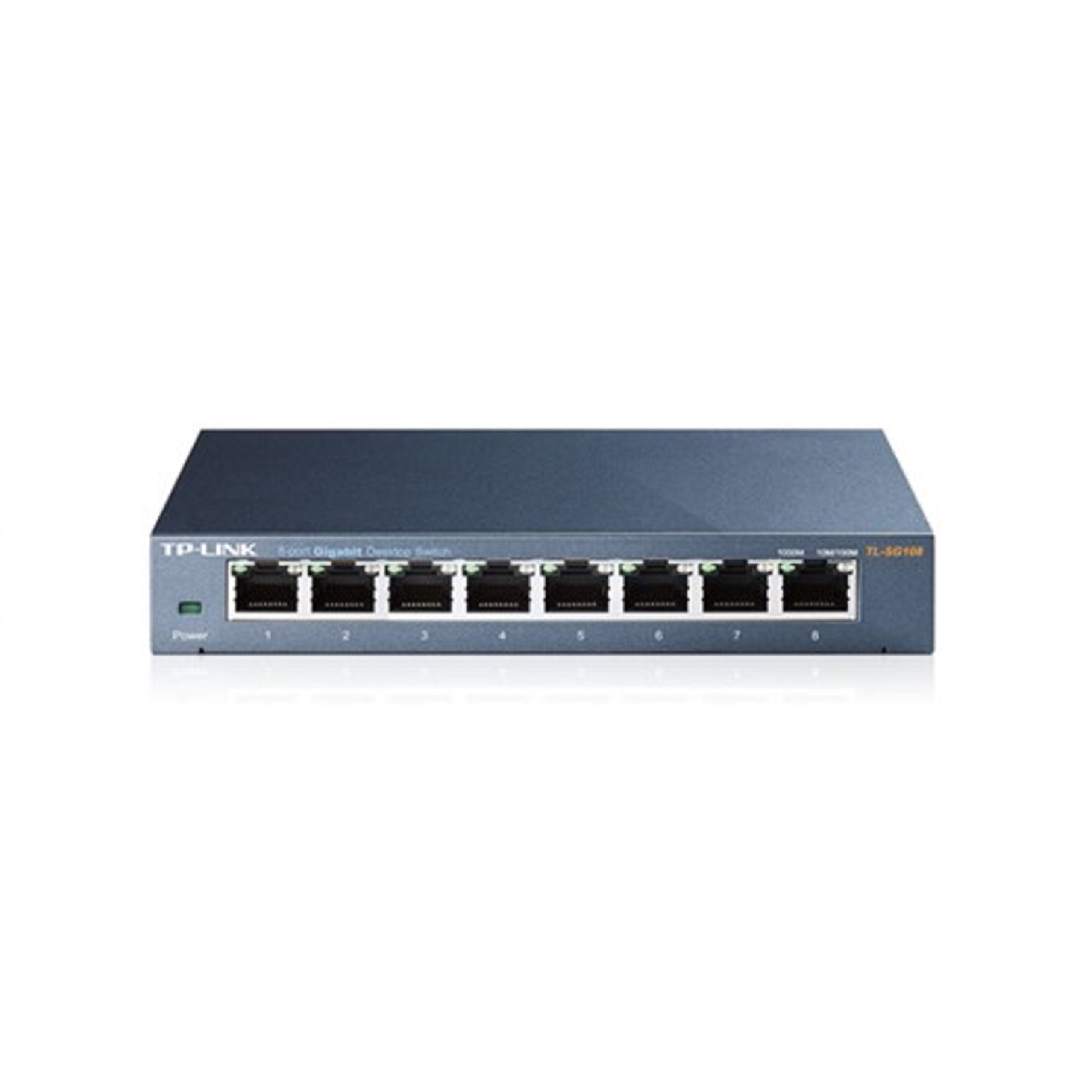

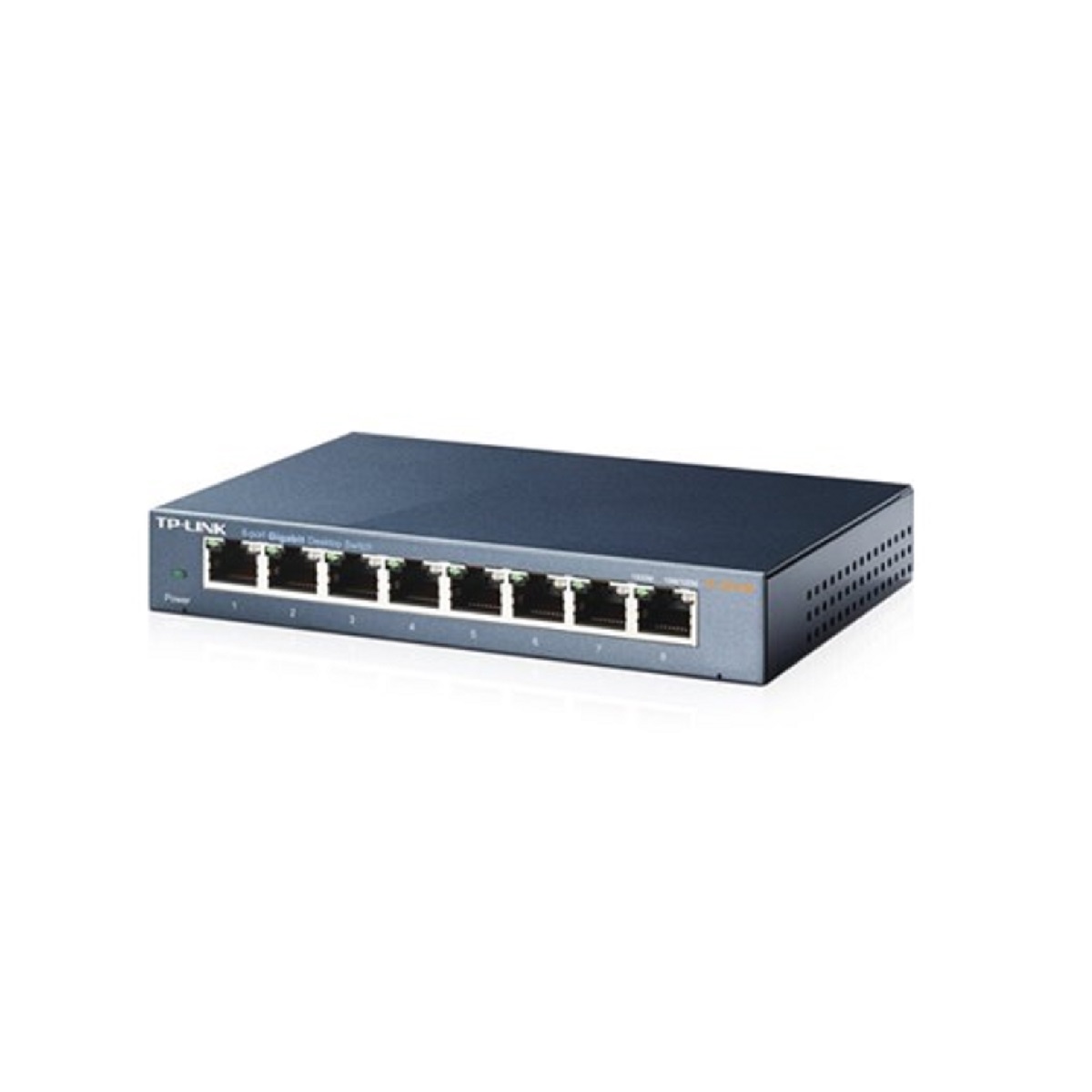

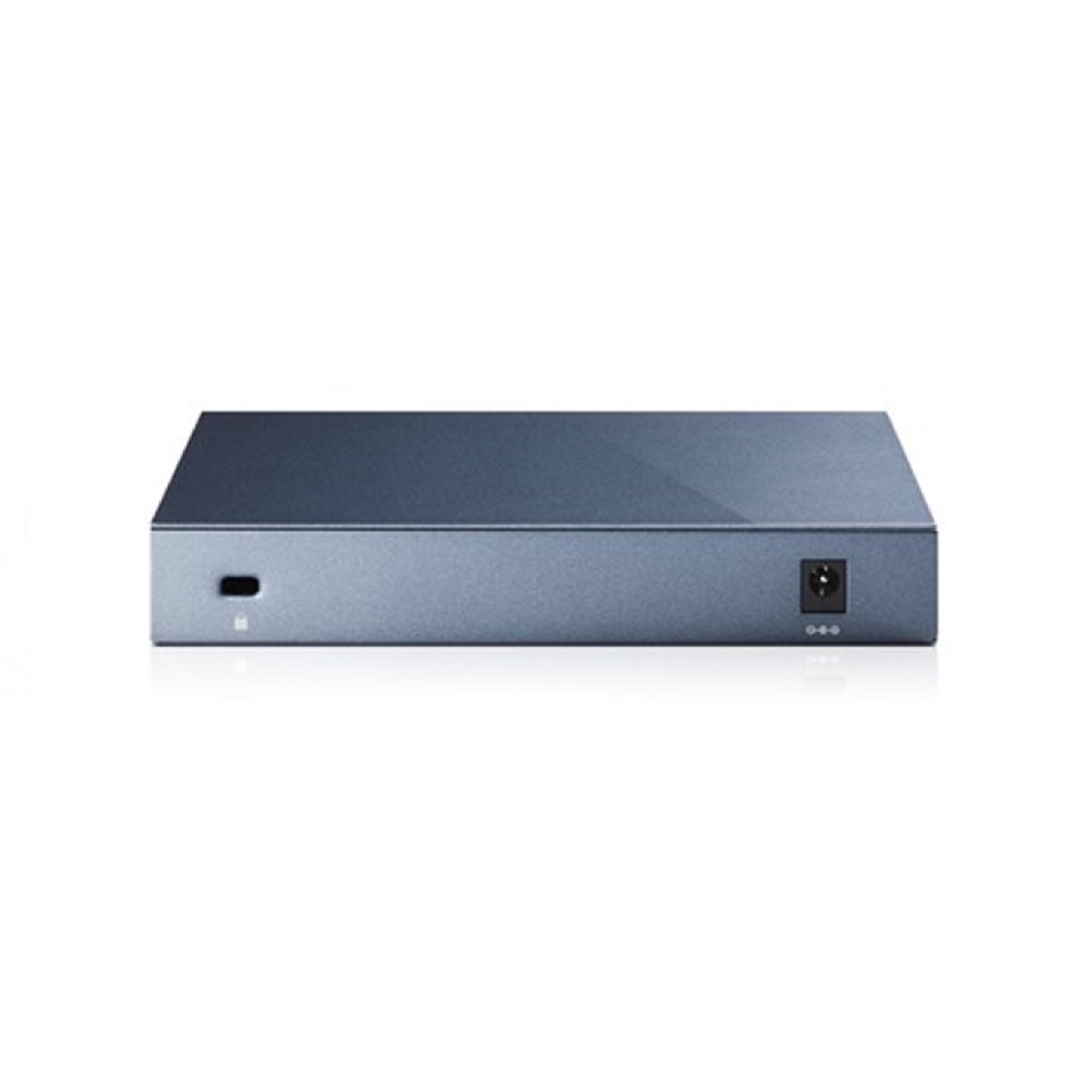

TP-LINK TL-SG108 8-Port Desktop Gigabit Switch (10/100/1000 Mb/s)
TP-LINK TL-SG108 8 Port Desktop Gigabit Switch
TP-LINK TL-SG108 8 Port Desktop Gigabit Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality.
Additionally, this TP-Link TL-SG108 Switch adopts lower power consumption design. With the innovative energy-efficient technology, the TP-Link TL-SG108 can save up to 72% of the power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch TL-SG108 8 Port Desktop
Key Features
- Eight (8) 10/100/1000 Gigabit RJ45 Ports with Auto-negotiation.
- Innovative energy-efficient technology saves power up to 72%.
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.
- Steel design, desktop or wall-mounting design.
- Supports QoS (IEEE 802.1p) function.
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput.
- 9K Jumbo frame improves performance of large data transfers.
- Auto-MDI/MDIX eliminates the need for crossover cables.
- Supports MAC address auto-learning and auto-aging.
- Fanless design ensures quiet operation.
- Plug and Play design simplifies installation.
Gigabit Switch
Featured with 8 10/100/1000Mbps ports, this TP-Link TL-SG108 Switch greatly expands your network capacity, enabling instant large files transferring. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster or transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a Gigabit network! This new generation TP-Link TL-SG108 Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TP-Link TL-SG108 Switch can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 72% reduction in power use.
Easy to Use
The auto features of this TP-Link TL-SG108 Switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
Hardware Specification
- Standards and Protocols IEEE 802.3/802.3u/ 802.3ab/ 802.3x
- CSMA/CD
- Interface 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
- External Power Supply 100-240VAC, 50/60Hz
- Dimensions (W X D X H) 6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
- Fan Quantity Fanless
- LED Indicator System Power
- Link, Speed and activity indicators per port built into each RJ-45 port
Software Specification
- Advanced Features Green Technology,saving power up to 72%
- 802.3X Flow Control
- Supports QoS (IEEE802.1P)
- Transfer Method Store and Forward
Other
- Certification CE, FCC ,RoHS
- Package Contents
- Tp-Link TL-SG108 8-Port Desktop Gigabit Switch
- Power Adapter
- User Guide
System Requirements
- Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Mac OS, NetWare, UNIX or Linux.
Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10% ~ 90%, non-condensing
- Storage Humidity: 5%~90% non-condensing
Standard warranty: limited lifetime
