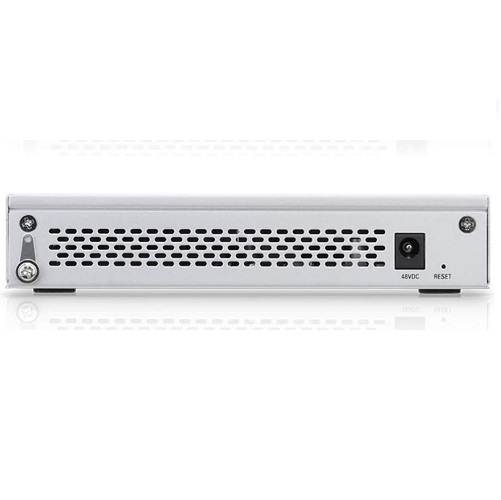

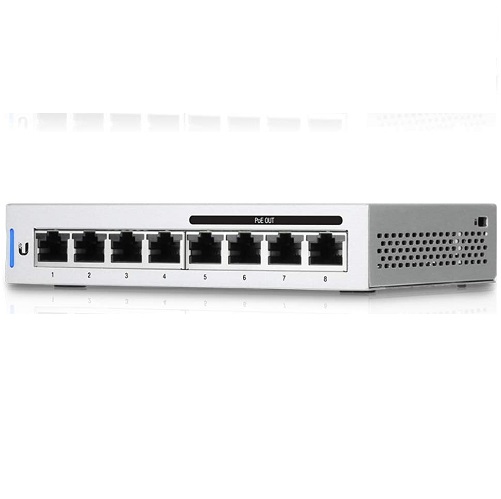

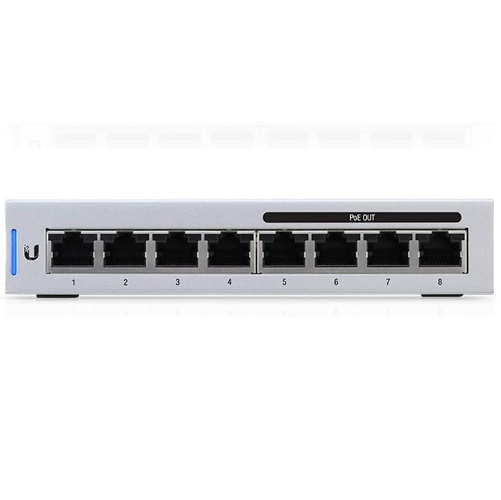

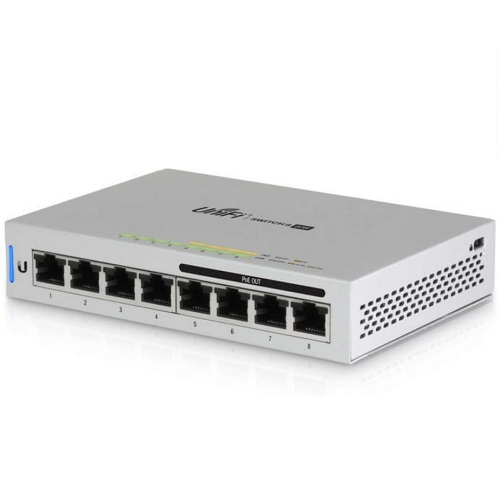

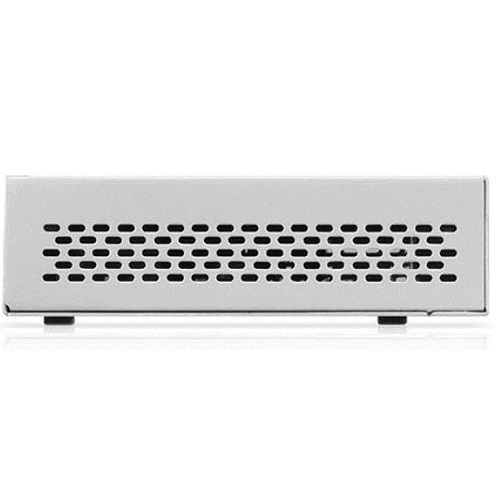

Ubiquiti UniFi Switch 8 Port – US-8-60W (PoE on ports 5-8 only)
£142.57 inc.VAT / £118.81 exc.VAT
Ubiquiti UniFi Switch 8 Port – US-8-60W (PoE)
The Ubiquiti UniFi US-8-60W is an 8 port PoE gigabit switch with four RJ45/802.3af PoE ports and four RJ45 ports. The US-8-60W auto-sensing PoE ports deliver up to 15.4W of power per port all in a compact form factor. Alike the other UniFi Switches, the US-8-60W is fully manageable, delivering robust performance for your network.
Out of stock
Ubiquiti UniFi Switch 8 Port – US-8-60W (PoE)
The Ubiquiti UniFi US-8-60Wis an 8 port PoE gigabit switch with four RJ45/802.3af PoE ports and four RJ45 ports. The US-8-60W auto-sensing PoE ports deliver up to 15.4W of power per port all in a compact form factor. Alike the other UniFi Switches, the US-8-60W is fully manageable, delivering robust performance for your network.
Ubiquiti UniFi US-8-60W (PoE) Key Features
(8) Gigabit RJ45 Ports
(4) Auto-Sensing IEEE 802.3af PoE Ports
Non-Blocking Throughput: 8 Gbps
Switching Capacity: 16 Gbps
Forwarding Rate: 11.9 Mpps
Maximum Power Consumption: 12W
Non-Blocking Throughput
The US-8-60W features Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi US-8-60W supports up to 8 Gbps.
Switching Capacity
The UniFi US-8-60W switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralised interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Ubiquiti UniFi US-8-60W (PoE) – Technical Specifications
General
Dimensions
148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21″)
Weight
432 g (15.24 oz)
Enclosure Characteristics
SGCC Steel
Total Non-Blocking Throughput
8 Gbps
Switching Capacity
16 Gbps
Forwarding Rate
11.9 Mpps
Max. Power Consumption
12W (Excluding PoE Output)
Max. PoE Wattage per Port
15.4W
Power Method
48VDC, Max. 2A
Supported Voltage Range
57VDC to 44VDC
Power Supply
External AC/DC Adapter, 48V, 1.25A
LEDs
PoE (Port 8), Speed/Link/Activity (All Ports)
Networking Interfaces
(8) 10/100/1000 Mbps RJ45 Ports
PoE Interfaces
(4) Ports 5, 6, 7, 8; IEEE802.3af
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature
-5 to 45° C (23 to 113° F)
Operating Humidity
5 to 95% Noncondensing
Shock and Vibration
ETSI300-019-1.4 Standard
Certifications
CE, FCC, ICDatasheet
