Ubiquiti USW-Aggregation Layer 2 10Gbps SFP+ 8 Port Gigabit Switch
£269.64 inc.VAT / £224.70 exc.VAT

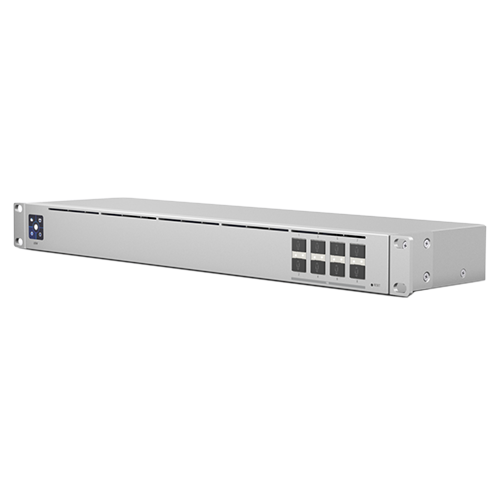

Ubiquiti USW-Aggregation UniFi 8-Port Layer 2 Managed Rackmount 10-Gigabit SFP+ Switch
The Ubiquiti USW-Aggregation 8-Port Layer 2 Managed Rackmount 10-Gigabit SFP+ Switch offers link aggregation for higher capacity and increased availability. The USW-Aggregation switch features Layer 2 capabilities and supports high bandwidth links, making it ideal for aggregation switching to any UniFi solution that deploys various interconnect topologies. Its built-in 36W AC/DC power supply can support copper Ethernet UF-RJ45-10G modules (sold separately ) in all eight ports.
Ubiquiti USW-Aggregation UniFi 8-Port Layer 2 Managed Rackmount 10-Gigabit SFP+ Switch
Ubiquiti USW-Aggregation Layer 2 10Gbps SFP+ 8 Port Gigabit Switch
Ubiquiti USW-Aggregation 8-Port Layer 2 Managed Rackmount 10-Gigabit SFP+ Switch offers link aggregation for higher capacity and increased availability.
The USW-Aggregation switch features Layer 2 capabilities and supports high bandwidth links, making it ideal for aggregation switching to any UniFi solution that deploys various interconnect topologies.
Its built-in 36W AC/DC power supply can support copper Ethernet UF-RJ45-10G modules (sold separately ) in all eight ports.
Key Features
- Eight (8) 10Gbps SFP+ ports.
- 160Gbps switching capacity.
- 1.3″ touchscreen with AR switch management.
- Quiet, fanless design.
Specifications
Hardware
Total Non-Blocking Throughput
- 80 Gbps
Switching Capacity
- 160 Gbps
Forwarding Rate
- 119.04 Mpps
Max. Power Consumption
- 30W
Power Method
- Universal AC Input: 100-240VAC, 50/60 Hz
Power Supply
- AC/DC, Internal, 36W
Management Interface
- Ethernet In-Band
Modes
- SMB Layer 2 Gigabit Ethernet Switch
ESD/EMP ProtectionÂ
- Air: ± 16kV, Contact: ± 12kV
Operating TemperatureÂ
- -5 to 40°C (23 to 104° F)
Operating HumidityÂ
- 10 – 90% Noncondensing
Certifications
- CE, FCC, IC
Mechanical
Dimensions
- 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72″)
Weight
- Without Mount: 2.65 kg (5.84 lb)
- With Mount: 2.74 kg (6.04 lb)
Enclosure Material
- SGCC Steel
LEDs
System
- Bootup Animation: Bootup in Progress
- Firmware Upgrade Icon: Firmware Upgrading
- Steady White: Factory Defaults, Awaiting Adoption
- Steady Blue: Device is Adopted
SFP+
- White: 1/10G
Package Contents
- 1 x USW-AGGREGATION
- 1 x Mounting Kit
- 1 x Mains Power Supply
Standard Warranty: 1-Year
