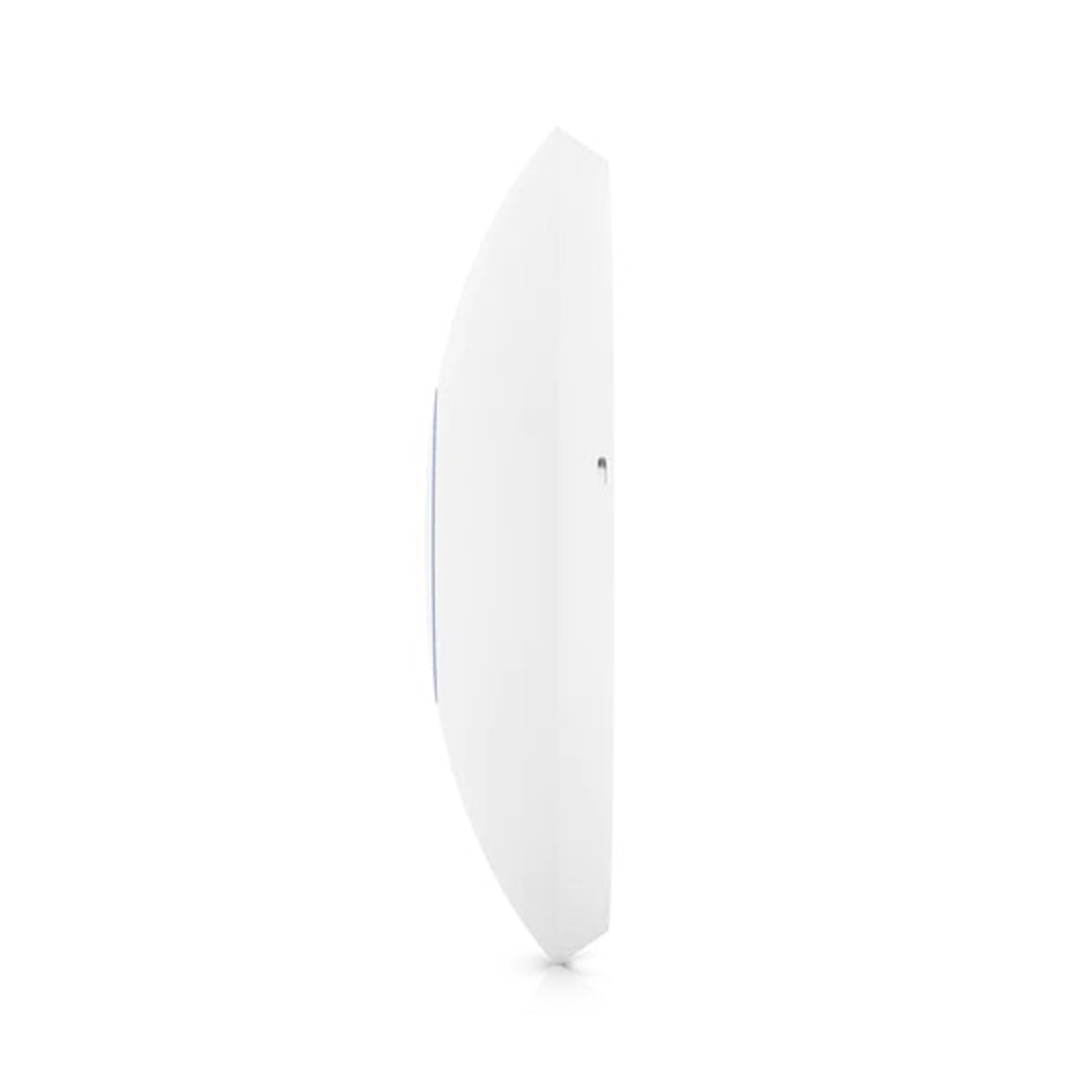

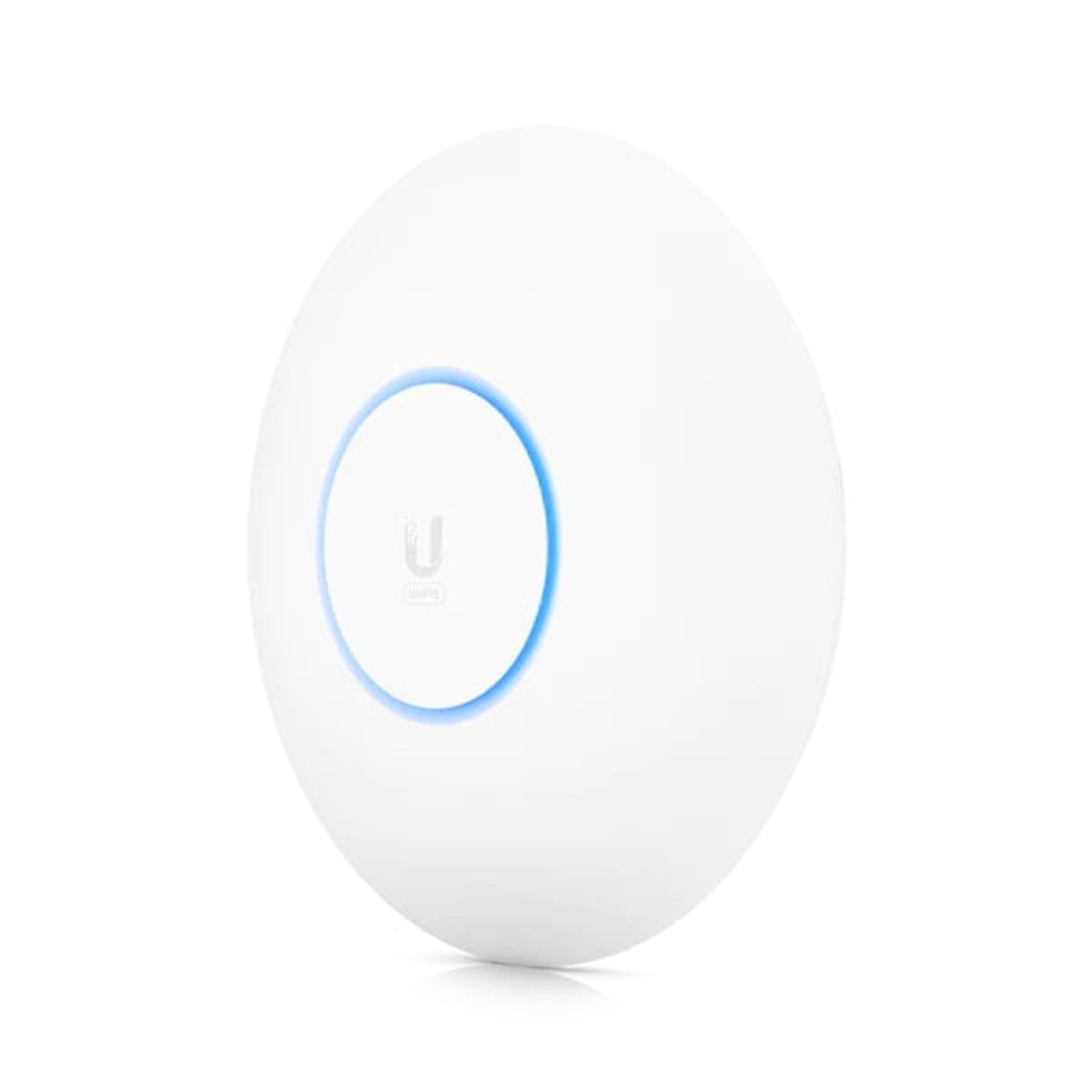

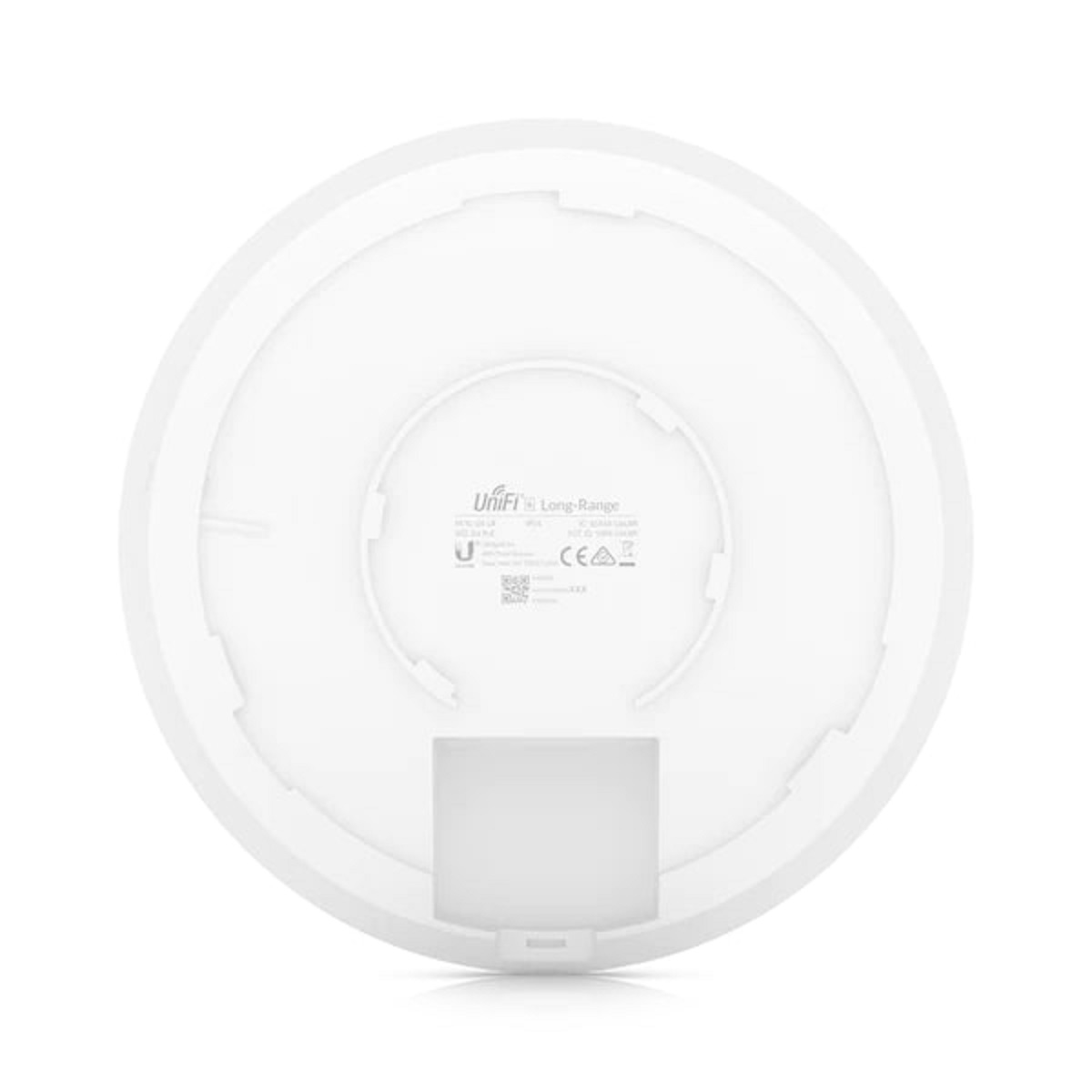

Ubiquiti U6-LR UniFi Long Range AX3000 WiFi 6 PoE+Access Point (AX)
£195.19 inc.VAT / £162.66 exc.VAT
Ubiquiti U6-LR UniFi Long Range WiFi 6 PoE+ Access Point (3000 Mbps AX)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Please note: Does not include PoE injector.
Note.Due to chip supply shortages,the U6 AP`s LED has been limited to only white & blue color modes.
Ubiquiti U6-LR UniFi Long Range AX3000 WiFi 6 PoE+Access Point (AX) is a high-performance Access Point
Ubiquiti U6-LR UniFi Long Range WiFi 6 PoE+ Access Point (3000 Mbps AX)
Ubiquiti U6-LR UniFi Long Range AX3000 WiFi 6 Access Point (AX)
Ubiquiti U6-LR UniFi Long Range AX3000 WiFi 6 PoE+Access Point (AX) is a high-performance access point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz WiFi 6 (4×4 MU-MIMO and OFDMA) and 2.4 GHz 4×4 MIMO radios.
The Ubiquiti U6-LR UniFi Long Range AX3000 WiFi 6 PoE+Access Point (AX) seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environment (IP54 rated), and comes equipped with a Bluetooth Low Energy Radio for location based services.
Key Features
- 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance).
- Four-stream high-efficiency Wi-Fi 6 technology.
- 5 GHz band 4×4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps.
- 2.4 GHz band 4×4 MIMO with radio rate of 600 Mbps.
- Powered with 802.3at PoE+.
Works with UniFi Network Controller
- Manage Your Networks from a Single Control Plane
- Intuitive and Robust Configuration, Control and Monitoring
- Remote Firmware Upgrade
- Users and Guests
- Guest Portal/Hotspot Support
Important Outdoor installation requirements
The Ubiquiti U6-LR may be installed outdoors under an eave or other protected location. Do not install the U6-LR in an open environment.
The mounting location should be at least 60 cm (2 ft) from the edge of the eave or ceiling and the cable feed must be pointed downwards when wall-mounted.
Shielded Category 5 (or above) cabling should be used for all outdoor wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks.
Specifications
Mechanical
Dimensions
- Ø220 x 48 mm (Ø8.66 x 1.89 in.)
Weight
- Without Mount: 800 g (1.76 lb.)
- With Mount: 930 g (2.05 lb.)
Enclosure Material
- Plastic
Mounting Material
- SGCC Steel
Weatherproofing
- IP54
Hardware
Processor Specs
- Dual-Core Cortex A53 at 1.35 GHz
Memory Information
- 512 MB
Management Interface
- Ethernet In-Band
Networking Interface
- 1 x 1 Gbps Ethernet RJ45
Buttons
- Factory Reset
LEDs
- RGB
Power Method
- 802.3at PoE, Passive PoE (48V)
Power Supply
- 802.3at PoE; 48V, 0.65A PoE Adapter (Not Included)
Supported Voltage Rane
- 44 to 57VDC
Max.Power Consumption
- 16.5W
Max. TX Power
- 2.4 GHz: 26 dBm
- 5 GHz: 26 dBm
MIMO
- 2.4 GHz: 4 x 4
- 5 GHz: 4 x 4
Throughput Speeds
- 2.4 GHz: 600 Mbps
- 5 GHz: 2400 Mbps
Antenna Gain
- 2.4 GHz: 4 dBi
- 5 GHz: 5.5 dBi
Mounting
- Wall/Ceiling (Kits Included)
Operating Temperature
- -30ºC to 60ºC (-22ºF to 140ºF)
Operating Humidity
- 5% – 95% Noncondensing
Certifications
- CE, FCC, IC
Wi-Fi Standards
- 802.11a/b/g/Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
Wireless Security
- WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
- 8 per Radio
VLAN
- 802.1Q
Advanced QoS
- Per-User Rate Limiting
Guest Traffic Isolation
- Supported
Concurrent Clients
- 300+
Supported Data Rates
802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
- 1, 2, 5.5, 11 Mbps
802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (Wi-Fi 4)
- 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (Wi-Fi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (Wi-Fi 6)
- 7.3Mbps to 2.4 Gbps (MCS0 – MCS11 MSS1/2/3/4, HE 20/40/80/160)
Standard Warranty: 1-Year
