Ubiquiti U6-Mesh UniFi AX5300 WiFi 6 Access Point (AX)
£210.49 inc.VAT / £175.41 exc.VAT
Ubiquiti U6-Mesh UniFi Indoor/Outdoor WiFi 6 Access Point (5300 Mbps AX)Â Â Â
              ( 6 in Stock – Available for next day shipment )  Â
Note.Due to chip supply shortages,the U6 AP`s LED has been limited to only white & blue color modes.
Ubiquiti U6-Mesh UniFi WiFi 6 Access Point is a High-efficiency 4×4 WiFi 6 (802.11ax) & Plug-and-play capabilities.
Ubiquiti U6-Mesh UniFi Indoor/Outdoor WiFi 6 Access Point (5300Mbps AX)
Ubiquiti U6-Mesh UniFi AX5300 WiFi 6 Access Point (AX)
Ubiquiti U6-Mesh UniFi AX5300 WiFi 6 Access Point (AX) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks.
The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4×4 MU-MIMO and OFDMA) and 2.4 GHz (2×2 MIMO) bands.
This access point also operates at full 4×4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer.
The sleek U6 Mesh is discreet enough to install anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing.
The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity.
It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
This U6 Mesh Access Point shares its form factor with the UAP-FlexHD, so it is compatible with FlexHD mounting accessories (sold separately).
Key Features
- High-efficiency 4×4 WiFi 6 (802.11ax).
- 5 GHz (4×4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate.
- 2.4 GHz (2×2 MIMO) band with a 573.5 Mbps throughput rate.
- Operates at full 4×4 MIMO with 160 MHz bandwidth.
- Powered with 802.3af PoE (PoE adapter included).
- Managed with the UniFi Network application (version 6.3.51 and later).
- Plug-and-play capabilities.
Adopt in Minutes with UniFi Network Application
- Centrally manage multiple networks from an intuitive interface.
- Enjoy real-time device insights and deep configuration options.
- Upgrade device firmware remotely.
- Manage network users and guests with ease.
- Personalize the design, architecture, and privacy of guest hotspots.
- Set up devices quickly and manage them on the go with a powerful mobile app.
Specifications
Mechanical
Dimensions
- Ø 48.5 x 159.5 mm (Ø 1.9 x 6.28 in.)
Weight
- 400 g (0.88 lb.)
Enclosure material
- Plastic, aluminium
Mount materials
- Plastic
Weatherproofing
- IPX5
Hardware
Management interfaces
- Ethernet
- Bluetooth
Networking interface

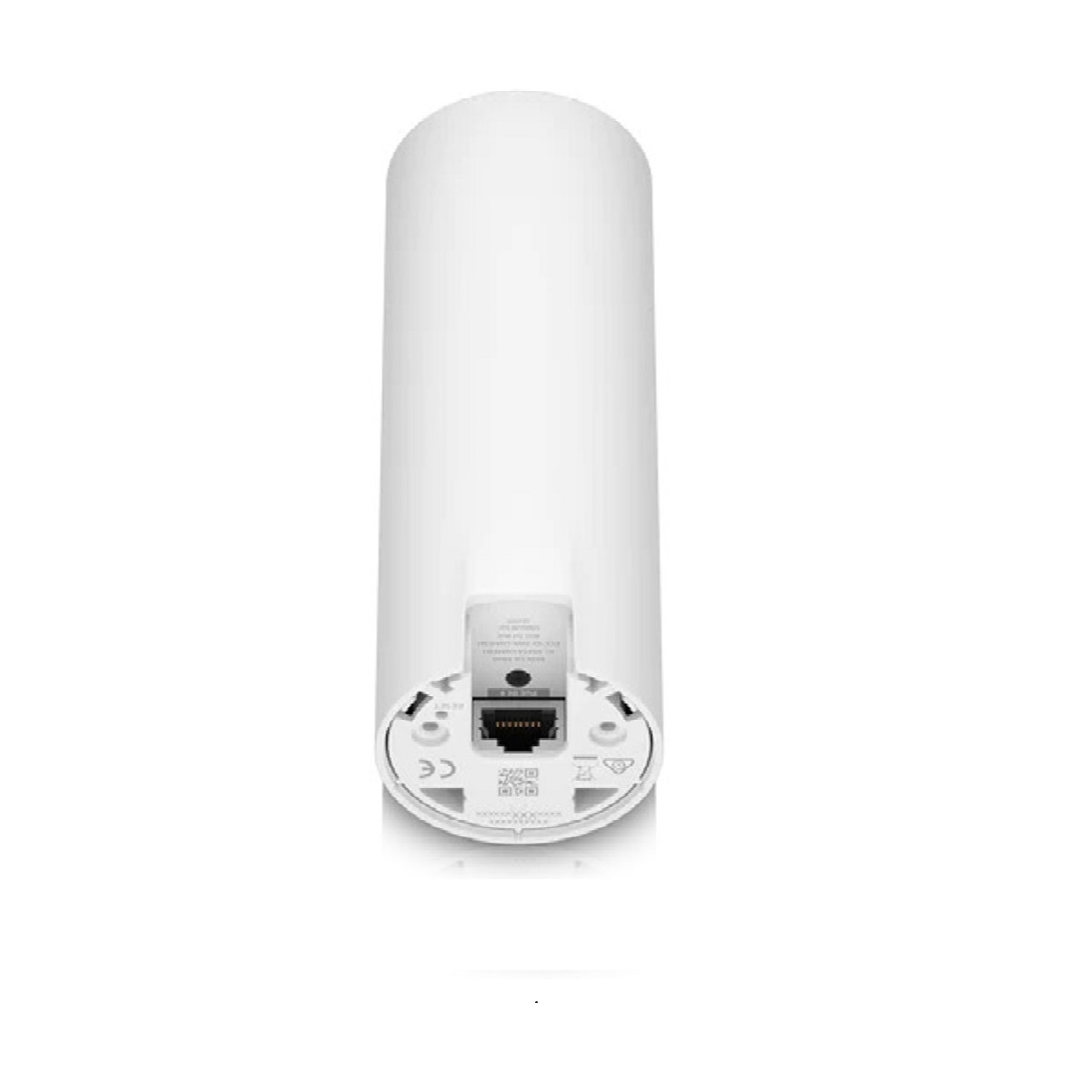

- 1 x GbE RJ45 port
Button
- Factory reset
LEDs
- RGB
Power method
- 802.3af PoE
Power supply
- UniFi PoE switch
- 48V, 0.32A PoE adapter (included)
Supported voltage range
- 44 to 57VDC
Max. power consumption
- 11.4W
Max. TX power
- 2.4 GHz: 22 dBm
- 5 GHz: 26 dBm
MIMO
- 2.4 GHz: 2 x 2 (UL MU-MIMO)
- 5 GHz: 4 x 4 (DL/UL MU-MIMO)
Throughput rate
- 2.4 GHz: 573.5 Mbps
- 5 GHz: 4.8 Gbps
Antenna gain
- 2.4 GHz: 3 dBi
- 5 GHz: 5 dBi
Mounting

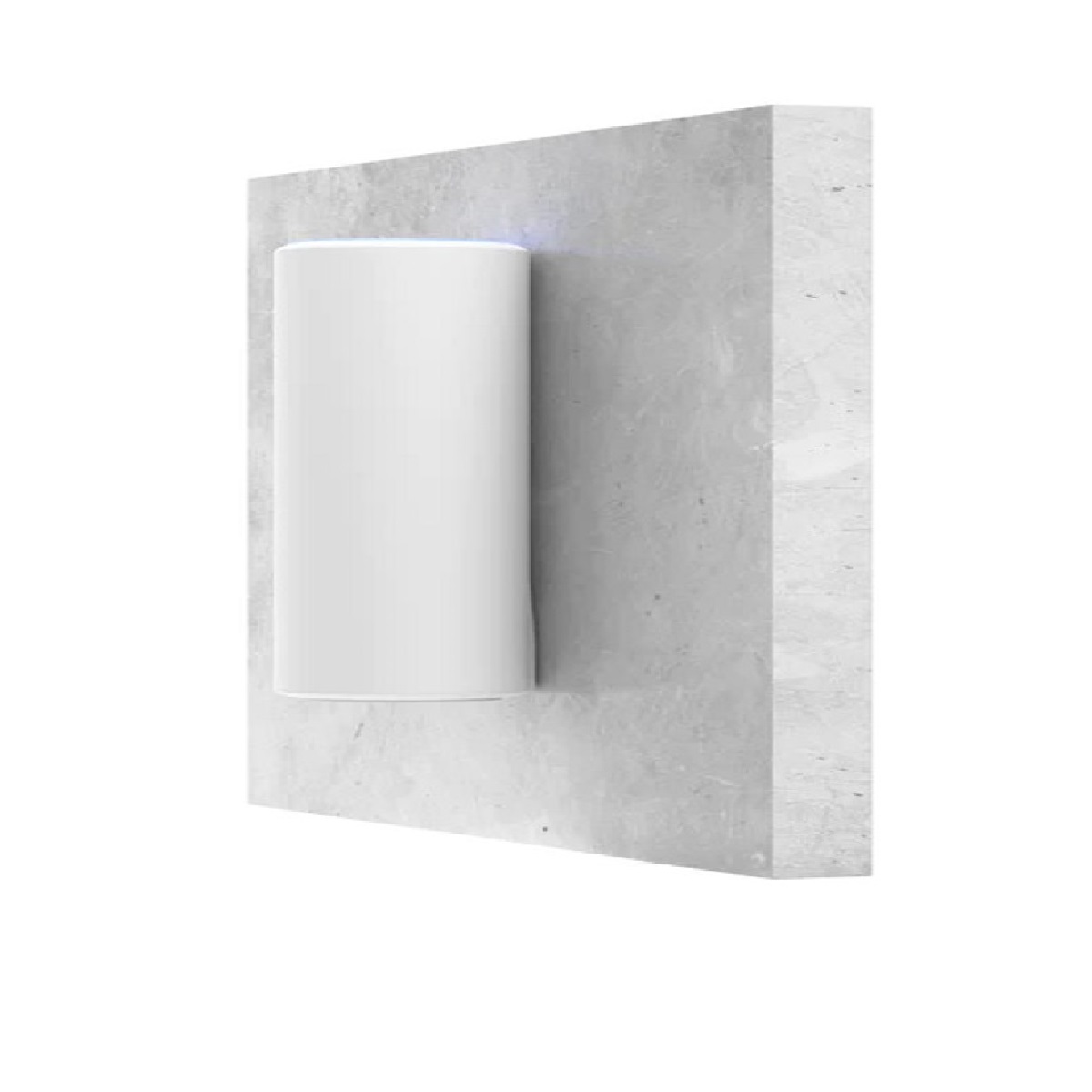

- Wall, desktop, pole mount(included)

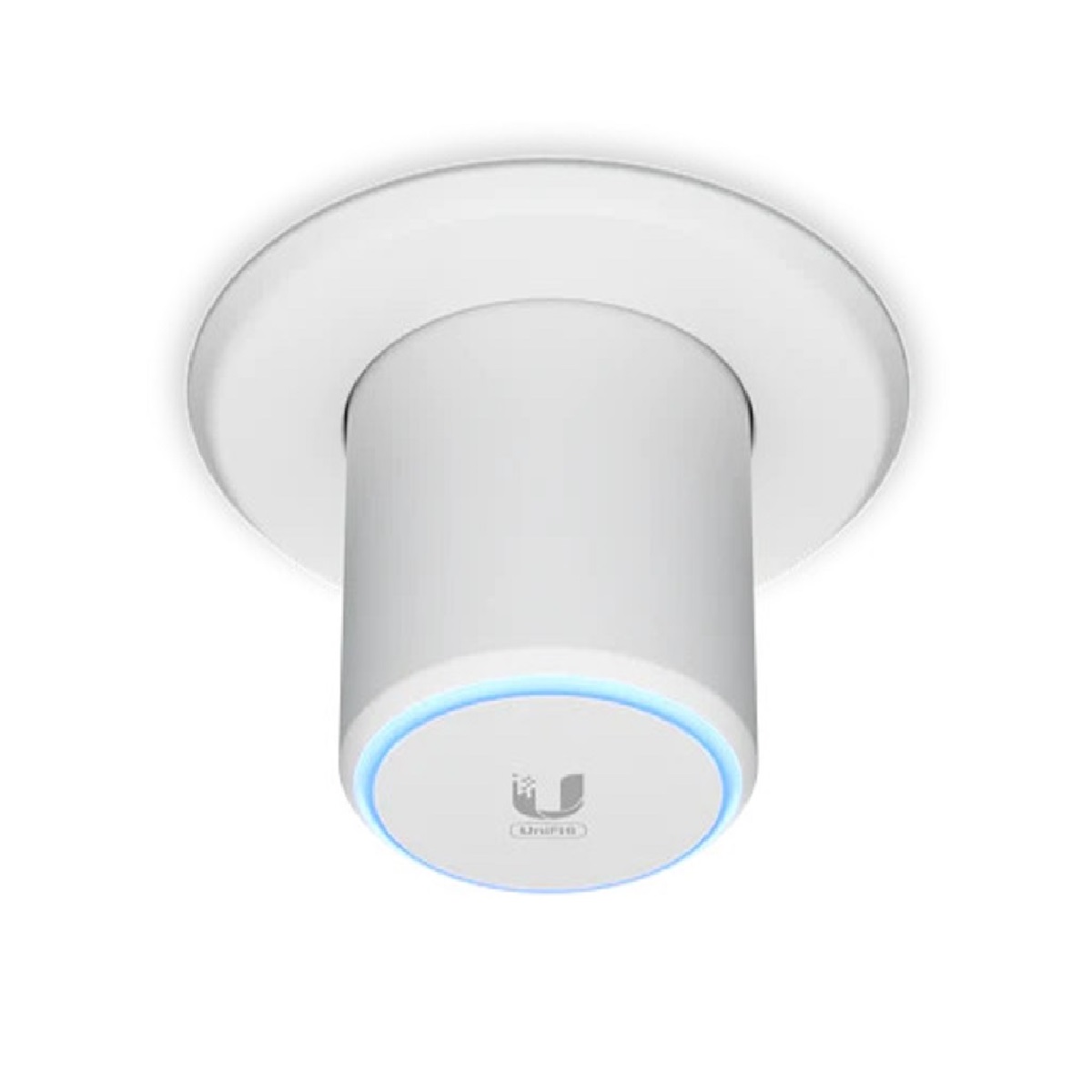

- Ceiling mount (sold separately)
Operating temperature
- -30°C to 60°C (-22°F to 140°F)
Operating humidity
- 5% – 95% noncondensing
Certifications
- CE, FCC, IC
Software
WiFi standards
- 802.11a/b/g
- WiFi 4/WiFi 5/WiFi 6
Wireless security
- WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
- 8 per radio
VLAN
- 802.1Q
Advanced QoS
- Per-user rate limiting
Guest traffic isolation
- Supported
Concurrent clients
- 300+
Zero wait DFS
- Yes
- Note:Â Supported with upcoming firmware versions
Supported Data Rates
802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
- 1, 2, 5.5, 11 Mbps
802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
- 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5)
- 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)
- 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
Standard Warranty: 1-Year
