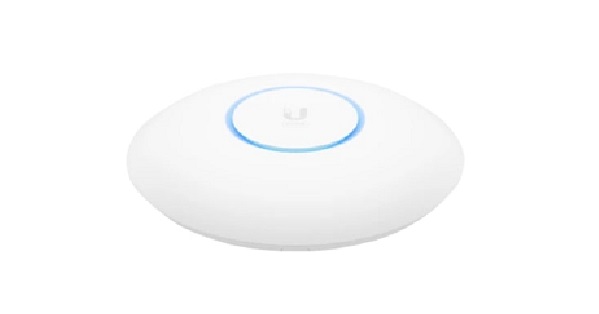

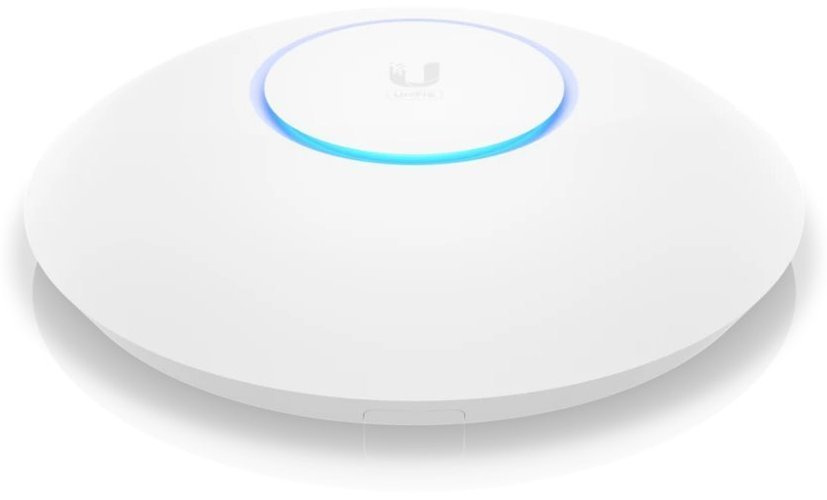

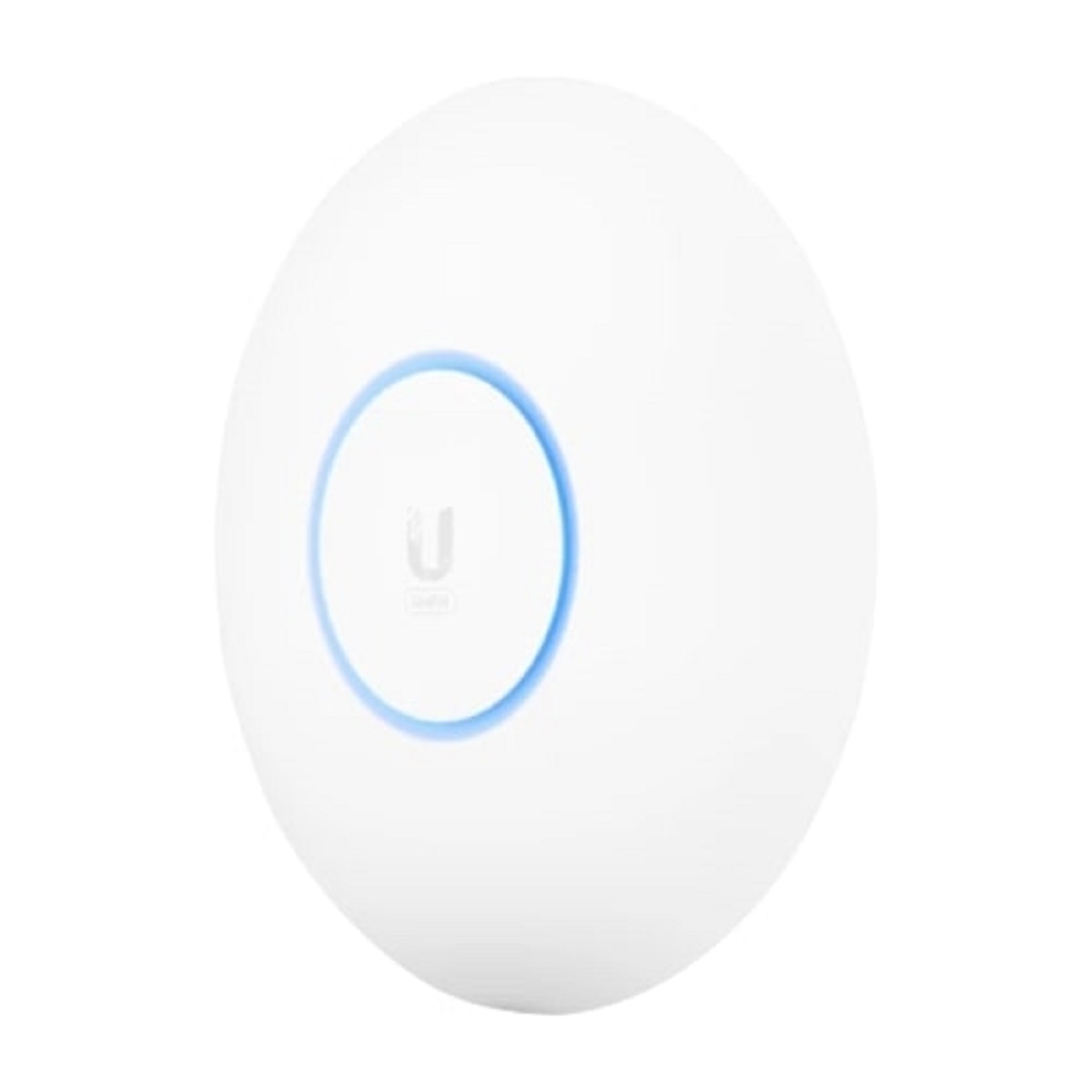

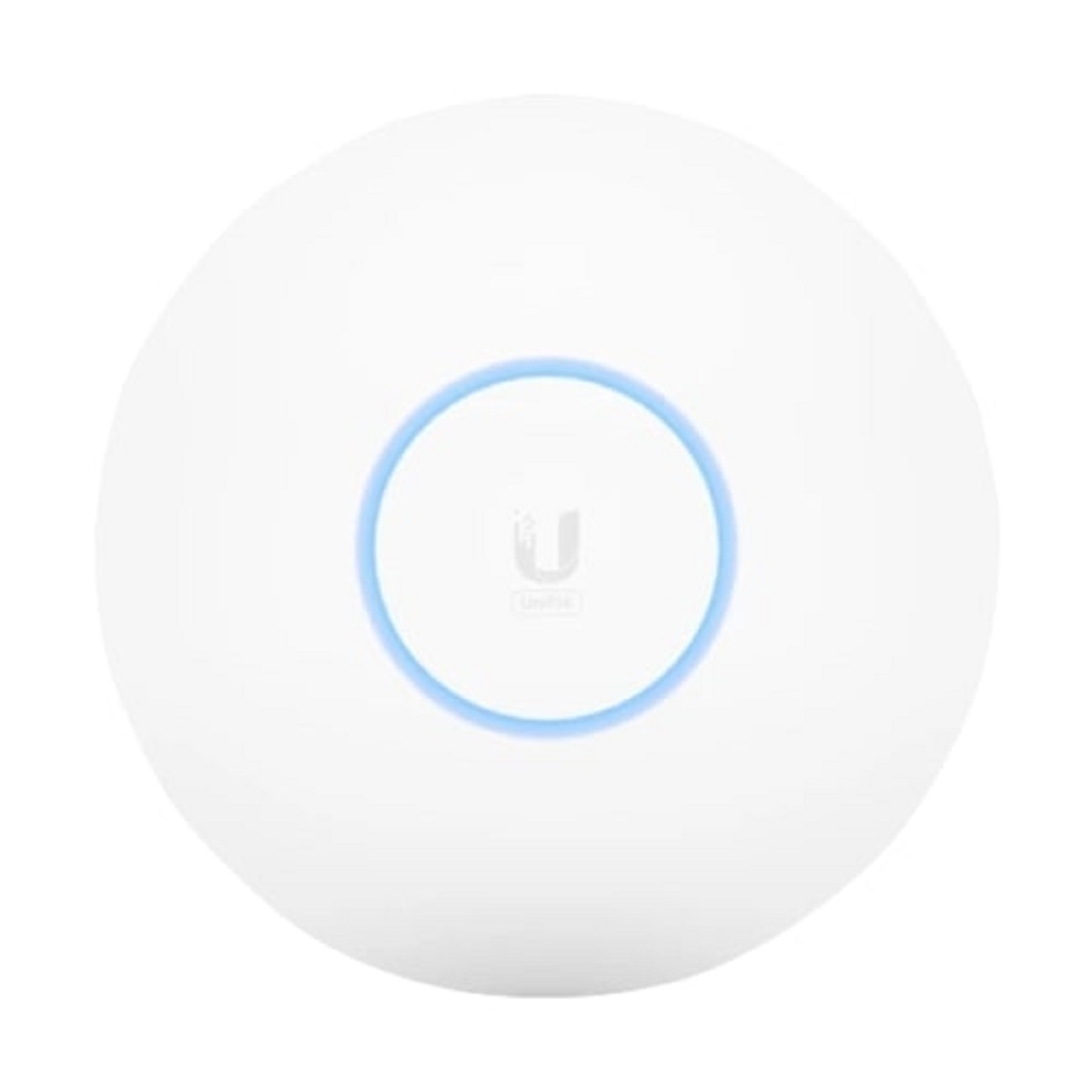

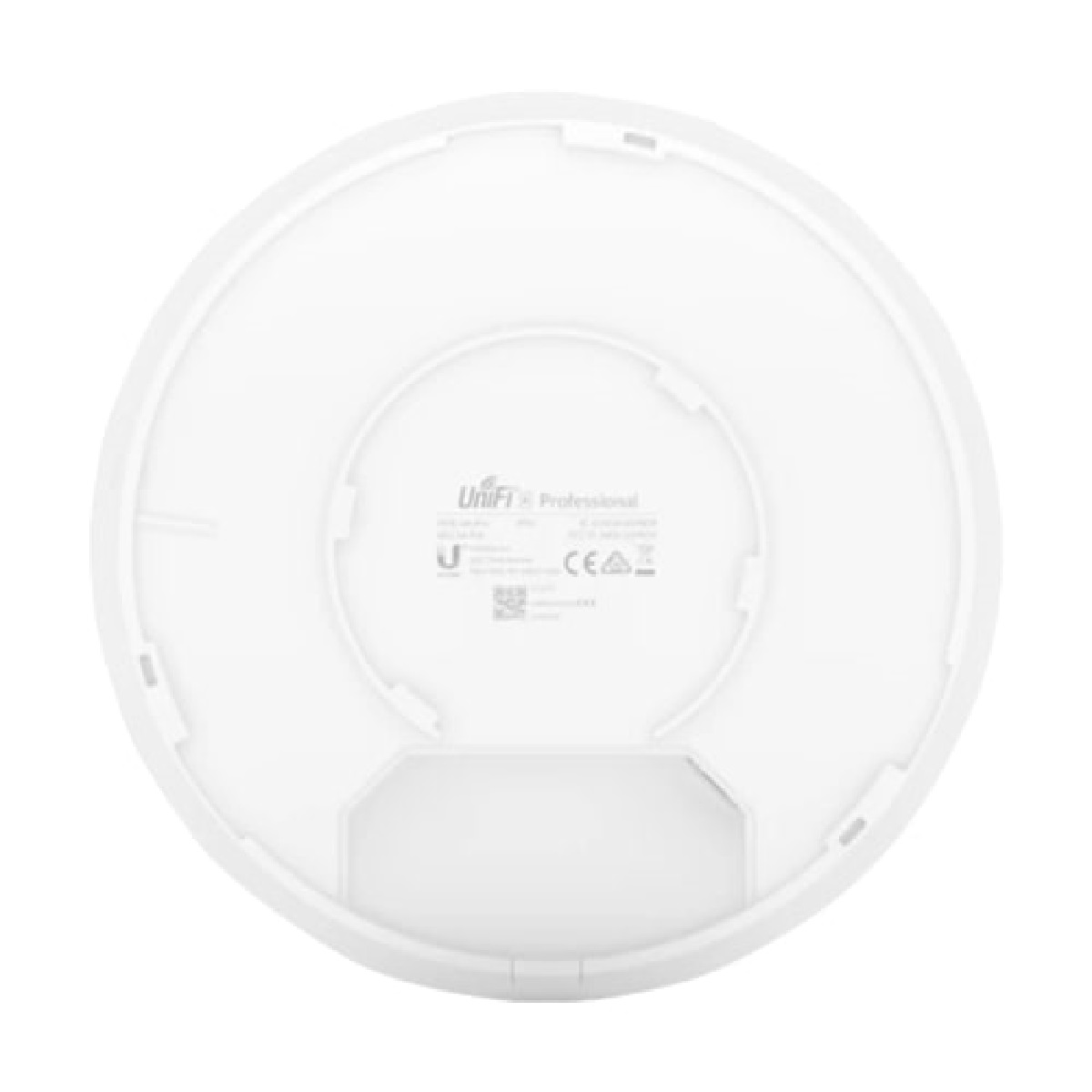

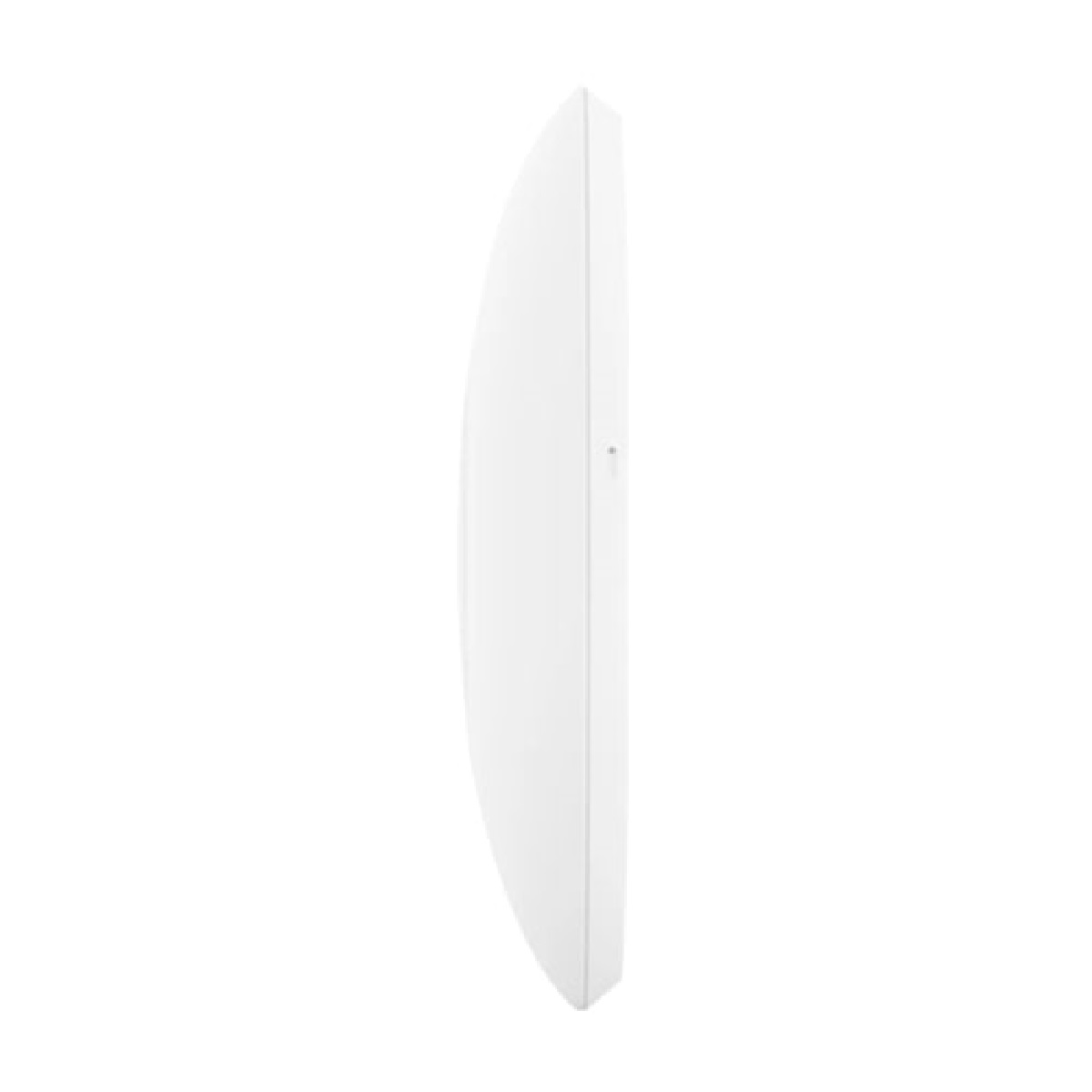

Ubiquiti U6-Pro UniFi AX5400 WiFi 6 Access Point (AX)
£165.00 inc.VAT / £137.50 exc.VAT
Ubiquiti U6-Pro UniFi WiFi 6 Access Point (5373 Mbps AX)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Ubiquiti U6-Pro UniFi WiFi 6 Access Point is an indoor WiFi 6 AP with 5.3 Gbps over the air speed and a 300+ client capacity.
Ubiquiti U6-Pro UniFi WiFi 6 Access Point (5373 Mbps AX)
Ubiquiti U6-Pro UniFi AX5400 WiFi 6 Access Point (AX)
                  Please note: This device does not come with a PoE injector – sold separately
Note.Due to chip supply shortages,the U6 AP`s LED has been limited to only white & blue color modes.
Ubiquiti U6-Pro UniFi AX5400 WiFi 6 Access Point (AX) is an indoor WiFi 6 AP with 5.3 Gbps over the air speed and a 300+ client capacity.
The U6-Pro is a dual-band WiFi 6 (802.11ax) access point that represents the next generation of high-performance wireless technology for home and enterprise users.
Delivering blazing fast over the air speeds of up to 5.3 Gbps over its 5GHz and 2.4GHz channels, the U6-Pro will maximize the WiFi experience of any residential or office deployment.
Plus, with its ability to support over 300 concurrent clients, the U6-Pro ensures reliable wireless coverage across even the most device-dense environments.
The U6-Pro also marries power with ease of use through streamlined setup, configuration, and mobile-friendly management via the UniFi Network app.
Key Features
- Dual-band WiFi 6 (802.11ax) capability.
- Up to 4.8 Gbps over the air speed via the 4×4 5GHz channel.
- Up to 573.5 Mbps over the air speed via the 2×2 2.4GHz channel.
- 300+ concurrent client support.
- Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion.
- Universal mounting plate, backing plate, and screw kit included.
- Managed with UniFi Network Application Version: 6.1.56 or higher.
Works with UniFi Network Application
- Manage your networks from a single interface.
- Enjoy intuitive configuration options, as well as robust device control and monitoring.
- Upgrade device firmware remotely.
- Easily manage network users and guests.
- Personalize the design, architecture, and privacy of guest hotspots.
Specifications
Mechanical
Dimensions
- Ø 197 x 35 mm (Ø 7.76 x 1.38 in.)
Weight
- Without Mount: 460 g (1.01 lb.)
- With Mount: 600 g (1.32 lb.)
Enclosure Material
- Plastic
Mount Material
- SGCC Steel
Weatherproofing
- IP54
Hardware
Processor Specs
- Dual-Core Cortex A53 at 1 GHz
Memory Information
- 512 MB
Management Interface
- Ethernet
Networking Interface

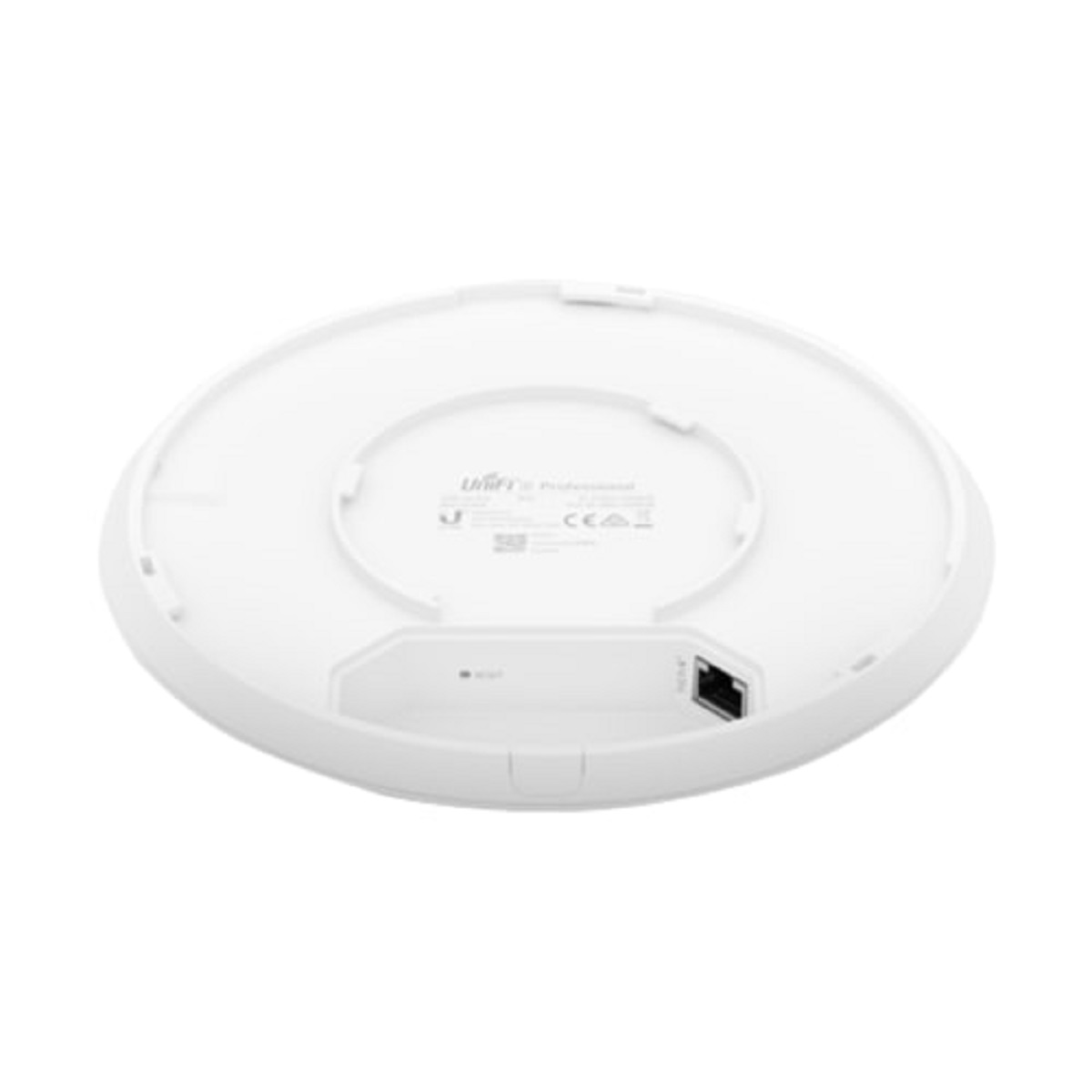

- 1 x 1 Gbps Ethernet RJ45
Button
- Factory Reset
LED
- RGB
Power Method
- PoE+, Passive PoE (48V)
Power Supply
- UniFi PoE Switch (sold separately)
- 48V, 0.5A PoE Adapter (sold separately)
Supported Voltage Range
- 44 to 57VDC
Max. Power Consumption
- 13W
Max. TX Power
- 2.4 GHz: 22 dBm
- 5 GHz: 26 dBm
MIMO
- 2.4 GHz: 2 x 2
- 5 GHz: 4 x 4
Throughput Speeds
- 2.4 GHz: 573.5 Mbps
- 5 GHz: 4.8 Gbps
Antenna Gains
- 2.4 GHz: 4 dBi
- 5 GHz: 6 dBi
Mounting
- Wall/Ceiling (Kits Included)
Operating Temperature
- -10ºC to 50ºC (14ºF to 122ºF)
Operating Humidity
- 5% – 95% Noncondensing
Certifications
- CE, FCC, IC
Software
WiFi Standards
- 802.11a/b/g
- WiFi 4/WiFi 5/WiFi 6
Wireless Security
- WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- Note:Â WPA3 supported With Upcoming Controller Versions
BSSID
- 8 per Radio
VLAN
- 802.1Q
Advanced QoS
- Per-User Rate Limiting
Guest Traffic Isolation
- Supported
Concurrent Clients
- 300+
Zero Wait DFS
- Yes
- Note:Â Supported With Upcoming Firmware Versions
Supported Data Rates (Mbps)
802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
- 1, 2, 5.5, 11 Mbps
802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
- 6.5 Mbps to 400 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5)
- 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)
- 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
Standard Warranty: 1-Year
Only logged in customers who have purchased this product may leave a review.
1 review for Ubiquiti U6-Pro UniFi AX5400 WiFi 6 Access Point (AX)
Related Products
Ubiquiti U6-LR UniFi Long Range WiFi 6 PoE+ Access Point (3000 Mbps AX)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Please note: Does not include PoE injector.
Note.Due to chip supply shortages,the U6 AP`s LED has been limited to only white & blue color modes.
Ubiquiti U6-LR UniFi Long Range AX3000 WiFi 6 PoE+Access Point (AX) is a high-performance Access Point
399 in stock
Cisco Meraki MR56 Cloud Managed WiFi 6 PoE+ Access Point (5951Mbps AX)
This device does not come supplied with a PoE injector .
The Cisco Meraki MR56 Cloud Managed WiFi 6 PoE+ Access Point raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR56 offers high throughput, enterprise-grade security, and simple management. The MR56 provides a maximum of 5.9 Gbps aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimisation, and a fourth integrated radio delivers Bluetooth scanning and beaconing.
Out of stock
NETGEAR WAX202 Essentials WiFi 6 Access Point (1800 Mbps AX)
NETGEAR WAX202 WiFi 6 Access Point delivers 802.11ax (WiFi 6) high-performance wireless connectivity for Small Office and Home Office (SOHO) deployments.
Out of stock
Ubiquiti AmpliFi Instant Home Mesh Wireless System – AFI-INS-UK
The Ubiquiti AmpliFi Instant Home WiFi System AFI-INS is a home WiFi system with mesh technology, supercharged 802.11ac WiFi and super easy setup AFI-INS .includes a router with an easy-to-use touchscreen display, 1 Gigabit Ethernet port, a WAN port, an Ethernet cable, and one Mesh Point with an Ethernet port to maximize coverage and eliminate dead zones in your home. The AmpliFi Instant WiFi system provides superior coverage with a range of up to 4,000 sq. ft and quick setup for whole home coverage with seamless WiFi.
Out of stock
NETGEARÂ WAX214-100EUSÂ Essentials WiFi 6 Access Point (1800Mbps AX)
The NETGEAR WAX214Essentials PoE+ WiFi 6 Access Point (AX) delivers 802.11ax high performance wireless connectivity for Small Office and Home Office (SOHO) deployments and supports dual band concurrent WiFi 6 operations at 2.4GHz and 5GHz with a combined throughput of 1.8Gbps (600Mbps at 2.4GHz and 1200Mbps at 5GHz). The WAX214 WiFi 6 Access Point provides standalone configuration with easy setup for a reliable, WiFi 6 802.11ax high performance, and cost effective wireless solution. The WAX214 can be powered by Power-over-Ethernet or a DC power adapter (sold separately).
Out of stock
Ruckus ZoneFlex R350 Indoor 802.11ax WiFi-6 Wi-Fi Access Point
Ruckus ZoneFlex R350 Wifi-6 having Smaller locations can face big-time demands on their wireless infrastructure.
10 in stock

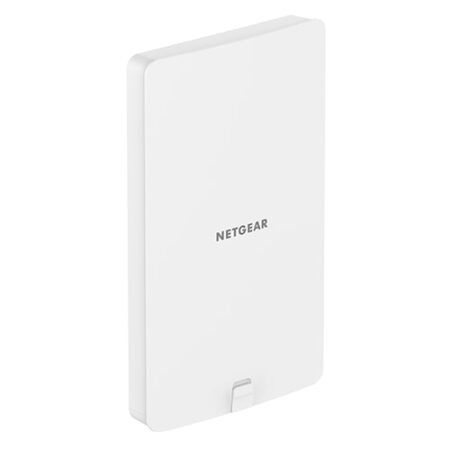

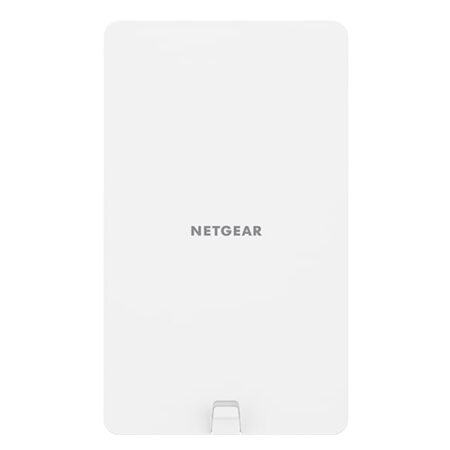

NETGEAR WAX610Y-100EUS Outdoor WiFi 6 PoE+ Access Point (1800Mbps AX) w/ Insight
