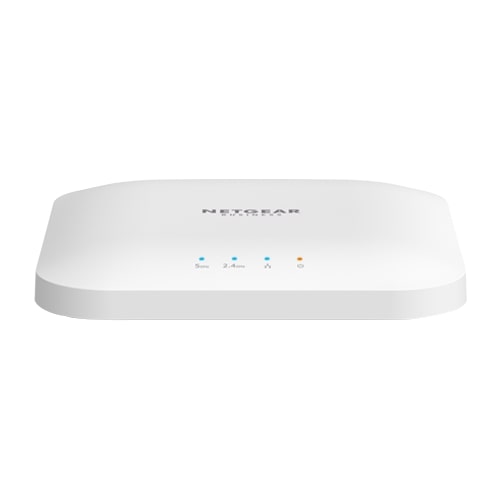

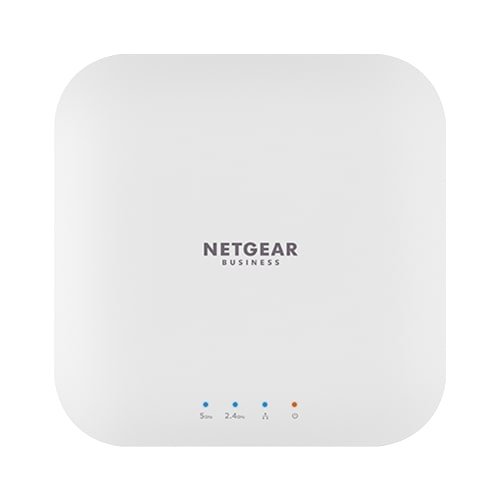

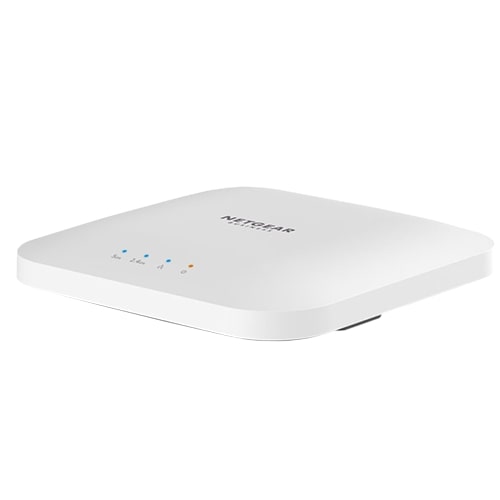

NETGEAR WAX214 Essentials PoE+ WiFi 6 Access Point (AX)
£136.78 inc.VAT / £113.98 exc.VAT
NETGEARÂ WAX214-100EUSÂ Essentials WiFi 6 Access Point (1800Mbps AX)
The NETGEAR WAX214Essentials PoE+ WiFi 6 Access Point (AX) delivers 802.11ax high performance wireless connectivity for Small Office and Home Office (SOHO) deployments and supports dual band concurrent WiFi 6 operations at 2.4GHz and 5GHz with a combined throughput of 1.8Gbps (600Mbps at 2.4GHz and 1200Mbps at 5GHz). The WAX214 WiFi 6 Access Point provides standalone configuration with easy setup for a reliable, WiFi 6 802.11ax high performance, and cost effective wireless solution. The WAX214 can be powered by Power-over-Ethernet or a DC power adapter (sold separately).
Out of stock
NETGEARÂ WAX214-100EUSÂ Essentials WiFi 6 Access Point (1800Mbps AX)
NETGEAR WAX214 Essentials PoE+ WiFi 6 Access Point (AX)
The NETGEAR WAX214 Essentials PoE+ WiFi 6 Access Point (AX) delivers 802.11ax high performance wireless connectivity for Small Office and Home Office (SOHO) deployments and supports dual band concurrent WiFi 6 operations at 2.4GHz and 5GHz with a combined throughput of 1.8Gbps (600Mbps at 2.4GHz and 1200Mbps at 5GHz). The WAX214 WiFi 6 Access Point provides standalone configuration with easy setup for a reliable, WiFi 6 802.11ax high performance, and cost effective wireless solution. The WAX214 can be powered by Power-over-Ethernet or a DC power adapter (sold separately).
Key Features
- WiFi 6 802.11ax technology.
- Dual band concurrent operation between 2.4GHz and 5GHz frequency ranges.
- Maximise coverage for optimal deployment for SOHO.
- Supports wireless security features (WPA, WPA2 and WPA3).
- MAC based Access Control List to protect against intruders.

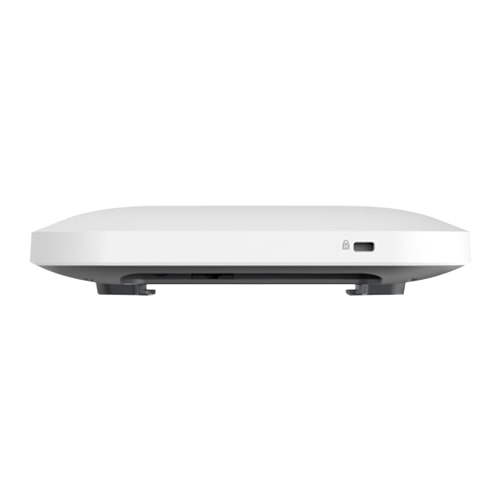

- Hardware harness included for easy ceiling and wallmount installation.
- Flexible options for power source, either by a DC power adapter (sold separately) or by a PoE Ethernet switch (sold separately).
- Support latest WiFi 6 802.11ax wireless clients to achieve maximum speed.
- Backward compatible to allow legacy devices to connect at their fastest speed.
- Simple setup in minutes with intuitive Graphical User Interface (GUI).
- Comprehensive monitoring and management through a local web portal user interface.
Future-Proof with WiFi 6 and WAX214
The WAX214 delivers high-speed WiFi 6 that is affordable and easy to install, without added infrastructure and deployment costs.
WiFi 6 offers:
- Superior coverage
- 40% higher speeds, 1.8Gbps speeds
- 4x more user capacity
NETGEAR Makes WiFi Safer
Lack of security for guest access is one of the main challenges of WiFi. Keep your WiFi connection secure and affordable with the WAX214.
- Four (4) separate SSIDs for secure guest, employee, and admin networks WPA/WPA2/WPA3 for high level WiFi connection security DHCP NAT server for firewall security.
Possible Applications
Retail businesses and professional offices:
- Latest WiFi 6 technology with 1.8Gbps speed provides the performance and capacity required for many users streaming simultaneously.

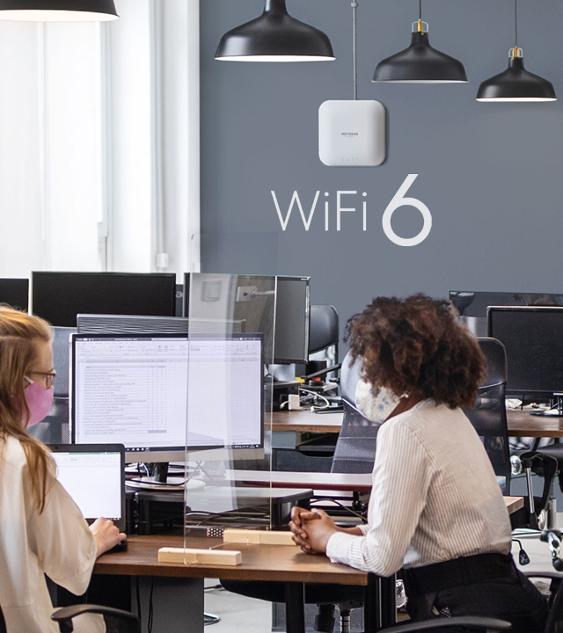

- Designed to be easily mounted on walls and ceilings so it can be discreetly located in customer facing areas.
- Powered by PoE and requires only a single Ethernet cable to power and connect it to the rest of the network — no AC plug or nearby outlet required.
- Simple to install and manage using an easy-to-use web interface.
- Guest WiFi is separate and secure from other office WiFi.
Specifications
Physical Characteristics
Power Supply
- 12V/1.5A (18W) Power adapter (sold separately) or PoE/PoE+ Switch (sold separately)
Physical Specifications
Dimensions (L x W x H)
- 160.9 x 160.9 x 33.28 mm (6.33 x 6.33 × 1.31 in.)
Weight
- 380 g (0.84 lb.)
Mounting options
- Ceiling or Wallmount (included)
Network Interfaces
Ethernet Ports
- 1 x 10/100/1000Mbps Ethernet (RJ45) PoE+ port with Auto Uplink (Auto MDI-X)
Hardware
Buttons
- Default Reset
LEDs
- 4 x LEDs (Power, LAN, 2.4GHz, 5GHz)
Environmental Specifications
Operating Temperature
- 0ºC to 40ºC (32ºF to 104ºF)
Storage Temperature
- -40ºC to 70ºC
Operating Relative Humidity
- 95%
Storage Humidity
- 5% to 95%
MTBF
- @ 25ºC > 1,896,453 hours
- @ 45ºC > 378,702 hours
Safety Certification
- CB, EN60950, EN62368
RF Characteristics
Standards
- IEEE 802.11ax
- IEEE 802.11ac specification
- IEEE 802.11n 2.0 specification
- IEEE 802.11g
- IEEE 802.11b
- IEEE 802.11a
Frequency Band
- 2.4GHz and 5GHz concurrent operation
Maximum Theoretical Throughput
- 573.5Mbps (2.4GHz)
- 1201Mbps (5GHz)
Maximum Number of Clients
- 128 (2.4GHz 64; 5GHz 64)
Network Management
Deployment options
- Standalone Web UI
Access Point Antenna
- 3 dBi (2.4GHz)
- 4 dBi (5GHz)
Security
- WiFi Protected Access (WPA2/WPA3)
- MAC Address filtering
- 4 SSID
MAC ACL
- Yes
VPN Pass-through
- No
802.11e WMM
- Wireless multimedia mode for QoS
Simultaneous Bridge/Client Association
- No
Package
Package Contents
- 1 x NETGEAR WAX214
- 1 x Ethernet cable
- 1 x Installation guide
- 1 x Warranty/support information card
Standard Warranty: 3-Years
