TP-Link TL-SG1008 8-Port Unmanaged Rackmount Gigabit Switch

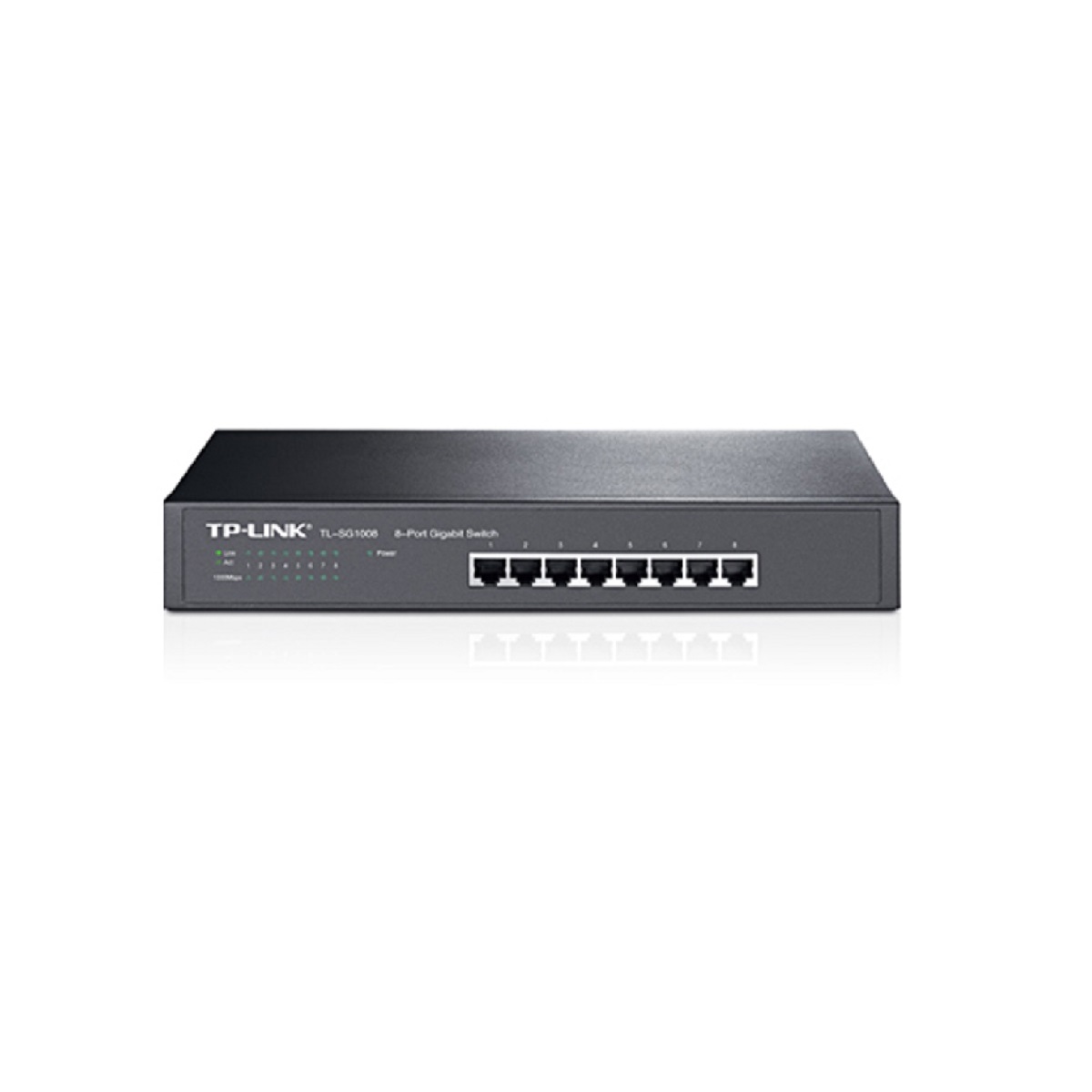

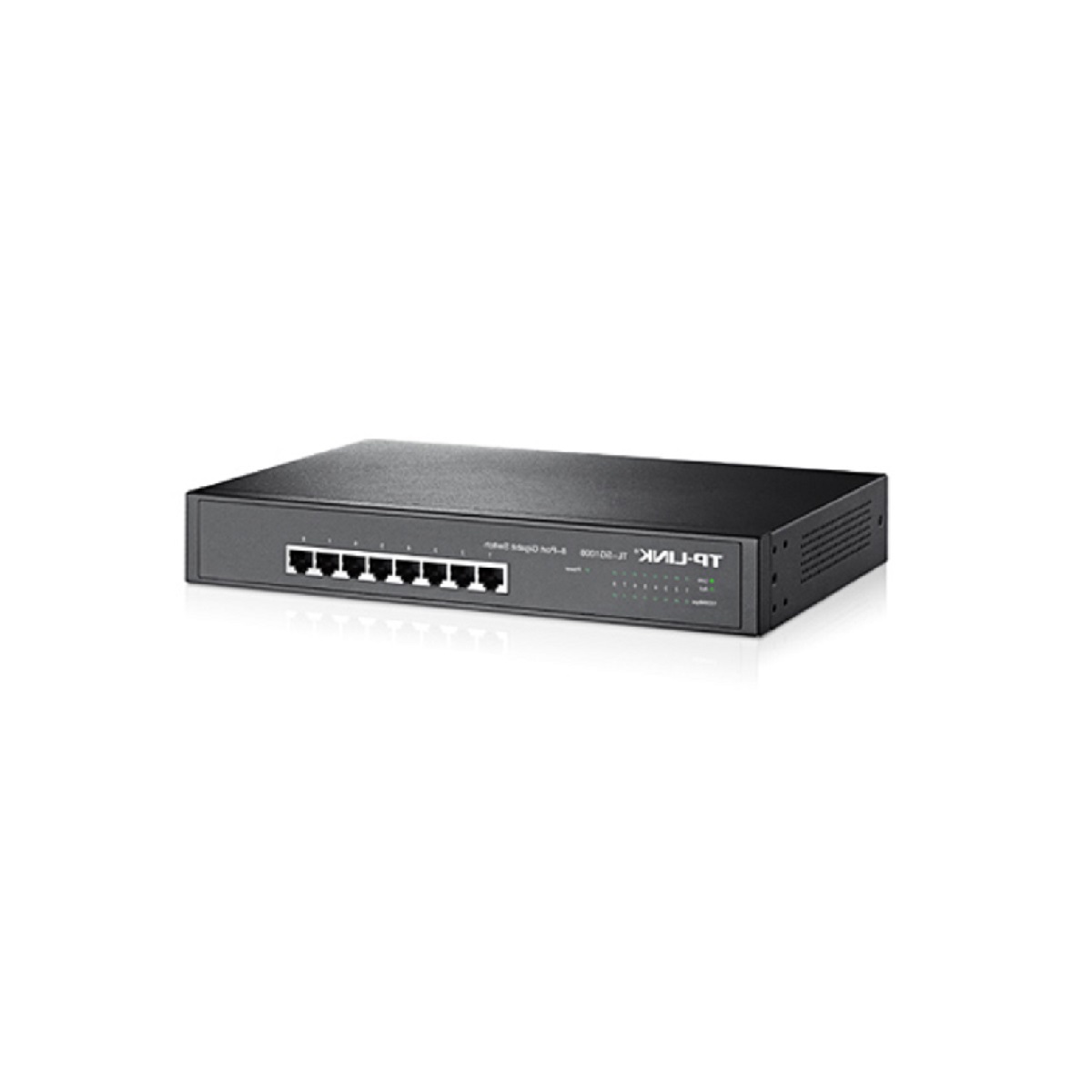

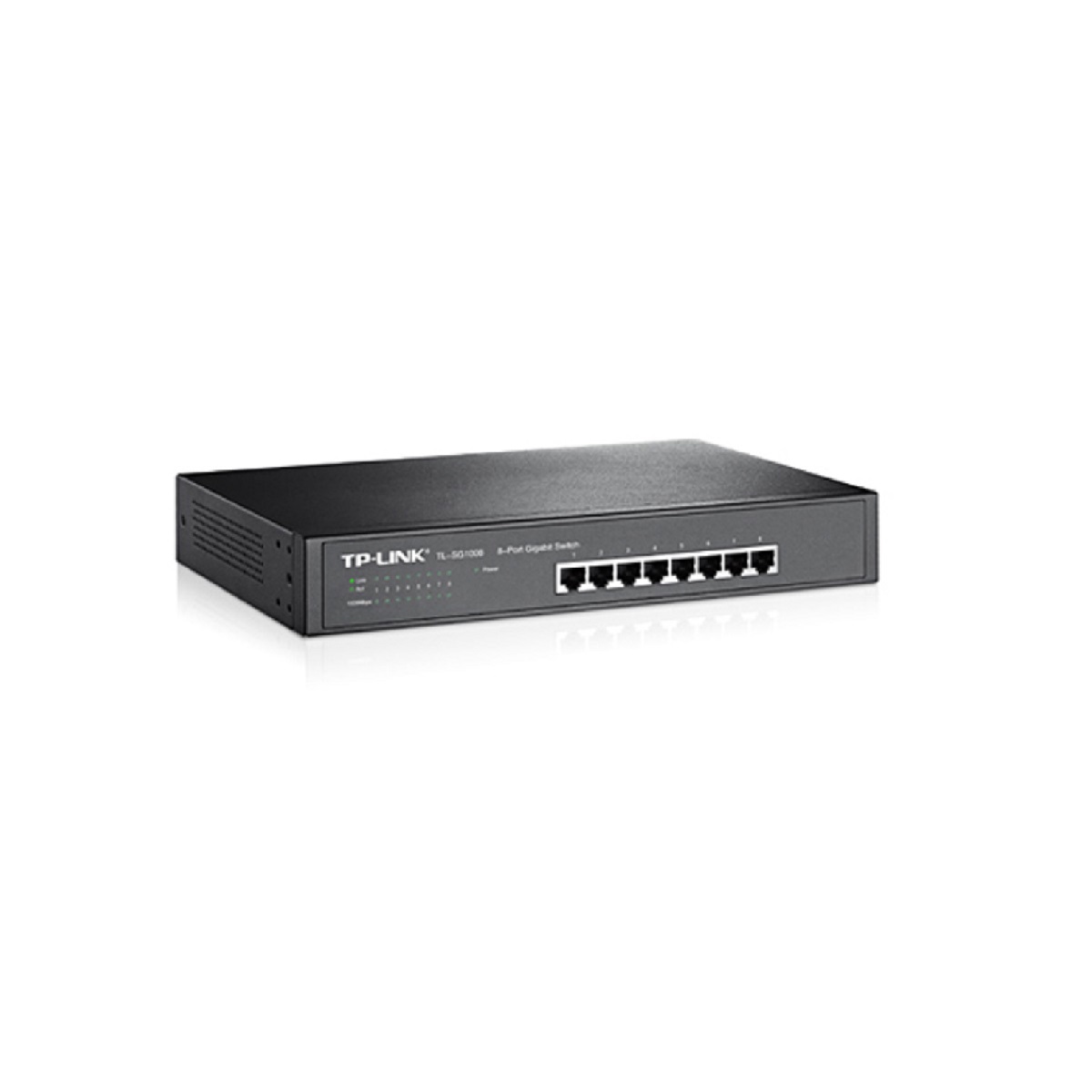

TP-LINK TL-SG1008 8 Port Gigabit Switch
TP-LINK TL-SG1008 8 Port Gigabit Switch is a high performance switch that provides an ideal solution for workgroup or department Gigabit applications, with 8 10/100/1000BASE-T Gigabit Ethernet ports with AUTO-MDIX provides full bandwidth (Maximum 2000Mbps in full duplex mode).Easy-to-view LED indicators are supported for cable installation and normal operational diagnostics. This TP-Link TL-SG1008 switch can be used a desktop or in a rack-mount.
Gigabit Switch TL-SG1008 8 Port
Key Features
- 8 10/100/1000M RJ45 ports.
- Supports MAC address self-learning and auto MDI/MDIX.
- Desktop or rack-mountable steel case.
- Supports full duplex wire-speed forwarding.
- Head of line blocking prevention.
- Full duplex Flow Control (802.3x compatible).
- Asymmetric Flow Control (802.3z compatible).
- Dynamic data buffer assignment.
Go Green with your Ethernet
This new TP-Link TL-SG1008 Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. When a computer or other piece of network equipment is off, the switch can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
The TP-Link TL-SG1008 also analyses the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution, saving the power that would otherwise be wasted.
Easy to Use
The automatic features of this TP-Link TL-SG1008 switch makes plug and play installation efficient and hassle-free. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
Standards and Protocols
- IEEE802.3, 802.3u, 802.3ab, 802.3x
- CSMA/CD, TCP/IP
Basic Function
- Wire-speed Performance
- MAC Address Auto-Learning and Auto-aging
- IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
- 16Gbps
MAC Address Table
- 8k
Forwarding Rate
- 10BASE-T: 14880pps/port
- 100BASE-TX: 148800pps/port
- 1000BASE-T: 1488000pps/port
Transmission Method
- Store-and-Forward
Ports
- 8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ù STP (maximum 100m)
- 100Base-Tx: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ù STP (maximum 100m)
- 1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators
- Power, Link/Act (1000Mbps, 10/100Mbps)
Safety & Emission
- FCC, CE
Dimensions (W*D*H)
- 9.8*6.2*1.7 in. (250*158*44 mm)
Environment
- Operating Temperature:
- 0°C~40°C (32°F~104°F)
- Storage Temperature:
- -40°C~70°C (-40°F~158°F)
- Operating Humidity:
- 10%~90% non-condensing
- Storage Humidity:
- 5%~90% non-condensing
Power
- 100-240VAC, 50/60Hz
Package Contents
- 1 x TL-SG1008
- 1 x Power Cord
- 1 x Installation Guide
- 1 x Rackmount Kit
- 1 x Set of Rubber Feet
Standard Warranty: 3-Years
