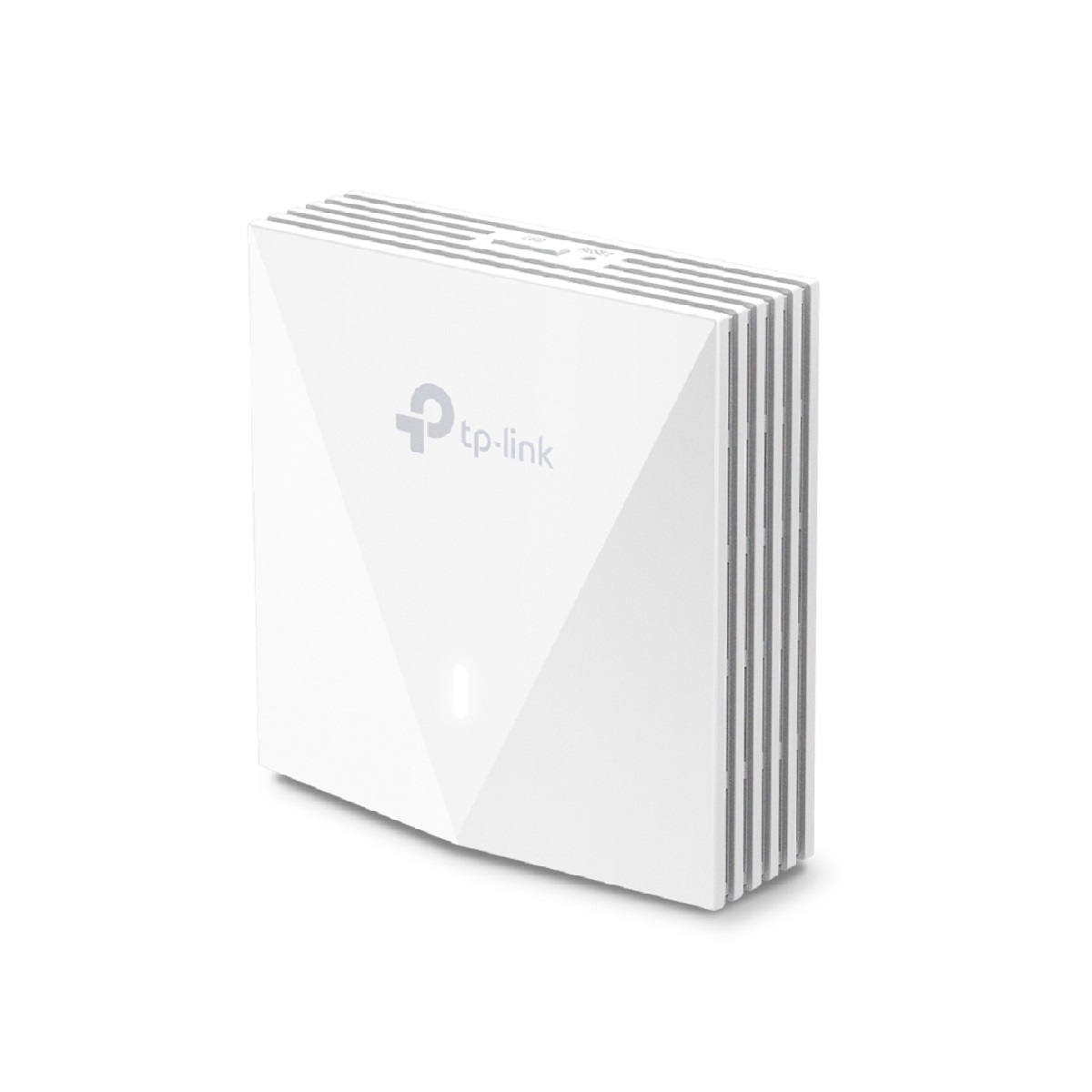

TP-Link EAP650-Wall Plate WiFi 6 Access Point (2.9Gbps AX)
TP-Link EAP650-Wall Plate WiFi 6 Access Point
TP-Link EAP650-Wall Plate WiFi 6 Access Point is designed to blend in seamlessly with the aesthetic of your room. Its compact form means it is quick and easy to install, and is compatible with 86mm and EU standard junction boxes. Capable of blazing-fast speeds of up to 2976Mbps AX, the EAP650-Wall is ideal for a range of scenarios.
WiFi 6 Access Point EAP650-Wall Plate
Key Features
- Blazing-Fast AX3000 WiFi 6 Speeds
Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds. - High-Efficiency WiFi 6
Connect more devices and enjoy even faster speeds. - Higher Network Efficiency
Deliver data to more devices at the same time with less lag. - 160 MHz Channel
Double the data at peak transmission times on a single stream with HE160. - Complete In-Room WiFi Coverage
Guaranteed strong signals and corner-to-corner WiFi coverage. - Seamless Roaming
Uninterrupted streaming when moving around between access points. - Gigabit Port
Connect a wired device with one (1) downlink gigabit port. - 802.3af/at PoE Support
Flexible and convenient deployment. - Centralized Cloud Management
Integrates into Omada for cloud access and remote management. - Secure Guest Network
Implement multiple authentication options (SMS/Facebook WiFi/ Voucher) packed with high-quality wireless security technologies. - Easy Installation
Easy-to-install design, compatible with 86mm & EU standard junction boxes.

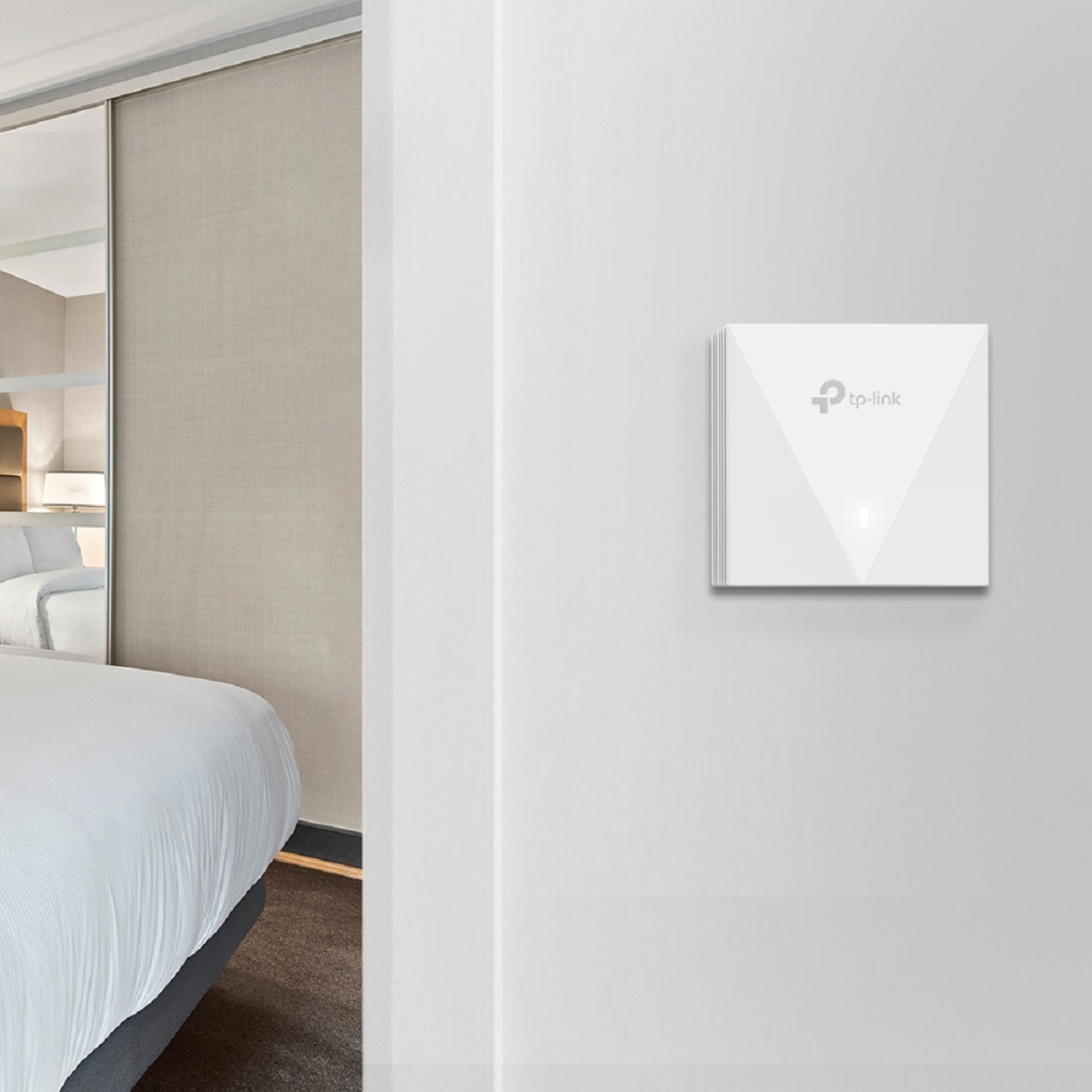

Dedicated Private WiFi Network in Each Room
- Hospitality
Room-by-room connection with elegant appearance. - Dormitory
Stable wireless and wired connections. - Apartment
Private and secure network access for every family. - Villa
Whole-home WiFi coverage with seamless roaming. - Meeting Room
Faster streaming, downloading, video conferencing, and everything to satisfy your needs.
Lightning-Fast AX3000 WiFi 6 Speeds
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with business WiFi 6, with speeds up to 2976 Mbps.
- 1024 QAMÂ – 25% more data encoded at one time.
- Long OFDM Symbol – 11% faster speed.
- HE160Â – Double the data at peak transmission times on a single stream.
High-Performance WiFi 6 Connectivity
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.
- OFDMA
- BSS Coloring
- High-Efficiency WiFi 6
- Band Steering
Security Matters
Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.
- Secure Guest Network, up to 16 SSIDs
Guest networks provide enhanced security. Different SSIDs also enable flexible access management. - Boost Business With Facebook WiFi and SMS Login
Captive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing page. - WPA3 for Worry-Free Open Public Networks
WPA3 provides more data security for previously unsecured and open WiFi hotspots with advanced enterprise security.

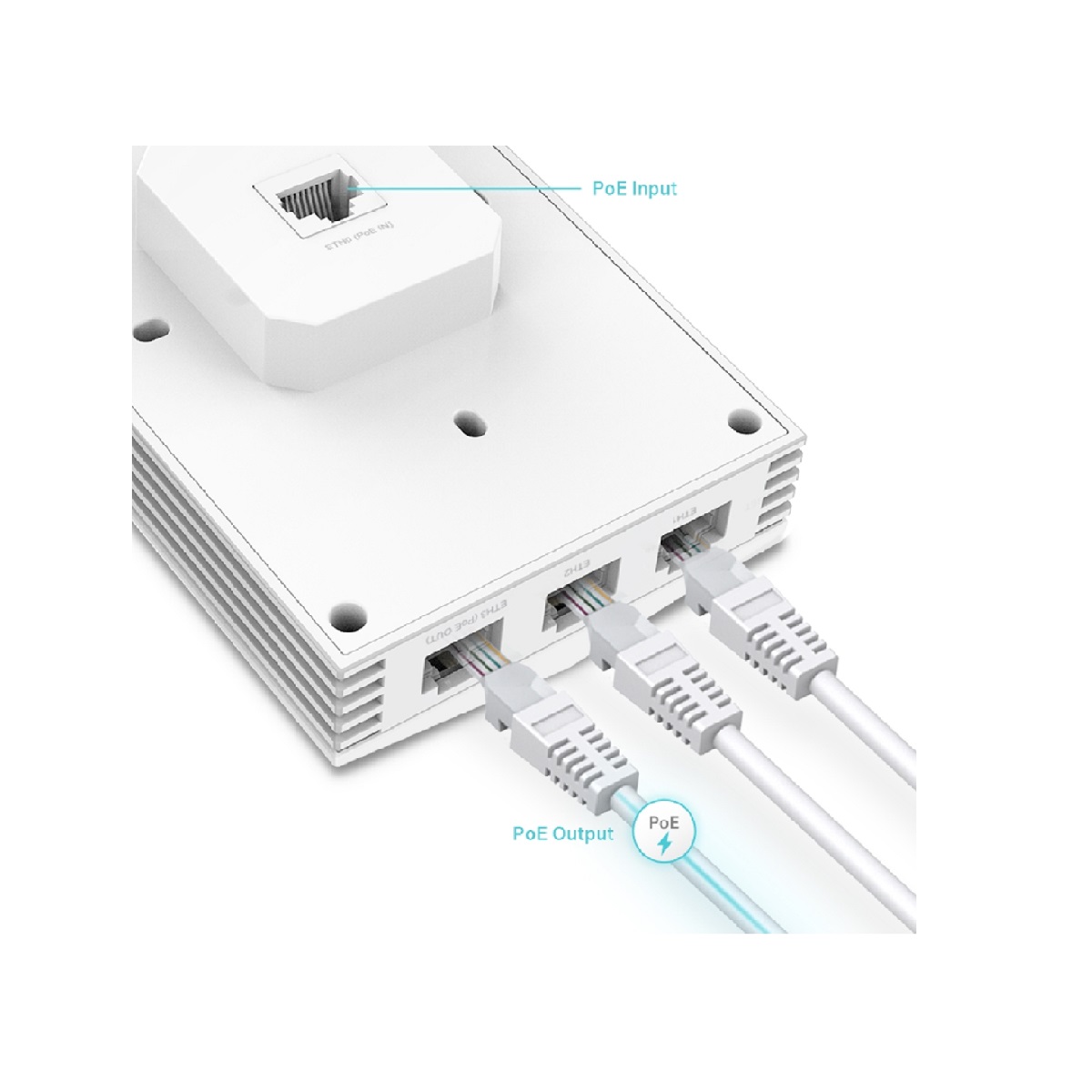

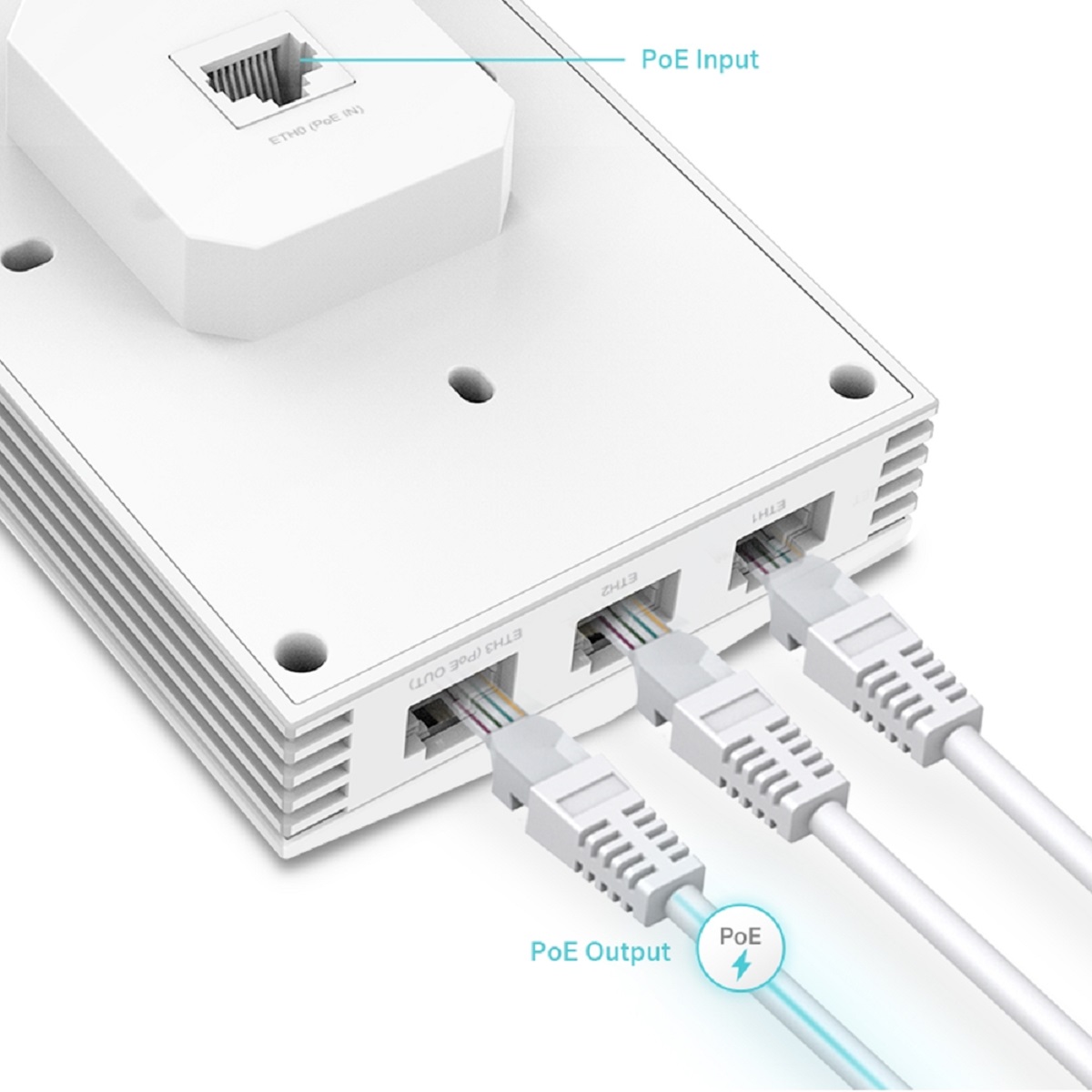

Gigabit Ports to Bridge Network
The gigabit downlink port allows you to connect a wired device to the gigabit network.
Effortless Deployment With PoE Power
With 802.3af/802.3at PoE support, there’s no need for additional wiring. Plug it into existing Ethernet cables, and you’re ready.
Quick and Simple Installation
With an easy-to-install design, there is no need to bring someone in to install this access point.
Fits two kinds of wall junctions:
- 86 mm wall junction box
- Standard EU wall junction box
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighbouring APs in the same network.
Seamless Integration Into Omada
The Omada platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network — all controlled from a single interface.
- Hardware, software, or cloud-based controllers (sold separately).
- Centralized cloud management.
- Intelligent monitoring.
- Zero-Touch Provisioning (ZTP).
Easy Management With Omada App
Follow the configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.
Specifications
Hardware Features
Interface
- Uplink: 1 x 10/100/1000 Mbps Ethernet Port
- Downlink: 1 x 10/100/1000 Mbps Ethernet Port
Physical Security Lock
- No
Button
- Reset, LED
Power Supply
- 802.3af/at PoE
Power Consumption
- 11.5 W
Dimensions
- 86 x 86 x 42.6 mm (3.4 x 3.4 x 1.7 in.)
Antenna
- 2 x Dual-Band Antennas
- 2.4 GHz: 2 x 3 dBi
- 5 GHz: 2 x 5 dBi
Mounting
- Wall Plate Mounting (kits included)
Wireless Features
Concurrent Clients
- 100+
Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
Frequency
- 2.4 GHz and 5 GHz
Signal Rate
- 5 GHz: Up to 2402 Mbps
- 2.4 GHz: Up to 574 Mbps
Wireless Functions
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Seamless Roaming
- Beamforming
- Rate Limit
- Load Balance
- Airtime Fairness
- Band Steering
- Reboot Schedule
- Wireless Schedule
- RADIUS Accounting
- MAC Authentication
- Wireless Statistics
- Static IP/Dynamic IP
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE:
- <20 dBm (2.4GHz, EIRP)
- <22 dBm (5GHz band1 & 2, EIRP)
- <22 dBm (5GHz band3, EIRP)
Management
Omada App
- Yes
Centralized Management
- Omada Hardware Controller (OC300/OC200 – sold separately)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
- Requires OC300/OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller
Email Alerts
- Yes
LED ON/OFF Control
- Yes
Management MAC Access Control
- Yes
SNMP
- v1, v2c, v3
System Logging Local/Remote Syslog
- Local/Remote Syslog
SSH
- Yes
Web-based Management
- HTTP/HTTPS
L3 Management
- Yes
Multi-site Management
- Yes
Management VLAN
- Yes
Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller
Other Specifications
Certification
- CE, RoHS
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70°C (-40°F – 158°F)
- Operating Humidity: 10% – 90% RH non-condensing
- Storage Humidity: 5% – 90% RH non-condensing
Package Contents
- 1 x TP-Link EAP650-Wall
- 1 x Installation Guide
- 1 x Mounting Kits
Standard Warranty: Limited Lifetime
