TP-Link EAP655-Wall Plate WiFi 6 Access Point (2.9Gbps AX)
TP-Link EAP655-Wall Plate WiFi 6 Access Point
TP-Link EAP655-Wall Plate WiFi 6 Access Point brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps.
WiFi 6 Access Point EAP655-Wall Plate
Key Features
- Blazing-Fast AX3000 WiFi 6 Speeds
Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds - Higher Network Efficiency
Deliver data to more devices at the same time with less lag. - Complete In-Room WiFi Coverage
Guaranteed strong signals and corner-to-corner WiFi coverage. - Multiple Gigabit Ports
Connect multiple devices with three (3) downlink gigabit ports, one with PoE pass-through. - Centralized Cloud Management
Integrates into Omada for cloud access and remote management. - Secure Guest Network
Implement multiple authentication options (SMS/Facebook WiFi/ Voucher) packed with high-quality wireless security technologies. - Easy Installation and PoE Support
Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support. - 160 MHz Channel
Double the data at peak transmission times on a single stream with HE160. - Enhanced Security
With guest networks, Captive Portal, and WPA3 encryption. - Seamless Roaming
Uninterrupted streaming when moving between APs.
Dedicated Complete, Private WiFi Network in Each Room
- Hospitality:Â Room-by-room connection with elegant appearance.
- Dormitory:Â Stable wireless and wired connections.
- Apartment:Â Private and secure network access for every family.
- Villa:Â Whole-home WiFi coverage with seamless roaming.
- Meeting Room:Â Faster streaming, downloading, video conferencing, and everything to satisfy your needs.
Better User Experience with High-Performance WiFi 6 Connectivity
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency. Features include OFDMA, BSS Coloring, High-Efficiency WiFi 6, and Band Steering.
More than Speed, Security Matters
Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.
- Secure Guest Network with Up to 16 SSIDs
Guest networks provide enhanced security. Different SSIDs also enable flexible access management. - Boost Business with Facebook WiFi and SMS Login
Captive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing page. - WPA3 for Worry-Free Open Public Networks
WPA3 provides more data security for previously unsecured and open WiFi hotspots with advanced enterprise security.

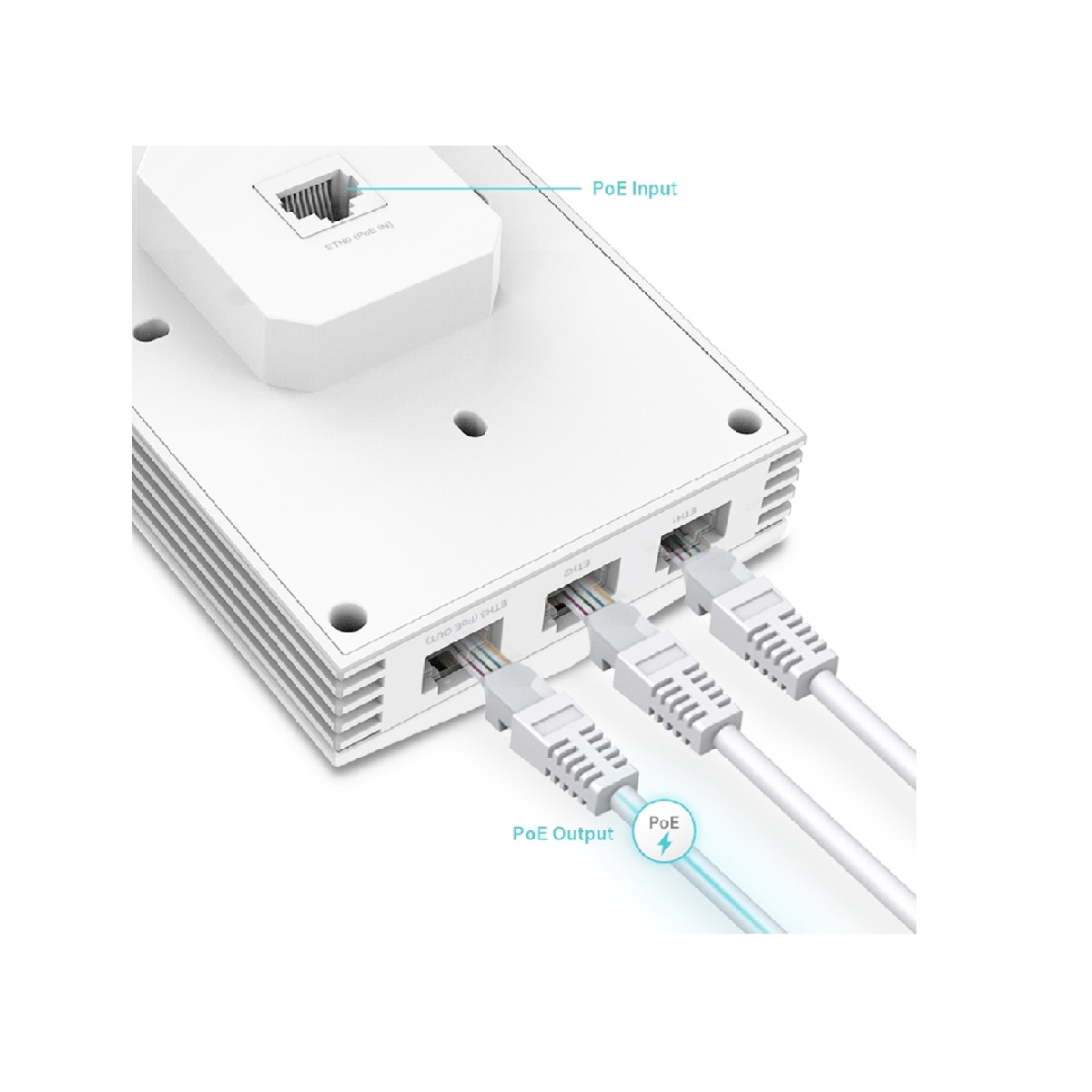

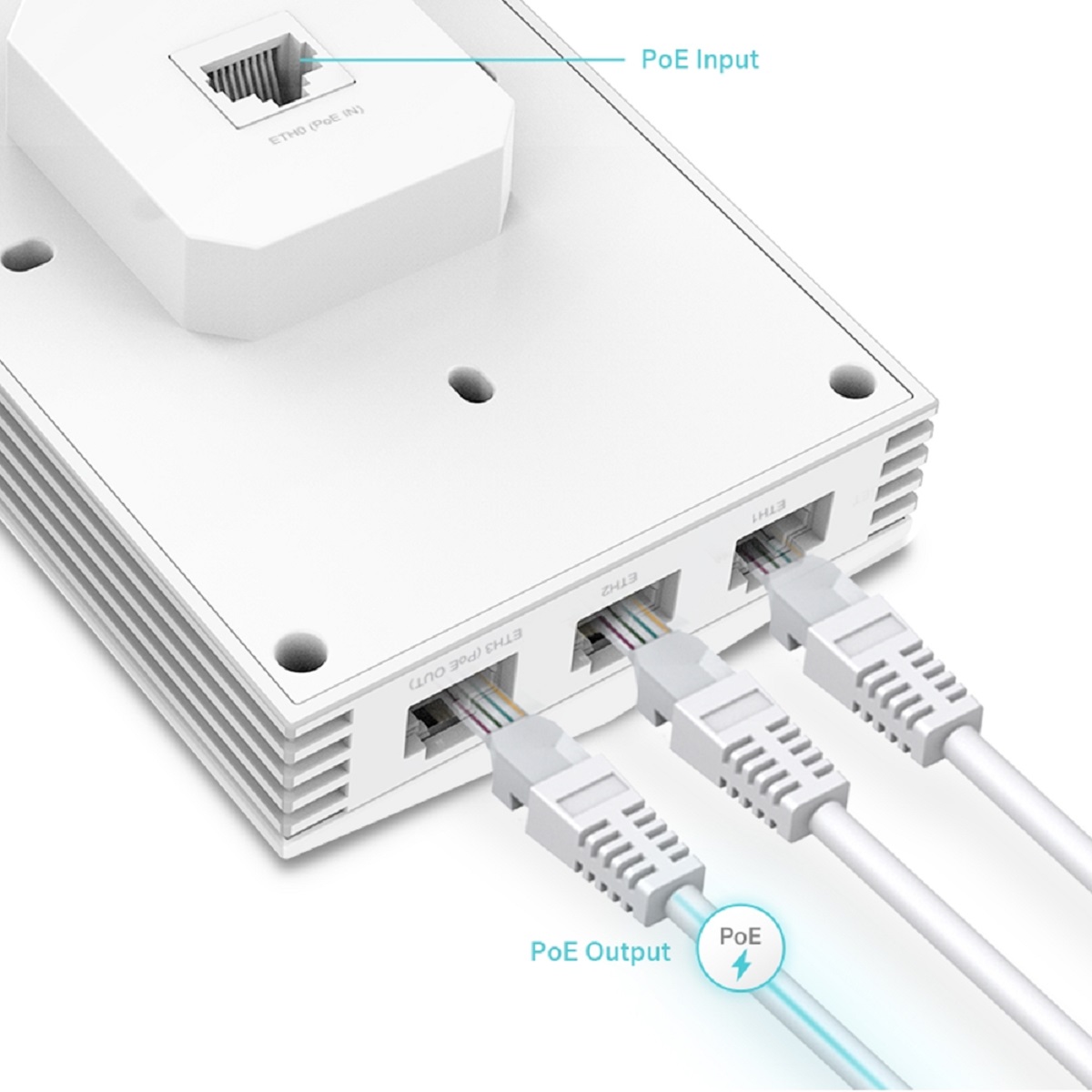

Full Gigabit Ports to Bridge Network
Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four (4) data ports (1 uplink + 3 downlinks) transfer data at multiple gigabits, allowing you to connect several devices to your gigabits network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power port.
Effortless Deployment with PoE Powered
With 802.3af/802.3at PoE support, there’s no need for more wiring. Plug it into the existing Ethernet cables, and you’re ready.
Quick, Simplified Installation
With an easy-to-install design, there is no need to bring someone in to install our EAP.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighbouring APs in the same network.
Seamless Integration into Omada
The Omada platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of your mobile device.
Specifications
Hardware Features
Interface
- Uplink: 1× 10/100/1000 Mbps Ethernet Port
- Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input.)
Physical Security Lock
- No
Button
- Reset, LED
Power Supply
- 802.3af/at PoE
Power Consumption
- EU: 12W (802.3at PoE, PoE Out off)
- US: 12.6W (802.3at PoE, PoE Out off)
Dimensions
- 143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)
Antenna
- 2 Dual-Band Antennas
- 2.4 GHz: 2× 3 dBi
- 5 GHz: 2× 5 dBi
Wireless Features
Concurrent Clients
- 100+
Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
Frequency
- 2.4 GHz and 5 GHz
Signal Rate
- 5 GHz: Up to 2402 Mbps
- 2.4 GHz: Up to 574 Mbps
Wireless Functions
- 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Seamless Roaming
- Beamforming
- Rate Limit
- Load Balance
- Airtime Fairness
- Band Steering
- Reboot Schedule
- Wireless Schedule
- RADIUS Accounting
- MAC Authentication
- Wireless Statistics
- Static IP/Dynamic IP
Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
- CE:
- <20 dBm (2.4GHz, EIRP)
- <23 dBm (5GHz band1 & 2, EIRP)
- <26 dBm (5GHz band3, EIRP)
- FCC:
- < 21 dBm (2.4 GHz)
- < 21 dBm (5 GHz)
Management
Omada App
- Yes
Centralized Management
- Omada Hardware Controller (OC300, sold separately)
- Omada Hardware Controller (OC200,sold separately)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
- Yes. Requiring the use of OC300 or OC200 (sold separately), Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
- Yes
LED ON/OFF Control
- Yes
Management MAC Access Control
- Yes
SNMP
- v1, v2c, v3
System Logging Local/Remote Syslog
- Local/Remote Syslog
SSH
- Yes
Web-based Management
- HTTP/HTTPS
L3 Management
- Yes
Multi-site Management
- Yes
Management VLAN
- Yes
Zero-Touch Provisioning
- Yes. Requiring the use of Omada Cloud-Based Controller.
Others
Certification
- FCC, RoHS
System Requirements
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
- Operating Temperature: 0°C – 40°C (32°F – 104°F)
- Storage Temperature: -40°C – 70° (-40°F – 158°F)
- Operating Humidity: 10 – 90% RH non-condensing
- Storage Humidity: 5 – 90% RH non-condensing
Package Contents
- 1 x AX3000 Wall Plate WiFi 6 Access Point EAP655-Wall
- 1 x Installation Guide
- 1 x Mounting Kits
Standard Warranty: Limited Lifetime
