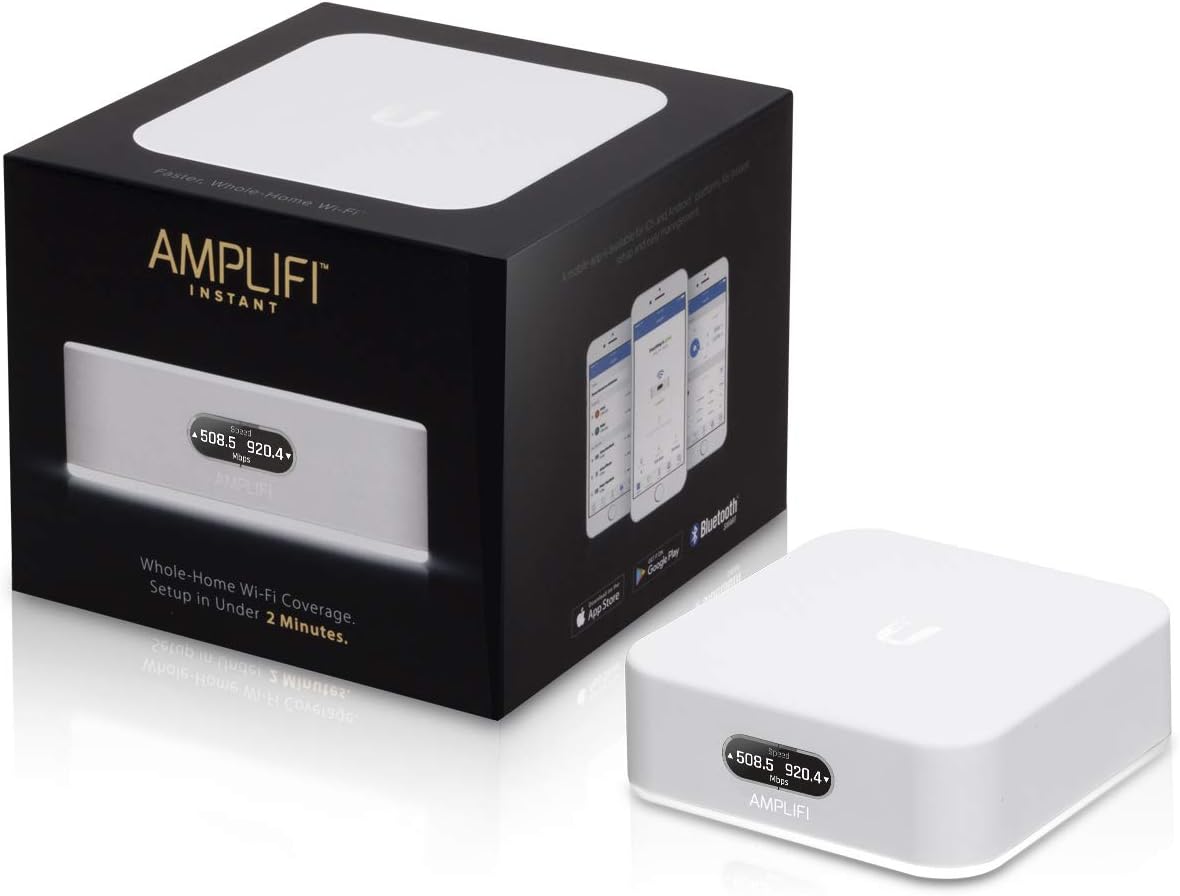

Ubiquiti AmpliFi Instant Home WiFi Router -AFI-INS-R

Ubiquiti AmpliFi Instant Home Mesh WiFi Router AFI-INS-R

Ubiquiti AmpliFi Instant Home WiFi Router -AFI-INS-R

The  Ubiquiti AmpliFi Instant Home WiFi Router -AFI-INS-R, is an instant wireless router for home and domestic WiFi deployments. It features mesh technology, an easy-to-use touchscreen display, one Gigabit Ethernet port, a WAN port, and an Ethernet cable. The AmpliFi Router provides excellent coverage for standard-sized homes of approximately 2,000 sq ft. Expand as needed by adding MeshPoints to your mesh Wi-Fi system.

For the best performance, you need your router where you use your devices the most, such as offices and bedrooms, therefore the AmpliFi Instant System is designed to complement your home’s interior so you are free to place it where you like without it ruining your decor. The Router and MeshPoint are sleek and compact for discrete deployment within your home.

Features include device status and guest access, with a simple interface that is easy to use. Set up is quick and easy. The glowing LED light indicates the system status while the AmpliFi app puts you in control of your WiFi. Use the AmpliFi app to easily set up your system and get access to configuration options, powerful reporting metrics, parental controls, remote access, and easy guest access.

Key Features

• Mesh Technology
• Super- Easy Setup
• Turbocharged 802.11ac Wi-Fi
• Extend Ethernet Cable

Fresh design aesthetic

Say goodbye to trying to discreetly hide your router. You need your router where you use your devices the most; like your office, family room or bedroom. The AmpliFi Instant is designed to complement your home’s interior both functionally and aesthetically. Now you can place your router on your desk, side table or nightstand without messing up your home’s decor.

Features you want from a system you can understand

The AmpliFi Instant has the features you want, like device status and guest access, with a simple interface that doesn’t require advanced technical degrees. It’s glowing LED light indicates the system status while the AmpliFi App puts you in control of your WiFi.

 Specification

General

• Dimensions: 99.5 x 97.8 x 33.05 mm (3.92 x 3.85 x 1.30″)
• Weight: 215 g (7.58 oz)
• Max. TX Power: 22 dBm
• MIMO: 2.4 GHz: 2×2, 5 GHz: 2×2
• Speeds: 2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps
• Networking Interface: Wi-Fi/Gigabit Ethernet (1) WAN, (1) LAN
• Max. Power Consumption: 9W
• ESD/EMP Protection: ± 24kV Air/Contact
• Buttons: Reset
• Antennas: (1) Dual-Band Antenna, Single-Polarity
• Router Display: 30.73 mm (1.21″) Diagonal, 160 x 64, 142 ppi, Capacitive Touch, Grayscale
• Wi-Fi Standards: 802.11ac
• Power Save: Supported
• Wireless Security: WPA2-PSK AES/TKIP
• Operating Temperature: 14 to 131° F (-10 to 55° C)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: FCC, CE, IC

Supported Data Rates

• 802.11ac: 13 Mbps to 866.7 Mbps (MCS0 – MCS9, VHT 20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
