NETGEAR M4250-10G2XF-PoE+ (GSM4212PX) AV Line 8-Port Managed Rackmount Gigabit PoE+ Switch w/ 2 x 1GbE RJ45 Ports & 2 x 10GbE SFP+ Ports (240W)

NETGEAR (GSM4212PX-100EUS) M4250-10G2XF-PoE+ AV Line 8 Port Gigabit Switch was developed and engineered for audio/video professionals with dedicated service support. AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of the M4250-10G2XF-PoE+ targets the widespread 1Gbps codecs.

This switch comes pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio, Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile (requires an AVB license). For video, the M4250-10G2XF-PoE+ offers profiles for NVX, SVSI, Q-SYS, NDI, Dante, etc. as well as audio/video/control mixed profiles.

Gigabit Switch (GSM4212PX-100EUS) M4250-10G2XF-PoE+ AV Line 8 Port

Key Features

• Eight (8) 1GbE PoE+ 802.3at ports.
• Two (2) 1GbE RJ45 ports and two (2) 10GbE SFP+ fiber uplinks.
• PoE budget of 240W (30W per port).
• Ideal for multi-switch audio and video deployments.
• Fanless mode possible with max 25ºC ambient, 35ºC internal sensor and 45W PoE loading.

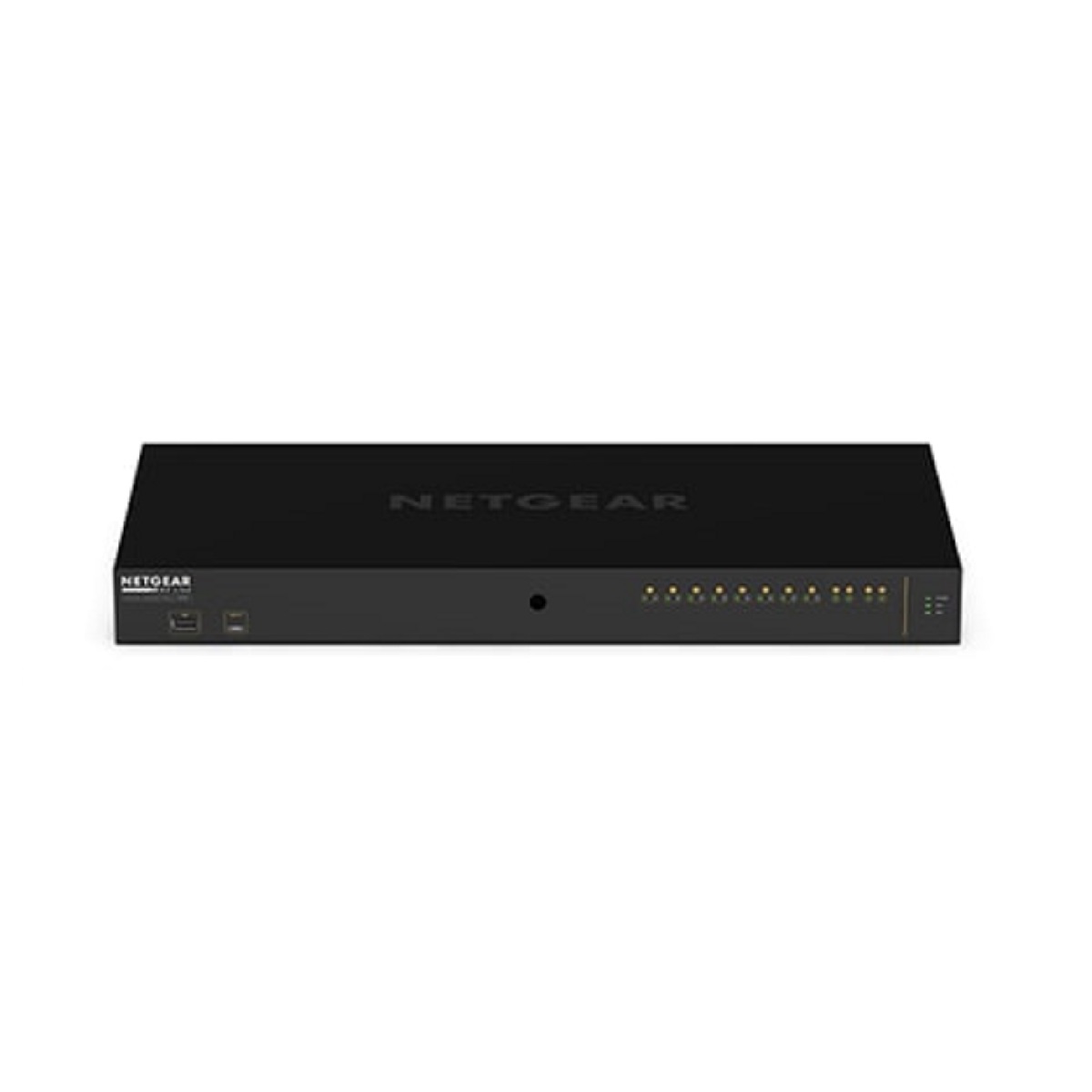

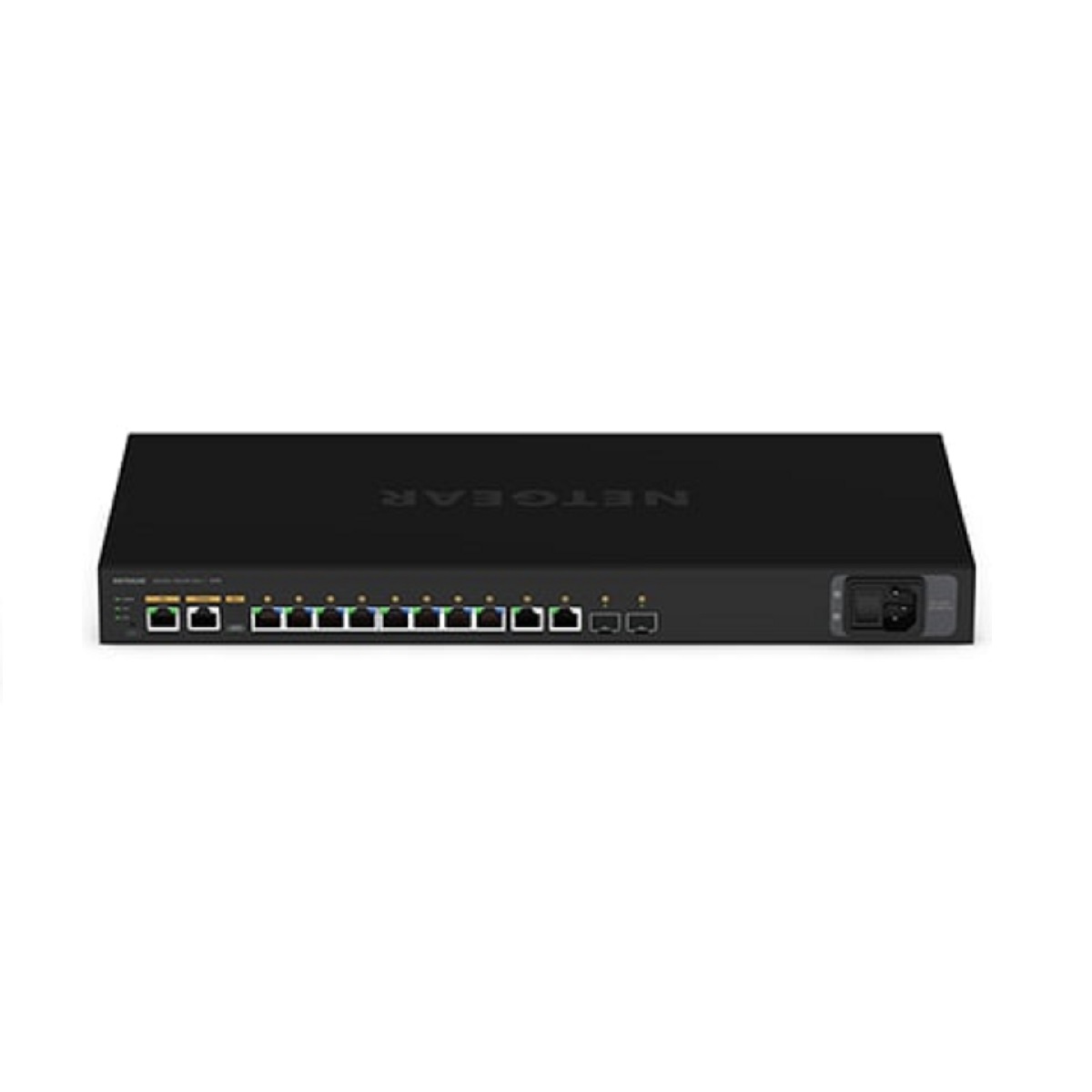

• 1U 257mm deep rackmount with front black display panel and all ports in the back.
• Possible reversed mounting with ports in the front including recessed mounting.
• Universal mounting options outside the rack with bottom M5 and front M10 threaded holes.
• Pre-configured for Audio and Video over IP out of the box.

NETGEAR IGMP Plus

NETGEAR IGMP Plus automatically multicasts across a M4250/M4300/M4500 L2 network (Spine and Leaf topologies), removing the need for L3 PIM routing.

• IGMP Plus is pre-configured on default VLAN 1 out of the box.
• IGMP Plus can be configured on another VLAN for automatic IGMP across switches on that VLAN (uplinks can make part of that VLAN in trunk mode).
• IGMP Plus allow AV-over-IP devices (TX/Encoders and RX/Decoders) to be connected across multiple switches in a star topology.
• The show snooping group command in CLI and GUI displays the Source and Group IP addresses along with their corresponding MAC addresses that are learnt through IGMP Snooping in a given VLAN on a given interface.

Extended Features

• Dedicated AV web-based GUI interface for more specific AV installations.
• Colour-based AV profiles can be applied to the different ports.
• Dante, Q-SYS, AES67 and AVB audio profiles.
• AVB requires an AVB4212P-10000S license.
• NVX, SVSI, Q-SYS, NDI and Dante video profiles.
• Audio / video / control mixed profiles.
• Automatic switch interconnect with NETGEAR IGMP Plus.
• Layer 2 and Layer 3 switching engine.
• Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4xxx series.
• Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2.

Support for Audio Video Bridging (AVB)

One of the many features designed into the M4250-10G2XF-PoE+ is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. The M4250-10G2XF-PoE+ can be optionally licensed for AVB support.

Specifications

Standard Warranty: Limited Lifetime
