Please note: This product does not come with a PoE injector (sold separately).

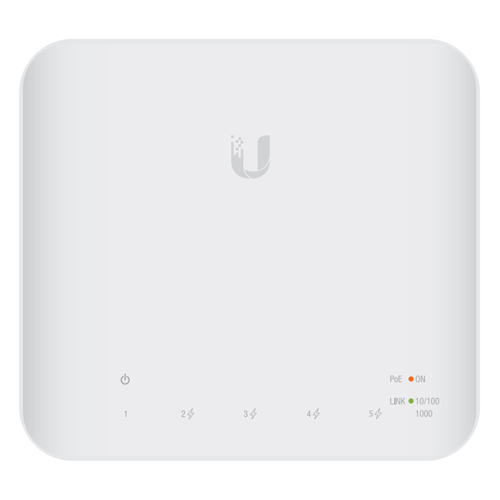

The Ubiquiti USW-Flex UniFi 5-Port Layer 2 Managed Desktop Gigabit PoE Switch is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers five (5) RJ45 Gigabit Ethernet ports, providing one (1) PoE input and four (4) PoE output links to your devices. The USW-Flex offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Key Features

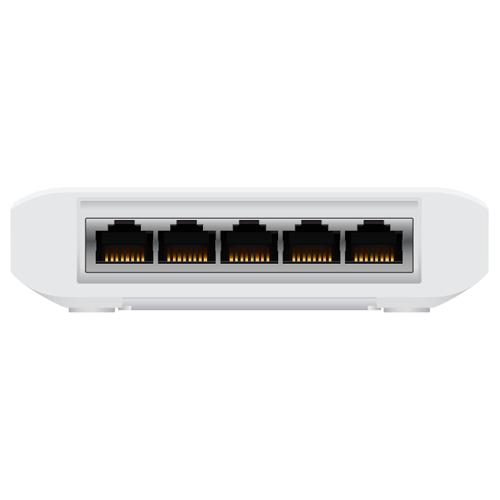

• Five (5) 10/100/1000 Gigabit Ethernet RJ45 ports.
• Four (4) ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.
• Total PoE budget of 46W.
• Indoor/outdoor design with versatile mounts.
• Fanless design for quiet operation.
• Ideal for small office and home networks.

PoE flexibility

The USW-Flex features five (5) Gigabit RJ45 ports to deliver robust performance and intelligent switching for your network. Port 1 provides PoE Input while ports 2-4 offer 802.3af PoE and provide up to 15W of power for your PoE devices. Products requiring 802.3af, such as G3 Flex cameras, are also supported.

Versatile Mounting

The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.

Indoor/outdoor design

The USW-Flex can be installed horizontally or vertically and is designed for indoor and outdoor use, making it ideal for desktop, wall, and pole-mount installations. With its weatherproof housing and versatile mounting options, the USW-Flex provides flexibility and durability in environments with extreme temperature variations.

Management capabilities

The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organised for a simplified, yet powerful, interface.

Network overview

From a single pane of glass you can view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.

Deep Packet Inspection

Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed analytics

The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Multi-site management

A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Switch configuration

You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:

• Operation mode (switching or mirroring) per port.
• Network/VLAN configuration.
• Jumbo frame services.
• Network settings.
• Debug terminal option for command-line interface.

Switch port status

You can also view status information for each port:

• Connection speed and duplex mode.
• TX/RX data rates.
• Network/VLAN setting.

Software features

The UniFi Network Controller software offers the following features:

• Centralised configuration management (including configuration cloning).
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable.

Specifications

Standard Warranty: 1-Year
