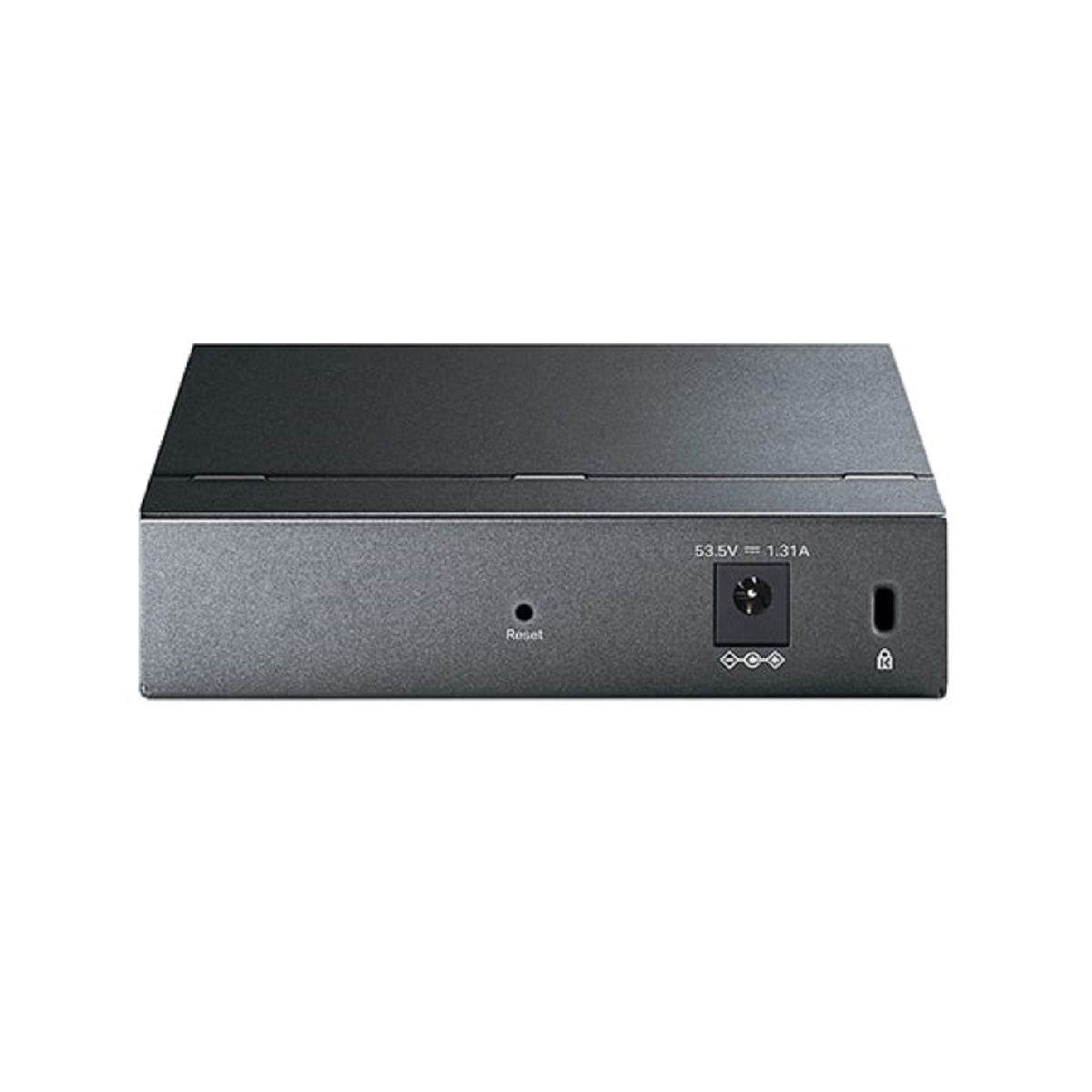

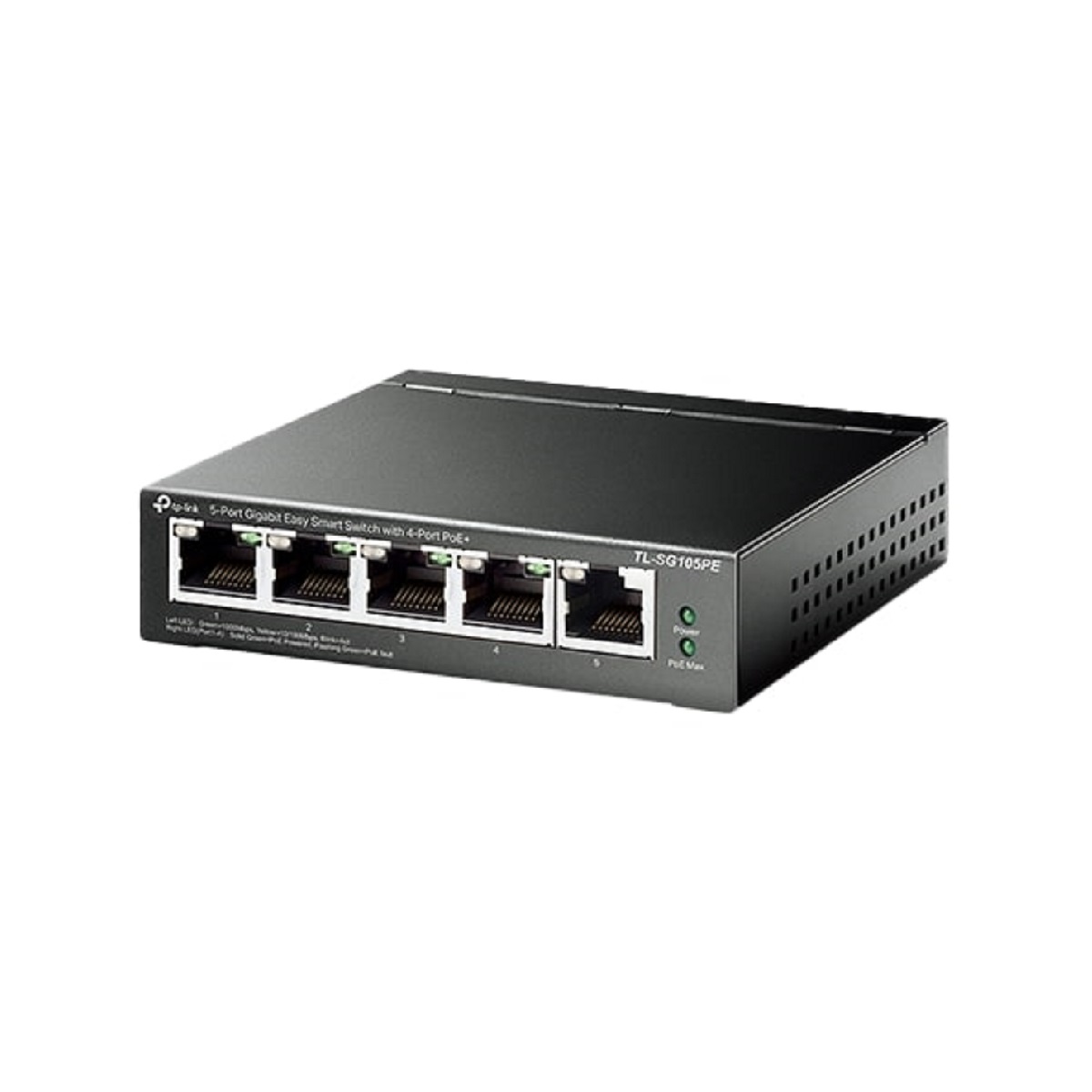

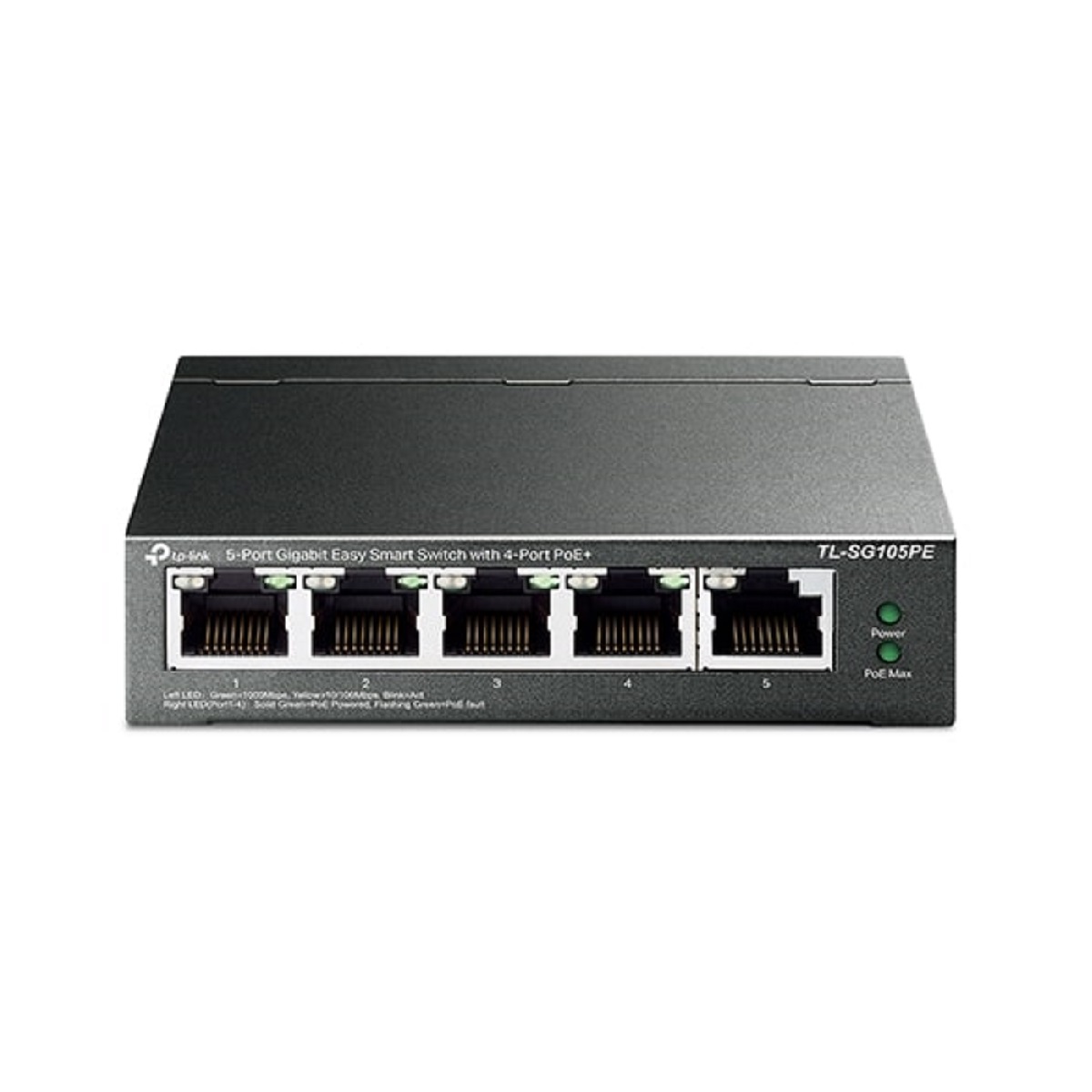

TP-Link TL-SG105PE Smart Managed PoE+ 5 Port Gigabit Switch
£57.72 inc.VAT / £48.10 exc.VAT
TP-Link TL-SG105PE Easy Smart 5-Port Smart Managed Desktop Gigabit PoE+ Switch (65W)
TP-Link TL-SG105PE Smart Managed PoE+ 5 Port Gigabit Switch represents a powerful upgrade from an unmanaged switch.
Out of stock
TP-Link TL-SG105PE Easy Smart 5-Port Smart Managed Desktop Gigabit PoE+ Switch (65W)
TP-Link TL-SG105PE Smart Managed PoE+ 5 Port Gigabit Switch
TP-Link TL-SG105PE Smart Managed PoE+ 5 Port Gigabit Switch represents a powerful upgrade from an unmanaged switch. It is designed specially for small businesses that require simple network management and PoE function. The TL-SG105PE can connect and power up to four (4) PoE devices, such as wireless access points (APs), IP cameras, and IP phones.
Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG105PE can improve security and meet more network segmentation requirements.
Smart Managed PoE+ TL-SG105PE 5 Port Gigabit Switch
Key Features
- Five (5) 10/100/1000Mbps RJ45 ports.
- Equipped with four (4) 802.3af/at PoE+ ports with up to 30W for each port, so that data and power can be transferred on one single cable.
- Supports PoE power up to 65W for all PoE ports.
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery.
- Simple network set-up on top of plug-and-play connectivity.
- Web-based user interface and Easy Smart Configuration Utility simplify configuration.
- Fan less design lowers energy consumption and eliminates operating noise.
Multiple Application Scenarios
The TL-SG105PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.
Four (4) Dedicated PoE+ Ports (65W Budget)
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 65W PoE power budget for the four (4) Gigabit PoE+ ports makes it suitable for a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
Value-Added Features
- QoS for a Lag-Free Experience
Ensures smooth traffic for latency-sensitive applications, such as voice and video. - IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery. - VLAN for Security
Helps to create a network with higher security and better overall performance by dividing the network into smaller groups.
Making Management Easy
The TL-SG105PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Durable Metal Casing
The interior components of TL-SG105PE are protected by a high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, the TL-SG105PE delivers switching performance you can depend on.
Specifications
Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
- IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface
- Five 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
- Fanless
Power Supply
- External Power Adapter (Output: 53.5 VDC/1.31 A)
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Port 1- Port 4
- PoE Power Budget: 65W
Dimensions (W x D x H)
- 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Max Power Consumption
- 4.52W (220V/50Hz with no PD connected)
- 75.16W (220V/50Hz with 65W PD connected)
Max Heat Dissipation
- 15.41 BTU/h (with no PD connected)
- 256.30 BTU/h (with 65W PD connected)
PERFORMANCE
Switching Capacity
- 10 Gbps
Packet Forwarding Rate
- 7.44 Mpps
MAC Address Table
- 2 K
Packet Buffer Memory
- 1.5 Mb
Jumbo Frame
- 16 KB
SOFTWARE FEATURES
Quality of Service
- Support Port-Based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
L2 Features
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- PoE Auto Recovery
- Extend Mode
VLAN
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
Management
- Web-based GUI
- Easy Smart Configuration Utility
Transmission Method
- Store-And-Forward
OTHERS
Certification
- FCC, CE, RoHS
System Requirements
- Microsoft Windows for running Utility
Environment
- Operating Temperature: 0?~40? (32?~104?)
- Storage Temperature: -40?~70? (-40?~158?)
- Operating Humidity: 10%~90%RH non-condensing
- Storage Humidity: 5%~95%RH non-condensing
Package Contents
- 1 x TL-SG105PE
- 1 x Power adapter
- 1 x Installation guide
- 1 x Set of rubber feet
Standard Warranty: Limited Lifetime
