NETGEAR 5-Port Unmanaged Desktop Gigabit PoE+ Switch (63W)
£72.94 inc.VAT / £60.78 exc.VAT

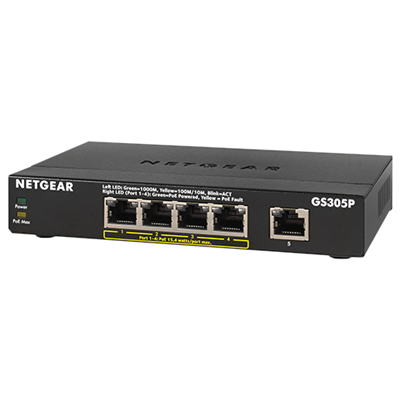

NETGEAR GS305Pv2 5-Port Unmanaged Desktop Gigabit PoE+ Switch (63W)
The NETGEAR GS305Pv2 5-Port Unmanaged Desktop Gigabit PoE+ Switch provides easy, reliable, and affordable network connectivity for home and small offices. With this unmanaged plug-and-play switch, you can expand your network connections to multiple devices instantly. The GS305Pv2 provides power and data from a single Ethernet (CAT5e) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. The GS305Pv2 switch delivers the power the devices need, at the most granular level.
NETGEAR GS305Pv2 5-Port Unmanaged Desktop Gigabit PoE+ Switch (63W)
NETGEAR GS305P-200UKS Unmanaged PoE+ 5 Port Gigabit Switch
The NETGEAR GS305Pv2 5-Port Unmanaged Desktop Gigabit PoE+ Switch provides easy, reliable, and affordable network connectivity for home and small offices. With this unmanaged plug-and-play switch, you can expand your network connections to multiple devices instantly. The GS305Pv2 provides power and data from a single Ethernet (CAT5e) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. The GS305Pv2 switch delivers the power the devices need, at the most granular level.
Key Features
- Five (5) port Gigabit switch, with four (4) ports supporting PoE+ for a total PoE budget of 63W.
- 802.3af and 802.3at Power Over Ethernet (PoE and PoE+).
- Auto-MDI/MDIX eliminates the need for crossover cables.
- LED indicators for ease of use.
- Maximum throughput at wire speed with non-blocking switching architecture.
- Energy-efficient technology for power savings.
- Fanless design for silent operation.
- Standards-based technology ensures interoperability with any standardsbased devices in the existing network.
- Desktop or wall-mountable, ideal for small office and home networks.
- Plug-and-play, automatic connectivity to your router or modem of four (4) additional wired connections.
- Durable and rugged metal case.
Specifications
Features
10/100/1000Mbps Ports (Auto Uplink)
- 5
Enclosure
- Metal
Connector Type
- Metal
Form Factor
- Desktop or wall-mountable
Power On/Off Switch
- No
PoE Configuration
802.3af PoE Ports
- 4
802.3at PoE+ Ports
- 4
PoE Max Power Per Port
- Up to 30W
Total PoE Power Budget
- 63W
PoE auto-balance
- Yes
Power Consumption
DC Input/Power In

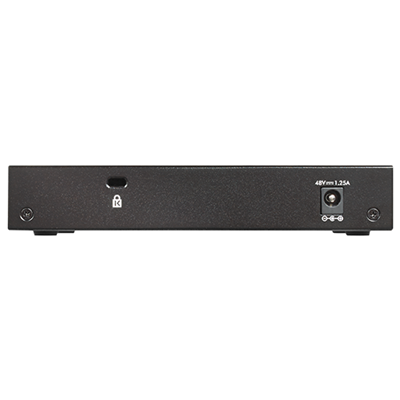

- 54V, 1.25A
Power Consumption (Max and Standby)
- 67.5W / 1.4W
Heat Dissipation (Max and Standby)(BTU/Hr)
- 230.32BTU / 4.78BTU
Performance Specification
Bandwidth (Non-Blocking)
- 10 Gbps
Packet Buffer Memory (Dynamically shared across only used ports)
- 128 KB
Jumbo Frame Support
- 9,216 bytes
Queue WRR (Weighted Round Robin) Ratio
- 1:3:5:7:8:10:12:15
Forwarding Rate (using 64-byte packets) – 1000Mbps Port
- 1,448,000 pps
Latency (using 64-byte packets) – 1000Mbps Port (average)
- < 2.4 µsec
MAC Address Table Size
- 2K
Auto MDI/MDI-X Cable Detection
- Yes
Auto-sensing Half/Full Duplex Switched Ports
- Yes
Mean Time Between Failure (MTBF) @ 25ºC
- 4,105,494 hours
LEDs
Per port
- Speed
- Link/Activity (Left)
- Ports 1-4:
- PoE Power (Right)
Per device
- Power
- PoE Max
Quality of Service (QoS)
802.1P Based (CoS) Supported
- Yes
Honors DSCP (DiffServ) Tags
- Yes
Energy Efficiency
Energy Efficient Ethernet (EEE) IEEE 802.3az compliant
- Yes
Auto Power Down
- No
Short Cable Detection
- Yes
Fanless
- Yes
Physical Specifications
Dimensions (W x D x H)
- 158 x 101 x 29 mm (6.2 x 4.0 x 1.1 in.)
Weight
- 0.39 kg (0.87 lb.)
Environmental Specifications
Operating Temperature
- 0ºC to 40ºC (32ºF to 104ºF)
Operating Humidity
- 90% maximum relative humidity (RH), non-condensing
Operating Altitude
- 10,000 ft. (3,000 m) maximum
Storage Temperature
- -20ºC to 70ºC (-4ºF to 158ºF)
Storage Humidity (relative)
- 95% maximum relative humidity (RH), non-condensing
Electromagnetic Emissions and Immunity
Certifications
- CE Mark
- FCC Part 15 Class B
- IC Class B
- RCM
- VCCI
- KC
- CB
- CE LVD
Standards
IEEE Network Protocols
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3i 10BASE-T Ethernet
- IEEE 802.3x Flow Control
- IEEE 802.1p Priority QoS
- IEEE 802.3 CSMA/CD
- 802.3az Energy Efficient Ethernet
Package
Package Contents
- 1 x NETGEAR GS305Pv2 Switch
- 1 x Power adapter/cord
- 1 x Set of rubber footpads
- 1 x Wallmount kit
- 1 x Installation Guide
Standard Warranty: 3-Years
