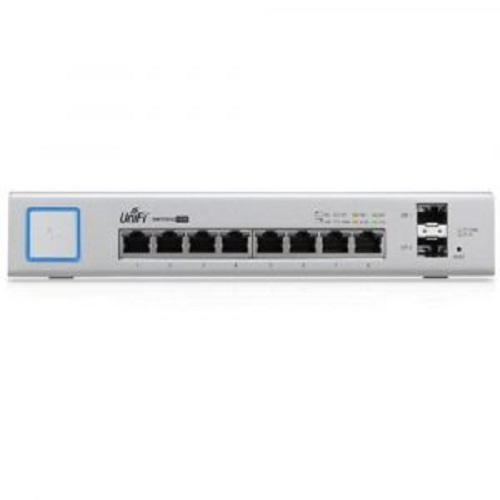

Ubiquiti UniFi US-8-150W Switch

The Ubiquiti UniFi US-8-150W is a fully managed 8 port PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The US-8-150W is a fanless UniFi switch which delivers a quiet yet powerful performance.

Ubiquiti UniFi Switch 8 150W Key Features

(8) Gigabit RJ45 Ports

(2) SFP Ports

Non-Blocking Throughput: 10 Gbps

Switching Capacity: 20 Gbps

Forwarding Rate: 14.88 Mpps

Maximum Power Consumption: 150W

Supports PoE+ IEEE 802.3at/af and 24V Passive PoE

Quiet, Fanless Operation

Desktop-Mountable (Do not physically stack the US-8-150W.)

Versatile Port Configuration
Eight Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

Wall Mounting
Mounting Accessories support any orientation wall-mount and desk/shelf mounting.

Sleek Design and Management
The compact UniFi Switch can be placed on a desktop and integrates with the UniFi Controller software for centralized management of your UniFi devices.

Advanced Enterprise Switching
The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.

Ubiquiti UniFi Switch 8 150W – Technical Specifications

General

Dimensions: 235 x 43 x 204 mm (9.25 x 1.69 x 8.03″)

Weight: 1.65 kg (3.67 lb)

Networking Interfaces:
– (8) 10/100/1000 Mbps RJ45 Ethernet Ports
– (2) 1 Gbps SFP Ethernet Ports

Management Interface: Ethernet In-Band

Total Non-Blocking Throughput: 10 Gbps

Switching Capacity: 20 Gbps

Forwarding Rate: 14.88 Mpps

MAC Address Table: 16384

Maximum Aggregations: 6

Monitoring Sessions: 1

Maximum VLANs: 255

Power Method: 100-240VAC/50-60 Hz, Universal Input

Power Supply: AC/DC, Internal, 150W DC

Max. Power Consumption:
– Including PoE Output: 150W
– Excluding PoE Output: 20W

LEDs Per Port:
– RJ45 Data Ports: PoE, Speed/Link/Activity
– SFP Data Ports: Speed/Link/Activity

Sound Level (Background noise level: 27.5 dBa): 0.5 dBr (Fanless)

ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

Shock and Vibration: ETSI300-019-1.4 Standard

Operating Temperature -5 to 40° C (23 to 104° F)

Operating Humidity 5 to 95% Noncondensing

Certifications CE, FCC, IC

PoE+ Per Port

PoE Interfaces:
– PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
– 24VDC Passive PoE (Pins 4, 5+; 7, 8-)

Max. PoE+ Wattage per Port by PSE: 34.2W

Voltage Range 802.3at Mode: 50–57V

Max. Passive PoE Wattage per Port: 17W

24V Passive PoE Voltage Range: 20-27V
