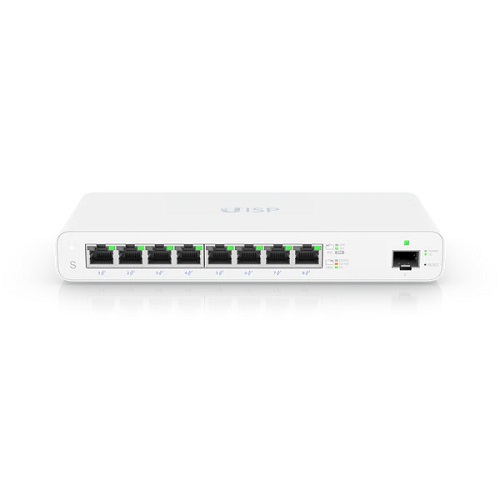

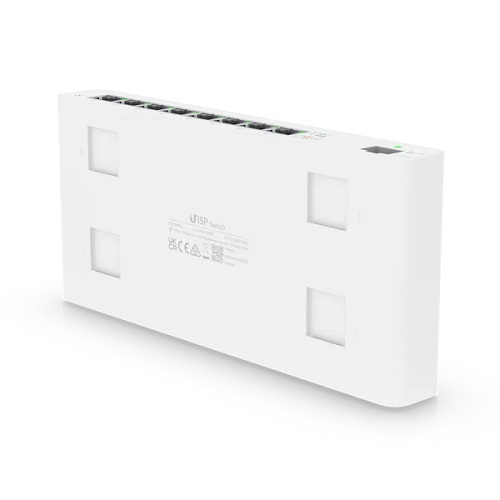

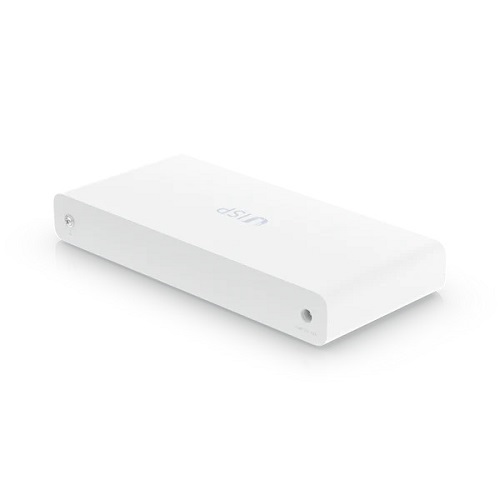

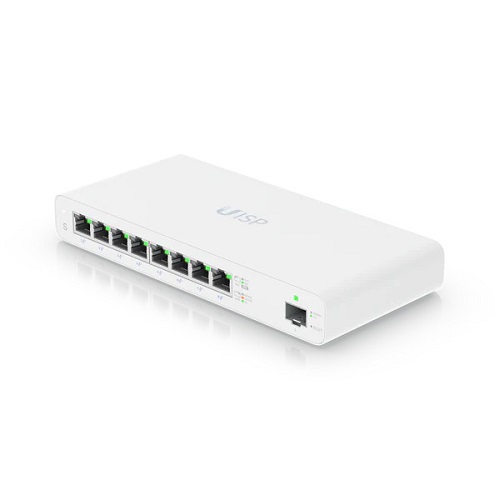

Ubiquiti UISP Switch (UISP-S)
£159.72 inc.VAT / £133.10 exc.VAT
Ubiquiti UISP Gigabit PoE Switch for MicroPoP Applications (UISP-S)
                 ( 2 in Stock – Available for next day shipment )Â
UISP Switch is a fan-less Layer 2 PoE switch with (8) GbE RJ45 ports and (1) 1G SFP port for an additional fiber uplink option, making it ideal for wireless ISP (WISP) deployments.
Ubiquiti UISP Gigabit PoE Switch for MicroPoP Applications (UISP-S)
Ubiquiti UISP Switch (UISP-S)
Ubiquiti UISP Switch (UISP-S) is a fan-less Layer 2 PoE switch with (8) GbE RJ45 ports and (1) 1G SFP port for an additional fiber uplink option, making it ideal for wireless ISP (WISP) deployments.
The UISP Switch is a cost-effective solution for WISPs looking to provide Gigabit wireless speeds to their consumers rapidly and affordably.
The Switch provides significant power to every radio in your service network thanks to its large 110 W total PoE supply,Combine it with the UISP Console to build a unified routing and switching hub for larger deployments.
The UISP Switch is controlled using the UISP application, which serves as a single platform for monitoring and managing all of your UISP devices.
Key Features
- (8) GbE RJ45 ports with 27V passive PoE that support 2-pair and 4-pair modes
- (1) 1G SFP port
- 110W PoE supply when powered with the included AC/DC adapter
- Fan-less, thermal cooling for silent operation
- Wall-mountable (kit included)
- Layer 2 switching features
- Easy, Bluetooth-powered setup via the UISP Mobile app
 Specifications
Mechanical
- Dimensions: 210.4 x 95 x 29 mm (8.28 x 3.74 x 1.14″)
- Weight: 610 g (1.34 lb)
- Enclosure material: Polycarbonate
Hardware
- Total non-blocking throughput: 9 Gbps
- Switching capacity: 18 Gbps
- Forwarding rate: 13.392 Mpps
- Networking interface: (8) 10/100/1000 MbE RJ45 ports, (1) 1G SFP port
- Management interface: Ethernet in-band
- Bluetooth: BLE
- Power method: External AC/DC adapter
- Power supply: 27VDC, 4.4A power adapter (included)
- Supported voltage range: 24 – 28VDC
- Max. power consumption: 8W (excludes PoE output)
- ESD/EMP protection: Air: ± 15 kV, contact: ± 8 kV
- Operating temperature: -10 to 50° C (14 to 122° F)
- Operating humidity: 5 to 95% non-condensing
- Certifications: CE, FCC, IC
PoE
- PoE interface: (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-)
- Max. Passive PoE wattage per port: 30W/27VDC
- Passive PoE voltage range: 27VDC
LEDs
- System Status
- RJ45 data ports: PoE Speed/link/activity
- SFP data port: Link/activity
Only logged in customers who have purchased this product may leave a review.
Related Products
Ubiquiti UniFi Switch 8 Port – US-8 (Non-PoE)Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Ubiquiti UniFi US-8 is a non-PoE 8 port gigabit switch, which supports PoE pass through,US-8 is fully manageable, delivering robust performance for your network.
Out of stock

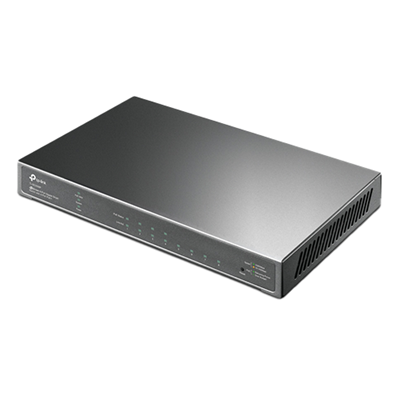

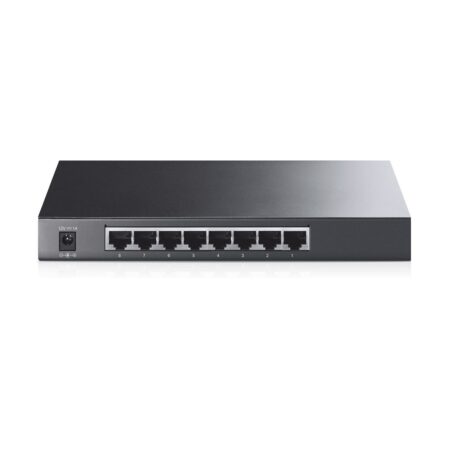

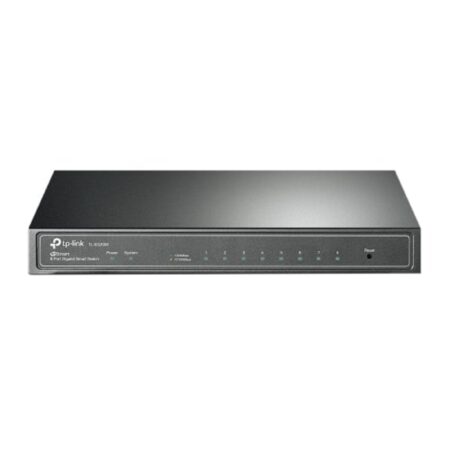

TP-Link TL-SG2008 JetStream 8-Port Layer 2+ Managed Desktop Gigabit Switch
Seamless wireless & wired connections are provided ideally for hospitality, education, retail, offices much more.
Out of stock
HP 2530-8G 8-Port Layer 2 Managed Gigabit Switch w/ 2x SFP Combo Ports, J9777A
The HP 2530-8G 8-Port Layer 2 Managed Gigabit Switch provides security, reliability and ease of use for enterprise edge, branch office, and SMB deployments. This HP 2530-8G 8-Port Layer 2 Managed Gigabit Switch delivers full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritisation, sFlow, IPv6 host support and include Lifetime Warranty 2.0. This HP 2530-8G 8-Port Layer 2 Managed Gigabit Switch is easy to use and deploy, and can be managed with the HP Intelligent Management Centre (IMC) for a single view of your entire network.
Out of stock
Ubiquiti USW-Enterprise-8-PoE UniFi 8-Port Layer 3 Managed Desktop 2.5-Gigabit PoE+ Switch w/ 2 x 10GbE SFP+ Ports (120W)
Ubiquiti USW-Enterprise-8-PoE UniFi 8-Port Layer 3 Managed Desktop 2.5-Gigabit PoE+ Switch allows you to build and expand your network.
132 in stock

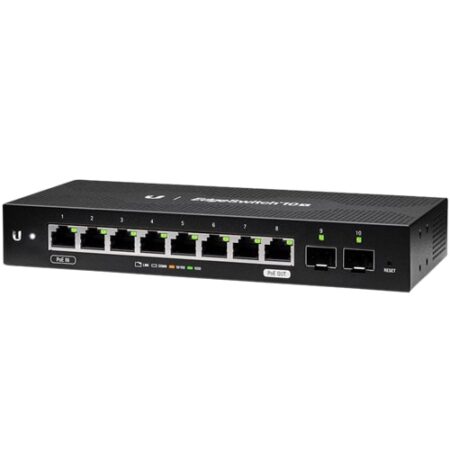

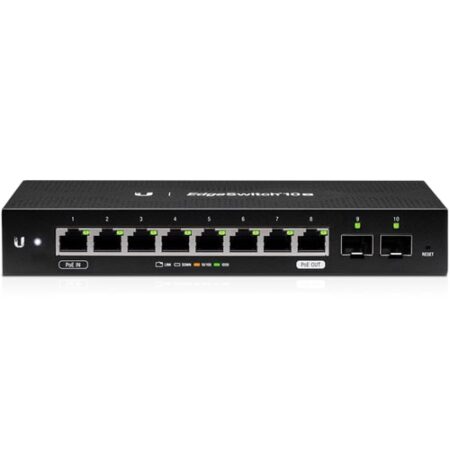

Ubiquiti ES-10XP Edge Switch 8-Port Passive PoE Gigabit Switch w/ 2 x SFP Ports (52W)
The Ubiquiti Edge Switch 10XP is is a managed PoE switch with SFP ports that is optimised for WISP deployments, with eight Gigabit RJ45 ports offering copper connectivity with 24V PoE output and two SFP ports offering fibre connectivity.
Out of stock
TP-Link TL-SG1210P 8-Port Unmanaged Desktop Gigabit PoE+ Switch w/ 1 x 1GbE RJ45 Port & 1 x 1GbE SFP Port (63W)
TP-Link TL-SG1210P Unmanaged Desktop PoE+ 8 Port Gigabit Switch provides nine (9) 10/100/1000Mbps RJ45 ports and one (1) Gigabit SFP port.
Out of stock
TP-Link TL-SG1008 8-Port Unmanaged Rackmount Gigabit Switch
TP-LINK TL-SG1008 8 Port Gigabit Switch is a high performance switch that provides an ideal solution for workgroup or department Gigabit applications.
Out of stock

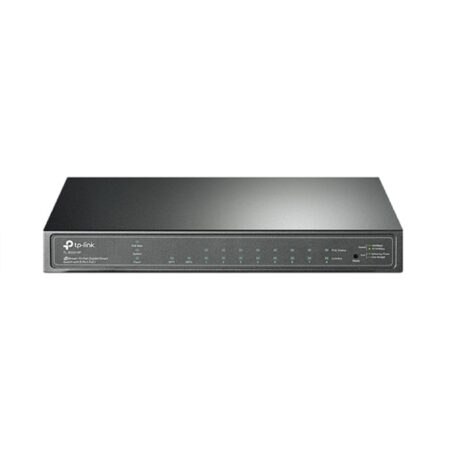

TP-Link TL-SG2210P JetStream 8-Port Smart Managed Desktop Gigabit PoE+ Switch w/ 2 x 1Gbps SFP Ports (61W)
