The Ubiquiti ES-8-150W EdgeSwitch 8-Port Layer 2 Managed Gigabit PoE+ Switch is a fully managed, high-performance switch that delivers powerful performance and intelligent switching with its eight independent switching ports. A DC input option is included for flexibility. This Ubiquiti ES-8-150W includes 24V Passive PoE to simplify your infrastructure and by default, automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.

Key Features

• Eight (8) Gigabit RJ45 Ports and two (2) SFP Ports
• Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
• Maximum of 30W per port, total PoE budget 150W
• One (1) Serial Console Port
• Non-Blocking Throughput: 10 Gbps
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps

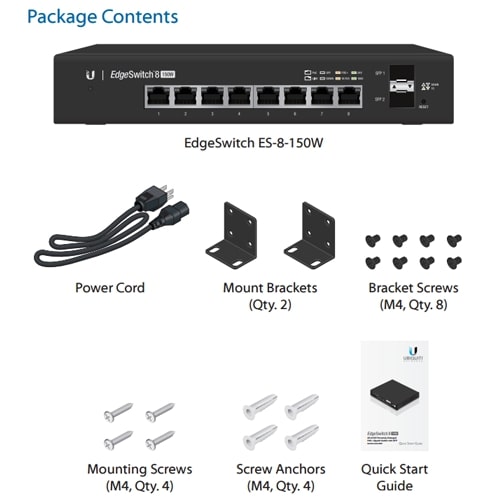

• Wall mountable with Mount Brackets (Included)
• Desktop-Mountable (Do not physically stack the ES-8-150W.)

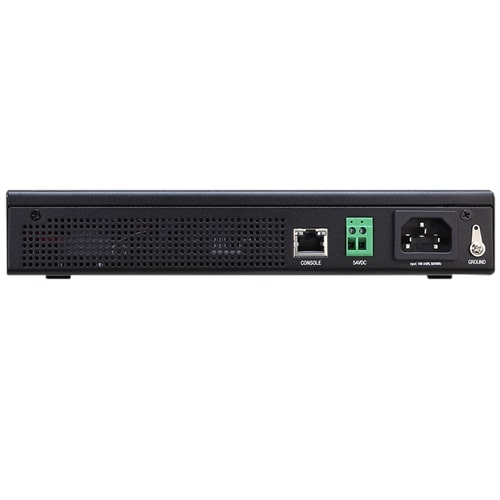

• DC Input Option (Redundant or Stand-Alone)

Designed for growing networks

The Ubiquiti ES-8-150W provides fibre connectivity options for your growing networks with the inclusion of two SFP ports, providing up to 1 Gbps uplinks. For convenient management, this Ubiquiti ES-8-150W EdgeSwitch’s Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry -standard command-line interface (CLI) is available through the serial console port, telnet, and SSH. For its total, non-blocking throughput, this Ubiquiti ES-8-150W support up to 10 Gbps and a total switching capacity of 20 Gbps.

Powerful Functionality

The Ubiquiti ES-8-150W EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:

• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing
• DHCP Server Functionality

Gigabit Connectiviy

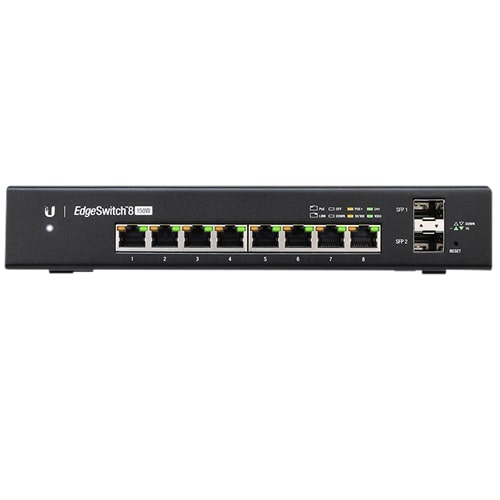

The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.

Convenient PoE+ Support
Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.

Optical Fiber Backhaul
The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.


Powerful Performance
The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.

Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

Specifications

Standard warranty: 1-year
