Ubiquiti AmpliFi Alien Tri-Band WiFi 6 Mesh Wi-Fi System Router (AFI-ALN-R)

Ubiquiti AmpliFi Alien Tri-Band WiFi 6 Router (AFI-ALN-R)

Ubiquiti AmpliFi AFI-ALN-R With the latest 802.11ax WiFi 6 technology delivers 4x overall network capacity and 2x coverage while reaching true gigabit speeds.

It has a tri-band radio with 2.4 GHz and 5 GHz 802.11ax radios that are optimised for WiFi 6 performance while also being backwards compatible with earlier WiFi standards.

To improve the performance of 5 GHz WiFi 5 devices, the third radio (4×4) can be enabled. You can use AmpliFi Alien as a standalone router or connect an unlimited number of AmpliFi Alien Routers as Mesh Points to enhance range coverage.

The stylishly designed AFI-ALN-R brings the revolutionary advantages of Wi-Fi 6 technology to your home.

Boost your network capacity by 4x and expand network coverage by 2x, whilst reducing battery drain on your power hungry mobile client devices devices.

AFI-ALN-R comes outfitted with 2.4/5 GHz WiFi 6 and 5 GHz WiFi 5 radios. Combined, these deliver 7685 Mbps total capacity and 16 spatial streams from a single AmpliFi AFI-ALN-R unit.

Easily mesh multiple units over the air to build virtually unlimited WiFi capacity in your home.

The vibrant touchscreen displays network status and provides instant controls. For your convenience, the display and green LED ring automatically turn off.

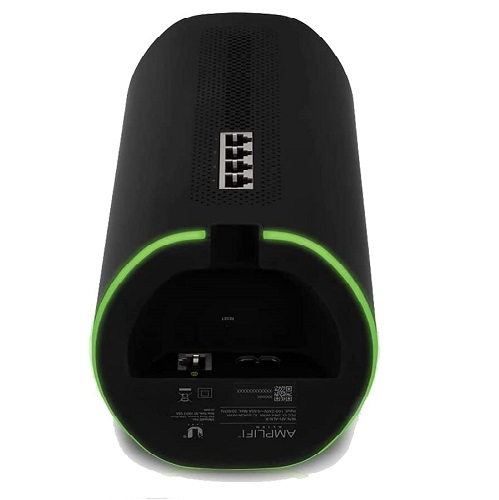

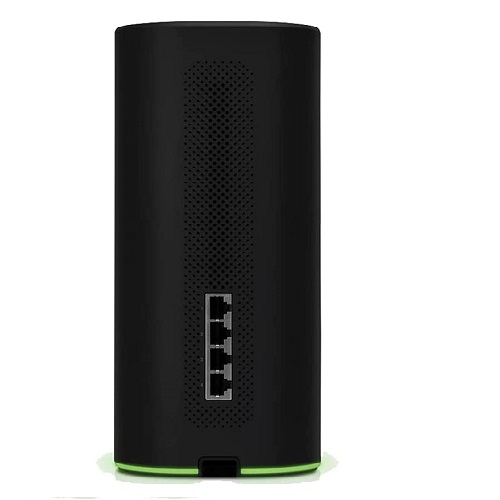

The AFI-ALN-R is a powerful and secure router with a single Gigabit internet interface and internal power supply. Each AFI-ALN-R router has an integrated LAN switch with 4 Gigabit Ethernet ports.

Allowing you to deliver Gigabit Ethernet connectivity into any room without the need to run additional cable. Use Wi-Fi 6 for wireless connectivity and the LAN ports for local wired connectivity.

AFI-ALN-R is optimized to provide your home network with the highest possible performance regardless of how many client devices are connected simultaneously.

Utilizing MU-MIMO and OFDMA for communication across twelve Wi-Fi 6 spatial streams.

Key Features

• WiFi 6 performance
• 5 GHz 8×8 Wi-Fi 6 radio (Max speed 4804 Mbps)
• 2.4 GHz 4×4 Wi-Fi 6 radio (Max speed 1148 Mbps)
• 5 GHz 4×4 Wi-Fi 5 radio (Max speed 1733 Mbps)
• 4-Port Gigabit Ethernet switch
• Scalable mesh system
• True Gigabit Mesh
• 8×8 super antenna system
• 1 min setup
• Intuitive 4.7″ touch screen
• Flexible interfaces
• High-performance custom antenna array
• 2.2 GHz 64-bit quad-core CPU
• Expandable and powerful multi-radio mesh

Intuitive Touchscreen

The vibrant touchscreen displays network status and provides instant controls. For your convenience, set the display and the green LED ring automatically turns off.

Flexible Interfaces

The AmpliFi Alien router is a powerful and secure device with a single Gigabit internet port and an internal power source. Each Alien router has a 4 Gigabit Ethernet port LAN switch built in.

Gigabit Ethernet may be installed in any room without the need of cables. For wireless communication, use WiFi 6, and for local wired connectivity, use the LAN ports.

Performance

AmpliFi Alien is designed to deliver the best possible performance to your home network, regardless of how many client devices are connected at the same time.

Alien reduces dead spots and quadruples total home network capacity by utilizing MU-MIMO and OFDMA for communication across twelve WiFi 6 5 GHz and 2.4 GHz Radios spatial streams.

Alien also includes a dedicated 5 GHz radio with WiFi 5 (802.11ac) capabilities that you can use to dedicate bandwidth to performance-critical devices instead of competing with other devices on your home network.

APP

With the accompanying AmpliFi app, you can set up your AmpliFi network in under a minute. You can configure the AmpliFi Alien for your environment with user-friendly, yet feature-rich controls and statistics.

Mesh System

For the best performance in any room, place the AmpliFi Alien router in the center of your home. To establish a mesh system and extend your signal around your home, add extra Alien routers.

Specification

Router Specification

• Dimensions: 110 x 110 x 250 mm (4.33 x 4.33 x 9.84″)
• Weight: 1.2 kg ( 2.65 lb)
• Max. TX Power: 2.4 GHz: 23 dBm per chain, 5 GHz 19 dBm per chain (low band)/ 20 dBm per chain (high band)
• MIMO: 2.4 GHz: 4×4 5 GHz: 4×4 (low-band) + 8×8 (high band)
• Speed: 2.4 GHz: 1148 Mbps, 5 GHz: 1733 Mbps (low band)/ 4804 Mbps (high band)
• Networking Interface: WiFi; Gigabit Ethernet: (1) WAN, (4) LAN
• Max. Power Consumption: 35 W
• ESD/EMP Protection: ± 24 kV Air/Contact
• Buttons: Reset
• Antennas: (1) Internal Dual-Band Metal Stamp with 12 Polarity
• Display: 110.38 mm (4.7″) Diagonal, 274 x 1268, 279 ppi, G+F Touch, Full Colour
• WiFi Standards: Up to WiFi 6
• Power Save: Supported
• Wireless Security: WPA2
• Operating Temperature: 14 to 113° F (-10 to 45° C)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: FCC / IC

Max. Supported Data Rates

• 802.11a: 54 Mbps
• 802.11b: 11 Mbps
• 802.11g: 54 Mbps
• 802.11n: 600 Mbps + 600 Mbps
• 802.11ac: 1733 Mbps + 3466 Mbps
• 802.11ax (Available to Clients): 1148 Mbps + 4804 Mbps

Mesh System Specifications

• Dimensions: 110 x 110 x 250 mm (4.33 x 4.33 x 9.84″)
• Max. TX Power: 2.4 GHz: 23 dBm per chain, 5 GHz 19 dBm per chain (low band)/ 20 dBm per chain (high band)
• MIMO: 2.4 GHz: 4×4 5 GHz: 4×4 (low-band) + 8×8 (high band)
• Speed: 2.4 GHz: 1150 Mbps, 5 GHz: 1700 Mbps (low band)/ 4800 Mbps (high band)
• ESD/EMP Protection: ± 24 kV Air/Contact
• Buttons: Reset
• Antennas: (1) Internal Dual-Band Metal Stamp with 12 Polarity
• WiFi Standards: Up to WiFi 6
• Power Save: Supported
• Wireless Security: WPA2
• Operating Temperature: 14 to 113° F (-10 to 45° C)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: FCC / IC

Max. Supported Data Rates

• 802.11a: 54 Mbps
• 802.11b: 11 Mbps
• 802.11g: 54 Mbps
• 802.11n: 600 Mbps + 600 Mbps
• 802.11ac: 1733 Mbps + 3466 Mbps
• 802.11ax (Backbone): 1148 Mbps + 4804 Mbps
• 802.11ax (Available to Clients): 1148 Mbps + 4804 Mbps
