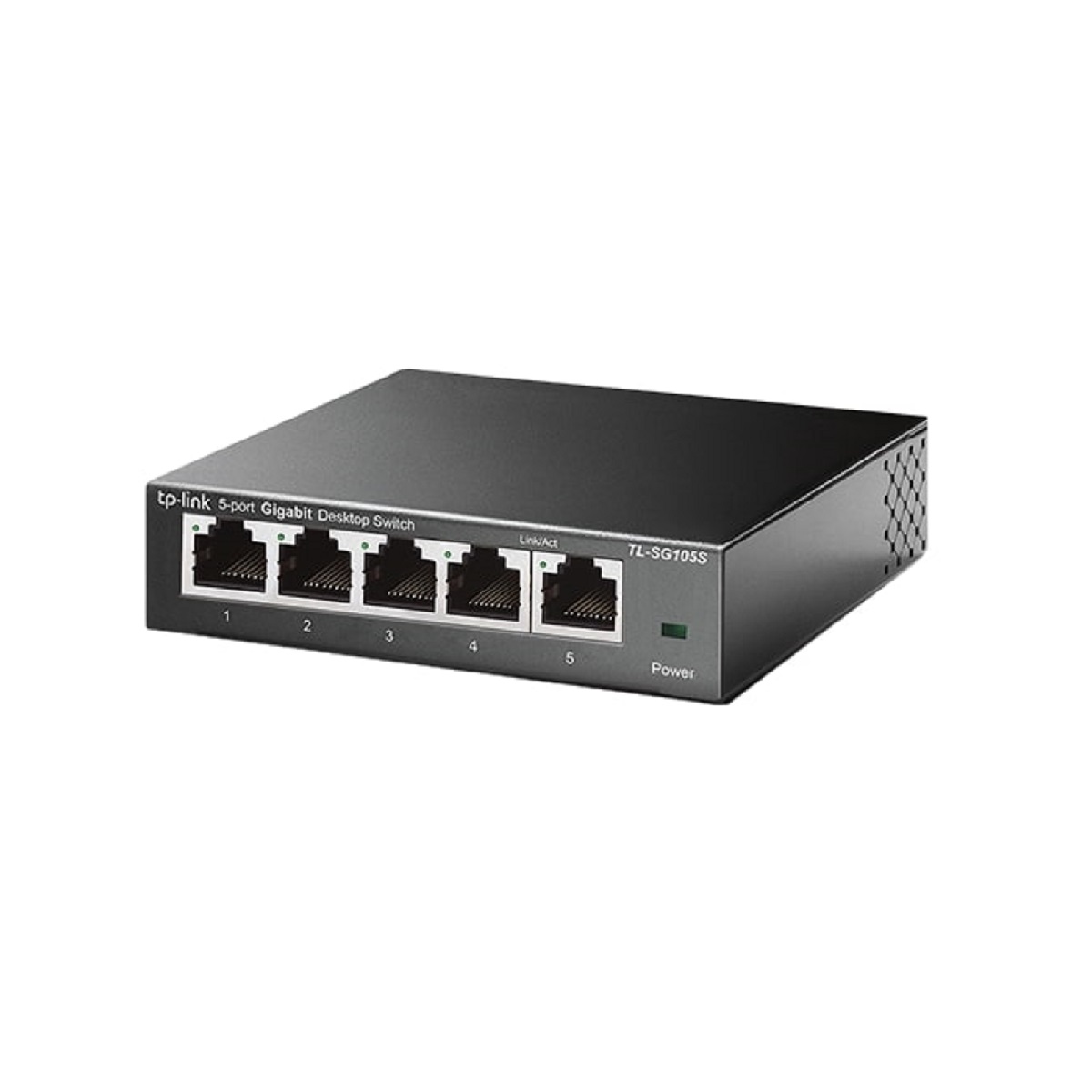

TP-Link TL-SG105S 5-Port Unmanaged Desktop Gigabit Switch
TP-Link TL-SG105S Unmanaged Desktop 5 Port Gigabit Switch
TP-Link TL-SG105S Unmanaged Desktop 5 Port Gigabit Switch provides an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality.
Plug and Play design, with no configuration required, makes the TL-SG105S easy to use. Moreover, the TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch TL-SG105S Unmanaged Desktop 5 Port
Key Features
- Five (5) 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX.
- Green Ethernet technology saves power consumption.
- IEEE 802.3x flow control provides reliable data transfer.
- Steel housing, desktop or wall-mounting design.
- Support 802.1p/DSCP QoS and IGMP Snooping function.
- Plug and play, no configuration needed.
Gigabit switch
With five (5) Gigabit ports, the TL-SG105S greatly expands your network capacity, enabling instant large file transferring. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go green with your Ethernet
You now have the choice to go green when upgrading to a Gigabit network! This TL-SG105S switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down idle ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105S can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in a reduction in power use.
Traffic optimisation
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this Gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables.
Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
Specifications
Standards and Protocols
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1p
Interface
- 5 x 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity
- Fanless
Power Consumption
- Maximum: 2.3W (220V/50Hz)

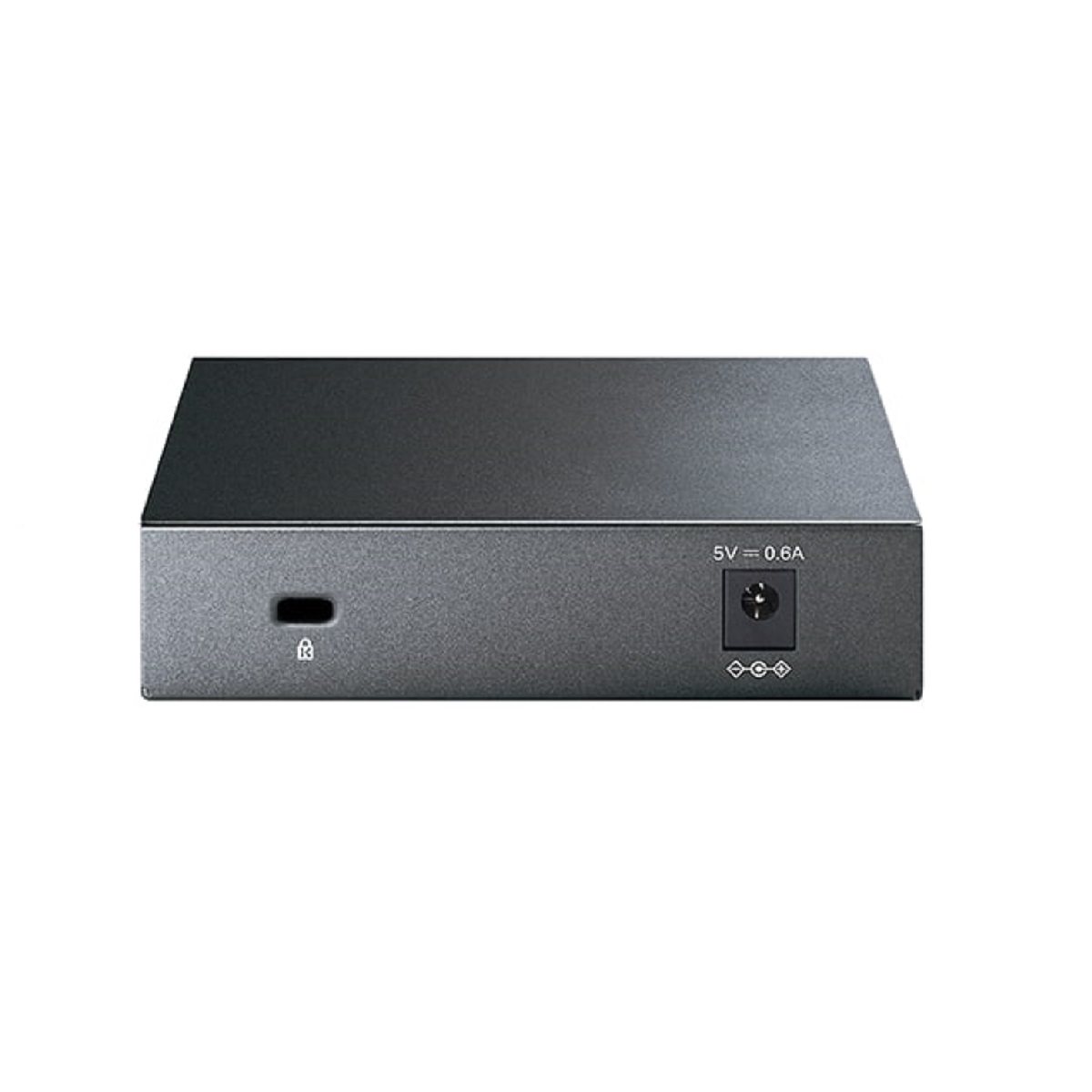

External Power Supply
- External Power Adapter (Output: 5VDC / 0.6A)
LED Indicator
- System Power
- Link/Act indicators per port built into each RJ45 port
Dimensions ( W x D x H )
- 100 x 98 x 25 mm (3.9 x 3.9 x 1.0 in.)
Max Heat Dissipation
- 7.83 BTU/h
PERFORMANCE
Packet Forwarding Rate
- 7.4Mpps
MAC Address Table
- 2K
Packet Buffer Memory
- 1Mb
Jumbo Frame
- 16KB
SOFTWARE FEATURES
Advanced Features
- Green Technology
- 802.3X Flow Control
- 802.1P/DSCP QoS (for V2 and later version)
- IGMP Snooping
Transfer Method
- Store and Forward
OTHERS
Certification
- CE
- FCC
- RoHS
Environment
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Package Contents
- 1 x TP-Link TL-SG105S
- 1 x Power adapter
- 1 x Installation guide
- 1 x Set of rubber feet
Standard Warranty: Limited Lifetime
