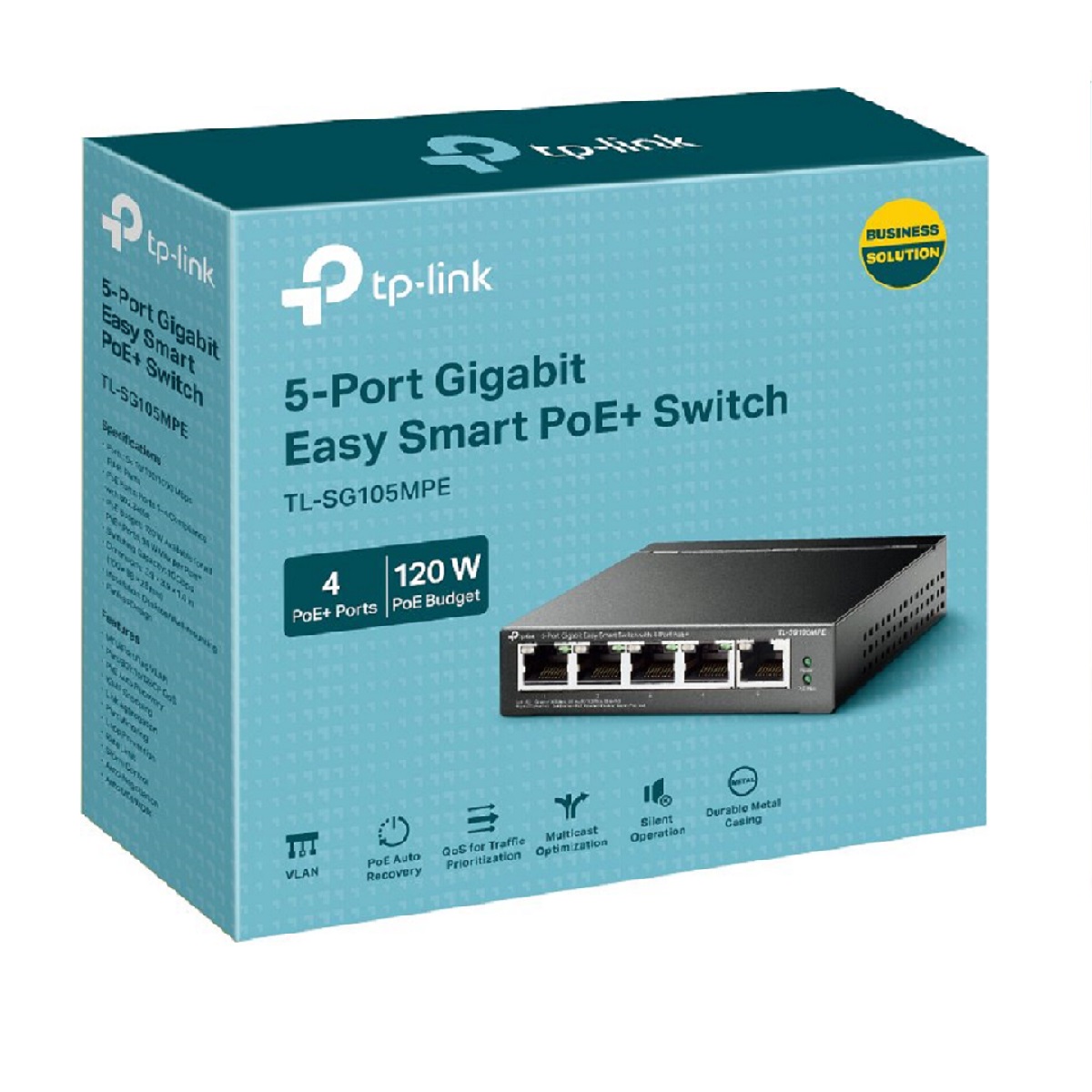

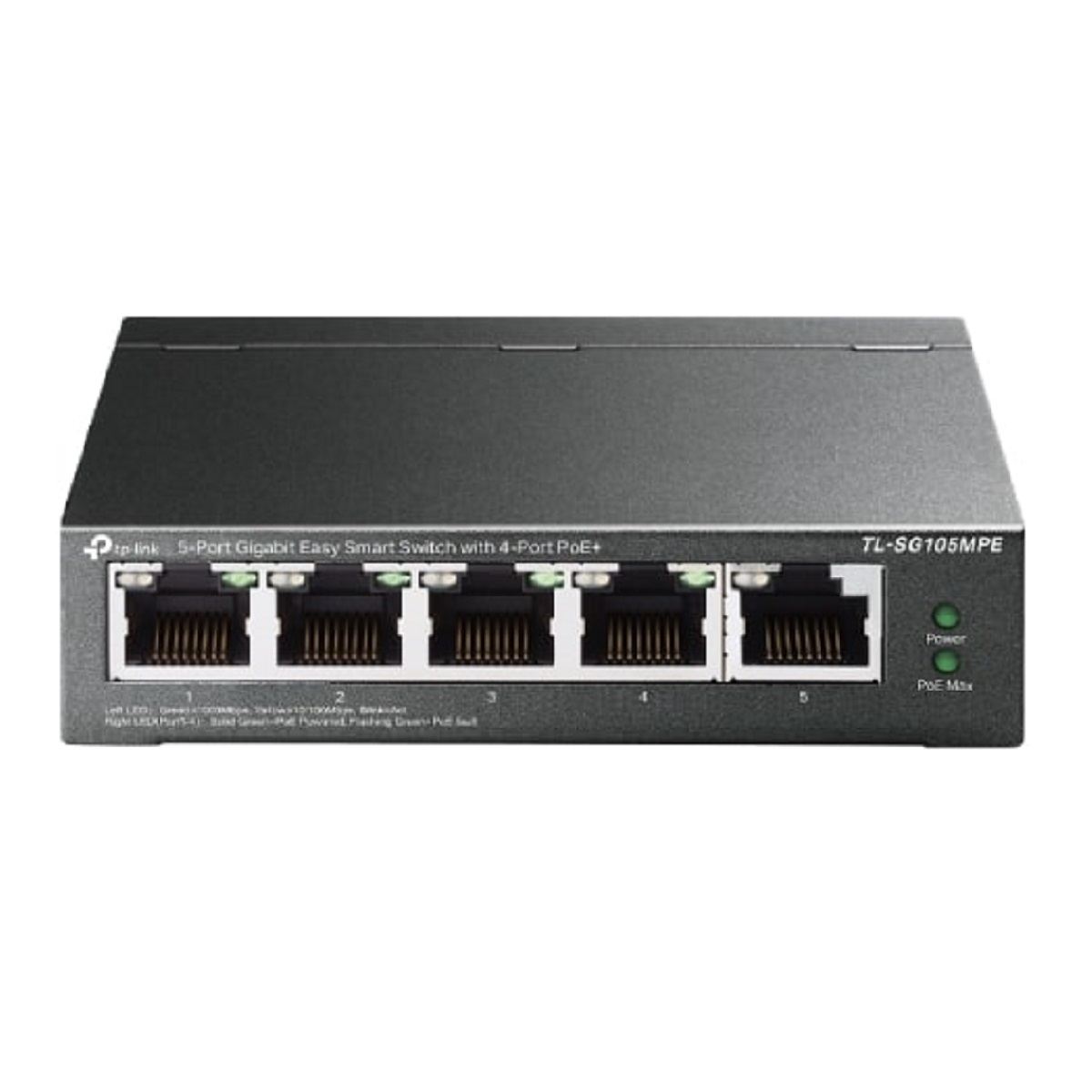

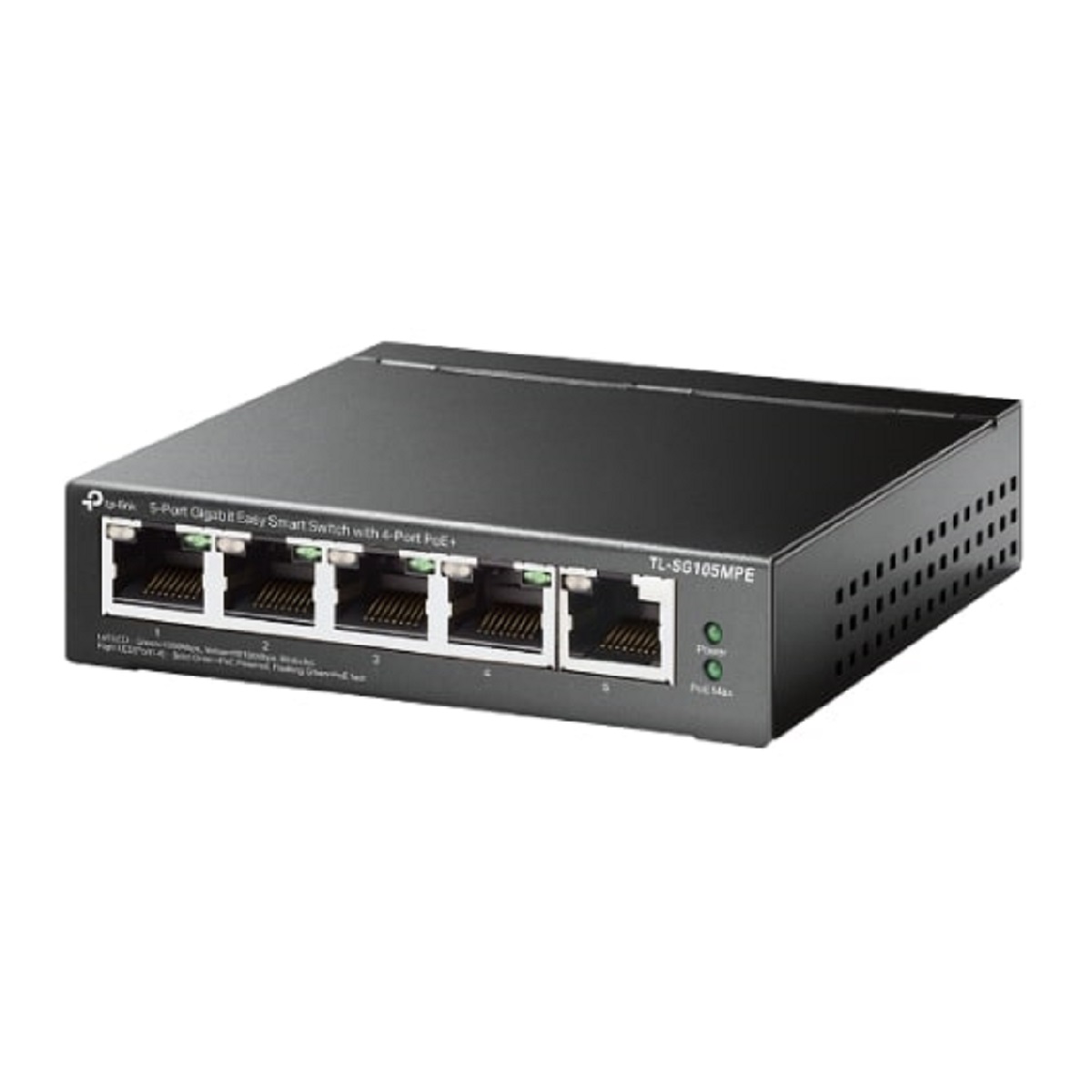

TP-Link TL-SG105MPE Easy Smart Managed Desktop 5-Port Gigabit Switch
£123.17 inc.VAT / £102.64 exc.VAT
TP-Link TL-SG105MPE Easy Smart 5-Port Smart Managed Desktop Gigabit Switch incl. 4 x PoE+ Ports (120W)
TP-Link TL-SG105MPE Easy Smart Managed Desktop 5-Port Gigabit Switch offers impressive features for a fast and reliable network.
Out of stock
TP-Link TL-SG105MPE Easy Smart 5-Port Smart Managed Desktop Gigabit Switch incl. 4 x PoE+ Ports (120W)
TP-Link TL-SG105MPE Easy Smart Managed Desktop 5-Port Gigabit Switch
TP-Link TL-SG105MPE Easy Smart Managed Desktop 5-Port Gigabit Switch offers impressive features for a fast and reliable network.
The five (5) 10/100/1000Mbps RJ45 ports include four (4) 802.3af/at PoE+ ports, capable of delivering up to 30W of power for each port with a total PoE power of up to 120W.
This means that data and power can be seamlessly transmitted over a single cable, reducing clutter and simplifying installations.
The fanless design makes it ideal for noise-sensitive environments. With its plug-and-play connectivity and comprehensive feature set, the TP-Link TL-SG105MPE switch is a reliable and efficient choice for network deployments.
Key Features
- Five (5) 10/100/1000Mbps RJ45 ports.
- Equipped with four (4) 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable.
- Supports PoE power up to 120 W for all PoE ports.
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery.
- Simple network set-up on top of plug-and-play connectivity.
- Web-based user interface and Easy Smart Configuration Utility simplify configuration.
- Fanless design lowers energy consumption and eliminates operating noise.
Specifications
Hardware Features
Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
- IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface
- 5 x 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
Fan Quantity
- Fanless
Power Supply
- External Power Adapter (Output: 53.5 VDC / 2.43 A)
PoE Ports (RJ45)
- Standard: 802.3 af/at compliant
- PoE Ports: Port 1-Port 4
- PoE Power Budget: 120 W
Dimensions ( W x D x H )
- 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Max Power Consumption
- 4.34 W (220 V/50 Hz with no PD connected)
- 137.01 W (110 V/50 Hz with 120 W PD connected)
Max Heat Dissipation
- 14.8 BTU/h (with no PD connected)
- 467.17 BTU/h (with 120 W PD connected)
Performance
Switching Capacity
- 10 Gbps
Packet Forwarding Rate
- 7.44 Mpps
MAC Address Table
- 2 K
Packet Buffer Memory
- 1 Mb
Jumbo Frame
- 16 KB
Software Features
Quality of Service
- Support Port-Based/802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
L2 Features
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
- PoE Auto Recovery
- Extend Mode
VLAN
- Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
Management
- Web-based GUI
- Easy Smart Configuration Utility
Transmission Method
- Store-And-Forward
Others
Certification
- FCC, CE, RoHS
System Requirements
- Microsoft Windows for running Utility
Environment
- Operating Temperature: 0?~40? (32?~104?)
- Storage Temperature: -40?~70? (-40?~158?)
- Operating Humidity: 10%~90%RH non-condensing
- Storage Humidity: 5%~95%RH non-condensing
Package Contents
- 1 x TL-SG105MPE Switch
- 1 x Power Adapter
- 1 x Installation Guide
- 1 x Set of Rubber Feet
Standard Warranty: Limited Lifetime
