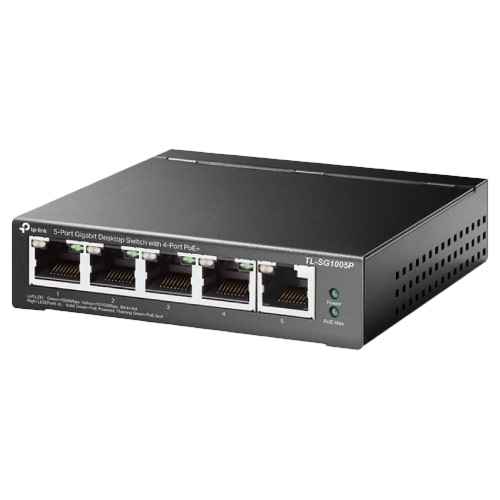

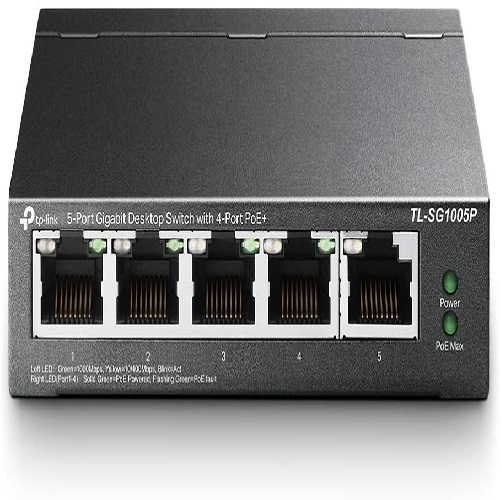

The TP-Link TL-SG1005P 5-Port Unmanaged Desktop Gigabit Switch requires no configuration and provides four (4) PoE+ ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, but you still wish to fix devices such as APs, IP cameras, IP phones, etc.

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port. Port priority function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 56W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 10W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 10W, no power will be supplied to Port 4.

Key Features

• Five (5) 10/100/1000Mbps RJ45 ports.
• Four (4) PoE+ ports transfer data and power on the same cable.
• Works with IEEE 802.3af/at compliant PDs to expand home and office networks.
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
• Supports PoE power up to 30W for each PoE port.
• Supports PoE power budget up to 65W for all PoE ports.
• Requires no configuration and installation.

Dedicated 4-Port PoE+ Switch

Compliant with the 802.3af/at PoE+ standard, this switch supports up to 30 W on each PoE port. The total 65 W PoE power budget for the four (4) PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management

When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port’s power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions

• QoS – Smooth Online Experience
  Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
• IGMP Snooping – Traffic Optimisation for IPTV
  IGMP Snooping optimises multimedia traffic delivery, to ensure a better network experience for applications like IPTV.

Durable Metal Casing

The interior components of TL-SG1005P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005P delivers switching performance you can depend on.

• Compact desktop design
• Wall-mounting
• Fanless design

Specifications

Standard Warranty: Limited Lifetime
