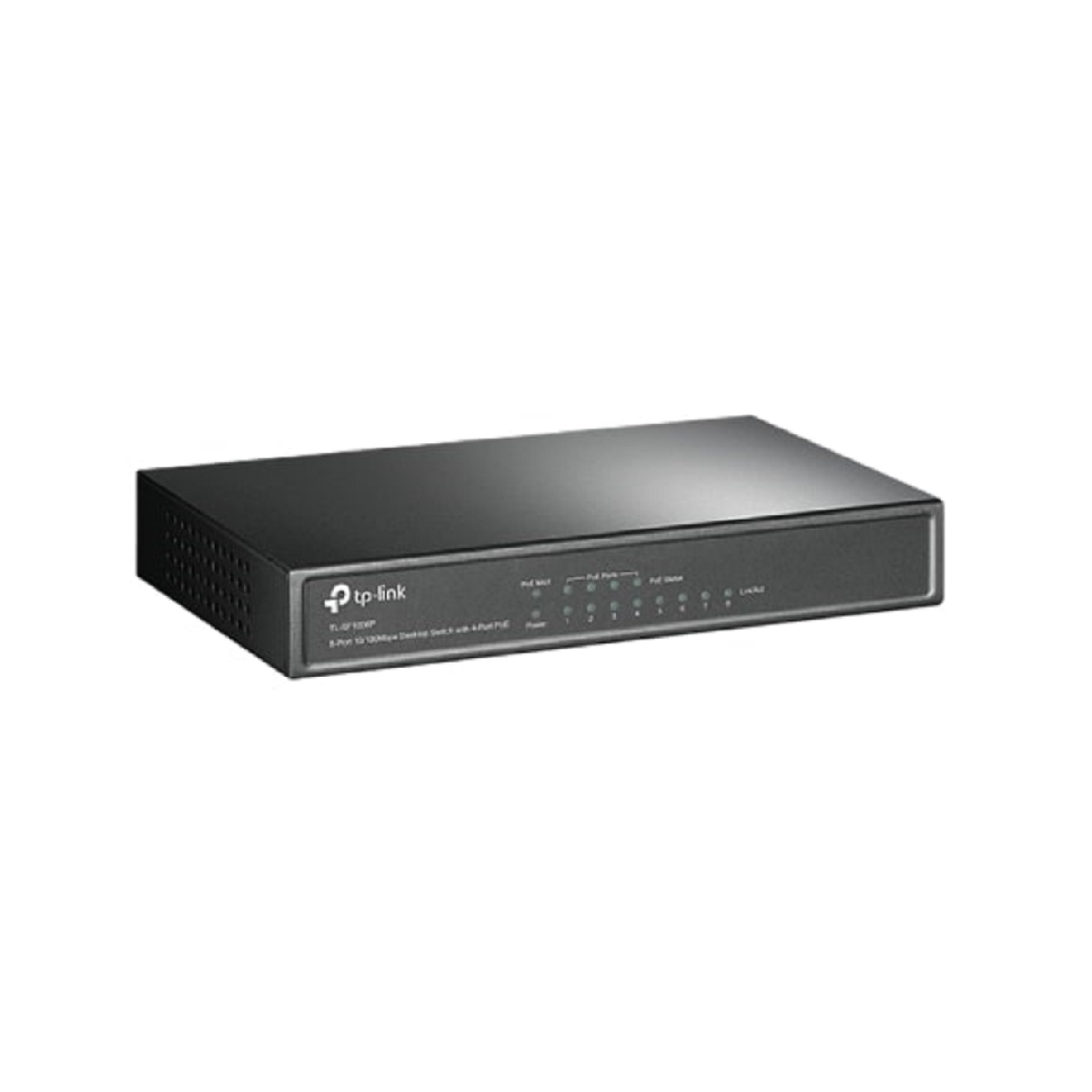

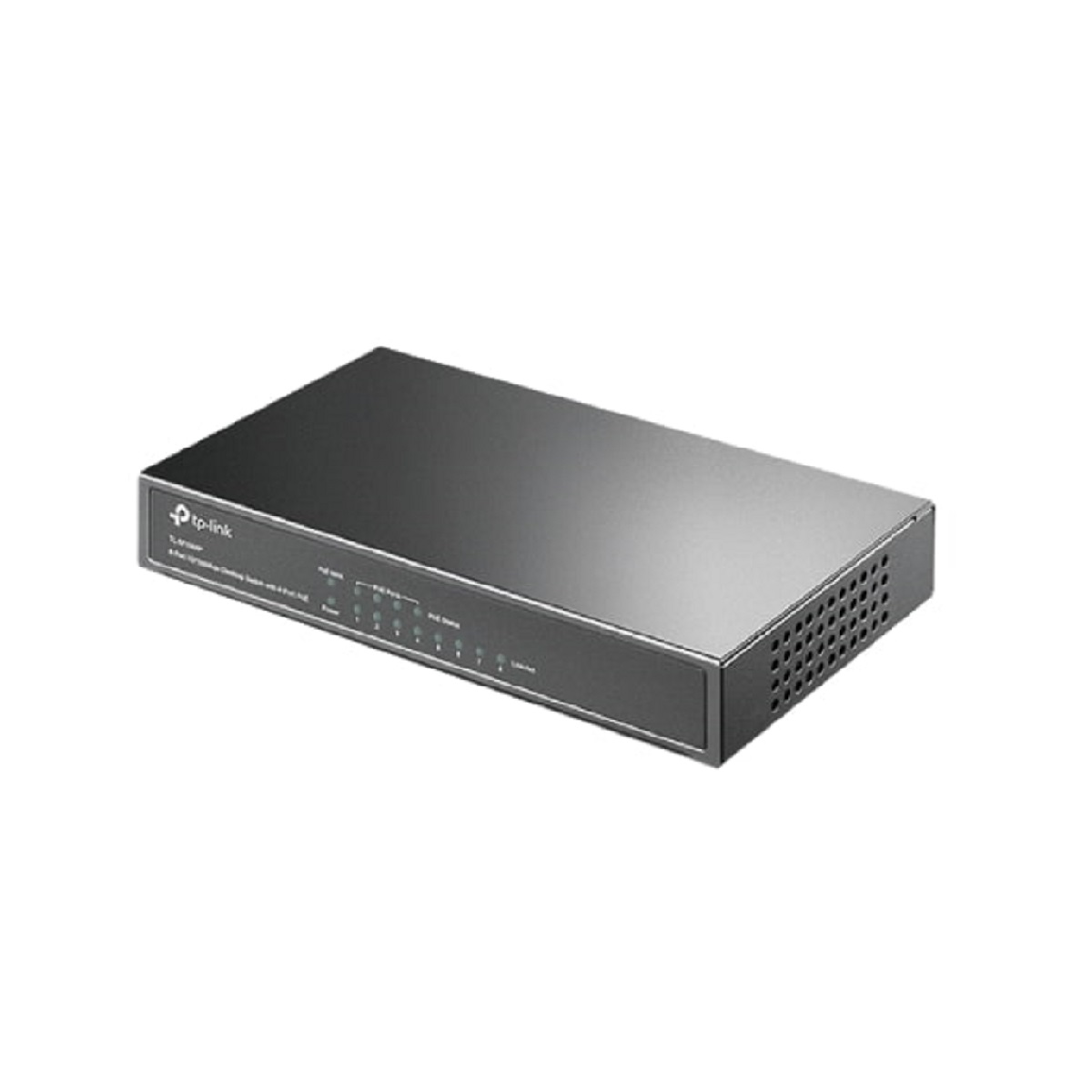

TP-Link TL-SF1008P 8-Port Power Over Ethernet Switch (PoE)
£44.69 inc.VAT / £37.24 exc.VAT
TP-Link TL-SF1008P 8-Port Unmanaged Desktop Fast Ethernet Switch w/ 4 x PoE Ports (53W)
TP-Link TL-SF1008P 8-Port Power Over Ethernet Switch (PoE) is easy to install and use. It requires no configuration during installation.
Out of stock
TP-Link TL-SF1008P 8-Port Unmanaged Desktop Fast Ethernet Switch w/ 4 x PoE Ports (53W)
TP-Link TL-SF1008P 8-Port Power Over Ethernet Switch (PoE)
TP-Link TL-SF1008P 8-Port Power Over Ethernet Switch (PoE) is easy to install and use. It requires no configuration during installation. With desktop design, outstanding performance and quality, the TP-Link TL-SF1008P 8-port 10/100M Desktop PoE Switch is a great selection for expanding your home or office network.
Ethernet Switch (PoE) TL-SF1008P 8-Port Power Over
Key Features
- Four (4) of Eight (8) Ports provide PoE.
- Supports PoE power up to 15.4W for each PoE port.
- Supports PoE power up to 53W for all PoE ports.
- Supports PoE IEEE802.3af compliant PDs.
- Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode.
- 1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging.
- LED indicators for monitoring power, link, activity and speed.
- External power adapter supply.
IEEE 802.3af compliant
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the TP-Link TL-SF1008P switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
TP-Link TL-SF1008P PoE Switch has the priority * function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Note:Â *priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ).
If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4
Specifications
Software Specification
Standards and Protocols
- IEEE 802.3, 802.3u, 802.3x, 802.3af
- CSMA/CD, TCP/IP
Basic Function
- Compatible with IEEE 802.3af compliant PDs
- Port Priority Function
- Wire-speed Performance
- MAC Address Auto-Learning and Auto-aging
- IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
- 1.6Gbps
MAC Address Table
- 1k
Forwarding Rate
- 10BASE-T: 14880pps/port
- 100BASE-TX: 148800pps/port
Transmission Method
- Store-and-Forward

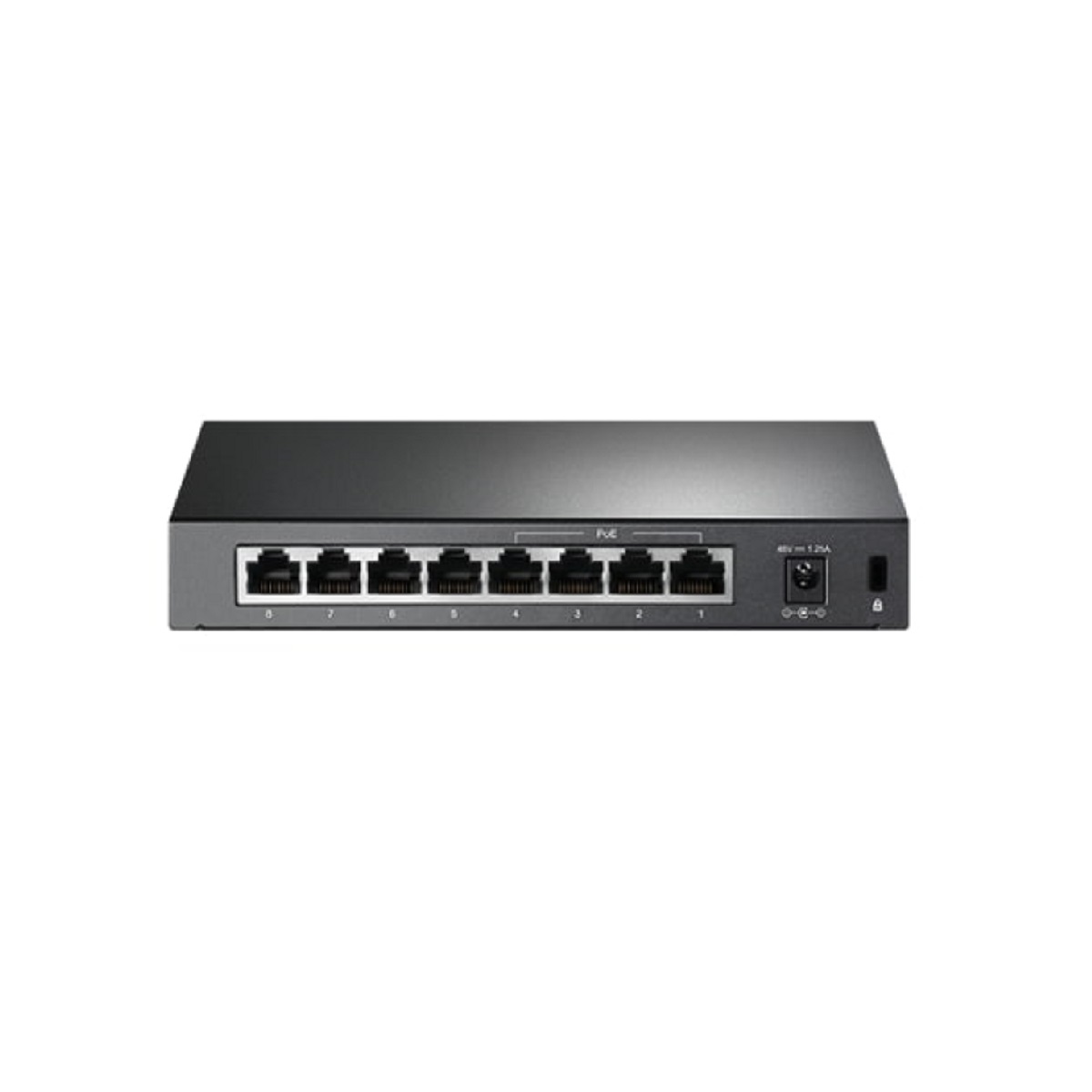

Ports
- 8 10/100M Auto-Negotiation RJ45 ports with 4 PoE ports (port-1~port-4), Auto MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100¦¸ STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100¦¸ STP (maximum 100m)

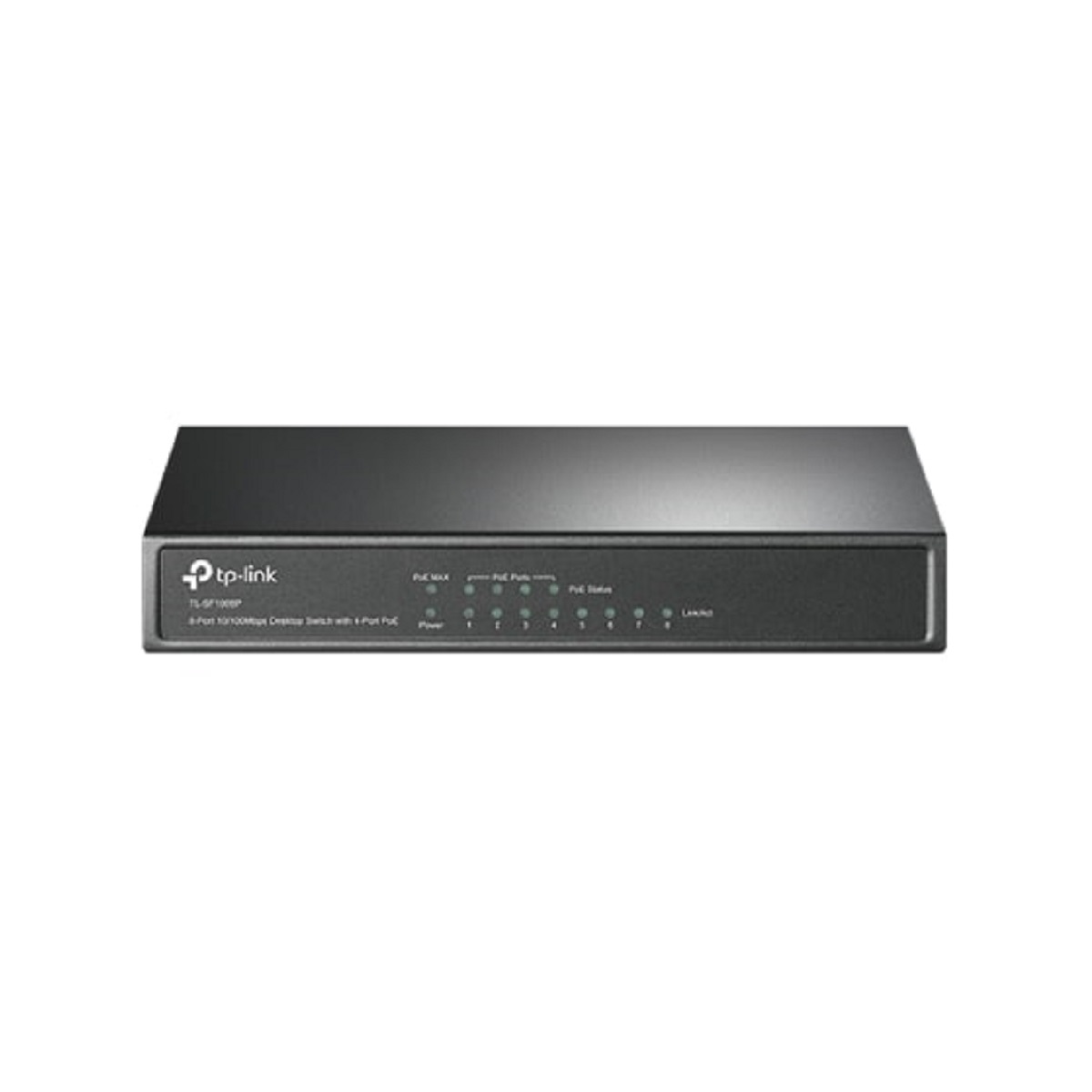

LED Indicators
- Power, Link/Act, 100Mbps, PoE Status, PoE MAX
Safety & Emission
- FCC, CE
Dimensions (W*D*H)
- 6.7*3.9*1.1 in. (171*98*27 mm)
Environment
- Operating Temperature: 0°~40° (32¨H~104¨H)
- Storage Temperature: -40°~70° (-40¨H~158¨H)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Power Supply
- External Power Adapter(Output: 48VDC / 1.25A)
Consumption
- 5.8 watts (max. no PD connected)
- 58 watts (max. with 53w PD connected
Warranty
- 5-Years
Standard Warranty: Limited Lifetime
