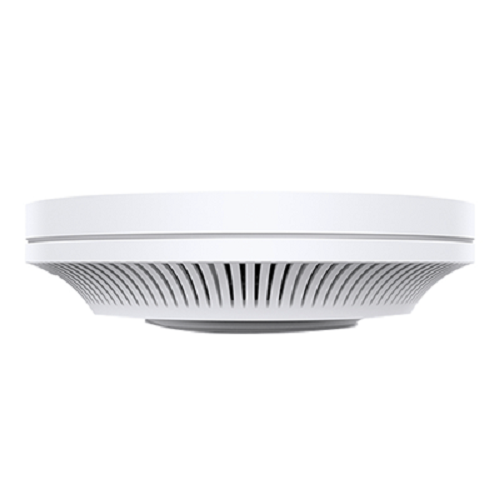

The TP-Link EAP660 HD Omada Ceiling Mounted WiFi 6 Access Point is an ultra high-performance enterprise wireless access point, designed for high-density environments. With WiFi 6 technology, the EAP660 HD provides greater efficiency, larger capacity and improved performance. It can reach speeds of up to 3550Mbps AX. This access point can be managed using TP-Link’s Omada SDN platform – a smarter cloud solution for business networking.

Key Features

• Ultra-Fast WiFi 6 Speeds
  Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps WiFi speeds.
• High-Density Connectivity
  Increased capacity to connect more devices simultaneously.
• Integrated into Omada SDN
  Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.
• Centralised Management
  Cloud access and Omada app for ultra convenience and easy management.
• 2.5G Port
  A 2.5 Gbps Ethernet port boosts total internet throughput.
• Seamless Roaming
  Even video streams and voice calls are unaffected as users move between locations.
• PoE+ Support
  Supports Power over Ethernet (802.3at) for convenient deployment and installation.
• Secure Guest Network
  Along with multiple authentication options (SMS/Facebook WiFi/ Voucher, etc.) and abundant wireless security technologies.

High-Density Connectivity with Increased Capacity

OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4x versus WiFi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.

Scenarios

• Hospitality
  High Quality and Full Coverage WiFi
• Restaurant
  Full WiFi Coverage in High-Density Environment
• Shopping Centre
  Social Marketing for O2O (Online to Offline)
• Meeting Room
  Wireless and Wired Connections for dense usage
• Railway Station
  High-Density WiFi

Blazing Fast Speed with 8 Spatial Streams

This Omada WiFi 6 Access Point features the latest 802.11ax (WiFi 6) technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP660 HD to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is increased to drive more applications.

Omada SDN — Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralised Cloud Management

100% centralised cloud management of whole network from different sites — all controlled from a single interface anywhere, anytime.

Optimised Wired Performance with 2.5 GE PoE+ Port

Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-Gigabit performance to support the insatiable demand for better and faster WiFi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.

Seamless Roaming

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Boost Network Efficiency in All Aspects With Rich Advanced Features

• Band Steering automatically moves dual band devices onto the wider 5GHz band for faster connections.
• Load Balance ensures large numbers of users have smooth network experiences in high-density business networks.
• Airtime Fairness increases average network throughput in heavily congested environments.

Easy to Mount with Refined Industrial Design

Easily mount the EAP660 HD with the included mounting kit. Simply push the access point up on the mount and rotate it to lock it in place.

Secure Guest Network with Facebook WiFi and SMS Login

Guest Network provides elevated secure access to guests sharing your WiFi network, with captive portal helping maintain only authorised guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

Specifications

Standard Warranty: Limited Lifetime
