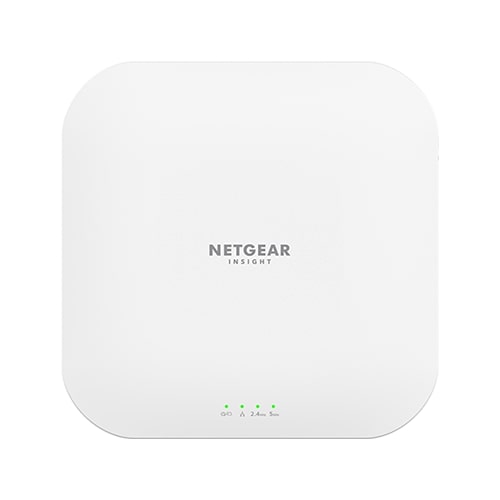

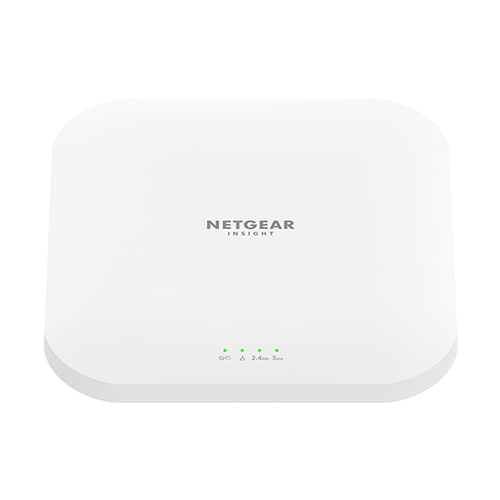

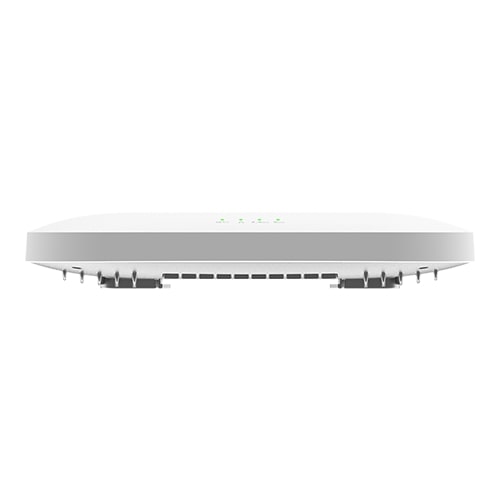

NETGEAR WAX620-100EUS PoE+ WiFi 6 Access Point (AX) is ideal for small and medium sized businesses.

The access point is a dual band 4×4 design delivering up to 3.6Gbps total WiFi throughput, supported by a 2.5Gbps Power-over-Ethernet port.

The WAX620 supports the next generation WiFi 6 smart phones, IoT devices, and notebook computers, delivering up to 40% more throughput to each individual device in the 5GHz band and 100% more throughput in the 2.4GHz band, compared to the previous generation equivalent model.

This access point also provides 4x the client device connection, allowing businesses to serve more customers with better speed and less congestion.

Key Features

• High-Performance Business WiFi
  Faster and more reliable dual band WiFi 6 with 8 streams. Up to 2.4Gbps in 5GHz band and 1.2Gbps in 2.4GHz band.
• Ideal for High Density Environments
  Ultimate WiFi performance for schools, hotels, restaurants, and conference centres.
• Greater Network Capacity
  Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.
• Seamless Wireless Mesh
  Wire-free installation with other WAX620, WAX610, WAX610Y, WAC540, or WAC564 access points (sold separately) creates the perfect seamless business network.
• Multi-Gigabit Speed
  Includes a 2.5 Gbps Ethernet port with PoE for high speed wired network connectivity and easy wiring.
• Easy Setup
  Set up, configure, and manage with NETGEAR Insight.

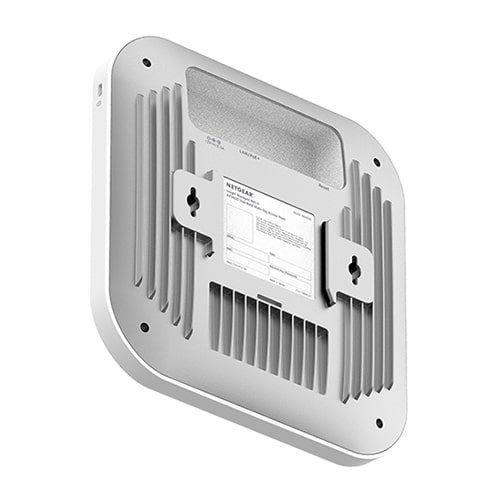

• Flexible Mounting
  Easy to securely install on the wall of a suspended ceiling with the hardware included.
• Business-Level Security
  WPA3 for the highest level of WiFi connection security.
• 8 Wireless Networks (SSIDs)
  Separate and secure networks for admin, guests, employees and IoT devices like cameras, locks and more.
• Separate VLANs
  Keep admin, employee, visitor, HR, Finance department networks safely separated from each other.

Ideal for small and medium businesses

The WAX620 is ideal in high density client device environments such as schools, hotels, restaurants and conference centres, and provides enterprise grade WiFi network security. With Insight management, the WAX620 works seamlessly with your current NETGEAR Insight managed switches, WiFi access points and network storage (sold separately), and is compatible with previous generation WiFi devices (WiFi 5 802.11ac for example) and WiFi access points.

With the updated WiFi 6 (802.11ax) technology such as OFDMA, upstream and downstream MU-MIMO, and increased speeds, coverage, and capacity, you can feel confident that you’re getting the highest performance WiFi that’s set for years to come! Plus the assurance that you can now add more connected devices on your business WiFi network without any slowdowns or blind spots.

The WAX620, combined with Insight, provides small and medium businesses with an easy way to manage their network without an IT expert, providing great WiFi connections and leaving customers satisfied as network users. The WAX620 is compatible with WAC510, WAC564, WAX610, WAX610Y Insight Managed Access Points (sold separately) to form a scalable wireless network.

Standards

IEEE 802.11ax WiFi 6 standard

• Yes

WMM Wireless Multimedia Prioritisation

• Yes

WDS Wireless Distribution System

• Yes

Power over Ethernet (PoE) IEEE 802.3af

• Yes, approximately 60% of full throughput performance

Power over Ethernet (PoE) IEEE 802.3at

• Yes

OFDM/OFDMA

• Yes

Physical Specifications

Dimensions (W x D x H)

• 205.7 x 205.7 x 34.3 mm (8.09 x 8.09 x 1.35 in.)

Weight

• 783 g (1.72 lb.)

Envirnmental Specifications

Operating temperature

• 0ºC to 40ºC (32ºF to 104ºF)

Physical Interfaces

Interface

• One 100/1000/2.5GBASE-T Gigabit Ethernet (RJ45) ports with Auto Uplink (Auto MDI-X) supporting IEEE 802.3af or 802.3at Power over Ethernet (PoE)

Power adapter (not included)

• 12V DC, 2.5A

LED

• Four (4): Power and Cloud connection; LAN speed; 2.4GHz status; 5.0GHz status

Security

WiFi Protected Access® (WPA, WPA2, WPA3)

• Yes

WPA2 Enterprise

• Yes

Wireless access control to identify authorized wireless network devices

• Yes

MAC address authentication

• Yes

Network Management

NETGEAR Insight App

• App Management for setup, monitoring and management

Advanced Wireless

Wireless Distribution System (WDS)

• Bridge mode: Point-to-point wireless
• Bridge mode: Point-to-multipoint wireless
• Repeater mode
• Adjustable Transmit Power Control (TPC)
• Device detection
• Identify type of wireless clients in the network

Package

Package Contents

• 1 x NETGEAR WAX620
• 1 x Wall/Ceiling mount kit
• 1 x Installation guide

Standard Warranty: 5-Years
