1G/2.5G Ethernet RJ-45 Copper ports (100M/1G/2.5G) – 1000BASE-T

• 4

Multi-gigabit/10G Ethernet RJ-45 Copper ports (100M/1G/2.5G/5G/10G) – 1000BASE-T

• 4

10 Gigabit SFP+ (fiber) ports (1G/10G) – 1000BASE-X

• 2 (dedicated)

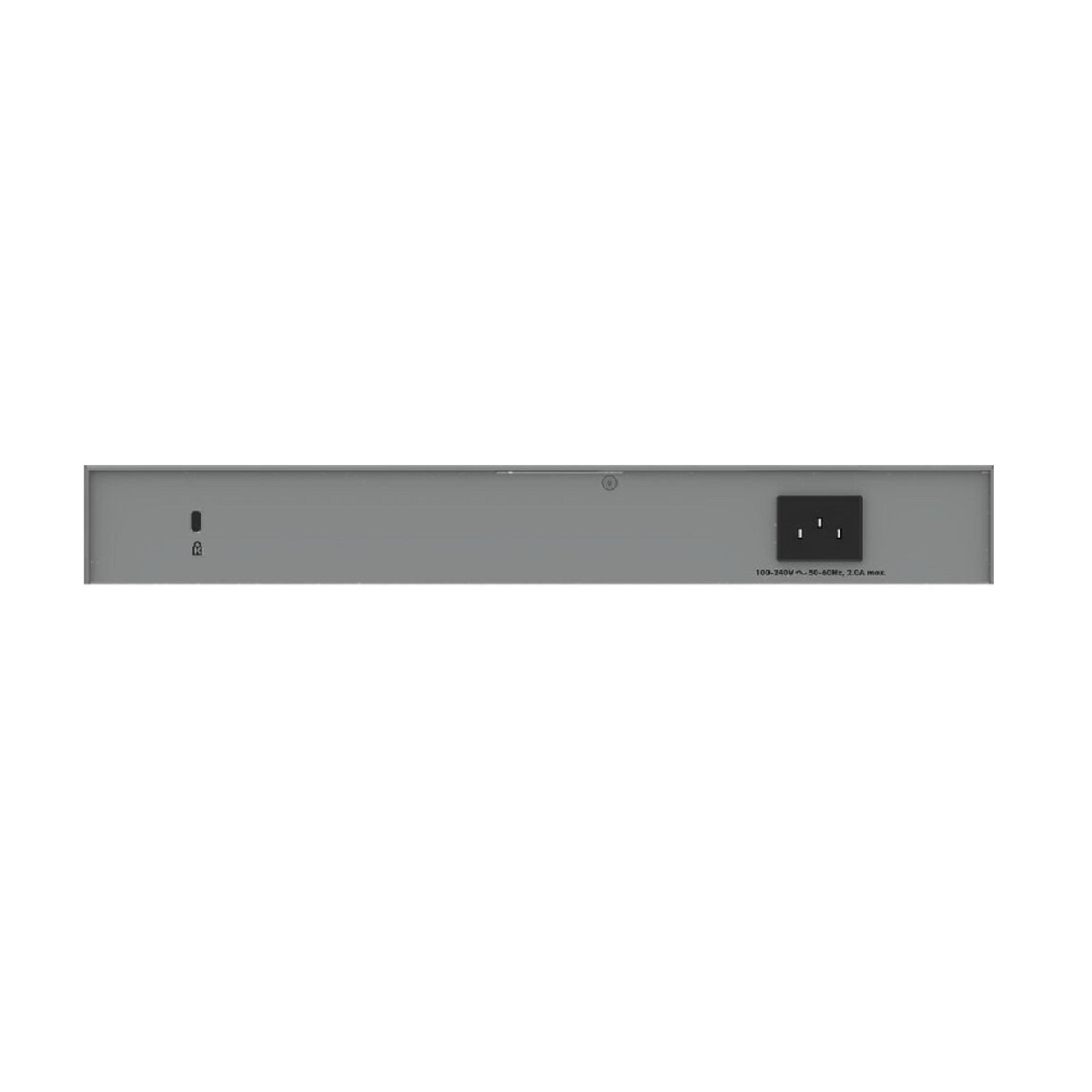

Power Supply

• Internal Power Supply

LEDS

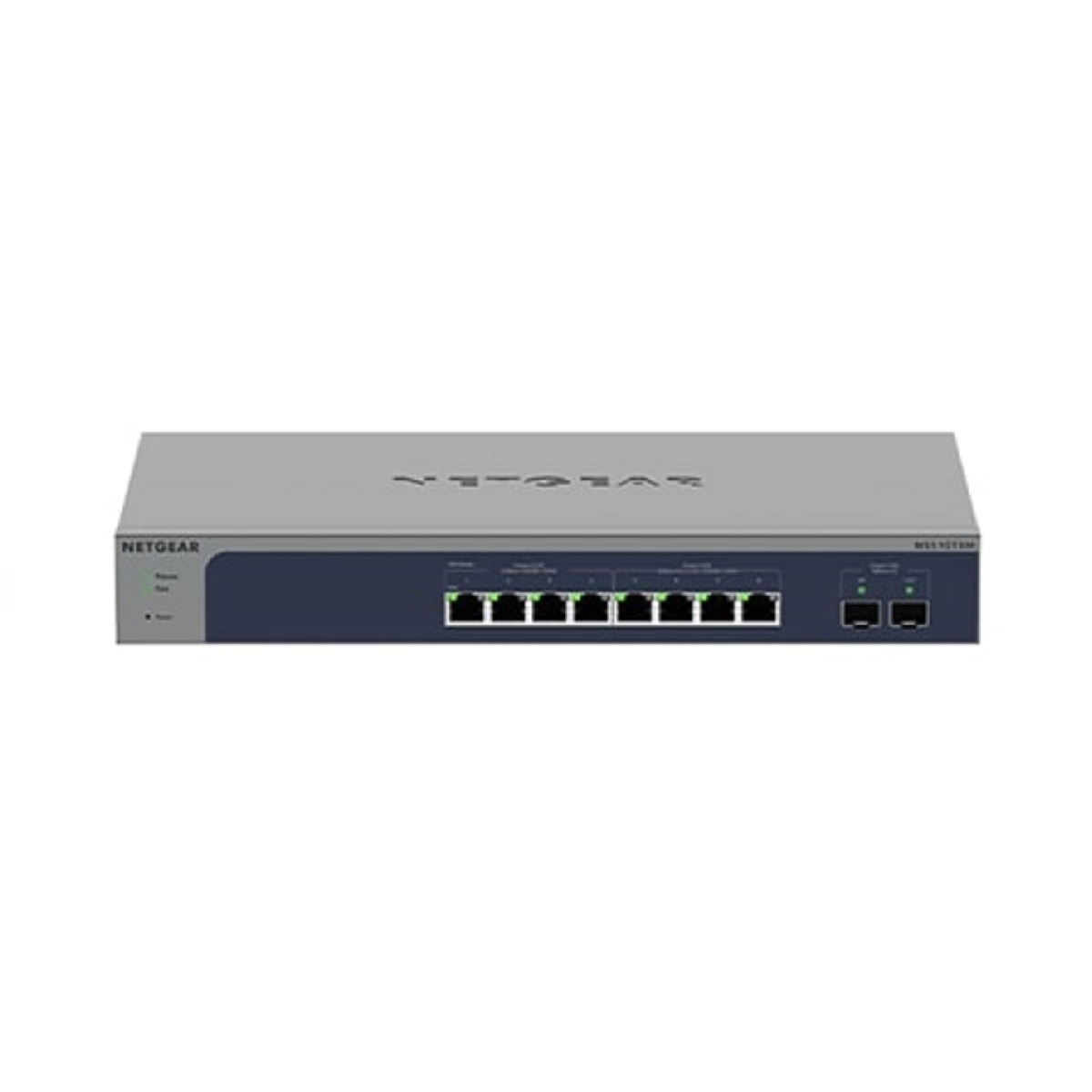

Front (per device)

• Power (with Cloud Mode Indicator), Fan, LED Mode

Front (per port)

• Speed/Link/Activity

Unified Network Management (Discovery, Setup, Monitoring, and Management) through NETGEAR Insight Cloud Management

Discovery, setup, monitoring and management

• NETGEAR Insight mobile app on phone or tablet; Insight Cloud Portal from PC, Mac, or tablet web browser

Remote/Cloud management

• Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud Portal

Centralized network configuration (policies)

• Centralized network configuration (policies) across Insight Managed Switches, Wireless Access Points, and Business-class ReadyNAS Storage for VLANs, ACLs, QoS, and LAGs

Device auto-join and configure (zero-touch provisioning

• Additional Insight Managed devices added to the network automatically inherit the network configuration

Multi-site, multi-network single pane-of-glass view

• Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud Portal

Multi-switch, multi-port concurrent configuration for ACLs, VLANs, QoS, etc.

• Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard

Performance Specifications

CPU

• 1GHz dual core
• 256MB RAM
• 64MB SPI FLASH

Packet buffer memory (Dynamically shared across only used ports)

• 2 MB

Forwarding modes Store-and-forward

• Bandwidth (non-blocking, full duplex) 140 Gbps

Priority queues

• 8

Priority queuing

• Weighted Round Robin (WRR) and Strict Priority

MAC Address database size (48-bit MAC addresses)

• 32K

Multicast groups

• 256

Number of VLANs

• 256

Number of DHCP snooping bindings

• 256

Access Control Lists (ACLs)

• 100 shared for MAC, IP and IPv6 ACLs (ingress)

Packet forwarding rate(64 byte packet size) (Mfps or Mpps)

• 14.8

2.5 G Copper standard latency (µsec) (64-byte; 1518-byte; 9216-byte frames)

• 64-byte: 5.903 µsec
• 1518-bye: 6.040 µsec
• 9216-byte: 6.079 µsec

10G Copper Uplink latency (µsec) (64-byte; 1518-byte; 9216-byte frames)

• 64-byte: 2.420 µsec
• 1518-bye: 2.501 µsec
• 9216-byte: 2.499 µsec

10G SFP+ Fiber latency (µsec) (64-byte; 1518-byte; 9216-byte frames)

• 64-byte: 1.257 µsec
• 1518-bye: 1.337 µsec
• 9216-byte: 1.348 µsec

Jumbo frame support

• 10K

Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)

• 25 dBA

Mean Time Between Failures (MTBF) @ 25° C

• 1,059,519 hrs (121 yrs)

L2+/Lite L3 Services – Availability

Broadcast, multicast, unknown unicast storm control

• Yes

IEEE 802.3ad – LAGs (LACP)

• Yes

IEEE 802.3x (full duplex and flow control)

• Yes

IEEE 802.1D Spanning Tree Protocol

• Yes

IEEE 802.1w Rapid Spanning Tree Protocol

• Yes

IEEE 802.1s Multiple Spanning Tree Protocol

• Yes

L2+/Lite L3 Services – Multicast Filtering

IGMP snooping (v1, v2 and v3)

• Yes

MLD snooping support (v1 and v2)

• Yes

IGMP snooping queries

• Yes

Block unknown multicast

• Yes

Multicast groups

• 256

DHCP Services

DHCP client

• Yes

DHCP snooping

• Yes

Number of DHCP snooping bindings

• 256

Link Aggregation

IEEE 802.3ad – LAGs (LACP)

• Yes

Manual Static LAG

• Yes

# of Static or LACP LAGs

• 8 LAGs with max 8 members

# of members in each LAG

• in each LAG

Network Monitoring and Discovery Services

802.1ab LLDP

• Yes

LLDP-MED

• Yes

SNMP

• Yes, v1/v2c/v3

RMON group 1, 2, 3, 9

• Yes

Network Security

IEEE 802.1x

• Yes

Guest VLAN

• Yes

RADIUS-based VLAN assignment via .1x

• Yes

MAC-based .1x

• Yes

RADIUS accounting

• Yes

Access Control Lists (ACLs)

• L2 / L3 / L4

IP-based ACLs (IPv4 and IPv6)

• Yes

MAC-based ACLs

• Yes

TCP/UPD-based ACLs

• Yes

MAC lockdown

• Yes

MAC lockdown by the number of MACs

• Yes

Control MAC # Dynamic learned entries (per port)

• 4096

Control MAC # static entries

• 48

IEEE 802.1x RADIUS port access authentication/type

• Yes

Port-based security by locked MAC addresses

• Yes

Broadcast, multicast, unknown unicast storm control

• Yes

DoS attacks prevention

• Yes

Protected ports

• Yes

Quality of Service

Port-based rate limiting

• Yes, ingress and egress

Port-based QoS

• Yes

Support for IPv6 fields

• Yes

DiffServ QoS

• Yes, ingress

IEEE 802.1p COS

• Yes

Destination MAC and IP

• Yes

IPv4 and v6 DSCP

• IPv4 and IPv6

TCP/UDP-base

• Yes

Weighted Round Robin (WRR)

• Yes

Strict priority queue technology

• Yes

Auto-VoIP VLAN / Auto-Voice VLAN

• Yes, manual or automatic assignment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters

Other Features

Loop detection & prevention

• Yes

DNS Client

• Yes

Option to enable/disable BPDU flooding when STP is disabled

• Yes

Option to enable/disable the flooding of EAPOL when 802.1x is disabled

• Yes

Management, Monitoring & Troubleshooting

Cloud/Remote management

• Yes

Insight mobile app & Insight Cloud Portal management

• Yes

uPnP Discovery

• Yes, activated by default

Networking monitoring

• Yes

Data/performance logs

• Yes

Centralized network configuration/policies (network-centric management)

• Yes

Device auto-join and configure (zero-touch provisioning)

• Yes

Multi-site, multi-network single pane-of-glass view

• Yes

Multi-switch, multi-port concurrent configuration

• Yes

Network/global password (for all Insight Managed devices on a network)

• Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud Portal)

Password management

• Yes

IP Access List

• Yes

Configurable management VLAN

• Yes

Admin access control via RADIUS and TACACS+

• Yes

IPv6 management

• Yes

SNTP client over UDP port 123

• Yes

Firmware upgrade direct from Cloud (via mobile device or Insight Cloud Portal)

• Yes

SNMP v1/v2c

• Yes

SNMP v3 with multiple IP addresses

• Yes

RMON group 1, 2, 3, 9

• Yes

Smart Control Center (SCC) for multi-switch management

• Yes

Port mirroring

• Yes

Many-to-one port mirroring

• Yes

Cable test utility

• Yes

Ping and traceroute client

• Yes

Local-only web browser-based management GUI

• Yes

HTTP/TLS Web-based access (version)

• Yes (v1.2)

HTTP firmware upload/download

• Yes

Dual software (firmware) image

• Yes

Memory and flash log

• Yes

Syslog (Server)

• Yes

Power Consumption

Max power (worst case, all ports used, line-rate traffic) (Watts)

• 47.0 W

Min power (link-down standby) (Watts)

• 23.90 W

Heat Dissipation (BTU/hr)

• 81.5946 BTU/hr

Energy Efficient Ethernet (EEE) IEEE 802.3az

• Yes (deactivated by default)

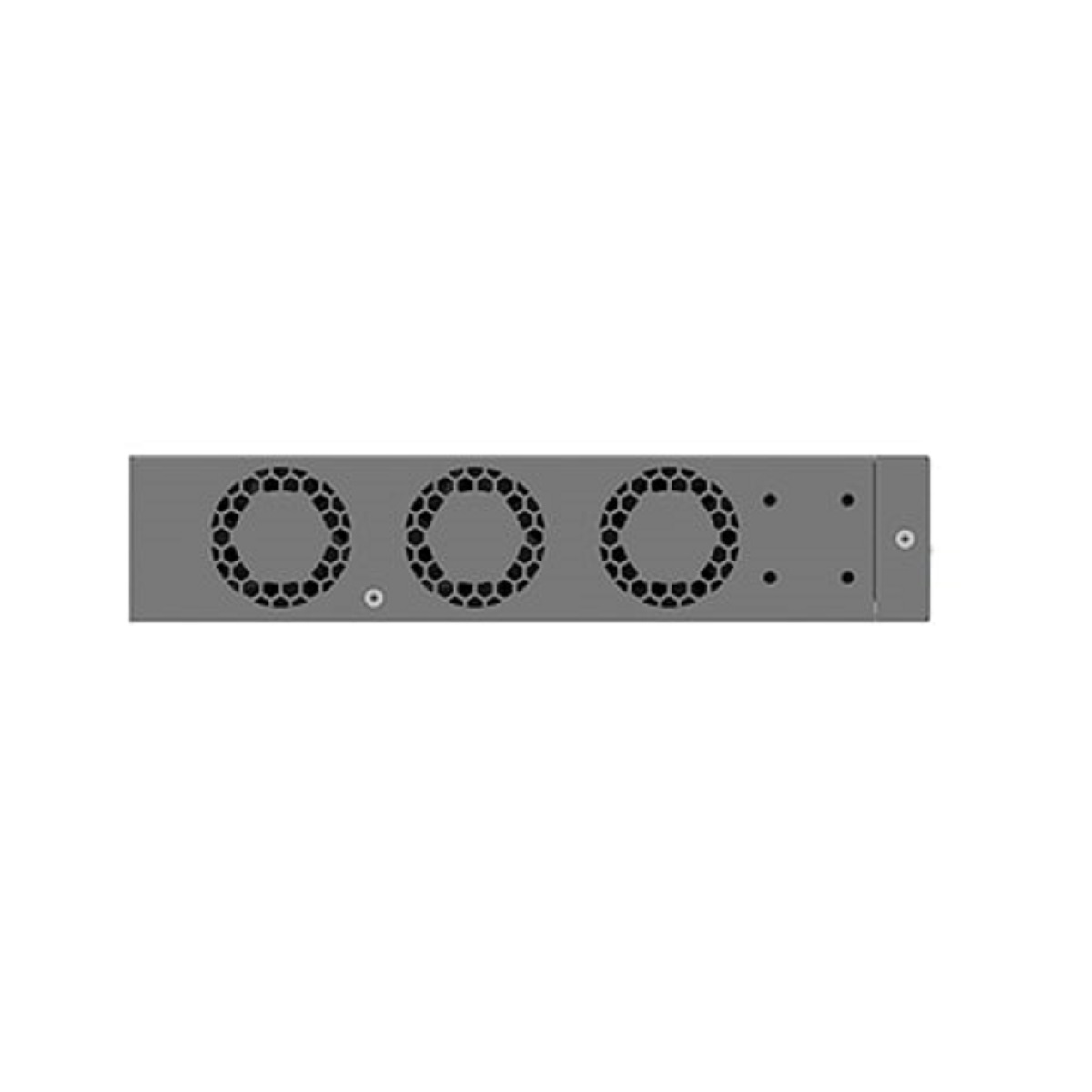

Fan(s) (temperature- and load-based speed control)

• 2

Physical Specifications

Dimensions (W x D x H)

• 330 x 206 x 43 mm (13.0 x 8.12 x 1.7 in)

Weight

• 2.08 kg (4.25 lb)

Mounting options

• Desktop, rack-mount

Environmental Specifications

• Operating
  • Operating Temperature
    • 0° to 50°C (32° to 122°F)
  • Humidity
    • 95% maximum relative humidity (RH), non-condensing
  • Altitude
    • 10,000 ft (3,000 m) maximum
• Storage
  • Storage Temperature
    • –20° to 70°C (– 4° to 158°F)
  • Humidity (relative)
    • 95% maximum relative humidity (RH), non-condensing
  • Altitude
    • 10,000 ft (3,000 m) maximum

Package Contents

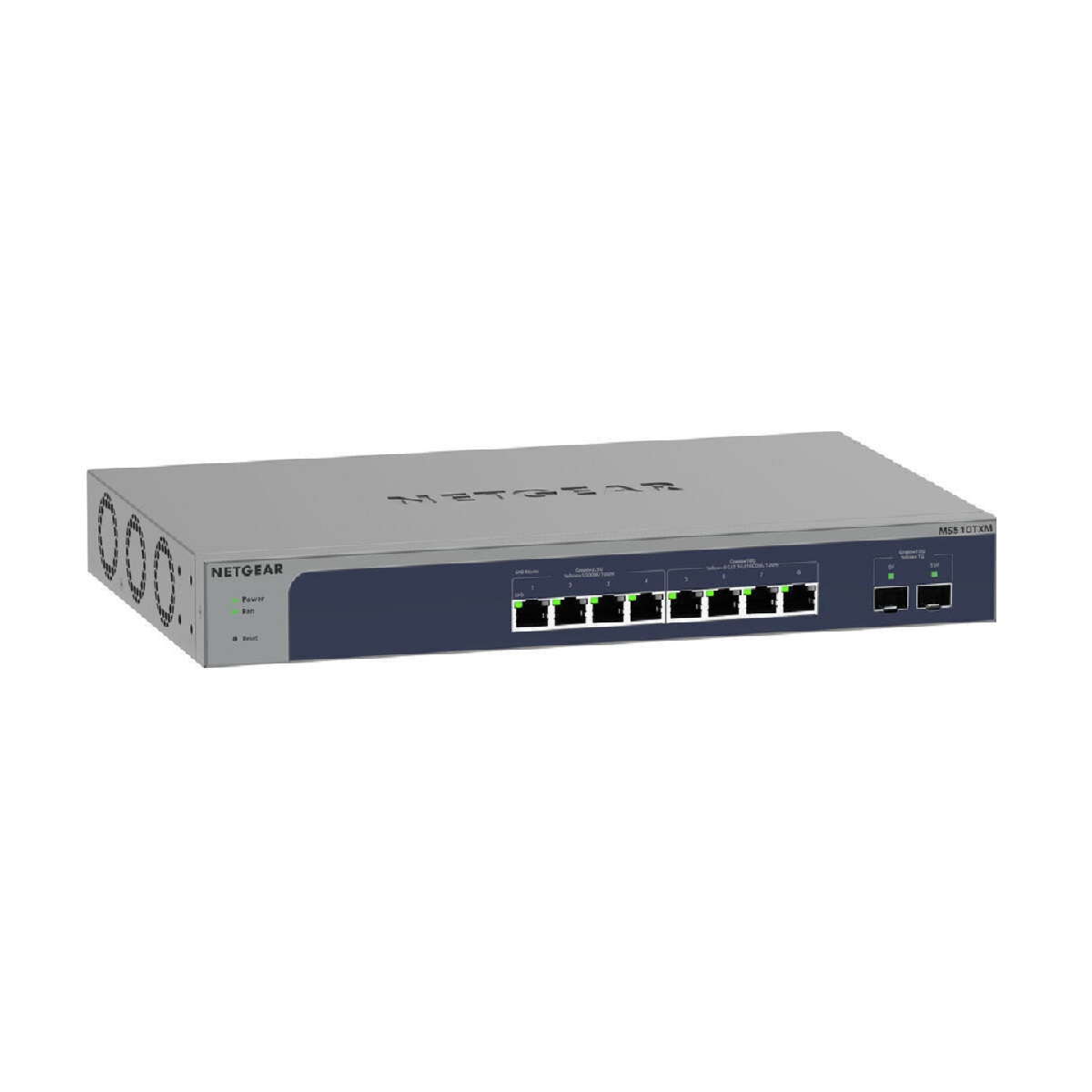

• 1 x MS510TXM Smart Switch
• 1 x Power Cord
• 1 x Mounting Kit
• 1 x Set of rubber footpads
• 1 x Installation Guide
