NETGEAR MS108UP 8-Port Unmanaged 2.5-Gigabit PoE++ Switch
£329.99 inc.VAT / £274.99 exc.VAT
NETGEAR MS108UP 8-Port Unmanaged Desktop 2.5-Gigabit PoE++ Switch (230W)
NETGEAR MS108UP 8-Port Unmanaged 2.5-Gigabit PoE++ Switch is ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play installation, and reliable performance.
NETGEAR MS108UP 8-Port Unmanaged Desktop 2.5-Gigabit PoE++ Switch (230W)
NETGEAR MS108UP 8-Port Unmanaged 2.5-Gigabit PoE++ Switch
NETGEAR MS108UP 8-Port Unmanaged 2.5-Gigabit PoE++ Switch is ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play installation, and reliable performance at affordable prices.
The MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The switch can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other applications.
This switch also provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an all-in-one solution, providing multi-speed and high power to these applications would be ideal.
Gigabit Switch MS108UP 8-Port Unmanaged 2.5-PoE++
Key Features
- 802.3bt standard offering up to 60W/ port on Port 1-4, 802.3at (30W/port) on Port 5-8
- 230W total PoE budget available across eight (8) ports

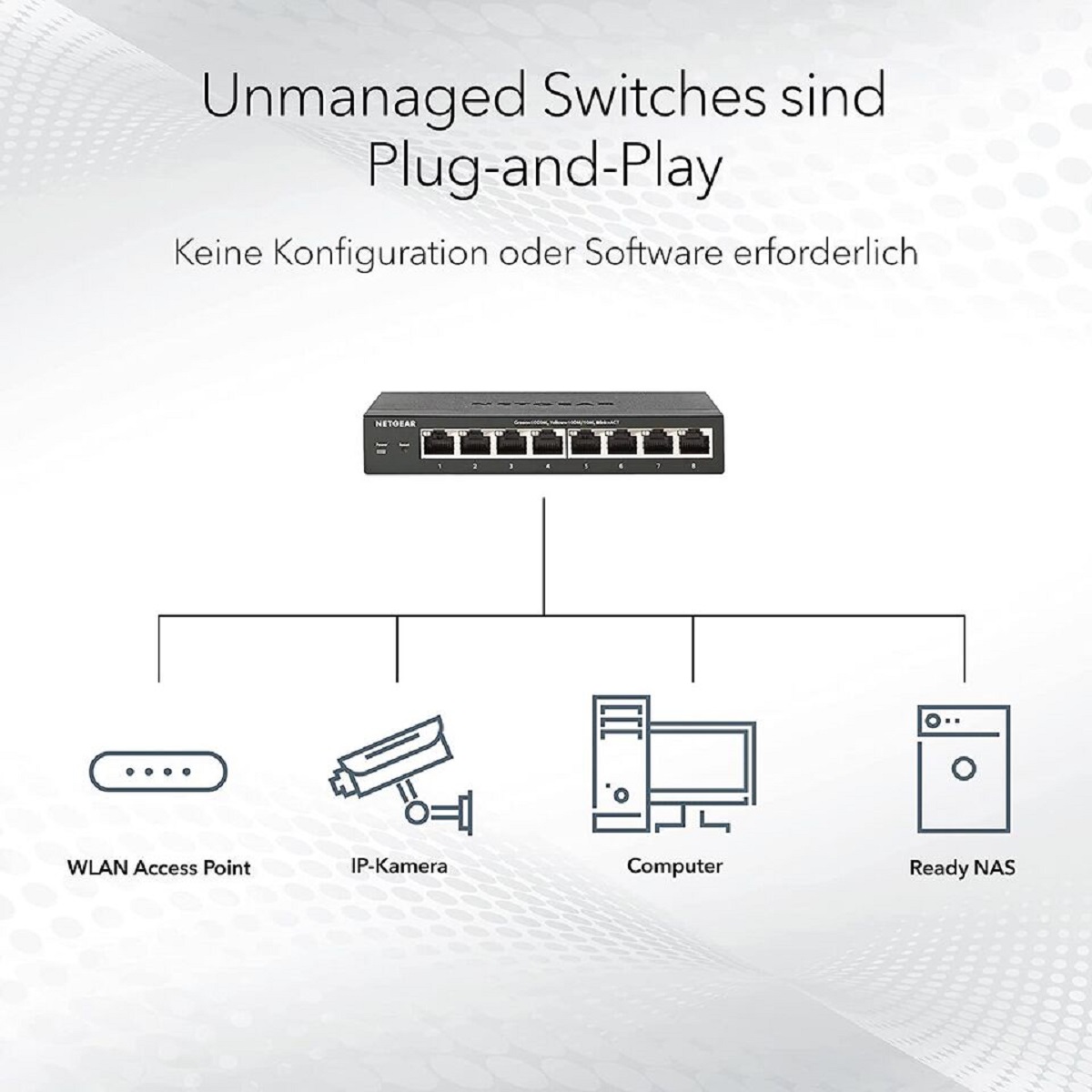

- Simple set up with no software or configuration needed
- Easy monitoring through per port LEDs for port activity and speed
- Unique PoE Auto-Balance technology automatically balances the PoE power based on the device needs independent of PoE class detected. The switches deliver the power the device needs, at the most granular level
- Energy Efficient Ethernet (IEEE 802.3az) support for maximum power savings
- Eight (8) ports of multi-gig 1G/2.5G speeds to connect devices instantly and give them each exactly the speed they need: 1G or 2.5G automatically
- Non-blocking switching architecture for maximum throughput at wire speed
- Fanless, silent operation
Room to Move

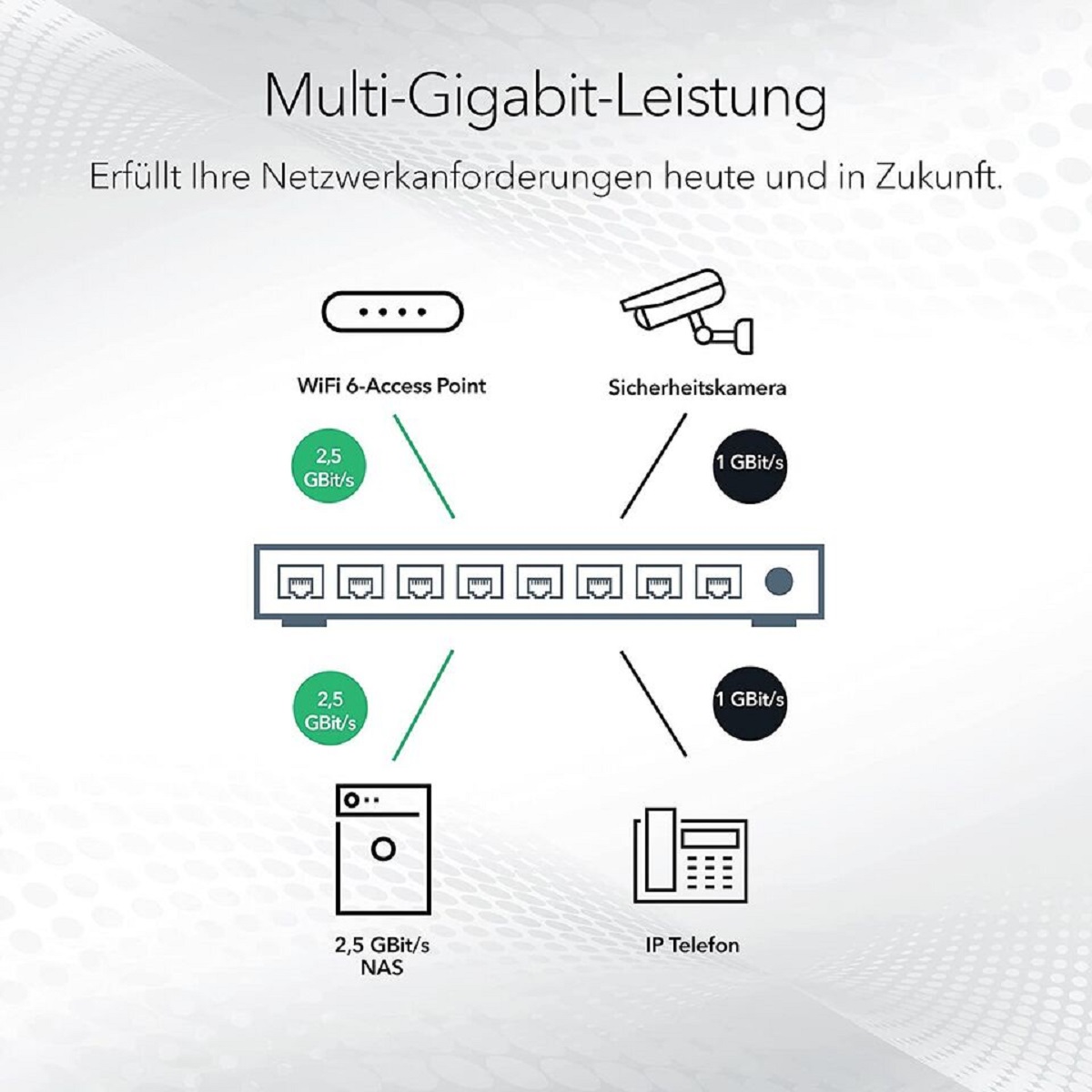

Auto-adapting 1G/2.5G ports ensure your devices are operating at their peak performance allowing you to realize faster speeds.
230W PoE Convenience
With eight (8) uninterrupted PoE ports, deploy PoE-based VoIP phones, IP cameras, AV-over-IP endpoints and wireless access points simply and securely.
Specifications
Features
1G/2.5G Ethernet RJ-45 Copper ports (100M/1G/2.5G)
- 8
Enclosure
- Metal
Connector type
- Metal
Form-Factor
- Desktop/Wall-mount
PoE
PoE ports
- 8
IEEE 802.3at ports (30W/port)
- 4
IEEE 802.3bt Type 3 ports (60W/port)
- 4
Total PoE/PoE+/PoE++ Budget
- 230W
PoE Auto-Balance
- Yes
Performance Specifications
Bandwidth
- 40Gbps
Max MAC entries
- 16K
Buffer size
- 1.5MB
Energy Efficient Ethernet (IEEE 802.3az) compliant
- Yes
Queue WRR Ratio
- 1:3:5:7:8:10:12:15
Forwarding Rate (using 64-byte packets) – 1000Mbps Port
- 1,488,000pps
Forwarding Rate (using 64-byte packets) – 2.5Gbps Port
- 3,720,000pps
Latency (using 64-byte packets) – 1000Mbps Port (average)
- <3.593µs
Latency (using 64-byte packets) – 2.5Gbps Port (average)
- <5.874µs
Jumbo frame support
- 12,000 bytes
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12)
- 0
Auto MDI/MDI-X Cable Detection
- Yes
Auto-sensing Half/Full Duplex Switched Ports
- Yes
Non Head-of-Line Blocking Architecture
- Yes
Mean Time Between Failures (MTBF) @ 25°C
- 373,644 hrs (42.6 yrs)
IEEE Network Protocols
- IEEE 802.3 Ethernet
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3u 100BASE-T
- IEEE 802.1p Priority
- IEEE 802.3az Energy Efficient Ethernet (deactivated by default)
- IEEE 802.3 CSMA/CD
- IEEE 802.3x Full-duplex Flow Control
- IEEE 802.3af PoE
- IEEE 802.3at PoE+
- IEEE 802.3bt PoE++
Quality of Service
802.1p-based QoS/CoS Supported
- Yes
Honors DSCP (DiffServ) Tags
- Yes
LEDs
Per port
- Speed, Link, Activity, PoE
Per device
- Power, PoE Max
Power Consumption
DC Input/Power In
- External (54V/4.7A)
Power Consumption (Max and Standby)
- 16.58W (no PoE), 270.5W (with PoE MAX) / 6.95W Standby
Heat Dissipation (Max and Standby) (BTU/Hr)
- 923.49BTU/23.73BTU
Energy Efficiency
IEEE 802.3az (Energy Efficient Ethernet)
- Yes
Auto Power Down
- Yes
Short Cable Detection/Power Saving
- Yes
Fan/Fanless
- Fanless
Physical Specifications
Dimensions (W x D x H)
- 210 mm x 140 mm x 40 mm (8.27 x 5.51 x 1.58 in)
Weight
- 0.9 kg (1.984 lb)
Environmental Specifications
Operating Temperature
- 32°F to 104°F (0°C to 40°C)
Operating Humidity (relative)
- 90% maximum relative humidity (RH), non-condensing
Operating Altitude
- 10,000 ft (3,000 m) maximum
Storage Temperature
- – 4°F to 158°F (–20°C to 70°C)
Storage Humidity (relative)
- 95% maximum relative humidity (RH), non-condensing
Storage Altitude
- 10,000 ft (3,000 m) maximum
Electromagnetic Certifications and Compliance
- CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM
Safety Certifications
- CB, CSA, CCC, BSMI, RCM
Package Contents
- 1 x NETGEAR MS108UP Switch
- 1 x UK Detachable power cable
- 1 x Power Adapter
- 1 x Wall installation kit
- 1 x Rubber feet
- 1 x Installation guide
Standard Warranty: Limited Lifetime
