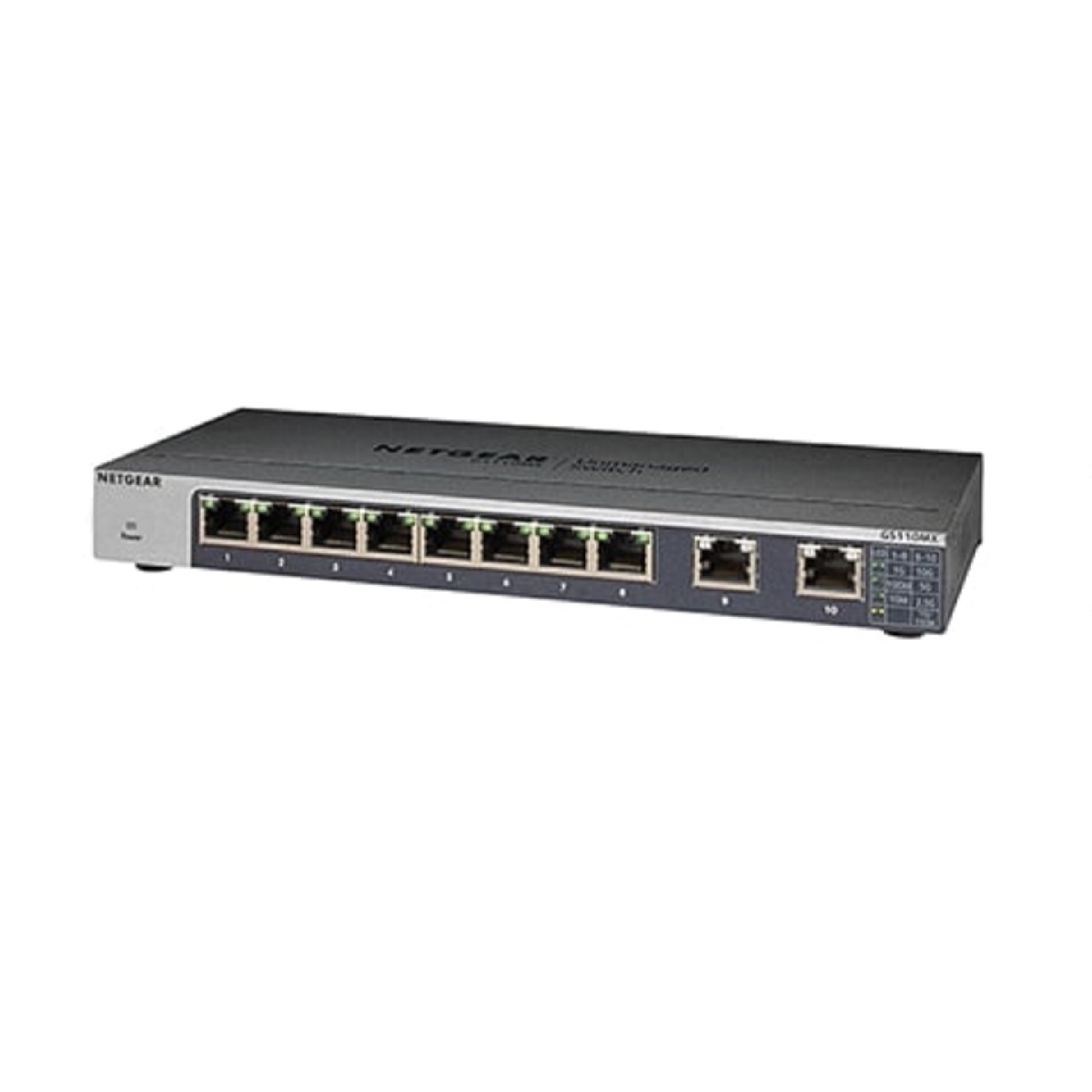

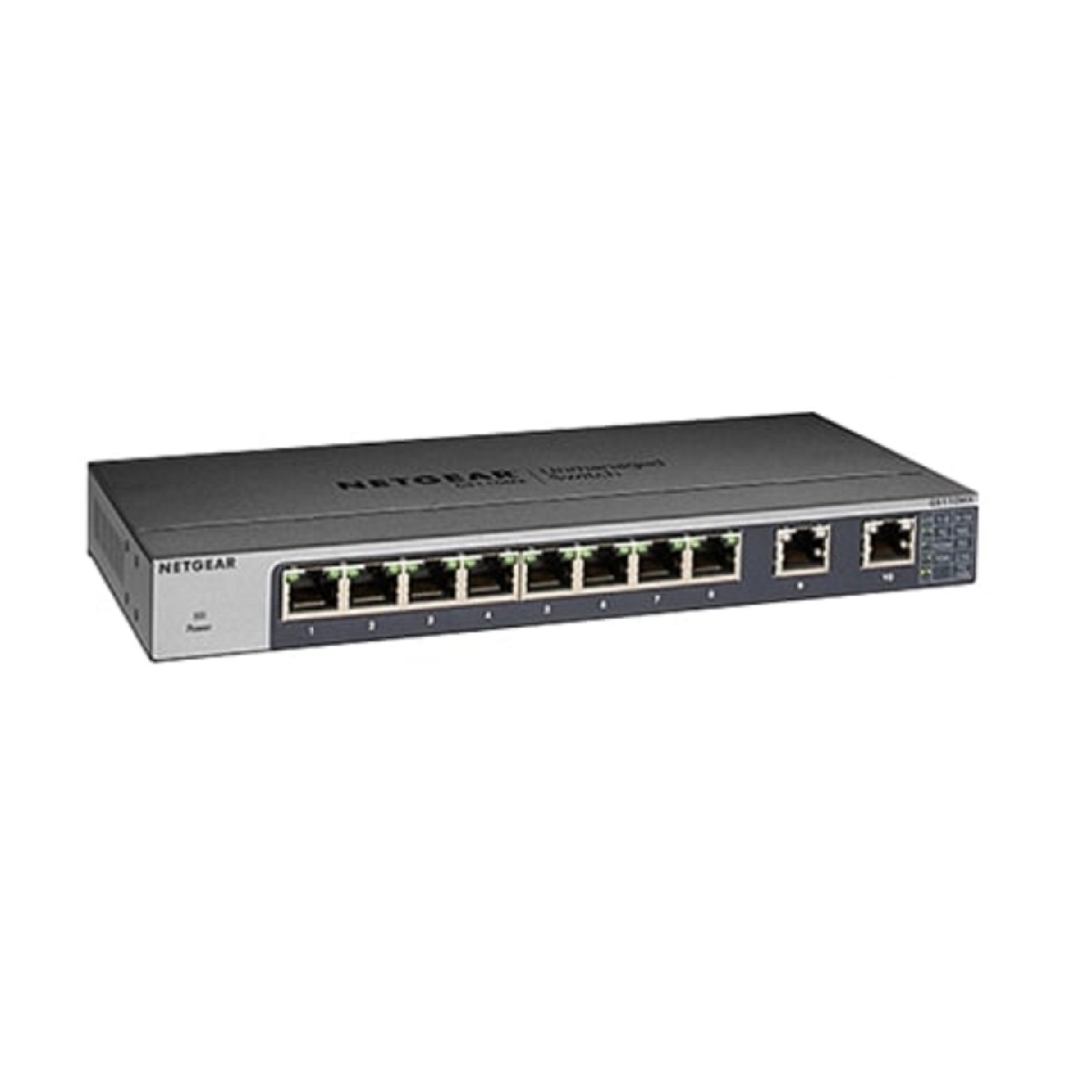

NETGEAR GS110EMX-100UKS Plus 8-Port Managed Gigabit Switch
£314.77 inc.VAT / £262.31 exc.VAT
NETGEAR GS110EMX Plus 8-Port Managed Rackmount Gigabit Switch w/ 2 x 10Gbps Ports
NETGEAR GS110EMX-100UKS Plus 8-Port Managed Gigabit Switch comes with 8 Gigabit Ethernet ports and 2 uplink 10-Gigabit/Multi-Gigabit (5-speed) ports.
NETGEAR GS110EMX Plus 8-Port Managed Rackmount Gigabit Switch w/ 2 x 10Gbps Ports
NETGEAR GS110EMX-100UKS Plus 8-Port Managed Gigabit Switch
NETGEAR GS110EMX-100UKS Plus 8-Port Managed Gigabit Switch comes with 8 Gigabit Ethernet ports and 2 uplink 10-Gigabit/Multi-Gigabit (5-speed) ports that provide either 100 Megabit, 1-Gigabit, 2.5-Gigabit, 5-Gigabit or 10-Gigabit connectivity.
The two uplink ports automatically detect which speed is needed by the connected device and provides it with the adequate speed. Moreover, these two Multi-speed switch ports can be connected with normal Cat5e Ethernet cables, without the need to upgrade to Cat6 wiring, therefore reducing wiring costs and hassle.
Gigabit Switch GS110EMX-100UKS Plus 8-Port Managed
Key Features
- 8x 10/100/1000 gigabit ethernet ports and 2 x 10 Gigabit/Multi-Gigabit Ports.
- No Network Bottlenecks thanks to the 2 x 10-Gigabit/Multi-Gigabit Uplinks.
- 5-Speed Networking Automatically detects which speed is needed by the connected device and provides the adequate speed.
- Compact Design to fit in any small cabinet or wiring panel with 1U and 19-inch size.
- High quality and reliable performance with a durable metal case and long product life.
- Silent Switching with a Fanless Quiet Operation.
- Flexible mounting to allow the switch to be rack mounted, wall-mounted or placed on a desktop.
Mounting Options
The NETGEAR GS110EMX-100UKS 8-Port Managed Gigabit Switch offers flexible mounting options as it can be mounted in a rack, on a wall or can be used as a desktop switch. Moreover the compact and fanless design makes the ideal for any home or business environment.
Why the NETGEAR GS110EMX-100UKS is ideal for SMB
- Plug-and-play, automatic connectivity to your router or modem of 4 or 7 additional wired connections. No need for an IT expert!
- Expand your network instantly, and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit, automatically.
- Small and silent desktop or rackmount form factor for quiet operation – Adapts to your needs and configuration in any environment
- Energy efficient switches that automatically adjusts power consumption according to the link status and cable length.
Specifications
Gigabit ports
- 8
100M/1G/2.5G/5G/10G RJ-45 copper ports
- 2
Form Factor
- Desktop/Rackmount/Wall mount
Performance Specification
Bandwidth
- 56 Gbps
Priority queues
- 8
Priority queuing
- Weighted Round Robin (WRR)
MAC Address database size (48-bit MAC addresses)
- 16K
Multicast groups
- 128
Packet forwarding rate (64 byte packet size) (Mfps or Mpps)
- 41.664Mfps
Speed / Latency
- 10Gbps: < 3µs
- 100Mbps: <7µs
- 1000Mbps: <4µs
Jumbo frame support
- Up to 10240 bytes
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)
- 0 dBA
Power / Energy Efficiency
Energy-Efficient Ethernet
- Yes
Max power (worst case, all ports used, line-rate traffic) (Watts)
- 15.6
Quality Of Service (QOS)
802.1p-based QoS/CoS Supported
- Yes
Port-based rate limiting
- Ingress and egress
Port-based QoS
- Yes
IEEE 802.1p COS
- Yes
IPv4 DSCP
- Yes
Pre-Defined Rate Limiting Rates
- 1/5/10/50/100/500 Mbit/s
Pre-Defined Port Priority Queues
- 8
Weighted Round Robin (WRR)
- Yes
Strict priority queue technology
- No
Voice VLAN
- Yes
L2 SERVICES – VLANs
VLAN (# Supported)
- 64
IEEE 802.1Q VLAN Tagging
- Yes
Port-based VLAN
- Yes
L2 Services – Availability
Broadcast, multicast, unknown unicast storm control
- Yes
Static Manual LAGs (Port Trunking)
- Yes
LACP
- Yes
IEEE 802.3x (full duplex and flow control)
- Yes
L2 Services – Multicast Filtering
IGMP snooping (v1, v2, and v3)
- Yes
IGMP snooping queries
- No
Block unknown multicast
- Yes
Static multicast router port
- Yes
L3 Services – DHCP
DHCP client
- Yes
Link Aggregation
Static Manual LAGs (Port Trunking)
- Yes
# of Static LAGs / # of members in each LAG
- 5 LAGs with max 9 members in each LAG
LEDS
Per port
- Speed, Link, Activity
Per device
- Power
Physical Specifications
Dimensions (W x D x H)
- 236 x 102 x 27 mm (9.29 x 4.02 x 1.06 in)
Weight
- 0.75 kg (1.65 lbs)
Power Consumption
Power Supply
- External Power Adapter12V 2.5A
Max power (worst case, all ports used, line-rate traffic) (Watts)
- 15.6
Min power (link-down standby) (Watts)
- 6.6
Heat Dissipation (max and min) (BTU/hr)
- Max: 53.35 BTU/hr
- Min: 22.57 BTU/hr
Fan(s)
- Fanless
Environmental Specifications
Operating
Operating temperature
- 0° to 40°C (32° to 104°F)
Humidity (relative)
- 90% maximum relative humidity (RH), non-condensing
Altitude
- 10,000 ft (3,000 m) maximum
Storage
Storage temperature
- –20° to 70°C (– 4° to 158°F)
Humidity (relative)
- 95% maximum relative humidity, non-condensing
Altitude
- 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity
Certifications
- 47 CFR FCC Part 15, Subpart B, Class B
- ICES-003:2016 Issue 6, Class B
- ANSI C63.4:2014
- EN 55032:2012 +AC:2013 / CISPR 32:2012 / AS/NZS CISPR 32:2013, Class B
- EN 55032:2015 +AC:2016 / CISPR 32:2015 +COR1:2016 / AS/NZS CISPR 32:2015, Class B
- EN 61000-3-2:2014
- EN 61000-3-3:2013
- EN 55024:2010 +A1:2015
- AS/NZS CISPR 32:2015, Class B
- VCCI-CISPR 32:2016, Class B
- Russia EAC mark
- Korea KC mark
- CNS 13438
Electromagnetic Compliance (Class A or B)
- Class B
Safety
Certifications
- CB mark, commercial
- UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07
- EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
- IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
- AS/NZS 60950.1:2015
Package Contents
- GS110EMX 8-port Gigabit Switch with 2-port 10-Gigabit/Multi-Gigabit Uplinks
- AC power adapter
- Rack-mounting kit
- Wall-mounting kit
- Rubber foot
- Quick install guide
Standard Warranty: Lifetime Warranty
