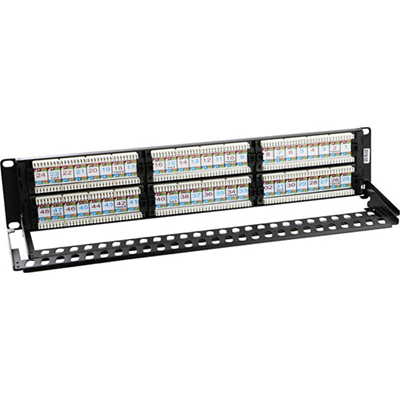

Black 48-Port CAT6 Unshielded Patch Panel 2U Rackmount Horizontal Punch
£83.37 inc.VAT / £69.48 exc.VAT
Excel 48-Port CAT6 Unshielded Patch Panel, 2U, Rackmount, Horizontal Punch, Black (100-306)

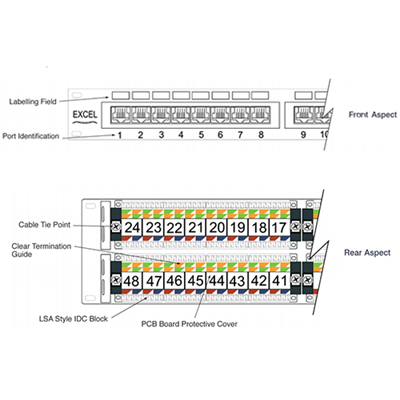

The Excel 100-306 48-Port CAT6 Unshielded Patch Panel has been designed to meet or exceed the latest ISO and TIA requirements for category 6 compliance. This panel has a screen printed labelling field positioned above each port, and a pre-printed self adhesive labelling sheet (pre-numbered 1- 96) is included for fast and easy labelling on site. Termination can be made using LSA compatible tools, and cable tie bridges are positioned between the IDC blocks to relieve cable stress. This panel consists of a number of 8 way blocks of RJ45 sockets, housed in a high quality plastic moulding.
Out of stock
Excel 48-Port CAT6 Unshielded Patch Panel, 2U, Rackmount, Horizontal Punch, Black (100-306)
Excel 100-306 48-Port Unshielded 19-inch 2U Black CAT6 Patch Panel
The Excel 100-306 48-Port CAT6 Unshielded Patch Panel has been designed to meet or exceed the latest ISO and TIA requirements for category 6 compliance. This panel has a screen printed labelling field positioned above each port, and a pre-printed self adhesive labelling sheet (pre-numbered 1- 96) is included for fast and easy labelling on site. Termination can be made using LSA compatible tools, and cable tie bridges are positioned between the IDC blocks to relieve cable stress. This panel consists of a number of 8 way blocks of RJ45 sockets, housed in a high quality plastic moulding.
Key Features
- Category 6 (CAT6) compliant.
- Backwards compatible (CAT5/5e).

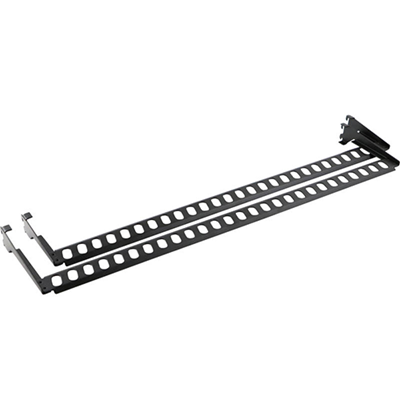

- Rear cable management.
- T568A/B wiring configuration.
- LSA style termination blocks.
Performance
The Excel 100-306 Patch Panel is manufactured to provide Category 6 channel performance. A range of parameters are tested in frequency sweeps up to and including 250 MHz. This panel is also backward compatible with Category 5 and 5e components.
Specifications
Number of ports – loaded
- 48
Type of connector
- RJ45 8(8)
Shielded
- No
Category
- 6
Wiring specifications
- T568A/B
Connection type
- LSA
RJ45 jack
- Min life 700 insertions
- 50 Micro-inch Gold Plated contact pins
IDC contacts
- LSA style, maximum 100 reterminations
NEXT at 250MHz
- SPEC – 33.14dB (in channel worst pair)
- Actual – 38.87dB (in channel worst pair)
FEXT at 250MHz
- SPEC – 15.33dB (in channel worst pair)
- Actual – 22.29dB (in channel worst pair)
Number of rack units
- 2U
Colour
- Black
Mounting method
- 19 inch mounting
Height
- 88 mm
Width
- 480 mm
Depth
- 33 mm
Included accessories
- Cage nuts
- Mini cable ties
Standard Warranty: N/A
| Color | BLACK |
|---|
