Connectix Orange 001-003-005-68 305m U/UTP CAT6 Ethernet Cable
£209.92 inc.VAT / £174.93 exc.VAT
Connectix 001-003-005-68 CAT6 U/UTP Solid Ethernet Cable, 305m, Orange, LSZH (Boxed)
Connectix Orange 001-003-005-68 305m U/UTP CAT6 Ethernet Cable is designed for use in next generation data communications networks, and applications including Gigabit Ethernet.
Connectix 001-003-005-68 CAT6 U/UTP Solid Ethernet Cable, 305m, Orange, LSZH (Boxed)

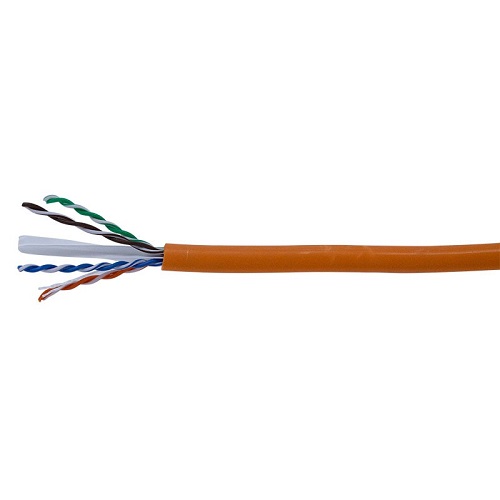

Connectix Orange 001-003-005-68 305m U/UTP CAT6 Ethernet Cable
Connectix Orange 001-003-005-68 305m U/UTP CAT6 Ethernet Cable is designed for use in next generation data communications networks, and will comfortably support all present applications including Gigabit Ethernet.
Connectix Category 6 U/UTP Cable has been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet.
CAT6A U/UTP means the cable consists of 4 unshielded twisted pairs and no outer shielding. CAT6A F/UTP means the cable consists of 4 unshielded twisted pairs however it contains an outer foil shield.
Key Features
- Suitable for Gigabit Ethernet applications.
- Pure copper cores.
- CAT6 performance.
- UL tested.
- Orange LSZH outer sheath.
- Supplied in 305m reel, metre-marked for easy installation.
- Excellent performance exceeding ANSI/TIA Enhanced Category 6 specifications.
- In line with BS6701:2016+A1:2017 specifications
Specifications
Conforms to
- IEEE 802.3: 10Base-T, 100Base-T, 1000 Base-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/ANSI Cenelec EN5017
Fire Rating
- B2ca,s1a,d0,a1
Inner Conductor
- 23 AWG plain copper
Insulation
- High density polyethylene
Construction
- 4 twisted pairs cabled together with spine
Colour Code
- Pair 1: White/Blue-Blue/White
- Pair 2: White/Orange-Orange/White
- Pair 3: White/Green-Green/White
- Pair 4: White/Brown-Brown/White
Sheath
- FR-LSZH
RAL Colour
- Orange – 2004
Overall Diameter
- 6.1+/- 0.3 mm
Min. Bending Radius
- 24.5 mm
Electrical Specifications
DC Resistance Unbalance
- Max 2.5%
Insulation Resistance
- >5000mOhms *km
Capacitance Unbalance (pair to ground)
- 330 (pF/100m)
Characteristic Impedance @1-250 MHz
- 100 +/- 15 Ohms
Velocity Ratio
- 69%
Operating Temperature Range
- -20°C to +70°C
Installation Temperature Range
- 0°C to +50°C
Transfer Impedance (mO/m)
- 1 MHz
- 10 MHz
- 30 MHz
- 100 MHz
Only logged in customers who have purchased this product may leave a review.
Related Products
CAT6 Black 5m Ethernet Patch Cable (U/UTP)
This 5m Black Category 6 Ethernet cable, commonly referred to as CAT6, is built on the cable standard for Gigabit Ethernet and other network protocols that are backward compatible with the Category 5/5e and Category 3 cable standards. Compared with CAT5 and CAT5e, this CAT6 cable features more stringent specifications for crosstalk and system noise. This CAT6 cable also provides performance of up to 250 MHz.
297 in stock
CAT6 Black 1m Ethernet Patch Cable (U/UTP), Ten Pack
The CAT6 Black 1m Ten Pack Ethernet Patch Cables are twisted pair, high signal integrity network cables that come with flush moulded boots. These cables come with unshielded sheaths, relying on the twisted pair design for noise rejection, and are suitable for use in Gigabit Ethernet networks.
151 in stock
Ubiquiti UniFi CAT6 Blue 0.1m Ethernet Cable/Patch Lead, Bendable Booted RJ45
Ubiquiti UC-Patch-RJ45-BL UniFi 0.1m Blue Ethernet Cables Lead features two (2) bendable booted RJ45 connectors.
95 in stock

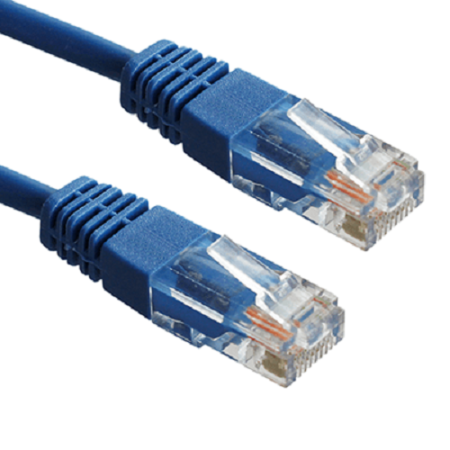

CAT6 Blue 3m Ethernet Patch Cable (U/UTP)
This 3m Blue Category 6 Ethernet cable, commonly referred to as CAT6, is built on the cable standard for Gigabit Ethernet and other network protocols that are backward compatible with the Category 5/5e and Category 3 cable standards. Compared with CAT5 and CAT5e, this CAT6 cable features more stringent specifications for crosstalk and system noise. This cable also provides performance of up to 250 MHz’s.
469 in stock
CAT6 Black 3m Ethernet Patch Cable (U/UTP)
This 3m Black Category 6 Ethernet cable, commonly referred to as CAT6, is built on the cable standard for Gigabit Ethernet and other network protocols that are backward compatible with the Category 5/5e and Category 3 cable standards. Compared with CAT5 and CAT5e, this CAT6 cable features more stringent specifications for crosstalk and system noise. This CAT6 cable also provides performance of up to 250 MHz.
1804 in stock
CAT6 Shielded Black 3m Ethernet Patch Cable (F/UTP LSZH)
The EssCable CAT6 Ethernet RJ45 cable is a twisted pair, high signal integrity network cable that comes with a moulded snagless boot. This cable comes with an shielded sheath, relying on the twisted pair design for noise rejection and it is suitable for use in Gigabit Ethernet networks.
87 in stock
Excel 24-Port CAT6 Unshielded Patch Panel, 1U, Rackmount, Vertical Punch, Black (100-302)
The Excel 100-302 24-Port CAT6 Unshielded Patch Panel has been designed to meet or exceed the latest ISO and TIA requirements for category 6 compliance. Ease of installation is assured with built in rear cable management at a 90º angle to the panel fascia. This panel has a screen printed labelling field positioned above each port, and a pre-printed self adhesive labelling sheet (pre-numbered 1- 96) is included for fast and easy labelling on site. Termination can be made using LSA compatible tools, and cable tie bridges are positioned between the IDC blocks to relieve cable stress.
Out of stock
CAT6 Grey 3m Ethernet Patch Cable (U/UTP)
This 3m Grey Category 6 Ethernet cable, commonly referred to as CAT6, is built on the cable standard for Gigabit Ethernet and other network protocols that are backward compatible with the Category 5/5e and Category 3 cable standards. Compared with CAT5 and CAT5e, this CAT6 cable features more stringent specifications for crosstalk and system noise. This cable also provides performance of up to 250 MHz’s.
57 in stock
Connectix 003-3B5-030-01C CAT6 Grey Snagless Moulded 3m Ethernet Patch Cable (U/UTP, LSZH, Low Smoke)
The Connectix CAT6 Grey Snagless Moulded 3m Ethernet Patch Cable is manufactured to exceed all current enhanced Cat6 specifications, and has been tested and bagged to ensure quality and performance. The moulded style boot provides strain relief and prevents the cable becoming loose from the plug. For ease of installation, the boot on this RJ45 lead provides latch protection and is suitable for use in high density installations.
1 in stock
CAT6 Low Smoke Blue 3m Ethernet Patch Cable (U/UTP LSZH)
The EssCable CAT6 Ethernet RJ45 cable is a twisted pair, high signal integrity network cable that comes with a moulded snagless boot. This cable comes with an unshielded sheath, relying on the twisted pair design for noise rejection and it is suitable for use in Gigabit Ethernet networks.
89 in stock

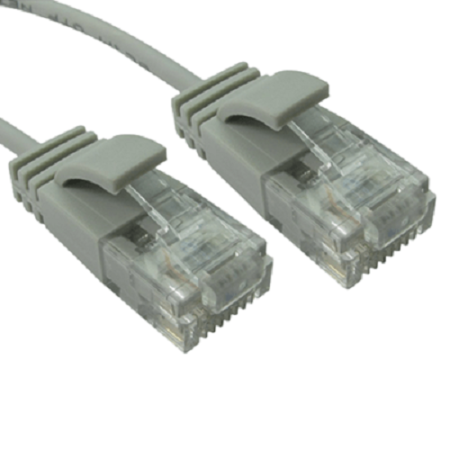

CAT6 Slim Grey 3m Ethernet Patch Cable (U/UTP, LSZH, Low Smoke)
134 in stock

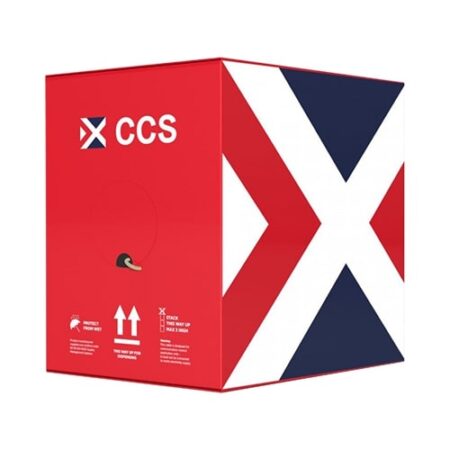

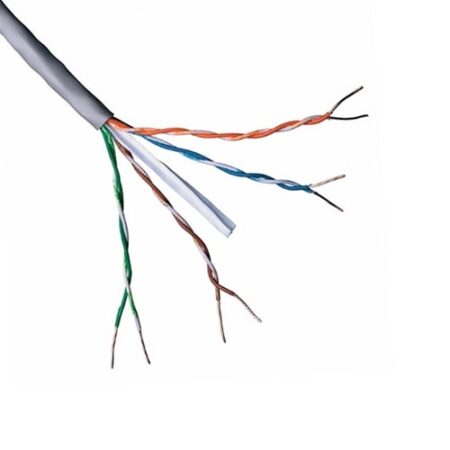

Connectix 001-003-005-00S CAT6 U/UTP Solid Ethernet Cable, 305m, Grey, PVC (Boxed)
