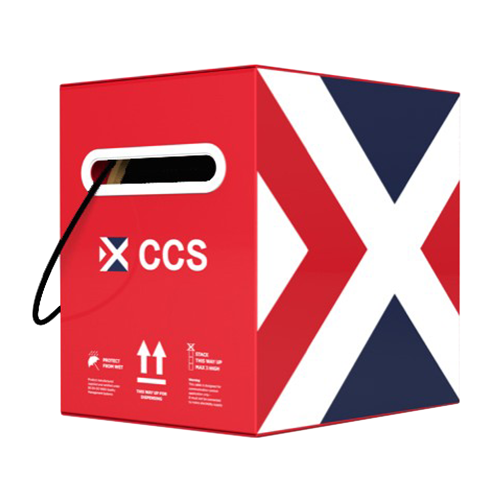

Connectix Black 001-003-005-10 U/UTP 305m CAT6 Ethernet Cable (Boxed)
£164.63 inc.VAT / £137.19 exc.VAT
Connectix 001-003-005-10 CAT6 U/UTP Solid Ethernet Cable, 305m, Black, LDPE (Boxed)
Connectix Black 001-003-005-10 305m U/UTP CAT6 Ethernet Cable (Boxed) is designed for use in next generation data communications networks,
Connectix 001-003-005-10 CAT6 U/UTP Solid Ethernet Cable, 305m, Black, LDPE (Boxed)
Connectix Black 001-003-005-10 U/UTP 305m CAT6 Ethernet Cable (Boxed)
Connectix Black 001-003-005-10 U/UTP 305m CAT6 Ethernet Cable (Boxed) is designed for use in next generation data communications networks, and will comfortably support all present applications including Gigabit Ethernet.
Connectix Category 6 U/UTP Cable has been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet.
Key Features
- Suitable for Gigabit Ethernet applications.
- Pure copper cores.
- CAT6 performance.
- UL tested.
- Black PE outer sheath.
- Supplied in 305m reel, metre-marked for easy installation.
- Excellent performance exceeding ANSI/TIA Enhanced Category 6 specifications.
Specifications
Inner Conductor
- 23 AWG plain copper
Insulation
- High density polyethylene
Construction
- 4 twisted pairs cabled together with spline
Colour Code
- Pair 1: White/Blue-Blue/White
- Pair 2: White/Orange-Orange/White
- Pair 3: White/Green-Green/White
- Pair 4: White/Brown-Brown/White
Sheath
- PE external (Black)
RAL Colour
- Black – 9004
Overall Diameter
- 6.2mm +/- 0.3 mm
Min. Bending Radius
- 25 mm
Impedance
- 100 Ohm +/- 15 Ohm
Conforms to
- ANSI/TIA-568-C, ISO11801, CENELEC EN 50173
Length (metres)
- 305m
Electrical Specifications
DC Resistance Unbalance
- Max 2.5
Insulation Resistance
- >5000mOhms*km
Characteristic Impedance @1-250 MHz
- 100 Ohm +/- 15 Ohm
Velocity Ratio
- 69%
Operating Temperature Range
- -20°C to +60°C
Installation Temperature Range
- 0°C to +50°C
Transfer Impedance (mO/m)
- 1 MHz
- 10 MHz
- 30 MHz
- 100MHz
