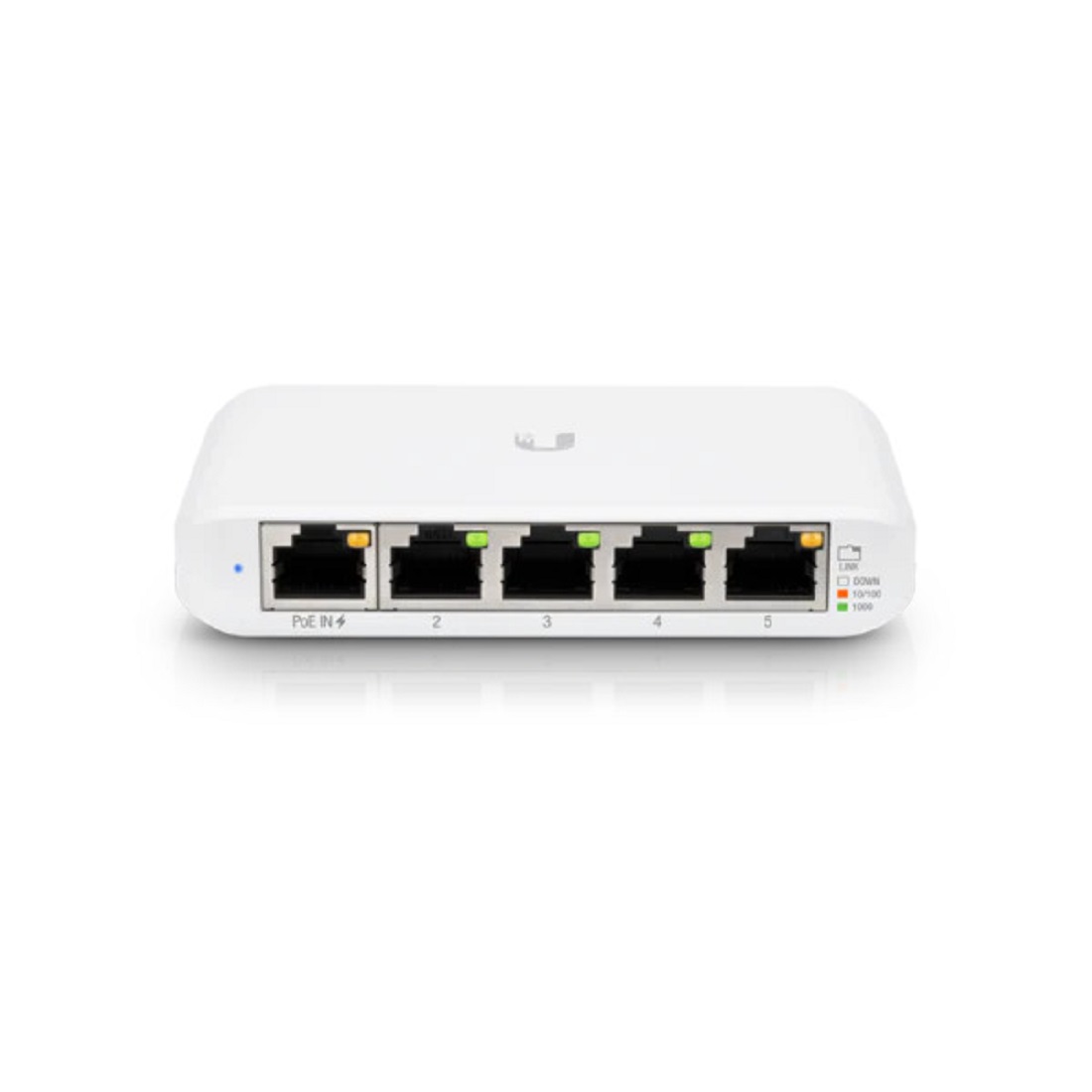

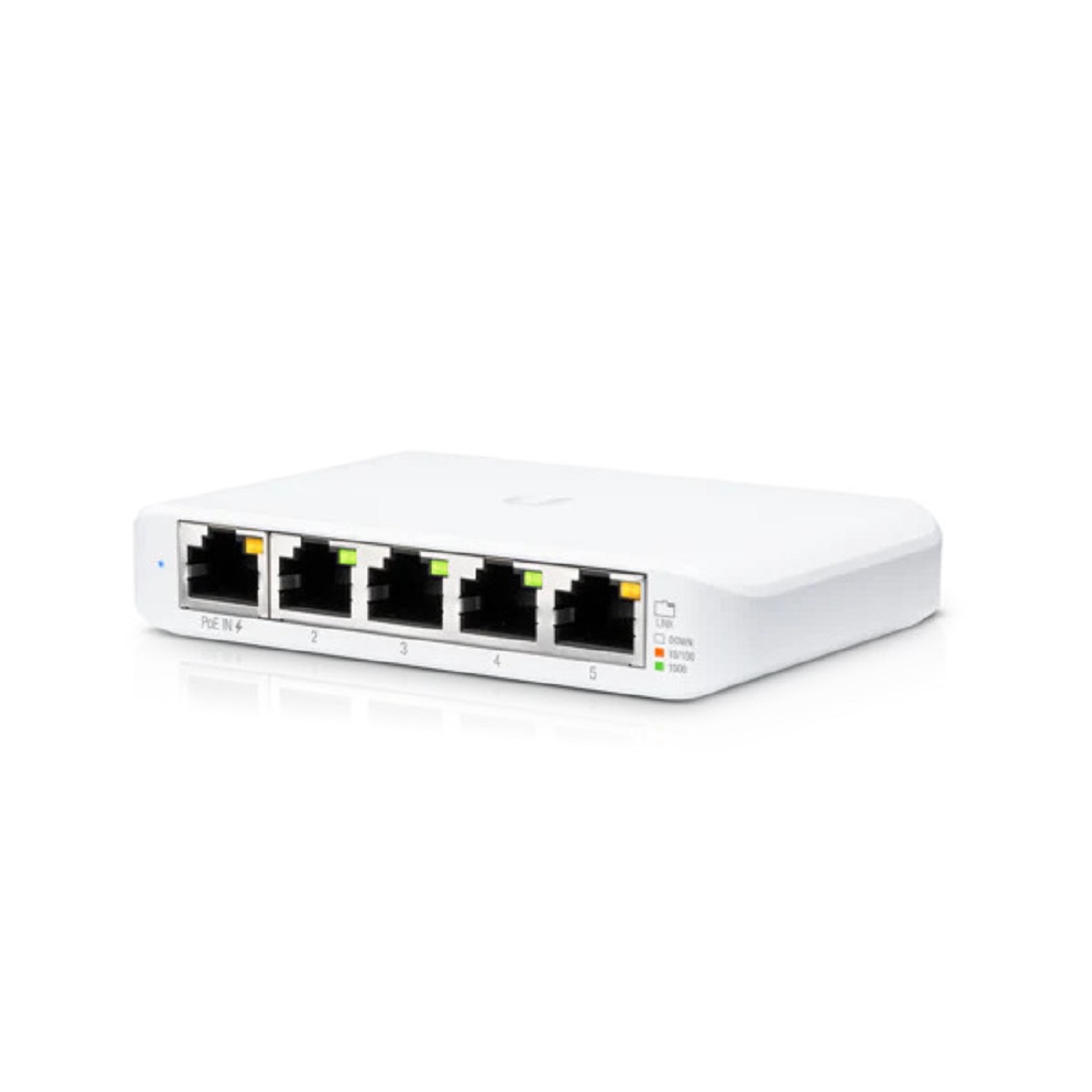

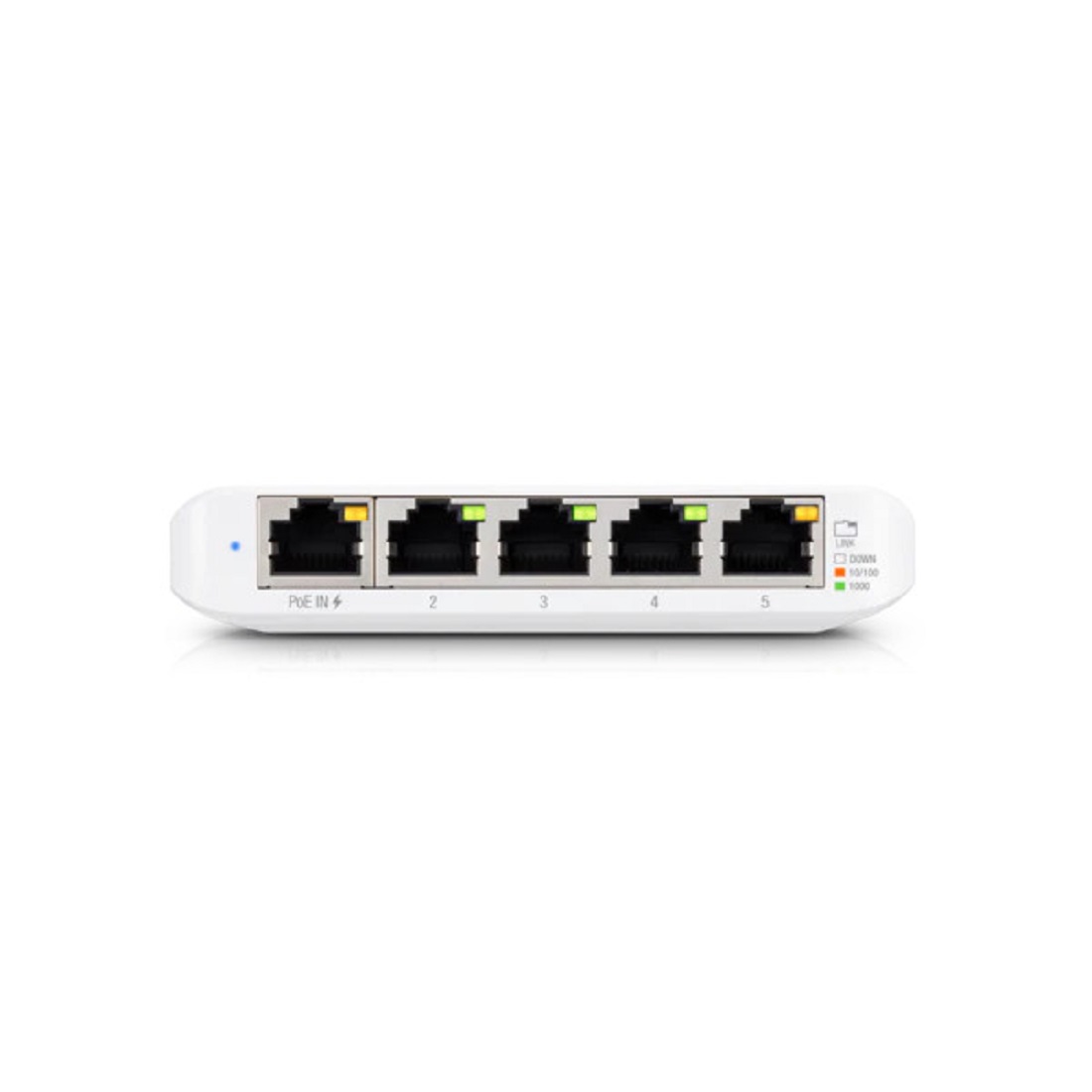

Ubiquiti (USW-Flex-Mini) UniFi Managed Desktop 5 Port Gigabit Switch
£38.07 inc.VAT / £31.73 exc.VAT
Ubiquiti (USW-Flex-Mini) Layer 2 UniFi Managed Desktop 5-Port Gigabit Switch     Â
Ubiquiti (USW-Flex-Mini) UniFi Managed Desktop 5 Port Gigabit Switch offers five (5) RJ45 Ethernet ports, providing 1GbE links to your devices.
Ubiquiti (USW-Flex-Mini) Layer 2 UniFi Managed Desktop 5-Port Gigabit Switch
Ubiquiti (USW-Flex-Mini) UniFi Managed Desktop 5 Port Gigabit Switch
Ubiquiti (USW-Flex-Mini) UniFi Managed Desktop 5 Port Gigabit Switch offers five (5 Port) RJ45 Ethernet ports, providing 1GbE links to your devices.

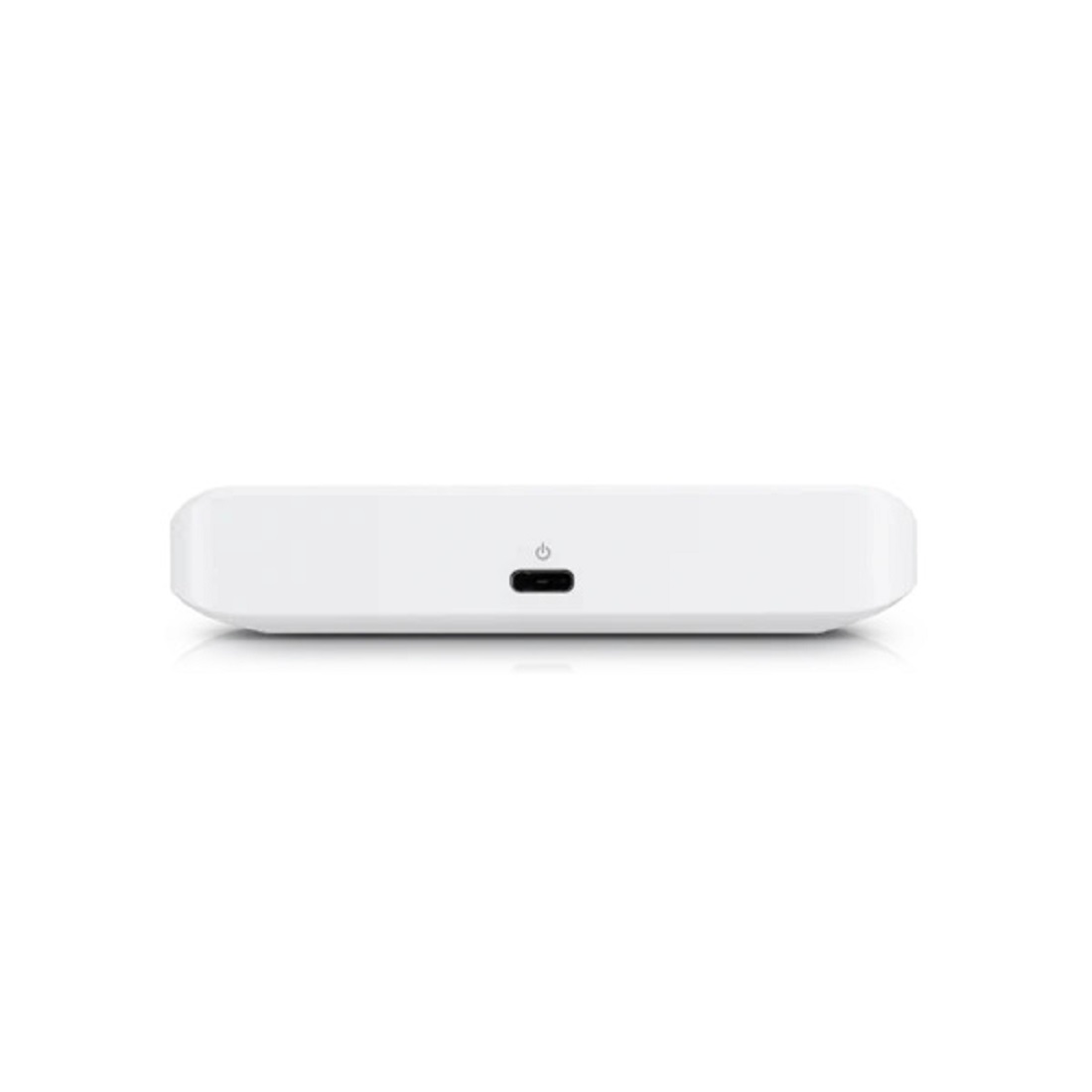

Power up the UniFi Switch Flex Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
Key Features
- Five (5) 10/100/1000 Gigabit Ethernet RJ45 ports.
- Powered by 802.3af/at PoE.
- Can be managed with the UniFi Network Controller.
- Low energy consumption.
- Compact design.
- Expand your existing UniFi network.
Compact desktop design
The cost-effective UniFi Switch Flex Mini can be discreetly integrated into any environment. Five (5) RJ45 ports offer 10/100/1000 links. One (1) port also supports 802.3af/at PoE input.
Efficient use of energy
The UniFi Switch Flex Mini uses only a maximum of 2.5W. For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter.
Switching performance
The UniFi Switch Flex Mini offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Works with UniFi network controller
- Manage your networks from a single control plane.
- Intuitive and robust configuration, control and monitoring:
- Centralized configuration management (including configuration cloning).
- Auto-MDIX automatically adjusts as needed for straight through or crossover cable.
- Remote firmware upgrade.
Specifications
Dimensions
- 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83 in.)
Weight
- 150 g (5.29 oz.)
Interfaces
- Networking
- 5 x 10/100/1000 RJ45 Ports
- PoE In
- 802.3af/at PoE (Pins 1, 2+; 3, 6-)
- Management
- Ethernet In-Band
Total Non-Blocking Throughput
- 5 Gbps
Switching Capacity
- 10 Gbps
Forwarding Rate
- 7.44 Mpps
Power Method
- USB Type C, 5V
- 802.3af/at PoE (44 – 57VDC, 0.05 – 0.04A)
Power Supply
- 5V, 1A Power Adapter
Voltage Range
- USB Type C
- 4.7 – 5.3V
- 802.3af/at PoE
- 44 – 57VDC
Max Power Consumption
- 2.5W
LEDs
- System
- Status
- RJ45 Data Ports
- Speed/Link/Activity
ESD/EMP Protection
- Air: ±16 kV, Contact: ±12 kV
Shock and Vibration
- ETSI300-019-1.4 Standard
Operating Temperature
- -5ºC to 45ºC (23ºF to 113ºF)
Operating Humidity
- 10% – 90% Non-condensing
Certifications
- CE, FCC, IC
Package Contents
- 1 x Ubiquiti USW-Flex-Mini
- 1 x Power Adapter (5V, 1A)
Standard Warranty: 1-Year
