Ubiquiti UDM UniFi Dream Machine Network Appliance WiFi 5 Router (AC)
£324.36 inc.VAT / £270.30 exc.VAT
Ubiquiti UDM UniFi Dream Machine WiFi 5 Network Appliance (1700 Mbps AC)
Ubiquiti UDM UniFi Dream Machine Network Appliance WiFi 5 Router (AC) is an all-in-one device with access point, four port switch and security gateway router.
Ubiquiti UDM UniFi Dream Machine WiFi 5 Network Appliance (1700 Mbps AC)
Ubiquiti UDM UniFi Dream Machine Network Appliance WiFi 5 Router (AC)
Ubiquiti UDM UniFi Dream Machine Network Appliance WiFi 5 Router (AC) is an all-in-one device with access point, four port switch and security gateway router.
The UniFi Dream Machine is a simple way to introduce UniFi to homes and businesses. It includes everything you need for a small-scale wired or WiFi network with all the benefits of UniFi, the revolutionary WiFi system from Ubiquiti.
The smooth user experience and effortless networking will amaze you.
Key Features
- High‐Performance Dual Band 802.11ac 4×4 Wave 2 AP
- Managed 4-Port Gigabit Switch
- Advanced Security Gateway with IDS/IPS and DPI
- UniFi Network Controller with Intuitive User Interface
- Scalable Through Additional UniFi Devices Connected to LAN
- Powered by Fast 1.7 GHz Quad-Core Processor
Powered by a fast 1.7GHz quad-core processor, the UDM combines multiple functions into a single elegant device
High-Performance Antenna
802.11ac Wave 2 4×4 MU-MIMO for 5 GHz and 802.11n for 2.4 GHz
Advanced Security
Threat Management with IDS/IPS and DPI
Processor
ARM Cortex-A57 Quad-Core at 1.7 GHz
Ethernet Ports
5 GbE Ports: 1 WAN and 4 LAN
VLAN Support
Security and Traffic Management
Secure Communications
VPN Server
QOS
Enterprise VoIP
UniFi Network Controller with Intuitive User Interface
Centralized management software featuring a graphical user interface offers easy setup and convenient control.
Integrated 4×4 Enterprise access point
The UDM delivers the requisite high-performance WiFi and fits into high-density environments as part of the overall enterprise network.
Integrated Security Gateway
The UDM offers advanced firewall policies and persistent threat management to act as an Intrusion Prevention System (IPS) and Intrusion Detection System (IDS).
Integrated Cloud Key
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic.
Integrated Gigabit switch
The UDM provides a managed 4-port Gigabit switch so you can easily add network storage or wired client devices.
UniFi Network Controller with intuitive user interface
Manage your UDM via Ubiquiti’s centralized management software, featuring a graphical user interface with easy setup and convenient control. The UniFi Network Controller is an end-to-end system of network devices across different locations — all controlled from a single interface.
Specifications
Dimensions
- Ø 110 x 184.2 mm (Ø 4.33 x 7.25″)
Weight
- 1.05 kg (2.32 lb)
Networking Interface
- 4 x LAN 10/100/1000 RJ45 Ports
- 1 x WAN 10/100/1000 RJ45 Port
Buttons
- Reset
IDS/IPS Throughput
- 1 Gbps
Processor
- ARM Cortex-A57 Quad-Core at 1.7 GHz
System Memory
- 2 GB DDR RAM
On-Board Flash Storage
- 16 GB
Maximum Power Consumption
- 26W
Supported Voltage Range
- 100 – 240VAC
Power Method
- AC Power Cord
Power Supply
- Internal AC/DC Power Adapter (24V, 0.6A, 100 – 240VAC)
Power Save
- Supported
Beamforming
- Supported
TX Power
- 2.4 GHz: 23 dBm
- 5 GHz: 26 dBm
- (Including antenna gain. Maximum TX power level may be limited by user’s country-specific regulations.)
Antenna
- 1 x Dual-Band, Quad-Polarity Antenna
Antenna Gain
- 2.4 GHz: 3 dBi
- 5 GHz: 4.5 dBi
Wi-Fi Standards
- 802.11 a/b/g/n/ac/ac-wave2
Wireless Security
- WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID
- Up to eight (8) per radio
Operating Temperature
- -10 to 45° C (14 to 113° F)
Operating Humidity
- 5 to 95% Noncondensing
Certifications
- CE, FCC, IC
ADVANCED TRAFFIC MANAGEMENT
VLAN
- 802.1Q
Advanced QoS
- Per-User Rate Limiting
Guest Traffic Isolation
- Supported
WMM
- Voice, Video, Best Effort, and Background
SUPPORTED DATA RATES (MBPS)
802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
- 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac
- 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
- 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
802.11b
- 1, 2, 5.5, 11 Mbps
802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Package Contents
- UniFi Dream Machine x 1
- AC Power Cord x 1
Standard Warranty: 1-Year
Only logged in customers who have purchased this product may leave a review.
Related Products
WatchGuard AP325 WiFi 5 Access Point w/ 1-Year Basic WiFi (1200Mbps AC) WGA35701
This device does not come with a power supply
The WatchGuard AP325 Dual-Band WiFi 5 Access Point is an indoor access point and comes equipped with Multi-User MIMO (MU-MIMO), connecting multiple devices at the same time and enhancing your secure WiFi experience. This access point also offers dual concurrent 5 GHz and 2.4 GHz band radios supporting 802.11a/n/ac Wave 2, 802.11b/g/n, two spatial streams, and data rates of up to 867 Mbps and 300 Mbps respectively. Common use cases include medium-density environments such as K-12 schools, small and midsize businesses, distributed office spaces, small-footprint retail, small meeting rooms, restaurants, and healthcare offices.
Out of stock
WatchGuard AP225W WiFi 5 PoE+ Access Point w/ 3-Year Basic WiFi (1267Mbps AC) WGA25703
The WatchGuard AP225W WiFi 5 PoE+ Access Point enables you to create an affordable Trusted Wireless Environment in multi-dwelling unit (MDU) structures such as dorm rooms, shared office spaces, smart apartments and condos, assisted living, military housing units, and hotels. It is built for the most demanding WiFi users in mind. Today’s users demand fast and secure WiFi connectivity no matter where they are. When you have a building full of demanding WiFi users, you need a simple way to manage, monitor, and troubleshoot issues whenever they arise. When you manage the AP225W in the WiFi Cloud, you have access to a complete set of WiFi visibility, troubleshooting, and network health features. Discover the answers to happy WiFi users and productive IT with the AP225W.
Out of stock
Ubiquiti UniFi UAP AC Lite Indoor Access Point – Gen2 – 802.3af/A PoE & 24V PoE
The Ubiquiti UniFi UAP AC Lite access point delivers a cost-effective combination of value and performance in a reduced footprint, with an ultra compact design. The UAP-AC-Lite is 25% smaller than the standard UAP. It provides simultaneous, dual-band and 2×2 MIMO technology.
Out of stock
Ubiquiti UAP-AC-IW UniFi In-Wall WiFi 5 PoE Access Point (1200Mbps AC)
Ubiquiti UAP-AC-IW UniFi In-Wall WiFi 5 Access Point (AC) is a dual-band 802.11AC WiFi Access Point powered from an Ethernet wall connection.
101 in stock
TP-Link EAP245 Omada Ceiling Mounted WiFi 5 Access Point (1750Mbps AC)
The TP-Link EAP245 Omada AC1750 Dual-Band Ceiling Mounted WiFi 5 Access Point provides a business-class wireless network solution that is flexible, manageable, secure, and easy-to-deploy. The included free controller software allows users to manage hundreds of EAPs at multiple sites from a single location. The ability to control, adjust, and visualise the entire network from any connected PC makes centralised business WiFi management more efficient than ever before. This TP-Link EAP245 Omada access point also features captive portal and advanced RF management functions, making it ideal for demanding, high-traffic environments such as campuses, hotels, shopping centres and offices.
Out of stock
TP-Link EAP225-Wall Omada Wall-Plate WiFi 5 PoE Access Point (1167Mbps AC)
The TP-Link EAP225-Wall Omada AC1200 Dual-Band WiFi 5 Access Point provides a business-class wireless network solution that’s flexible, manageable, secure, and easy-to-deploy. The intuitive Omada app makes network management incredibly convenient. Omada EAPs also feature captive portal and advanced RF management functions, which make them ideal for demanding, high-traffic environments such as campuses, hotels, malls and offices.
Out of stock
WatchGuard AP327X Outdoor Managed WiFi 5 PoE+ Access Point w/ 1-Year Basic WiFi (1267Mbps AC) WGA37701
The WatchGuard AP327X Outdoor Managed WiFi 5 PoE+ Access Point offers four (4) N-Type connectors for flexible antenna pattern coverage capabilities to secure outdoor WiFi. Its IP67-rated enclosure is made for the harshest environments and extends your Trusted Wireless Environment to the outdoors. This access point, with dual concurrent 5 GHz and 2.4 GHz band radios and data rates up to 867 GHz and 400 Mbps respectively, delivers broad, fast, and reliable WiFi coverage – making the AP327X ideal for school campuses, warehouses, manufacturing yards, shopping centres, public hotspots, and other municipal WiFi deployments.
Out of stock
Aruba AP17 Instant On Outdoor WiFi 5 Access Point (1167Mbps AC) – R2X11A
The Aruba R2X11A Instant On AP17 Outdoor Dual-Band WiFi 5 Access Point is designed with small businesses in mind. Small businesses are facing a number of challenges due to new and emerging technology, making it pretty overwhelming to keep up. The Aruba R2X11A Instant On AP17 Dual-Band PoE WiFi 5 Access Point (AC) is ideal for harsh outdoor environments which could encounter rain, snow, hail or extreme temperatures.
152 in stock
TP-Link EAP230-Wall Plate WiFi 5 Access Point (1167 Mbps AC)
The TP-Link EAP230-Wall Omada WiFi 5 Access Point, with its unprecedented thin design at 11 mm thick, features simultaneous dual-band Multi-User MIMO (MU-MIMO), as well as 802.3af/802.3at PoE compatibility.
Out of stock
Ubiquiti UAP-AC-M UniFi Mesh Outdoor WiFi 5 PoE Access Point (1200 Mbps AC)
Ubiquiti UAP-AC-M UniFi AP AC Mesh Access Point features high-performance, wide-area WiFi with UniFi Mesh Technology.
702 in stock

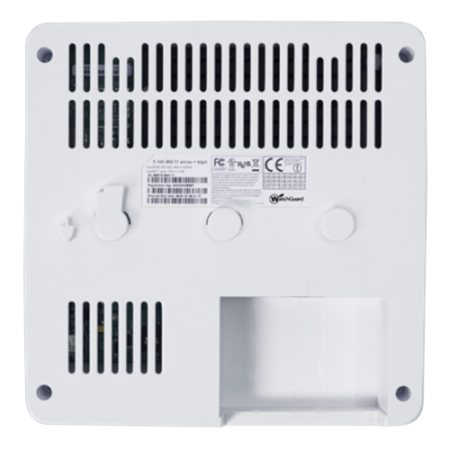

WatchGuard AP125 WiFi 5 PoE Access Point w/ 1-Year Basic WiFi (1167Mbps AC) WGA15701
