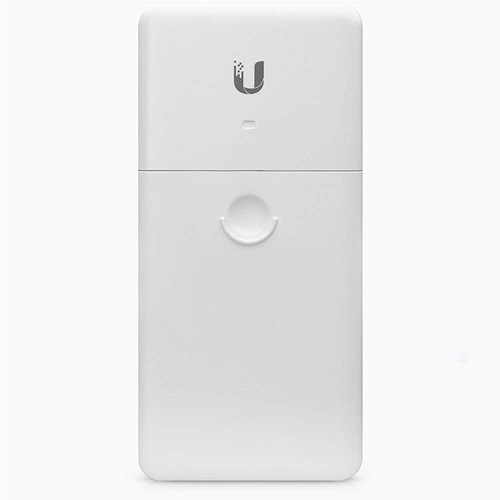

Ubiquiti N-SW Nano Switch PoE 4-Port Gigabit Switch
£52.85 inc.VAT / £44.04 exc.VAT
Ubiquiti N-SW Nano Switch 4-Port Gigabit PoE Switch
IMPORTANT:Â Not supplied with PSU or PoE injector, powering options sold separately
Introducing the Ubiquiti N-SW Nano Switch PoE 4 Port Gigabit Switch PoE Pass through Switch, an unmanaged switch with four Gigabit Ethernet ports.
Out of stock
Ubiquiti N-SW Nano Switch 4-Port Gigabit PoE Switch
Ubiquiti N-SW Nano Switch PoE 4-Port Gigabit Switch
IMPORTANT:Â Not supplied with PSU or PoE injector, powering options sold separately
Ubiquiti N-SW Nano Switch PoE 4-Port Gigabit Switch PoE Pass through Switch, an unmanaged switch with four Gigabit Ethernet ports,For its total non-blocking line rate, the N-SW supports up to 4 Gbps.
Featuring a durable, weatherproof form factor, the Ubiquiti Outdoor Nano Switch is ideal for outdoor deployment. For quick installation, the compact Nano Switch can be easily mounted on a pole or wall.
Key Features
- One (1) Gigabit 24 V Passive PoE In Port.
- Three (3) Gigabit 24 V Passive PoE Out Ports.
- Outdoor, Weather-Resistant Enclosure.

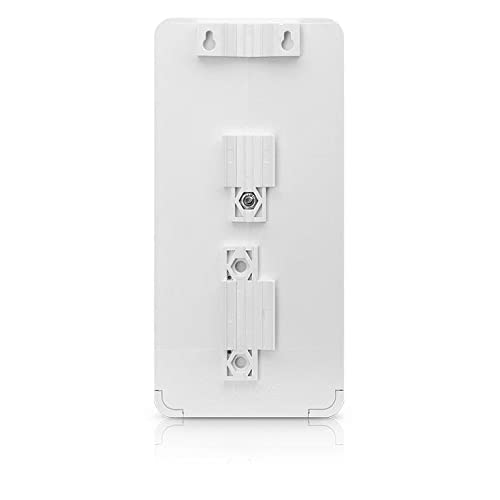

- Can be easily mounted on a pole or wall.
- LEDs for Speed, Link and Activity.
Power Strip Simplicity for 24 V Devices
Simply providing 24 V 2-pair input makes the Ubquiti Nano Switch an outdoor 4-port unmanaged switch with “always on” 24 V 2-pair output on three ports.

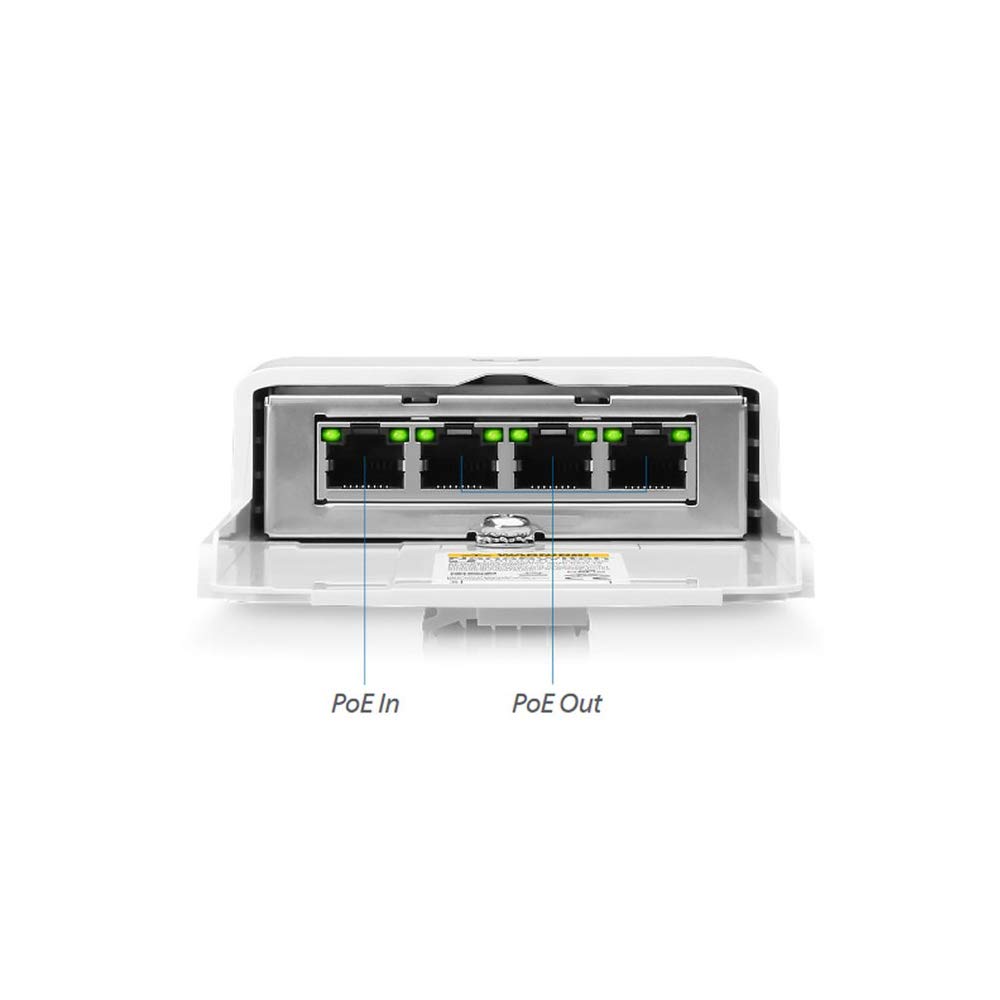

PoE Pass through
*PoE In — RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24 V, 2-pair PoE to power the switch.
*PoE Out — RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24 V, 2-pair PoE ports provide up to 30 W PoE output.
Designed for Outdoor Durability
The Nano Switch features an outdoor weatherproof form factor, with an operating temperature of between -30 to 70° C (-22 to 158° F).
Deployment Example
Specifications
Dimensions
- 196.4 x 93.5 x 32.4 mm (7.73 x 3.68 x 1.28″)
Weight
- 271 g (9.6 oz)
Enclosure Characteristics
- White Polycarbonate
Total Non-Blocking Line Rate
- 4 Gbps
Typical Power Consumption
- 1.5 W
Passive PoE Max. Wattage per Port
- 24V, 2-Pair, 1 A per Port (24 W)
Total Passive PoE Max. Wattage
- 24V, 2-Pair, 1 A for 3 Ports (24 W)
Power Method
- Passive 24V, 2-Pair PoE In
Power Supply
- POE-24-24 W PoE Adapter (Not Included)
Passive PoE Voltage Range
- 21.6 – 26.4 V
LEDs
- Speed/Link/Activity (All Ports)
Networking Interfaces
- (4) 10/100/1000 Mbps RJ45 Ports
PoE Interfaces
- Passive 24V, 2-Pair PoE In
ESD/EMP Protection
- Air: ± 24 kV
- Contact: ± 24 kV
Operating Temperature
- -30 to 70° C (-22 to 158° F)
Operating Humidity
- 5 to 95% Noncondensing
Shock and Vibration
- ETSI300-019-1.4 Standard
Certifications
- CE
- FCC
- IC
Standard Warranty: 1-Year
