Ubiquiti AmpliFi Alien Router and MeshPoint (Afi-ALN)
Ubiquiti AmpliFi Afi-ALN
Ubiquiti AmpliFi Afi-ALN Router and MeshPoint features 802.11ax WiFi 6 technology, a dual-band radio with 2.4 GHz and 5 GHz 802.11ax radios.
In addition to WiFi 6 the AFI-ALN has backward compatibility with previous WiFi standards and delivers four times the overall network capacity, and two times the coverage while reaching true gigabit speeds.

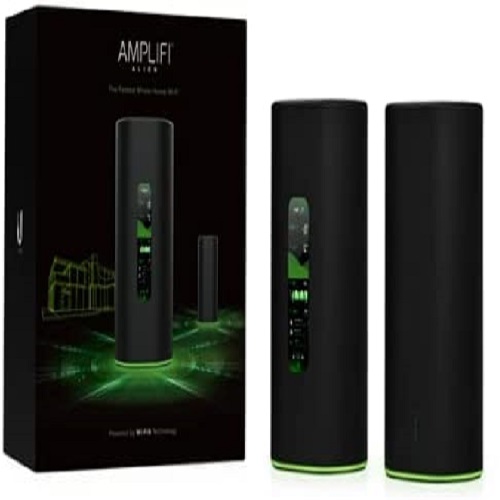

The AFI-ALN is a combination pack that comprises one AmpliFi Alien Router and one Amplifi Alien MeshPoint.
The MeshPoint expands wireless range coverage and includes a Gigabit Ethernet port to extend wired connectivity.
Key Features
- WiFi 6 performance
- 5 GHz 8×8 WiFi 6 radio (Max speed 4804 Mbps)
- 2.4 GHz 4×4 WiFi 6 radio (Max speed 1148 Mbps)
- Router with 4-Port Gigabit Ethernet switch
- MeshPoint with one Gigabit Ethernet port
- Touchscreen display on Router
- Includes AmpliFi Teleport configuration-free VPN Solution

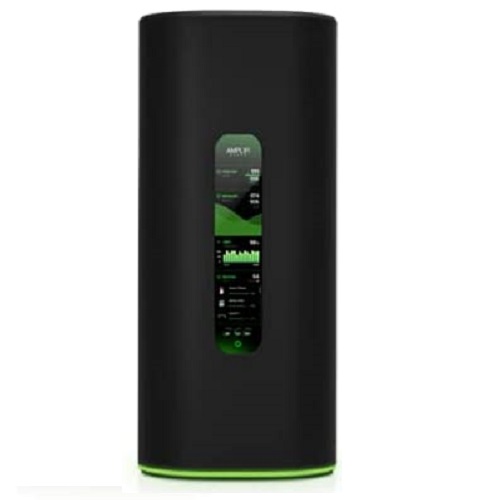

Intuitive Touchscreen
The vibrant touchscreen displays network status and provides instant controls. For your convenience, set the display and the green LED ring automatically turns off.

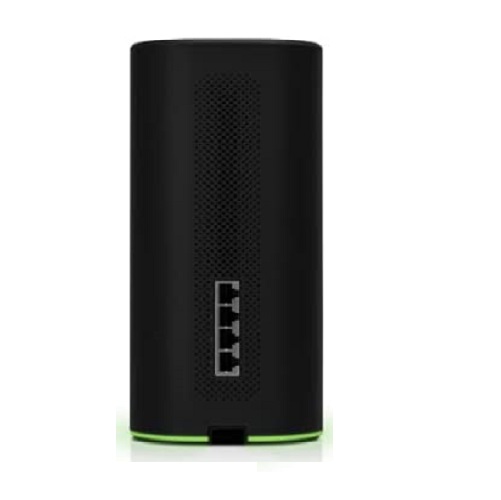

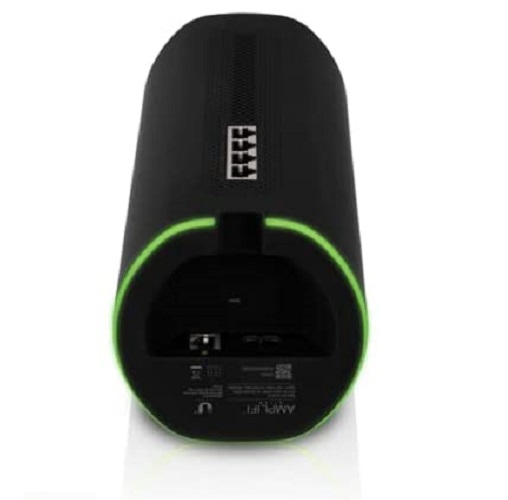

Flexible Interfaces
The AmpliFi Alien router is a powerful and secure device with a single Gigabit internet port and an internal power source. Each Alien router has a 4 Gigabit Ethernet port LAN switch built in.
Gigabit Ethernet may be installed in any room without the need of cables. For wireless communication, use WiFi 6, and for local wired connectivity, use the LAN ports.
Performance
AmpliFi Alien is designed to deliver the best possible performance to your home network, regardless of how many client devices are connected at the same time.
Alien reduces dead spots and quadruples total home network capacity by utilizing MU-MIMO and OFDMA for communication across twelve WiFi 6 5 GHz and 2.4 GHz Radios spatial streams.
Alien also includes a dedicated 5 GHz radio with WiFi 5 (802.11ac) capabilities that you can use to dedicate bandwidth to performance-critical devices instead of competing with other devices on your home network.
APP
With the accompanying AmpliFi app, you can set up your AmpliFi network in under a minute.
You can configure the AmpliFi Alien for your environment with user-friendly, yet feature-rich controls and statistics.
Mesh System
For the best performance in any room, place the AmpliFi Alien router in the centre of your home. To establish a mesh system and extend your signal around your home, add extra Alien routers.
Specification
Mechanical
- Dimensions: Router/MeshPoint: 110 x 110 x 250 mm (4.33 x 4.33 x 9.84″)
- Weight:
– Router: 1.2 kg ( 2.65 lb)
– MeshPoint: 1.09kg (2.4 lb) - Supported Frequency Range: 5.15 ‐ 5.85 GHz
- Enclosure Material: Router/MeshPoint: Polycarbonate
Hardware
- Processor: Router/MeshPoint: Quad-Core ® Cortex ® A53 at 2 Ghz
- Memory Information: Router/MeshPoint: 1 GB
- ManagementInterface: AmpliFi WiFi App
- Networking Interface: Router:
– (1) 10/100/1000 Mbps RJ45 Ethernet WAN
– (4) 10/100/1000 Mbps RJ45 Ethernet LAN
MeshPoint:
– (1) 10/100/1000 Mbps RJ45 Ethernet LAN - Max. Power Consumption
– Router: 35W
– MeshPoint: 34W - ESD/EMP Protection: Router/MeshPoint: Air/Contact: ± 24kV
- Power Method: Router/MeshPoint: Universal AC Input: 100-240VAC, 1A Max., 50/60 Hz
- Button: Bouter/MeshPoint: Factory Reset
- Display:
– Router: 4.7″ Diagonal, 274 x 1268, 279 ppi, G+F Touch, Full Color
– MeshPoint: No Display - Antenna: Router/MeshPoint: Internal Dual-Band Metal Stamp with 12 Polarity
- Antenna Gain
– 2.4GHz: 3 dBi
– 5 Ghz: 6 dBi - Max. TX Power
– 2.4GHz: 20 dBi
– 5 Ghz: 36 dBi - MIMO
– 2.4GHz: 4 x 4
– 5 Ghz: 8 x 8 - Speeds
– 2.4GHz: 1148 Mbps
– 5 Ghz: 4800 Mbps - LEDs: Router/MeshPoint: Green Ring
– MeshPoint: Green Status Indicator
– Flashing: Initial Configuration
– Lights up in Sequence Bottom to Top: Bootup in Progress
– Lights Up in Sequence from the Middle Outwards: WiFi Not Ready or Connected
– Steady: Device is Adopted (Lit based On the Signal Strength Receiving from the Router)
– Flash Quickly: Locate
– Lights Up One by One: Firmware Upgrading - Operating Temperature: Router/MeshPoint: -10 to 45° C (14 to 113° F)
- Operating Humidity: Router/MeshPoint: 5 to 95% Noncondensing
- Certifications: Router/MeshPoint: CE, FCC, IC
Software
- WiFi Standards: Up to WiFi 6
- WiFi Functions: MU-MIMO, OFDMA, Tx-Beamforming
- Power Save: Yes
- Wireless Security: WPA2VLAN: Yes
- Advanced QoS: Yes
- Guest Traffic Isolation: Yes
- Concurrent Clients: Yes
- Supported Data Rates
– 802.11a: 54 Mbps 802.11b: 11 Mbps
– 802.11g: 54 Mbps
– 802.11n: 600 Mbps + 600 Mbps
– 802.11ac: 1733 Mbps + 800 Mbps
– 802.11ax: (Backbone) 4800 Mpbs Router-Mesh Connection
– 802.11ax: (Available to Clients) 4800 Mbps + 1148 Mbps - Operating Frequency*
– 2.4 Ghz: 2412 – 2472 MHz
– 5 Ghz: 5150 – 5875 MHz
