Synology RX418 4-Bay Expansion Module
£543.54 inc.VAT / £452.95 exc.VAT
Synology RX418 4-Bay NAS Expansion Module Enclosure
Synology RX418 4-Bay Expansion Module Unit delivers an effortless solution for volume expansion and data backup for Synology 1U RackStation.
Out of stock
Synology RX418 4-Bay NAS Expansion Module Enclosure
Synology RX418 4-Bay Expansion Module
Please Note:Â This product is not a NAS, it is an expansion enclosure for an existing NAS device
Synology RX418 4-Bay Expansion Module Unit delivers an effortless solution for volume expansion and data backup for Synology 1U RackStation by adding four (4) additional SATA drive bays on-the-fly.
With its short-depth chassis design, RX418 ensures easy installation and deployment in 2-post racks and wall mount racks. Synology RX418 is backed with Synology’s 3-year limited warranty.

Expansion RX418 4-Bay Module
Key Features
- Plug-and-play design for seamless storage space upgrade
- Online volume expansion
- 12-inch depth to fit in 2-post racks and wall mount racks
- Energy-saving deep sleep mode
- Managed from Synology DiskStation Manager (DSM)
Storage Capacity Expansion
When the storage capacity on a Synology 1U RackStation reaches its limit, this RX418 expansion unit provides easy capacity expansion by adding four (4) 3.5″/2.5″ SATA drives to the system.
The Synology RX418 can also be used as a dedicated local backup destination of a compatible Synology 1U RackStation for comprehensive data protection.
Reliable Plug-and-play Design
Simply connect the Synology RX418 to a corresponding Synology RackStation and it is ready to use.
Drives in the connected Synology RX418 operate as though they were internal to the connected Synology NAS, and can be managed directly by Synology DiskStation Manager (DSM), with no additional software installation required.
Green and Easy to Manage
Award-winning Synology DSM provides an intuitive user interface for easy system management.
Drive hibernation can be configured in DSM to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the installed drives.
Specifications
Technical Specifications
Hardware
Compatible drive type
- 4 x 3.5/2.5″ SATA HDD/SSD (drives not included)
External port
- 1 x eSATA
Size (HxWxD)
- 44 x 430.5 x 290 mm
- 44 x 482 x 325 mm (with server ears)
Weight
- 4.28 kg
System fan
- 3 (40 x 40 x 20 mm)
AC input power voltage
- 100V to 240V AC
Power frequency
- 50 to 60Hz, single phase
Power recovery
- Synchronised with connected Synology RackStation
Operating temperature
- 5°C to 35°C (40°F – 95°F)
Storage temperature
- -20°C to 60°C (-5°F to 140°F)
Relative humidity
- 5% to 95% RH
Maximum operating altitude
- 5,000 m (16,400 ft)
Supported NAS models*
- RS818+, RS818RP+, RS816, RS815+, RS815RP+, RS815
Environment and Packaging
Environment safety
- RoHS compliant
Package content
- RX418 main unit
- Quick Installation Guide
- Accessory pack
- Expansion cable
- AC power cord
Optional accessories
- Rail Kit RKM114-Rail Kit Mounted
- RKS1317-Rail Kit Sliding
Warranty**
- 3 years
Limited Warranty: 3-Years
Based on 0 reviews
|
|
|
0% |
|
|
|
0% |
|
|
|
0% |
|
|
|
0% |
|
|
|
0% |
Only logged in customers who have purchased this product may leave a review.
- IP Video Door Entry
- Infrastructure
- CCTV
- Digital Video Recorders
- IP Cameras
- ANPR IP Cameras
- Indoor IP Cameras
- Corner Mount IP Cameras
- Body Box IP Cameras
- Outdoor IP Cameras
- Covert IP Cameras
- Dome IP Cameras
- Turret IP Cameras
- Security IP Cameras
- PoE IP Cameras
- PTZ IP Cameras
- Network IP Cameras
- Wireless IP Cameras
- Thermal IP Cameras
- Bullet IP Cameras
- Fisheye & Panoramic IP Cameras
- Eyeball IP Cameras
- Network Video Recorders
- Webcam
- CCTV/ Security Cameras
- IP Cameras Accessories
- Display & Control
- Accessories
- Recorders
- Router / Firewalls
- Storage
- Antenna
- Switching
- Switch
- VoIP
- Cabling
- Wifi
- Licences
- Display Equipment
Related Products
Synology E25G21-F2 2-Port PCIe Network Interface Card (25GbE SFP28)
Synology E25G21-F2 2-Port SFP28 Network Interface Card lets you boost network bandwidth and performance.
Out of stock
Synology RXD1219sas 12-Bay NAS Expansion Module Enclosure
Synology RXD1219sas 12-Bay NAS Storage Expansion is a 2U expansion unit designed to work automatically when connected, providing an effortless storage space upgrade solution for your Synology servers.
Out of stock
Synology M2D20 2-Slot PCIe Network Expansion Card for M.2 PCIe NVMe SSD
Synology M2D20 2-Slot M.2 SSD Network Expansion Card is designed to supercharge your NAS I/O performance.
8 in stock
Synology RX1217 RackStation 12-Bay Network Attached NAS Storage Expansion Module
Synology RX1217 12-Bay NAS Expansion Module Enclosure offers an easy way to immediately expand storage by providing 12 additional drive slots.
Out of stock
Synology DX1222 12-Bay NAS Expansion Module Enclosure
Synology DX1222 DiskStation 12-Bay Network Attached NAS Storage Expansion Module lets you add capacity to your Synology DiskStation on-the-fly.
Out of stock
Synology RAM1600DDR3L-4GBx2 8GB DDR3L Non-ECC SODIMM RAM Module Kit for Synology NAS (2 x 4GB)
Synology RAM1600DDR3L-4GBx2 8GB DDR3L SODIMM RAM Module Kit. Includes two (2) 4GB DDR3L SODIMM
Out of stock
Synology E10M20-T1 2-Slot PCIe Network Expansion Card for SNV3000 Series M.2 PCIe NVMe SSDs w/ 1 x 10GBASE-T Port
Synology E10M20-T1 2-Slot PCIe Network Expansion Card incorporates both M.2 SSD and 10GbE connectivity, providing an effective solution to simultaneously boost I/O performance.
9 in stock

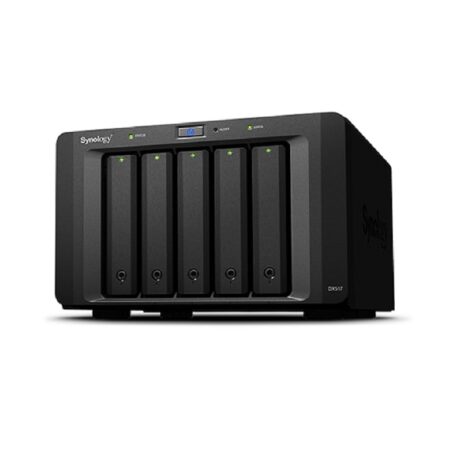

Synology DX517 5-Bay NAS Expansion Module Enclosure
Synology DX517 5-Bay Expansion Module offers simple storage capacity expansion solution for your DiskStation through its intuitive plug-n-use design.
Out of stock
Synology E10G21-F2 2-Port PCIe Network Interface Card (10GbE SFP+)
Synology E10G21-F2 2-Port PCIe Network Interface Card lets you boost network bandwidth and performance. Handle more operations, users, and high-resolution videos.
Out of stock
Synology RKS-02 Sliding Rail Kit for 1U/2U/3U RackStation NAS
Synology RKS-02 Rail Kit for 1U/2U/3U RackStation NAS enables easy maintenance access for Synology 1U/2U/3U RackStation.
19 in stock

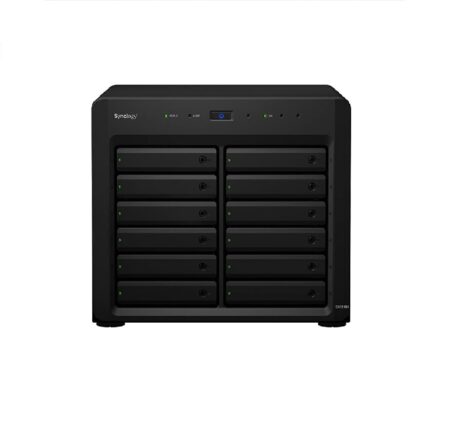

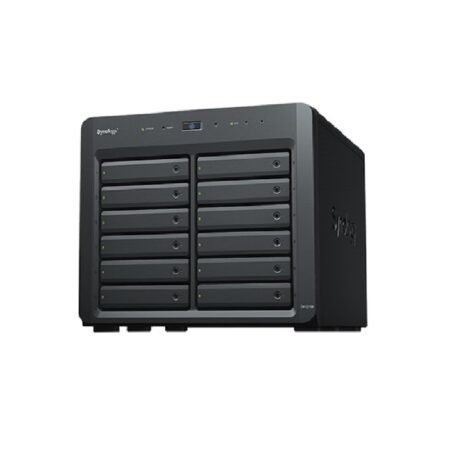

Synology DX1215II DiskStation 12-Bay Expansion Module NAS Accessory
