Synology E10M20-T1 2-Slot PCIe Network Expansion Card
£260.17 inc.VAT / £216.81 exc.VAT
Synology E10M20-T1 2-Slot PCIe Network Expansion Card for SNV3000 Series M.2 PCIe NVMe SSDs w/ 1 x 10GBASE-T Port
Synology E10M20-T1 2-Slot PCIe Network Expansion Card incorporates both M.2 SSD and 10GbE connectivity, providing an effective solution to simultaneously boost I/O performance.
Synology E10M20-T1 2-Slot PCIe Network Expansion Card for SNV3000 Series M.2 PCIe NVMe SSDs w/ 1 x 10GBASE-T Port
Synology E10M20-T1 2-Slot PCIe Network Expansion Card
Please Note:Â The E10M20-T1 is only compatible with Synology SNV3000 series NVMe SSDs – see accessories tab.
Synology E10M20-T1 2-Slot PCIe Network Expansion Card incorporates both M.2 SSD and 10GbE connectivity, providing an effective solution to simultaneously boost I/O performance and networking bandwidth using just one (1) PCIe expansion slot on your Synology NAS.
Network Expansion Card E10M20-T1 2-Slot PCIe
Key Features
- Upgrade your Synology system immediately
Boost I/O performance and networking bandwidth simultaneously. - 10GbE ready
Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps. - NVMe enabled
Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots. - Dedicated cache slots
Free up primary drive bays for data storage.
10GbE Bandwidth and M.2 SSD Cache, All at Once
The Synology E10M20-T1 is the solution for those who seek for a boost in I/O performance and acceleration of network speed but with a limited number of PCIe slots.
By simply attaching E10M20-T1 to your Synology system, you can enjoy a high data rate up to 10Gbps Ethernet with the support for 5-speed auto-negotiation. You can also benefit from accelerated random I/O performance through its dual M.2 22110 and 2280 NVMe SSD slots.
A perfect match with Synology SNV3000 series NVMe SSD
Install the Synology SNV3000 series NVMe SSDs (sold separately, see accessories tab) on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD’s enterprise-grade endurance, performance, and reliability with your Synology NAS.
Specifications
General
Host Bus Interface
- PCIe 3.0 x8
Bracket Height
- Low Profile and Full Height
Dimensions (H x W x D)
- 71.75 x 200.05 x 17.70 mm
Operating Temperature
- 0ºC to 40ºC (32ºF to 104ºF)
Storage Temperature
- -20ºC to 60ºC (-5ºF to 140ºF)
Relative Humidity
- 5% to 95% RH
Storage
Storage Interface
- PCIe NVMe
Supported Form Factor
- 22110
- 2280
Connector Type and Quantity
- M-key, 2 Slots
Network
IEEE Specification Compliance
- IEEE 802.3an 10Gbps Ethernet
- IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
- IEEE 802.3ab Gigabit Ethernet
- IEEE 802.3u Fast Ethernet
- IEEE 802.3x Flow Control
Data Transfer Rates
- 10 Gbps
Network Operation Mode
- Full Duplex
Supported Features
- 9 KB Jumbo Frame
- TCP/UDP/IP Checksum Offloading
- Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
Compatible Models (sold separately, see accessories tab)
NVMe SSD
- SA series: SA3600, SA3400
- 20 series: RS820RP+, RS820+
- 19 series: DS2419+, DS1819+
- 18 series: RS2818RP+, DS3018xs, DS1618+
Notes
- DSM version requirement: 6.2.3-25426 or later version
Package Contents
- 1 x Synology E10M20-T1 adapter card
- 1 x Full-height bracket
- 3 x Screw pillar
- 6 x Screws
- 1 x Heatsink
- 4 x Rubber (Bag #1)
- 9 x Thermal pad (Bag #2)
Standard Warranty: 5-Years
Only logged in customers who have purchased this product may leave a review.
Related Products
Synology E10G18-T1 1-Port PCIe Network Interface Card (10GbE RJ45)
Synology E10G18-T1 1-Port PCIe Network Interface Card is equipped with an RJ-45 connector and supports IEEE 802.3an/bz (10GBASE-T/NBASE-T).
19 in stock
Synology DX1222 12-Bay NAS Expansion Module Enclosure
Synology DX1222 DiskStation 12-Bay Network Attached NAS Storage Expansion Module lets you add capacity to your Synology DiskStation on-the-fly.
Out of stock
Synology RX1223RP 12-Bay NAS Expansion Module Enclosure
Synology RX1223RP 12-Bay NAS Enclosure is the ultimate solution for those in need of additional storage expansion.
Out of stock
Synology M2D20 2-Slot PCIe Network Expansion Card for M.2 PCIe NVMe SSD
Synology M2D20 2-Slot M.2 SSD Network Expansion Card is designed to supercharge your NAS I/O performance.
8 in stock
Synology RXD1219sas 12-Bay NAS Expansion Module Enclosure
Synology RXD1219sas 12-Bay NAS Storage Expansion is a 2U expansion unit designed to work automatically when connected, providing an effortless storage space upgrade solution for your Synology servers.
Out of stock
Synology E10G22-T1-Mini 1-Port PCIe Network Interface Card (10GbE RJ45)
Synology E10G22-T1-Mini 1-Port PCIe Network Interface Card is designed to easily and quickly upgrade your Synology system with 10GbE connectivity.
Out of stock

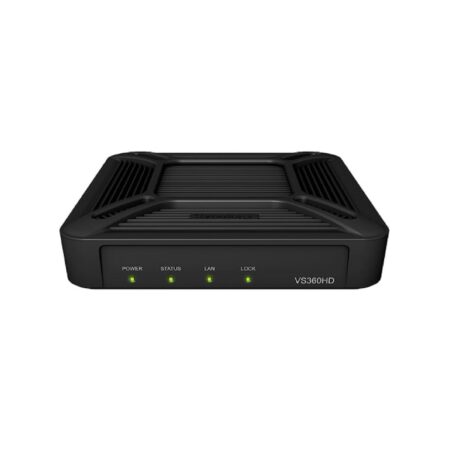

Synology VS360HD VisualStation PC-less Surveillance Box
Synology VS360HD VisualStation is the perfect alternative when facing limited space or budget constraints.
Out of stock
Synology RX1217RP 12-Bay NAS Expansion Module Enclosure
Synology RX1217RP RackStation 12-Bay Network Attached Expansion Module offers an easy way to immediately expand storage by providing 12 additional drive slots.
Out of stock
Synology RX418 4-Bay NAS Expansion Module Enclosure
Synology RX418 4-Bay Expansion Module Unit delivers an effortless solution for volume expansion and data backup for Synology 1U RackStation.
Out of stock

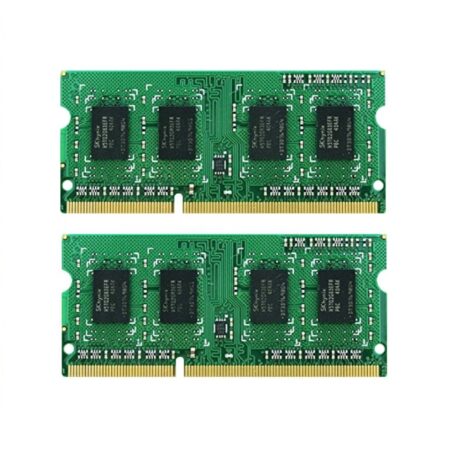

Synology RAM1600DDR3L-4GBx2 8GB DDR3L Non-ECC SODIMM RAM Module Kit for Synology NAS (2 x 4GB)
