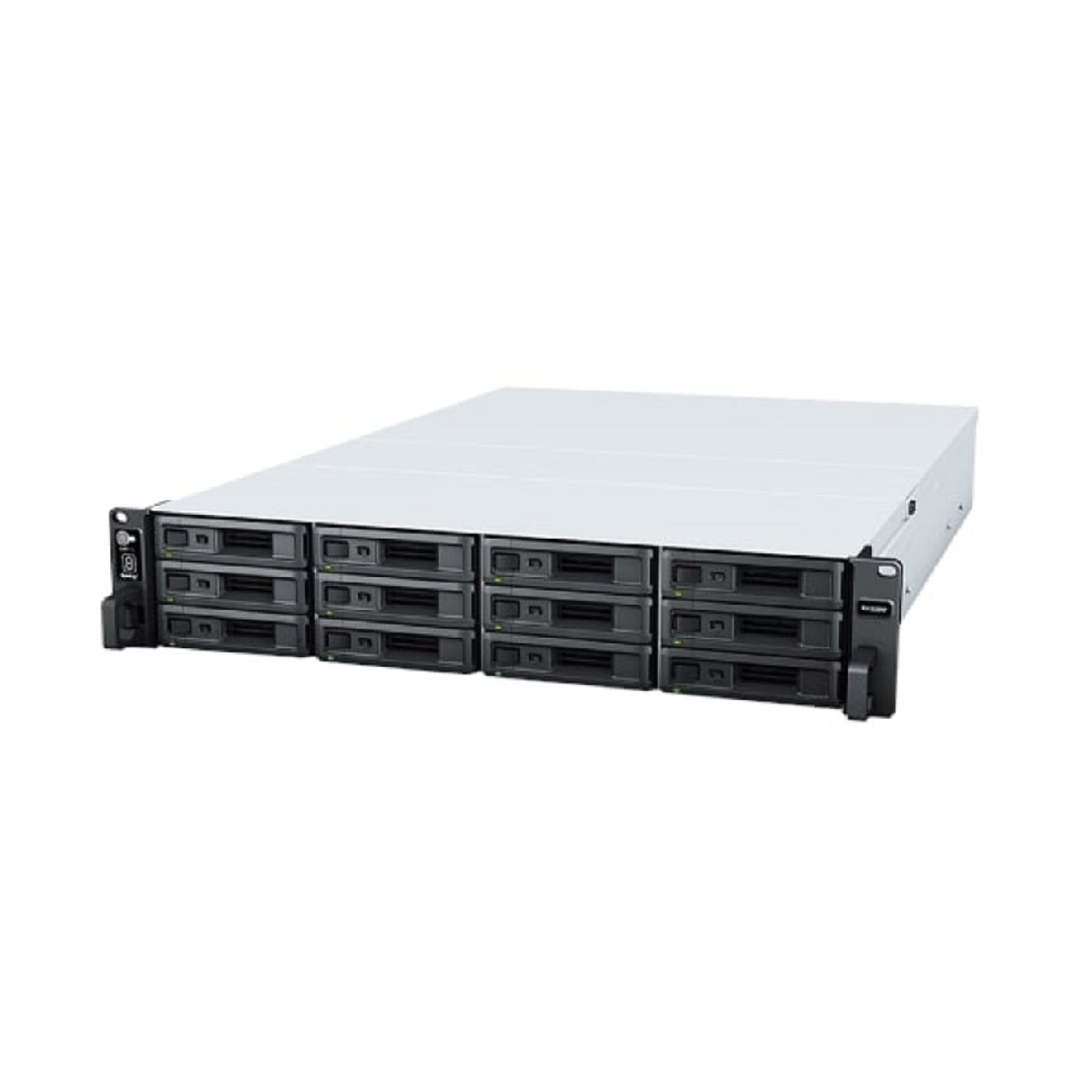

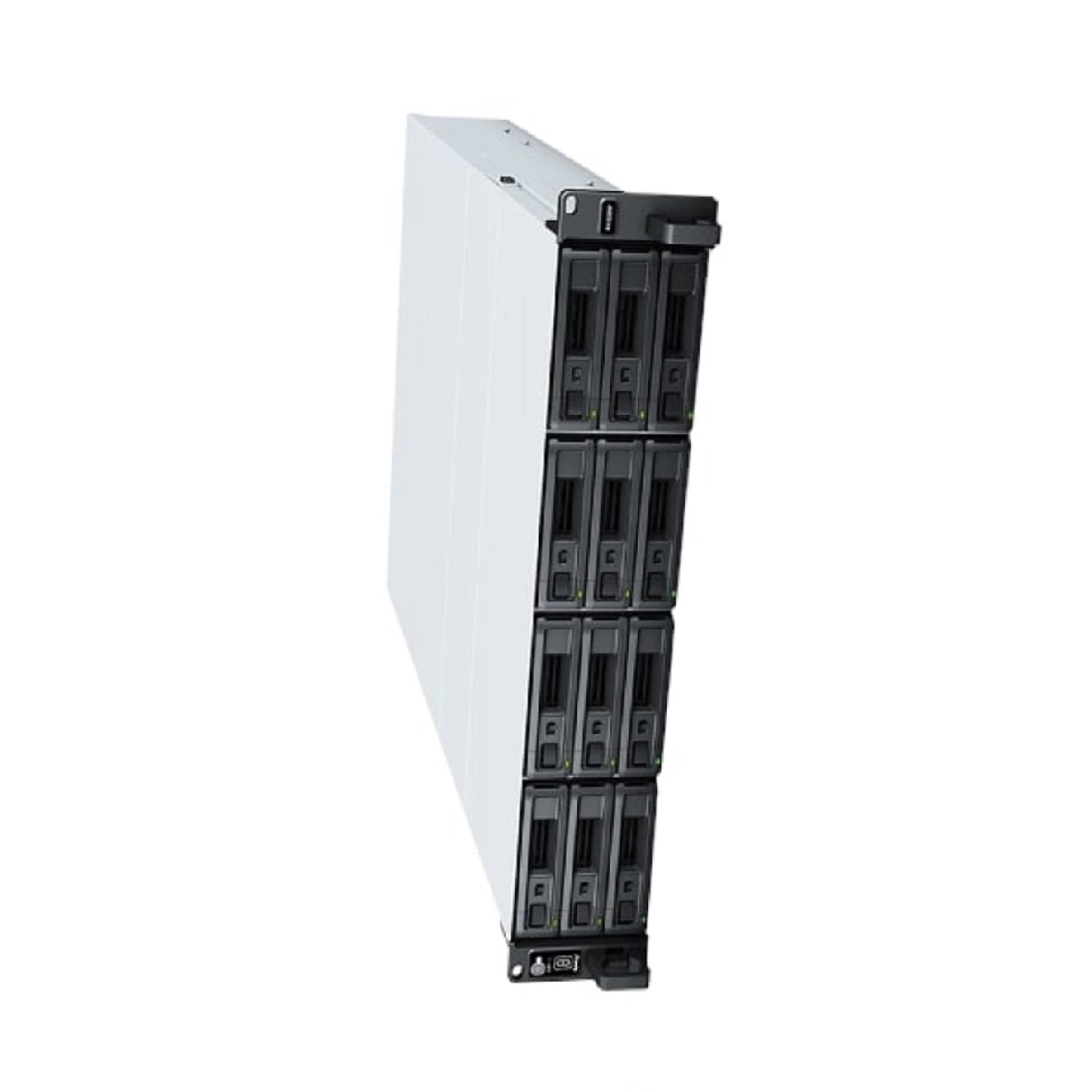

Synology RX1223RP 12-Bay NAS Expansion Module Enclosure
Synology RX1223RP 12-Bay NAS Enclosure
Please Note:Â This product is not a NAS/SAN, it is an expansion enclosure for an existing NAS/SAN device.
Synology RX1223RP 12-Bay NAS Enclosure is the ultimate solution for those in need of additional storage expansion.
Synology DiskStation Manager’s (DSM) Storage Manager allows for quick and easy capacity expansion, making it possible to expand your storage in just minutes. Say goodbye to the headache of complicated storage expansion and hello to the convenience and simplicity of the Synology RX1223RP.
NAS Enclosure RX1223RP 12-Bay
Key Features
- Capacity Expansion
Add up to twelve (12) additional 3.5″/2.5″ SATA HDD/SSD drives. - Simple Configuration
Gain storage expansion in minutes using Synology DSM’s unified tools. - Hardware Redundancy
Redundant power supply prevents single points of failure. - Hot-Swappable
Easy drive installation and replacement without interrupting system operation. - Designed for Synology Drives
Synology drives (sold separately) provide the utmost in reliability and integration.
Seamless 12-bay capacity expansion
Add up to 96 storage bays to compatible NAS units with the RX1223RP Expansion Unit. Enlarge or create new volumes without system or service downtime thanks to online storage expansion.
Rapid Deployment
Carry out planned storage expansion or take on unexpected demand for additional storage without skipping a beat. Plug-and-play compatibility means the RX1223RP is ready to use as soon as it is connected to its host device.
The high-speed expansion cable provided enables high bandwidth connectivity for maximum data throughput between your Synology NAS and Expansion Unit. Drives in RX1223RP operate with minimum data latency, as if installed directly on your NAS.
Expand storage on the fly
The RX1223RP provides simple storage expansion with twelve (12) drive bays for 3.5″/2.5″ SATA HDD/SDD drives. Up to eight (8) RX1223RP expansion units can be added to compatible servers for up to 1.7 petabytes of additional raw storage.
Redundant design for high reliability
Modular drive trays and system fans enable easy and quick replacement, reducing the impact of maintenance on service availability. Redundant power supply units keep your data online in the event one power source fails.
Simple deployment and management
Plug-and-play design means the RX1223RP is ready to use as soon as it is connected to a host device. Online storage expansion and easy storage management in Synology DiskStation Manager’s (DSM) simplify configuration and management.
Backed by Synology drives
Leverage high sustained performance and reliability with enterprise-grade drives with built-in data protection designed for Synology systems.
Specifications
Applied Models
Supports creating volumes across different units
- SA series: SA6400
- 23 series: RS2423RP+, RS2423+
Notes
- To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
Storage
Drive Bays
- 12 (un-populated)
Compatible Drive Type
- 3.5″ SATA HDD
- 2.5″ SATA SSD
Maximum Internal Raw Capacity
- 216 TB (18 TB drive x 12) (Capacity may vary by RAID types)
Hot Swappable Drive
- Yes
RAID Management through Synology DSM
- Yes
Notes
- It is strongly recommended that you only install drives listed on your device’s compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.
- “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
Expansion Port
- 1
Appearance
Dimensions (H x W x D)
- 88 x 430.5 x 692 mm
Dimensions (H x W x D) (with server ears)
- 88 x 482 x 724 mm
Weight
- 13.9 kg
Rack Installation Support
- 4-post 19″ rack (Synology Rail Kit RKS-02, sold separately)
Power
Power Recovery
- Synchronized with the Synology RackStation
Power Supply Unit / Adapter
- 550 W
AC Input Power Voltage
- 100V to 240V AC
Power Frequency
- 50/60 Hz, Single Phase
Power Consumption
- 93.59 W (Access)
- 30.73 W (HDD Hibernation)
British Thermal Unit
- 319.34 BTU/hr (Access)
- 104.86 BTU/hr (HDD Hibernation)
Redundant Power Supply
- Yes
Temperature
Operating Temperature
- 0°C to 35°C (32°F to 95°F)
Storage Temperature
- -20°C to 60°C (-5°F to 140°F)
Relative Humidity
- 5% to 95% RH
Others
System Fan
- 80 mm x 80 mm x 4 pcs
Easy Replacement System Fan
- Yes
Noise Level
- 54.3 dB(A)
Notes
- Noise Level Testing Environment: Fully loaded with Synology SAT5200-480G SSD in the idle state.
- Two G.R.A.S. Type 40AE microphones, each set up 1 metre away from the Synology NAS at the front and rear.
- Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%
Certification
- UL
- FCC
- CE
- BSMI
- UKCA
- EAC
- VCCI
- RCM
- KC
Environment
- RoHS Compliant
Package Contents
- 1 x RX1223RP Enclosure
- 1 x Accessory Pack
- 2 x AC Power Cord
- 1 x MiniSAS-HD Expansion Cable
- 1 x Quick Installation Guide
Standard Warranty: 5-Years
