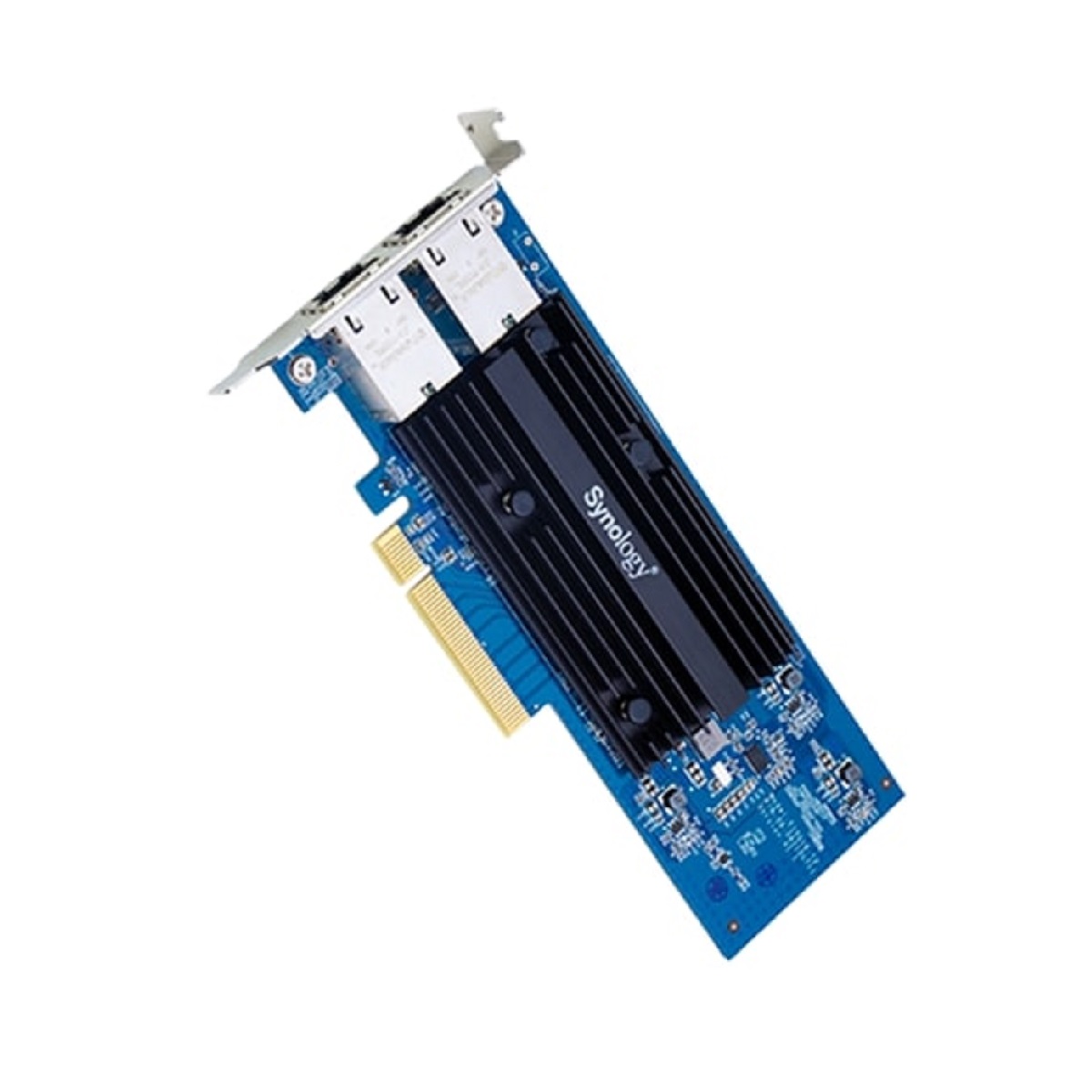

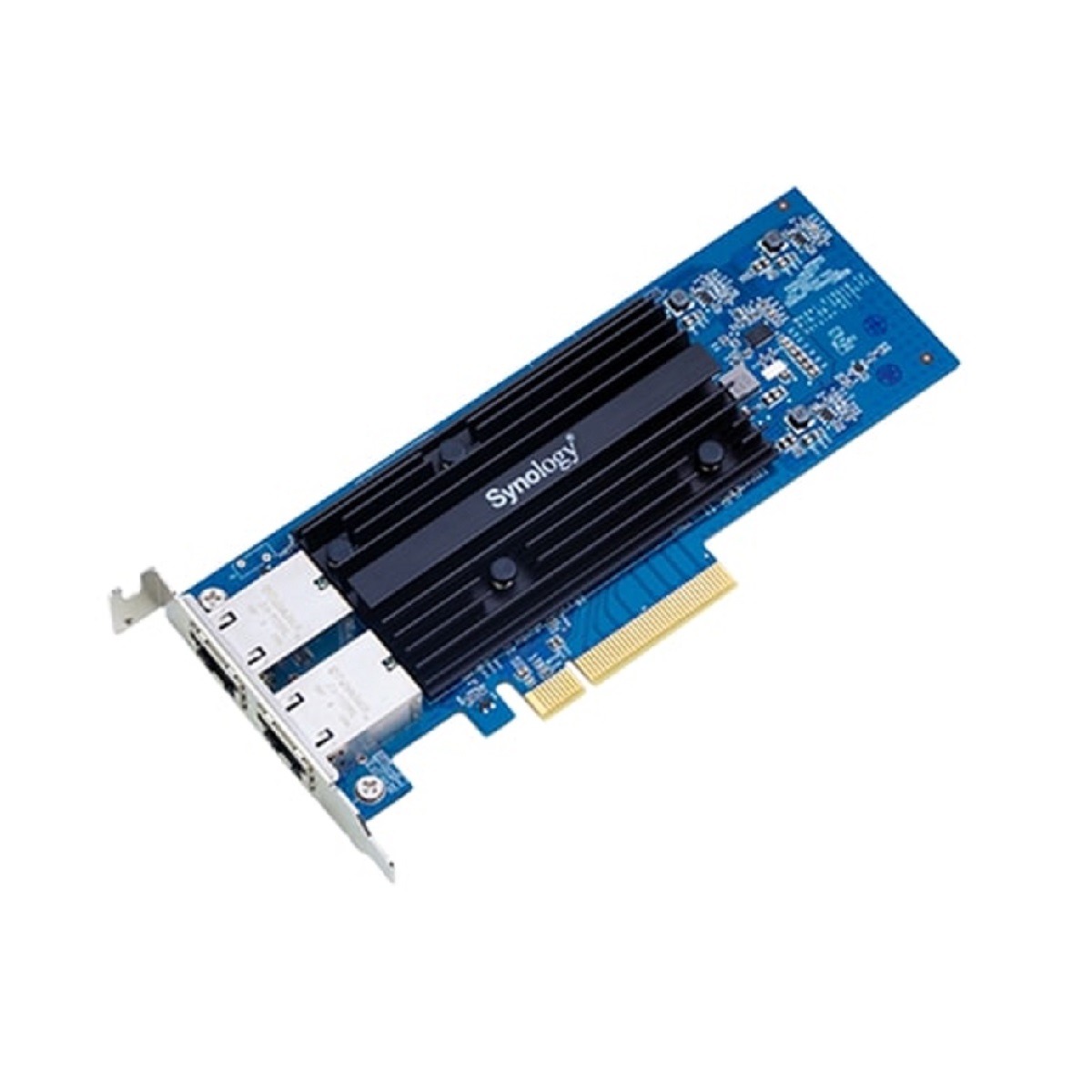

Synology E10G18-T2 2-Port PCIe Network Interface Card
£272.79 inc.VAT / £227.33 exc.VAT
Synology E10G18-T2 2-Port PCIe Network Interface Card (10GbE RJ45)
Synology E10G18-T2 2-Port PCIe Network Interface Card is delivers superior transmission performance with the capability to offload packet processing and free up CPU resources for more tasks.
Synology E10G18-T2 2-Port PCIe Network Interface Card (10GbE RJ45)
Synology E10G18-T2 2-Port PCIe Network Interface Card
Synology E10G18-T2 2-Port PCIe Network Interface Card is delivers superior transmission performance with the capability to offload packet processing and free up CPU resources for more tasks.
It supports IEEE 802.3an/ab (10GBASE-T/1000BASE-T) and 802.3x with dual RJ-45 connectors, providing a total data rate of 20Gbps using standard CAT6 or better UTP cabling connections.
Features such as Link Aggregation, Jumbo Frame, TSO, and TCP/UDP/IP Checksum offloading satisfy most workloads requiring high performance, making E10G18-T2 an ideal and economical solution for 10Gbps networking adoption.
Network Interface Card E10G18-T2 2-Port PCIe
Key Features
- Port type:Â Two (2) 10GbE RJ45
- Data Transfer Rates:Â 10 Gbps
- PCI Express interface:
- PCIe 3.0 and 2.0 compatible
- 8-lane or 4-lane auto-negotiation
- Bracket Height:Â Low-profile and full-height
Specifications
General Specifications
Standards
- IEEE 802.3an 10Gbps Ethernet
- IEEE 802.3ab Gigabit Ethernet
- IEEE 802.3ad Link Aggregation
- IEEE 802.3x Flow Control
Data Transfer Rates
- 10 Gbps per port
Network Operation Mode
- Full Duplex
Supported Features
- 9 KB Jumbo Frame
- TCP/UDP/IP Checksum Offloading
- TCP Segmentation Offload (TSO)
Supported OS
- Synology DiskStation Manager (DSM) 6.2.1 and onward
Applied Models
- FS3017
- FS2017
- FS1018
- RS18017xs+
- RS18016xs+
- RS10613xs+
- RS4017xs+
- RS3618xs
- RS3617xs+
- RS3617RPxs
- RS3617xs
- RS3614xs+
- RS3614RPxs
- RS3614xs
- RS3413xs+
- RS3412RPxs
- RS3412xs
- RS3411RPxs
- RS3411xs
- RS2818RP+
- RS2418RP+
- RS2418+
- RS1619xs+
- RS1219+
- RS818RP+
- RS818+
- RC18015xs+
- DS3617xs
- DS3615xs
- DS3612xs
- DS3611xs
- DS3018xs
- DS2419+
- DS1819+
- DS1817+
- DS1618+
- DS1517+
Notes
- DSM version requirement: 6.2.1-23824 or later version
Hardware Specifications
PCIe Interface
- PCIe 3.0 x8
PCI Express interface
- PCIe 3.0 and 2.0 compatible
- 8-lane or 4-lane auto-negotiation
Bracket Height
- Low Profile and Full Height
Dimensions (H x W x D)
- 170.6 mm x 68.9 mm x 13.6 mm
Operating Temperature
- 0ºC to 40ºC (32ºF to 104ºF)
Storage Temperature
- -20ºC to 60ºC (-5ºF to 140ºF)
Relative Humidity
- 5% to 95% RH
Certification
- FCC, CE, BSMI
Standard Warranty: 5-Years
