Synology E10G18-T1 1-Port PCIe Network Interface Card
£154.61 inc.VAT / £128.84 exc.VAT

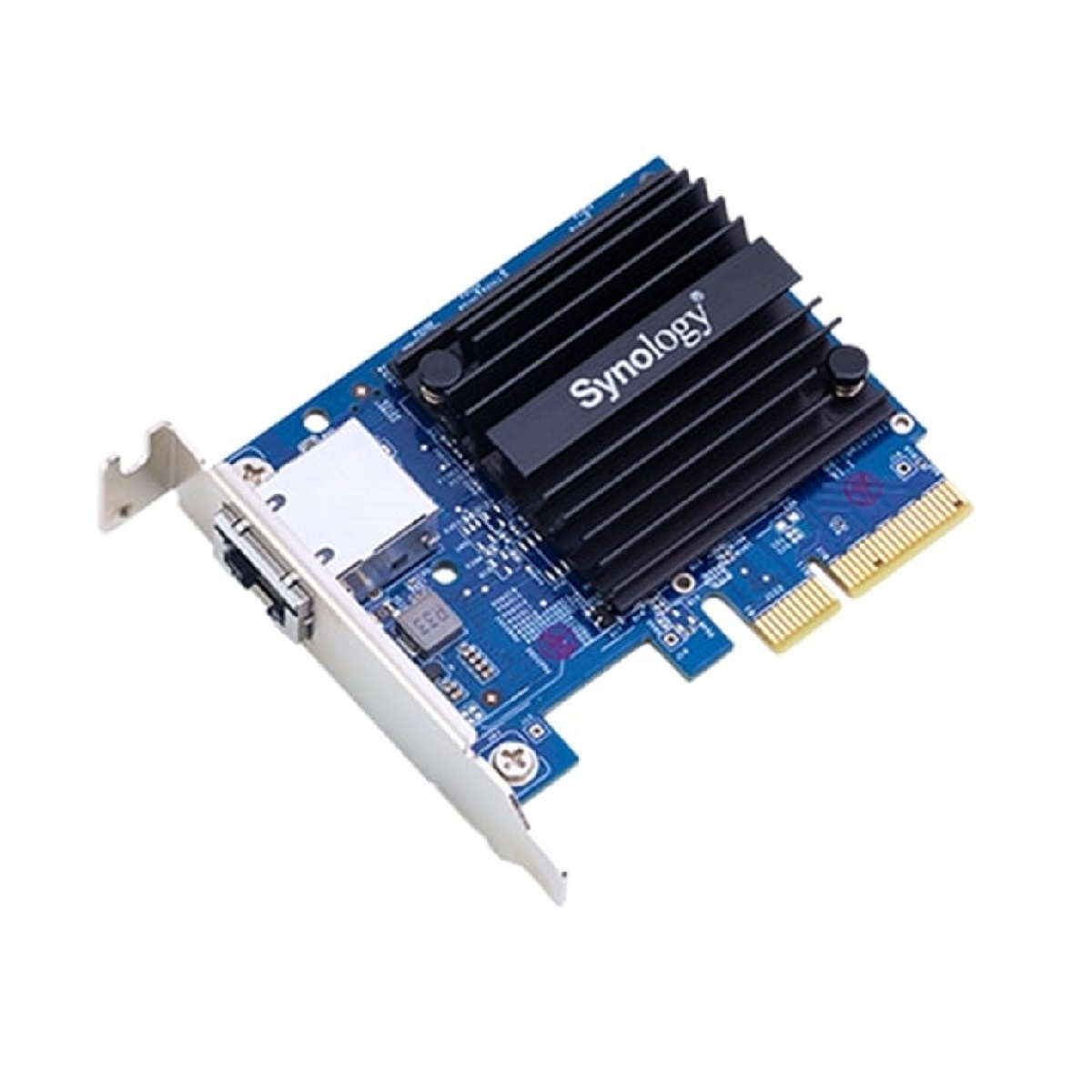

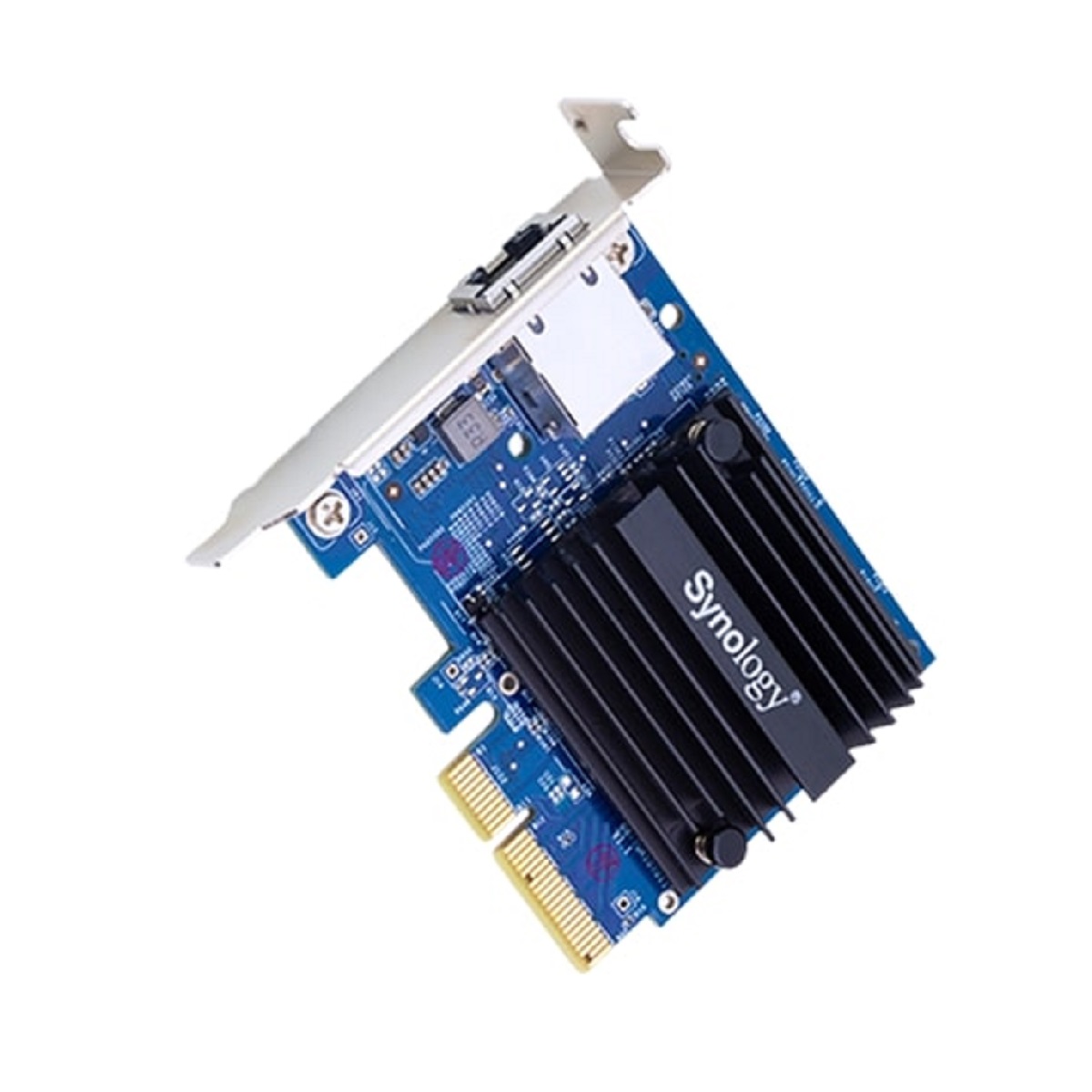

Synology E10G18-T1 1-Port PCIe Network Interface Card (10GbE RJ45)
Synology E10G18-T1 1-Port PCIe Network Interface Card is equipped with an RJ-45 connector and supports IEEE 802.3an/bz (10GBASE-T/NBASE-T).
Synology E10G18-T1 1-Port PCIe Network Interface Card (10GbE RJ45)
Synology E10G18-T1 1-Port PCIe Network Interface Card
Synology E10G18-T1 1-Port PCIe Network Interface Card is equipped with an RJ-45 connector and supports IEEE 802.3an/bz (10GBASE-T/NBASE-T) and 802.3x to help you smoothly migrate to a 10GbE networking environment with your existing infrastructure.
Supporting backward compatibility and auto-negotiation between 10Gbps, 5Gbps, 2.5Gbps, 1Gbps and 100Mbps data rate, E10G18-T1 is an economic solution to overcome the data transmission bottleneck for small businesses and home users.
Network Interface Card E10G18-T1 1-Port PCIe
Key Features
- Port type:Â One (1) 10GbE RJ45
- Data Transfer Rates:Â 10 Gbps
- PCI Express interface:
- PCIe 3.0 and 2.0 compatible
- 8-lane or 4-lane auto-negotiation
- Bracket Height:Â Low-profile and full-height
- Compatibility:Â See specifications tab
Specifications
General Specifications
Standards
- IEEE 802.3an 10Gbps Ethernet
- IEEE 802.3bz 2.5Gbps/ 5Gbps Ethernet
- IEEE 802.3ab Gigabit Ethernet
- IEEE 802.3u Fast Ethernet
- IEEE 802.3x Flow Control
Data Transfer Rates
- 10 Gbps per port
Network Operation Mode
- Full Duplex
Supported OS
- Synology DiskStation Manager (DSM) 6.1.7 and onward
Supported Features
- 9 KB Jumbo Frame
- TCP/UDP/IP Checksum Offloading
- Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
Applied Models
- FS3017
- FS2017
- RS18017xs+
- RS18016xs+
- RS10613xs+
- RS4017xs+
- RS3618xs
- RS3617xs+
- RS3617RPxs
- RS3617xs
- RS3614xs+
- RS3614RPxs
- RS3614xs
- RS3413xs+
- RS3412RPxs
- RS3412xs
- RS3411RPxs
- RS3411xs
- RS2818RP+
- RS2418RP+
- RS2418+
- RS1619xs+
- RS1219+
- RS818RP+
- RS818+
- RC18015xs+
- DS3617xs
- DS3615xs
- DS3612xs
- DS3611xs
- DS3018xs
- DS2419+
- DS1819+
- DS1817+
- DS1618+
- DS1517+
Notes
- DSM version requirement: 6.2-23739-2 onward (or 6.1-15284-2 onward with DSM 6.1)
Hardware Specifications
PCIe Interface
- PCIe 3.0 x4
Bracket Height
- Low Profile and Full Height
Dimensions (H x W x D)
- 86.0 mm x 68.1 mm x 13.6 mm
Operating Temperature
- 0ºC to 40ºC (32ºF to 104ºF)
Storage Temperature
- -20ºC to 60ºC (-5ºF to 140ºF)
Relative Humidity
- 5% to 95% RH
Certification
- FCC, CE, BSMI
Standard Warranty: 5-Years
