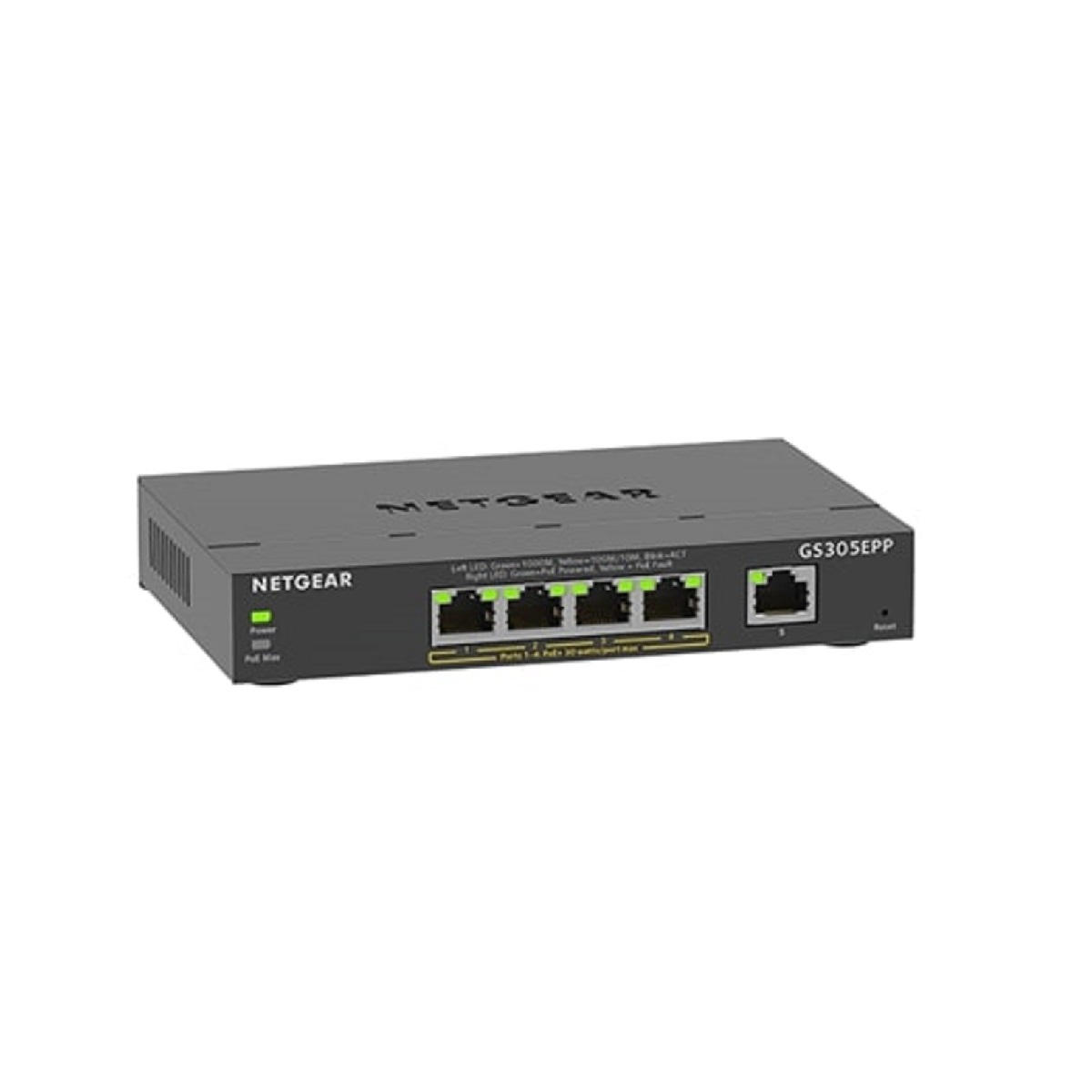

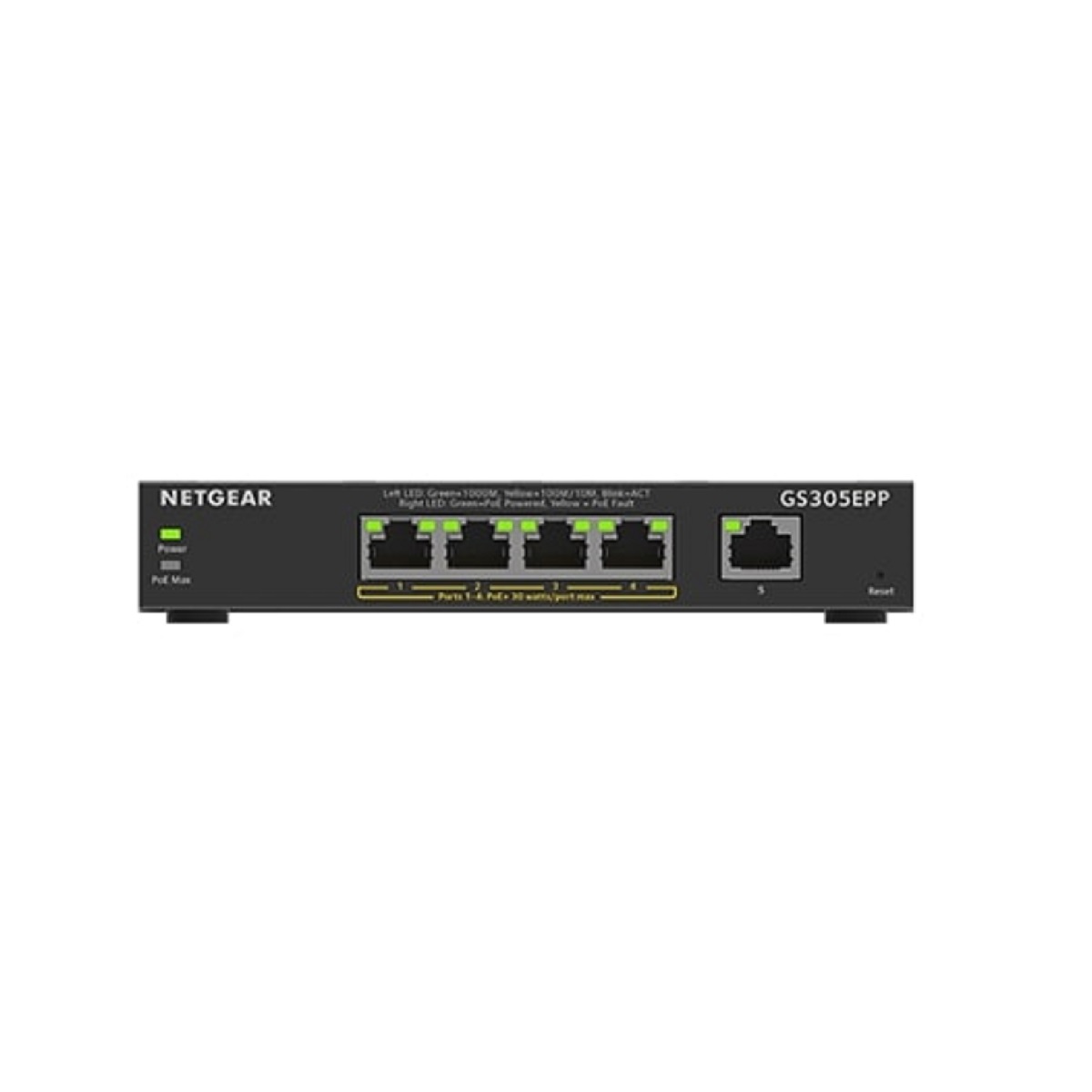

NETGEAR GS305EPP Plus 5-Port Desktop Gigabit PoE+ Switch
£121.25 inc.VAT / £101.04 exc.VAT
NETGEAR GS305EPP 5-Port Plus Desktop Gigabit PoE+ Switch (120W)
NETGEAR GS305EPP Plus 5-Port Desktop Gigabit PoE+ Switch meets the needs of growing businesses by providing fundamental network
NETGEAR GS305EPP 5-Port Plus Desktop Gigabit PoE+ Switch (120W)
NETGEAR GS305EPP Plus 5-Port Desktop Gigabit PoE+ Switch
NETGEAR GS305EPP Plus 5-Port Desktop Gigabit PoE+ Switch meets the needs of growing businesses by providing fundamental network features including simplified VLANs, QoS and IGMP Snooping, that will help optimize the performance of the network. The GS305EPP is the perfect upgrade from an unmanaged switch, delivering essential networking features.
The GS305EPP features four (4) PoE+ ports that support Power-over-Ethernet (PoE) and can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other IoT devices. This Plus switch includes NETGEAR Uninterruptible PoE to ensure PoE devices stay powered on even during a firmware update or soft reset of the switch. The business-friendly GUI allows easy management and simple configuration.

Desktop Gigabit PoE+ Switch GS305EPP Plus 5-Port
Key Features
- Easy Management – Plug-and-play Plus switch with fundamental network management features.
- PoE+ Support – Four (4) PoE+ ports for a total of 120W of power.
- Fanless & Versatile Mounting – Completely silent operation within a desktop small form factor (also wall-mountable).
- Non-Blocking Switching – 10Gbps (10/100/1000 Mbps) line rate fabric for great connectivity to your devices without congestion.
- Consumer & Business-Friendly GUI – Easily manage and configure advanced features for your network through a responsive consumer and business-friendly web and mobile GUI.
- Advanced PoE Controls – Power management of the connected PoE devices by enabling and disabling PoE power per port, PoE prioritization, PoE power limit per port and more. Simplifies management of PoE powered devices.
- Uninterrupted PoE – Keep PoE power on even when the switch is updating firmware or performing a software reboot.
- VLANS – Port-based and 802.1Q-based network separation into smaller groups for more secure and efficient use of network resources.
- Comprehensive QOS – Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video.
- Multi-Language Support – Context in three (3) different languages (English, German, and Japanese).
Plus Switch
Along with the already great Plus features, the GS305EPP enhances your business networking experience even more with these features:
- Advanced PoE controls including power allocation override, remote enable/disable/power cycle and more for simple power management of PoE connected devices.
- Uninterrupted PoE to keep PoE power on even when the switch is updating firmware or performing a software reboot
Why choose the GS305EPP?
- Cost-effective business networking management features: VLAN, QoS, advanced PoE controls, etc.
- Plus switch that provides PoE+ to power devices such as wireless APs, IP cameras, VoIP phones, access-controlled security door locks or any other IoT PoE-powered devices.
- Data security and network separation to safeguard your business.
- Advanced per port PoE controls (including power allocation override), remote enable/disable/power cycle and uninterrupted PoE.
Specifications
10/100/1000 RJ45 Copper Ports (Auto Uplink)
- 5
Enclosure
- Metal
Connector Type
- Metal
PoE
No. PoE ports
- 4
No. PoE+ 802.3at Ports
- 4
Total PoE/PoE+ Budget
- 120W
Uninterrupted PoE
- Yes
Performance Specification
Forwarding modes
- Store-and-forward
Bandwidth
- 10Gbps
Max MAC entries
- 4K
Buffer Size
- 192KB
Energy Efficient Ethernet (IEEE 802.3az) compliant
- Yes
Priority queuing
- WRR
Jumbo frame support
- 9,216 bytes
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)
- 0
Mean Time Between Failures (MTBF) @ 25°C
- 853,770 hours
L2 Services – VLANS
VLAN (No. Supported)
- 64
IEEE 802.1Q VLAN Tagging
- Yes
Port-based VLANs
- Yes
L2 Services – Availability
Link Aggregation/Port Trunking
- Yes
Number of Static Manual LAGs and no. of members
- 2/4
L2 Services – Multicast Filtering
IGMP snooping (v1, v2, and v3)
- Yes
Block unknown multicast
- Yes
Supported Multicast groups
- 128
L3 Services – DHCP
DHCP client
- Yes
Quality of Service
Rate Limiting
- Yes
DSCP
- Yes
IEEE 802.1p COS
- Yes
Port-based VLAN
- Yes
WRR (Weighted Round Robin)
- Yes
Strict Priority queue technology
- No
IEEE Network Protocols
- IEEE 802.3 Ethernet
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3u 100BASE-T
- IEEE 802.3ab 1000BASE-T
- EEE 802.1p Class of Service
- IEEE 802.1Q VLAN Tagging
- IEEE 802.3x Full-duplex Flow Control
- IEEE 802.3af PoE
- IEEE 802.3at PoE+
Management
System Password
- Yes
Web browser based management GUI
- Yes
PC Utility
- No
One-to-one Port Mirroring
- Yes
Cable Test Utility
- Yes
Config upload (to server)
- Yes
LEDs
Per port
- Speed, Link, Activity, PoE
Per device
- Power, system, PoE Max
Physical Specifications
Dimensions (W x D x H)
- 158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in)
Weight
- 0.40 kg (0.88 lb)
Environmental Specifications
Operating
- Operating temperature
- 32° to 104°F (0° to 40°C)
- Humidity (relative)
- 90% maximum relative humidity (RH), non-condensing
- Altitude
- 10,000 ft (3,000 m) maximum
Storage
- Storage temperature
- – 4° to 158°F (–20° to 70°C)
- Humidity (relative)
- 95% maximum relative humidity (RH), non-condensing
- Altitude
- 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity
Certifications
- CE mark, commercial
- FCC Part 15 class B
- CE/EN55032/24
- VCCI
- ACMA
- CSA safety
- KC
- BSMI
Package Contents
- 1 x NETGEAR GS305EPP
- 1 x Power adapter (UK)
- 1 x Wall installation kit
- 1 x Set of rubber feet
- 1 x Installation guide
Standard Warranty: 5-Years
