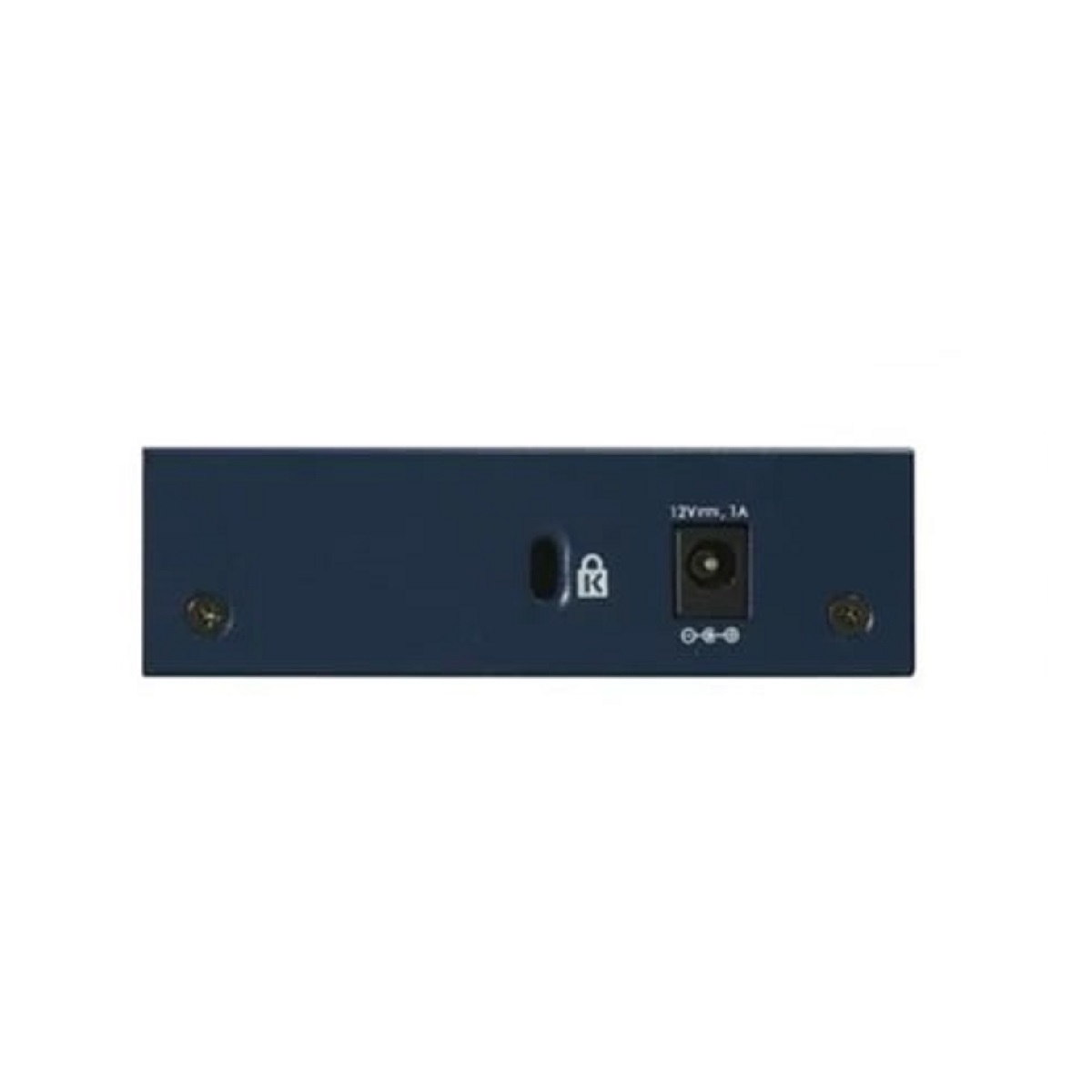

NETGEAR GS105 ProSAFE 5 Port Desktop Gigabit Switch
£25.36 inc.VAT / £21.13 exc.VAT
NETGEAR GS105 ProSAFE 5-Port Desktop Gigabit Switch (Fast, auto-switching 10/ 100/1000 Mbps)
NETGEAR GS105 ProSAFE 5 Port Desktop Gigabit Switch is configured to support jumbo frames, ProSAFE GS100 switches will forward them, as well as honoring priority tags at both the layer 2 and layer 3 level.
NETGEAR GS105 ProSAFE 5-Port Desktop Gigabit Switch (Fast, auto-switching 10/ 100/1000 Mbps)
NETGEAR GS105 ProSAFE 5 Port Desktop Gigabit Switch
NETGEAR GS105 ProSAFE 5 Port Desktop Gigabit Switch is configured to support jumbo frames, ProSAFE GS100 switches will forward them, as well as honoring priority tags at both the layer 2 and layer 3 level. This means they moves very large files across your network instantly, and keep the high priority traffic moving.
Packed with ease-of-use features to simplify your networking experience, its trim design makes it an easy fit for a desk or mounted on a wall. The durable metal chassis protects interior working parts and the fanless design results in silent operation.
Matched with NETGEAR’s thorough testing, the ProSAFE GS100 switches provide long-lasting performance you can count on.
Gigabit Switch GS105 ProSAFE 5 Port Desktop
Key Features
- Connects your network with the dual advantages of performance and convenience.
- Fast, auto-switching Ethernet connection integrates 10, 100, and 1000 Mbps devices into your network.
- Supports Windows and Macintosh platforms.
- LEDs make it easy to monitor link, speed, and activity.
- Auto-Uplink technology automatically adjusts for two common types of cables.
- Compact metal case for desktop or wall mounting.
NETGEAR Green
- Up to 60% lower power consumption.
- Auto power-down mode saves energy when port is unused.
- Packaging manufactured with at least 80% recycled materials.
Gigabit Power, 10/100 Simplicity
- Connects up to 10x faster than Fast Ethernet for maximum performance.
- Up to 60% lower power consumption.
- Auto power-down mode saves energy when port is unused.
- Simple to combine Fast Ethernet and Gigabit devices in your network.
- Plug-and-play installation delivers ease of use.
Specifications
Product Highlights
- Instant plug-and-play switch
- 5 x 10/100/1000 Mbps ports
- All ports Auto Uplink for auto-detection of MDI/MDI-X wiring
- Non-blocking, wire-speed performance
- Durable metal chassis
- External power adapter
- Limited Lifetime warranty on unit, 2 years power supply
Number of Built-in Ports
- 5 x 10/100/1000Mbps port – Auto-negotiation of MDI-II/MDI-X for all 10/100/1000Mbps ports
LEDs
- Per port: Speed, Link, Activity, Collision, Duplex
- Per device: Power
Data Transfer Rates
- Ethernet: 10Mbps (half duplex) 20Mbps (full duplex)
- Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex)
- Gigabit Ethernet: 2000Mbps (full duplex)
Performance
Transmission Method
- Store-and-forward
Bandwidth
- 10 Gbps (non-blocking)
Forwarding Rate
- 14,800 frames/sec max for 10M port
- 148,000 frames/sec max for 100M port
- 1,480,000 frames/sec max for 1000M port
Network latency
- 10 to 100 Mbps – 20 usec max
- 100 to 1000 Mbps – 10 usec max
Mac Address
- Automatic MAC Address Learning
- Address table up to 8K MAC address
RAM Buffer
- 256K On-Chip Packet Buffering
- Queue Buffer Memory 12 kbytes per port
Dimensions
- 158 x 105 x 25 mm
(6.22 x 4.13 x 0.98 inches)
Manufactures Warranty
- Switch: NETGEAR Lifetime Warranty
- Power adapter: NETGEAR 2-year warranty
Package Contents
- NETGEAR GS105 5 Port 10/100/1000 Desktop Switch
- Wall-mount Kit
- UK Power Adapter
- User’s Guide
- Quick Installation Guide
Standard Warranty: Lifetime
