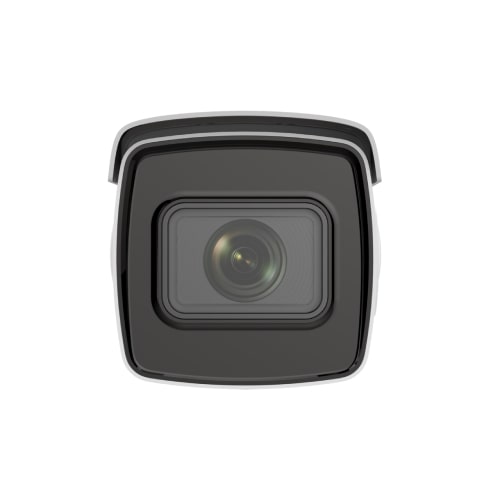

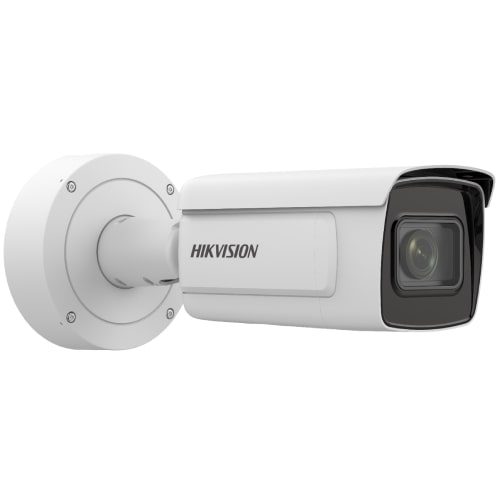

The Hikvision iDS-2CD7A26G0/P-IZHSY DeepinView Outdoor PoE+ Bullet IP Camera is a high performance outdoor surveillance camera. Featuring a motorised varifocal lens, day and night functionality with IR cut filter, Wide Dynamic Range (WDR) and Digital Noise Reduction (DNR), this Hikvision iDS-2CD7A26G0/P-IZHSY Bullet IP Camera is equipped to tackle any outdoor security solution. Furthermore, this camera features an alarm trigger for motion detection and tampering, a heater, and ANPR.

Key Features

• High quality imaging with 2 MP resolution.
• Excellent low-light performance via DarkFighter technology.
• Clear imaging against strong back light due to 140 dB WDR technology.
• Licence Plate Recognition.
• Efficient H.265+ compression technology to save bandwidth and storage.
• 5 streams to meet a wide variety of applications.
• Water and dust resistant (IP67) and vandal proof (IK10).

Camera

Image Sensor

• 1/1.8″ Progressive Scan CMOS

Max. Resolution

• 1920 x 1080

Min. Illumination

• Colour: 0.0005 Lux @ (F1.2, AGC ON)
• B/W: 0.0001 Lux @ (F1.2, AGC ON),0 Lux with IR

Shutter Time

• 1 s to 1/100,000 s

Day & Night

• IR cut filter
• Blue glass module to reduce ghost phenomenon

Lens

Focal Length

• 2.8 to 12 mm

Field of View

• Horizontal: 114.5° to 41.8°; vertical: 59.3° to 23.6°; diagonal: 141.1° to 48°

Focus

• Auto, semi-auto, manual

Iris Type

• P-iris

Aperture

• F1.2 to F2.5

Illuminator

Supplement Light Type

• IR

Supplement Light Range

• 50 m

Smart Supplement Light

• Yes

IR Wavelength

• 850 nm

Video

Main Stream

• 50 Hz: 25 fps (1920 x 1080, 1280 x 720)
• 60 Hz: 30 fps (1920 x 1080, 1280 x 720)

Sub-Stream

• 50 Hz: 25 fps (704 x 576, 640 x 480)
• 60 Hz: 30 fps (704 x 480, 640 x 480)

Third Stream

• 50 Hz: 25 fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480)
• 60 Hz: 30 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480)

Fourth Stream

• 50 Hz: 25 fps (1920 x 1080, 1280 x 720, 704 x 576, 640 x 480)
• 60 Hz: 30 fps (1920 x 1080, 1280 x 720, 704 x 480, 640 x 480)

Fifth Stream

• 50 Hz: 25 fps (704 x 576, 640 x 480)
• 60 Hz: 30 fps (704 x 480, 640 x 480)

Video Compression

• Main stream: H.265+/H.265/H.264+/H.264
• Sub-stream/Third stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG

Video Bit Rate

• 32 Kbps to 8 Mbps

H.264 Type

• Baseline Profile/Main Profile/High Profile

H.265 Type

• Main Profile

Bit Rate Control

• CBR/VBR

Scalable Video Coding (SVC)

• H.265 and H.264 encoding

Region of Interest (ROI)

• 4 fixed regions for each stream

Target Cropping

• Yes

Audio

Audio Type

• Mono sound

Audio Compression

• G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3

Audio Bit Rate

• 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)/8 to 320 Kbps (MP3)

Audio Sampling Rate

• 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Environment Noise Filtering

• Yes

Network

Protocols

• TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Simultaneous Live View

• Up to 20 channels

API

• Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

User/Host

• Up to 32 users
• 3 user levels: administrator, operator and user

Security

• Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Together with high-end Hikvision memory card, memory card encryption and health detection are supported

Client

• iVMS-4200, Hik-Connect, Hik-Central

Web Browser

• Plug-in required live view: IE8+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
• Local service: Chrome 41.0+, Firefox 30.0+


Image Parameters Switch

• Yes

Image Settings

• Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

• Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger

Wide Dynamic Range (WDR)

• 140 dB

SNR

• > 52 dB

Image Enhancement

• BLC, HLC, Defog, 3D DNR

Picture Overlay

• LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Image Stabilisation

• EIS

Interface

Video Output

• 1 Vp-p Composite Output (75 O/CVBS) (Only for debugging)

Ethernet Interface

• 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

On-Board Storage

• Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Audio

• 1 input (line in), 1 output (line out), 3.5 mm connector

Alarm

• 2 input, 2 outputs (max. 24 VDC, 1 A)

RS-485

• 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

• Yes

Power Output

• 12 VDC, max. 100 mA

Wiegand

• 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)

Event

Basic Event

• Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection

Smart Event

• Intrusion detection, scene change detection, audio exception detection, defocus detection
• Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable
• Region entrance detection, up to 4 regions configurable
• Region exiting detection, up to 4 regions configurable

Linkage

• Upload to FTP/NAS/memory card, notify surveillance centre, send email, trigger alarm output, trigger recording, trigger capture

Deep Learning Function

Perimeter Protection

• Line crossing, intrusion, region entrance, region exiting
• Support alarm triggering by specified target types

Road Traffic and Vehicle Detection

• Blocklist and allowlist: up to 10,000 records
• Captures vehicle that has no licence plate

Metadata

• Metadata of road traffic is supported

General

Power

• 12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block
• PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295 A, max. 16.8 W

Material

• Aluminium alloy body

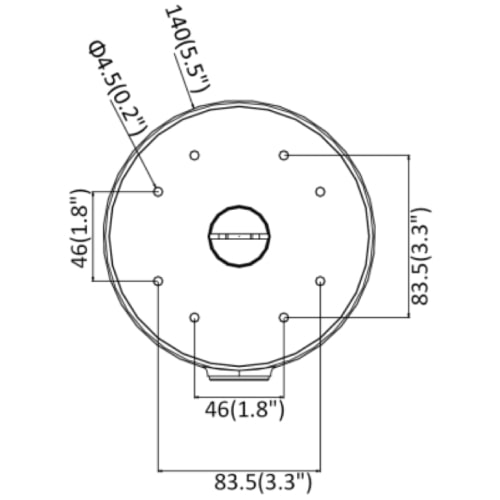

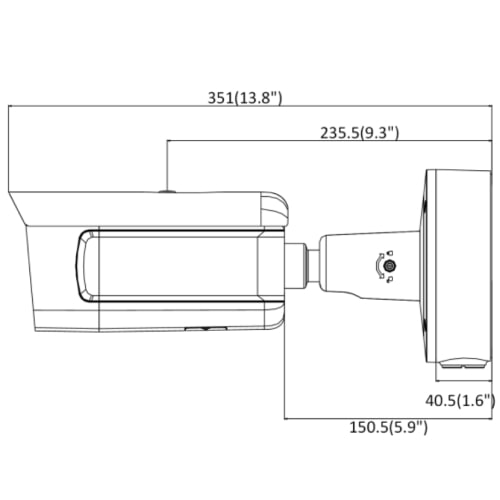

Dimensions

• Ø 140 x 351 mm (Ø 5.5 x 13.8 in.)

Weight

• Approx. 1950 g (4.2 lb.)

Startup and Operating Temperature

• -40°C to 60°C (-40°F to 140°F)

Startup and Operating Humidity

• 95% or less (non-condensing)

Storage Temperature

• -30°C to 60°C (-22°F to 140°F)

Storage Humidity

• 95% or less (non-condensing)

Language

• 33 languages:
  • Bulgarian
  • Chinese (Traditional)
  • Croatian
  • Czech
  • Danish
  • Dutch
  • English
  • Estonian
  • Finnish
  • French
  • German
  • Greek
  • Hungarian
  • Italian
  • Japanese
  • Korean
  • Latvian
  • Lithuanian
  • Norwegian
  • Polish
  • Portuguese (Brazil)
  • Portuguese (Europe)
  • Romanian
  • Russian
  • Serbian
  • Slovak
  • Slovenian
  • Spanish
  • Swedish
  • Thai
  • Turkish
  • Ukrainian
  • Vietnamese

General Function

• Anti-flicker, 5 streams, EPTZ, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Heater

• Yes

Approval

EMC

• FCC (47 CFR Part 15, Subpart B)
• CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)
• RCM (AS/NZS CISPR 32: 2015)
• IC (ICES-003: Issue 7)
• KC (KN 32: 2015, KN 35: 2015)

Safety

• UL (UL 62368-1)
• CB (IEC 62368-1:2014+A11)
• CE-LVD (EN 62368-1:2014/A11:2017)
• BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005)
• LOA (IEC/EN 60950-1)

Environment

• CE-RoHS (2011/65/EU)
• WEEE (2012/19/EU)
• Reach (Regulation (EC) No 1907/2006)

Protection

• IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

Anti-Corrosion Protection

• NEMA 4X(NEMA 250-2018)

Automotive and Railway

• EN50121-4

Other

• PVC FREE

Road Traffic and Vehicle Detection

With embedded deep learning based licence plate capture and recognition algorithms, the camera alone can achieve plate capture and recognition. The algorithm enjoys the high recognition accuracy of common plates and complex-structured plates, which is a great step forward comparing to traditional algorithms. Blocklist and allowlist are available for plate categorisation and separate alarm triggering.

2MP DeepinView ANPR Moto Varifocal Bullet Camera

• High quality imaging with 2 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to 140 dB WDR technology
• License Plate Recognition
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)

Standard Warranty: 5-Years

Warranty is invalidated by the incorrect installation of the product. In particular, failure to make correct use of the weather-proof gland will cause oxidation of the connector pins, resulting in irreparable damage to the camera.
