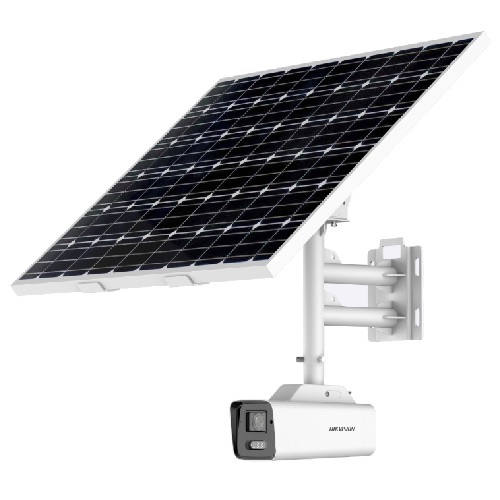

Hikvision DS-2XS6A87G1-L/C32S80 Fixed Bullet Solar Power 4G Network Camera Kit
HikVision 4K ColorVu Fixed Bullet Solar Power 4G Network Camera Kit (DS-2XS6A87G1-L/C32S80)
The Hikvision DS-2XS6A87G1-L/C32S80 Fixed Bullet Solar Power 4G Network Camera Kit can be used in areas that are not suitable for laying wired network and electric supply lines, or in scenarios where the environment would be demanding on the devices stability. It can be used for monitoring farms, electric power cables, water and river systems, oil pipelines and key forest areas.
HikVision 4K ColorVu Fixed Bullet Solar Power 4G Network Camera Kit (DS-2XS6A87G1-L/C32S80)
Hikvision DS-2XS6A87G1-L/C32S80 Fixed Bullet Solar Power 4G Network Camera Kit
The Hikvision DS-2XS6A87G1-L/C32S80 Fixed Bullet Solar Power 4G Network Camera Kit can be used in areas that are not suitable for laying wired network and electric supply lines, or in scenarios where the environment would be demanding on the devices stability. It can be used for monitoring farms, electric power cables, water and river systems, oil pipelines and key forest areas.
It also can be used in temporary monitoring situations, such as large-scale competitions, public gatherings, temporary traffic control and city construction.
Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilisation of available light. Empowered by deep learning algorithms.
Hikvision AcuSense technology brings human and vehicle target classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.
Key Features
- High quality imaging with 8 MP@ 15fps resolution
- 24/7 Colorful imaging
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- 80 W photovoltaic panel, 30 Ah chargeable lithium battery (The battery should be ordered separately.)
- Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
- LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
- Camera: Water and dust resistant (IP67)
- Built-in 64 GB eMMC storage
Specifications
Camera
- Image Sensor: 1/1.2″ Progressive Scan CMOS
- Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
- Shutter speed: 1 s to 1/100,000 s
- Max resolution: 3840 × 2160
Lens
- FOV:
- — 2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124°
- — 4 mm, horizontal FOV: 88.2°, vertical FOV: 48.7°, diagonal FOV: 101.8°
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Iris Type: Fixed
- Aperture: F1.0
- Lens Mount M20
DORI
- 2.8 mm: D: 44 m, O: 17.5 m, R: 9 m, I: 4.5 m
- 4 mm: D: 53 m, O: 21 m, R: 11 m, I: 5 m
Illuminator
- Supplement Light Type: White Light
- Supplement Light Range: Up to 30m
- Smart Supplement Light: Yes
Video
- Main Stream
– 50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
– 60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720) - Sub-Stream
– 50 Hz: 12.5 fps (640 × 480, 640 × 360) / 60 Hz: 15 fps (640 × 480, 640 × 360) - Video Compression
– Main stream: H.265
– Sub-stream: H.265/MJPEG - Video Bit Rate: 32 Kbps to 16 Mbps
Network
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for
HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2 - Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported. - Client: Hik-Connect (low power mode also supports), Hik-central Professional
- Web Browser:
– Plug-in required live view: IE10+
– Plug-in free live view: Chrome 57.0+, Firefox 52.0+
– Local service: Chrome 57.0+, Firefox 52.0+
- Wide Dynamic Range (WDR): 120 dB
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- Image Parameters: Switch Yes
- Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- SNR: ≥ 52 dB
- Privacy Mask: 4 programmable polygon privacy masks
Interface
- RS-485: 1 RS-485 (half duplex)
- On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB; Built-in 64 GB eMMC storage
- Reset Key: Yes
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
- Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP
- address conflict, illegal login, HDD full, HDD error)
- Smart Event: Line crossing detection, up to 4 regions configurable / Intrusion detection, up to 4 regions configurable / Region entrance detection, up to 4 regions configurable / Region exiting detection, up to 4 regions configurable / Unattended baggage detection, up to 4 regions configurable / Object removal detection, up to 4 regions configurable – The smart events are only supported under full power mode.
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger
- recording, trigger capture
General
- Power: 12 VDC ± 20%, Ø 5.5 mm coaxial power plug / 1. Standby power consumption: 53 mW / 2. The average power consumption of 24 hours: 2 W (4G transmission is excluded). / 3. The max. power consumption: 3.2 W
- Material: Front cover: metal, body: metal, bracket: metal
- Dimensions: 829.9 × 696.3 × 760 mm (32.7″ × 27.4″ × 30″) (Max. size of the camera after it is completely assembled)
- Package Dimension: 862 × 292 × 765 mm (33.9″ × 10.3″ × 30.1″)
- Weight: Approx. 25.4 kg (56.0 lb.)
- With Package Weight: Approx. 30.1 kg (66.3 lb.)
- Storage Conditions: -20 °C to 60 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -20 °C to 60 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianGeneral Function: Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via email, pixel counter
Battery
- Battery Type: Lithium – The battery should be ordered separately.
- Capacity: 30 Ah
- Max. Charging Voltage: 12.6 V
- Battery Voltage: 10.8 V
- Operating Temperature: Charging: -20 °C to 45 °C (-4 °F to 131 °F) / Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
- Battery Life: More than 500 cycles
- Battery Weight: Approx. 3.3 kg (7.3 lb.)
- Extended Dimension: 236 × 154 × 80 mm (9.3″ × 6.1″ × 3.2″)
Approval
- EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
- 50130-4: 2011+A1: 2014); / RCM (AS/NZS CISPR 32: 2015); / FCC (47 CFR Part 15, Subpart B); / IC (ICES-003: Issue 7)
- RF: CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN / 301489-52,EN 62133); / ICASA: same as CE-RED / FCC ID (47 CFR Part15 Subpart C); / IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5); / MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)
- Safety: CB (IEC 62368-1:2014+A11) / CE-LVD (EN 62368-1:2014/A11:2017) / LOA (IEC/EN 60950-1)
- Environment: CE-RoHS (2011/65/EU); / WEEE (2012/19/EU); / Reach (Regulation (EC) No 1907/2006)
- Protection: Camera: IP67 (IEC 60529-2013) / Wind resistance: 12 level
Function
4K ColorVu Fixed Bullet Solar Power 4G Network Camera Kit
- High quality imaging with 8 MP@ 15fps resolution
- 24/7 Colorful imaging
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- 80 W photovoltaic panel, 30 Ah chargeable lithium battery (The battery should be ordered separately.)
- Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
- LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
- Camera: Water and dust resistant (IP67)
- Built-in 64 GB eMMC storage
